System Specifications
SPECIFICATIONS: HEATING / AIR CONDITIONING: TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS
REFRIGERANT LINE
FRONT AIR CONDITIONING UNIT
REAR AIR CONDITIONING UNIT
REAR BLOWER MOTOR
BLOWER MOTOR CONTROLLER (for Rear Air Conditioning System)

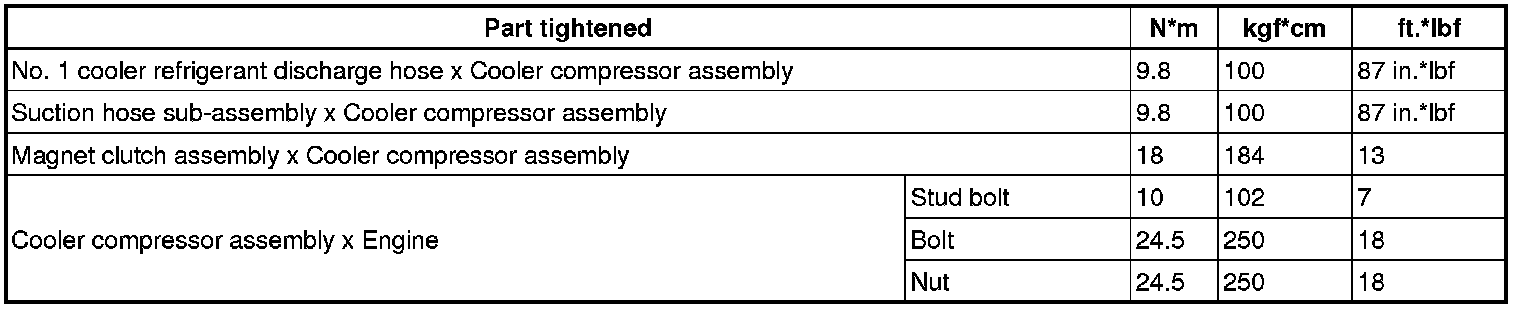

COMPRESSOR

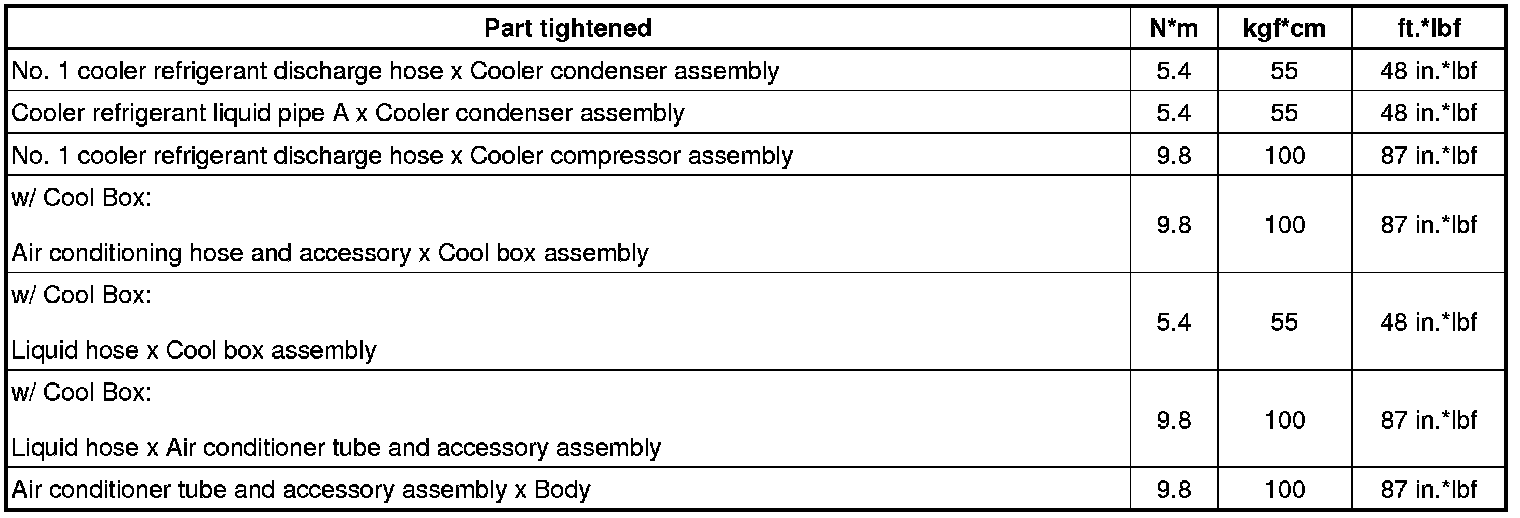

CONDENSER
CONDENSER FAN

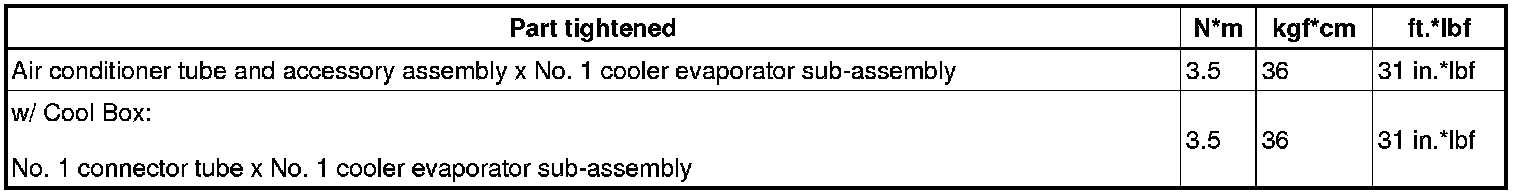

FRONT EVAPORATOR TEMPERATURE SENSOR
REAR EVAPORATOR TEMPERATURE SENSOR
SMOG VENTILATION SENSOR
AIR CONDITIONER PRESSURE SENSOR
AIR CONDITIONING PANEL
