Pinout Values and Diagnostic Parameters

VARIABLE GEAR RATIO STEERING: VARIABLE GEAR RATIO STEERING SYSTEM: TERMINALS OF ECU

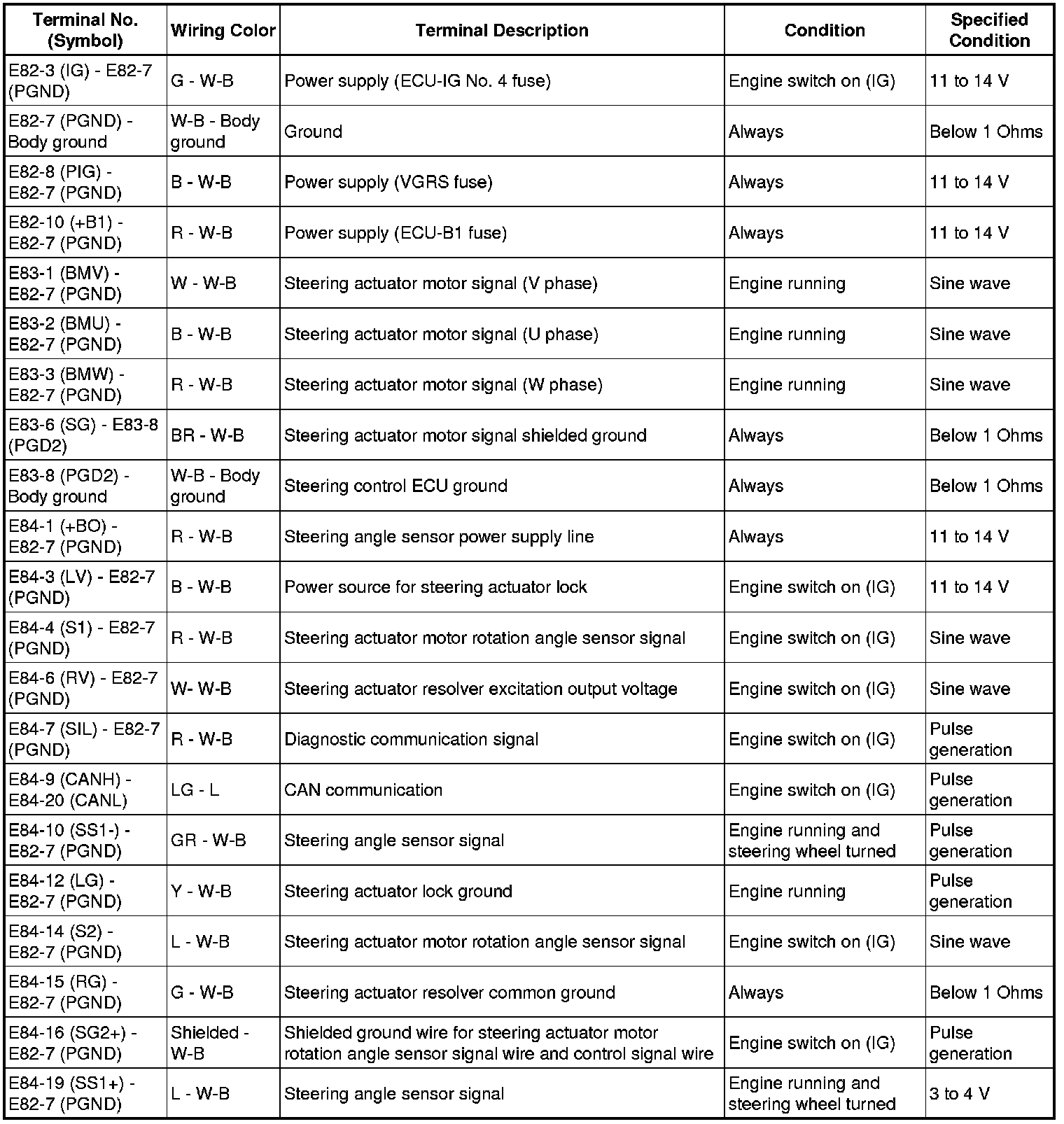

TERMINALS OF ECU

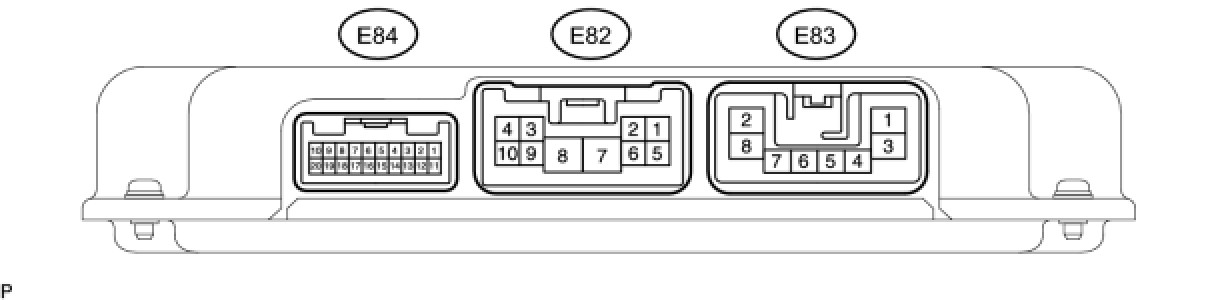

1. CHECK STEERING CONTROL ECU
HINT: Inspect the connectors from the back side while they are connected.
