Pinout Values and Diagnostic Parameters

SUSPENSION CONTROL: ACTIVE HEIGHT CONTROL SUSPENSION: TERMINALS OF ECU

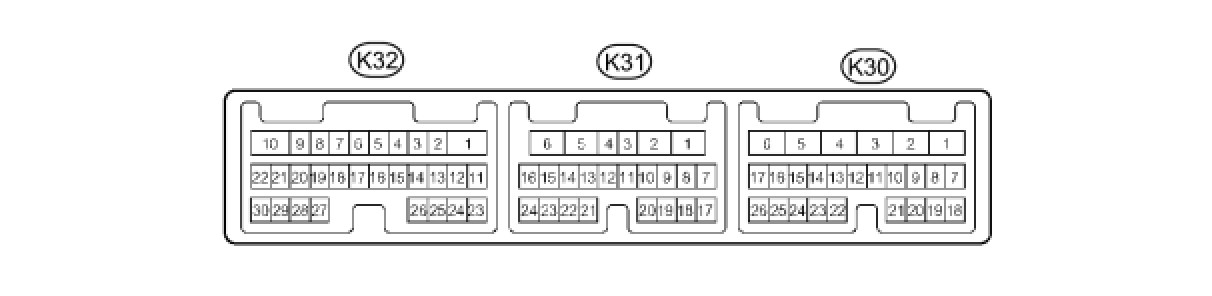

TERMINALS OF ECU

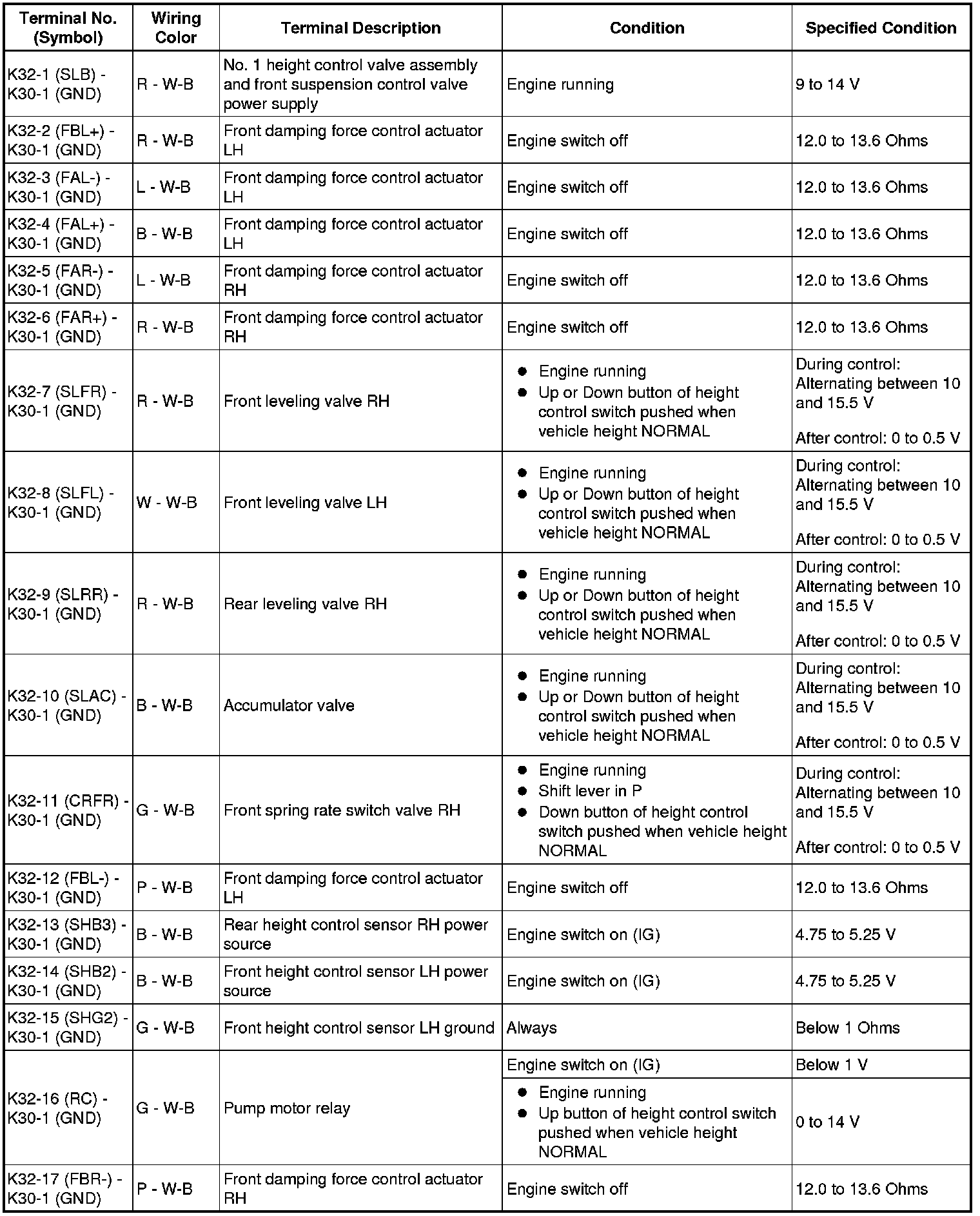

1. CHECK SUSPENSION CONTROL ECU
HINT: Inspect the connectors from the back side while the connectors are connected.
