Repair Instruction - Customize Parameters

INTRODUCTION: REPAIR INSTRUCTION: CUSTOMIZE PARAMETERS

CUSTOMIZE PARAMETERS

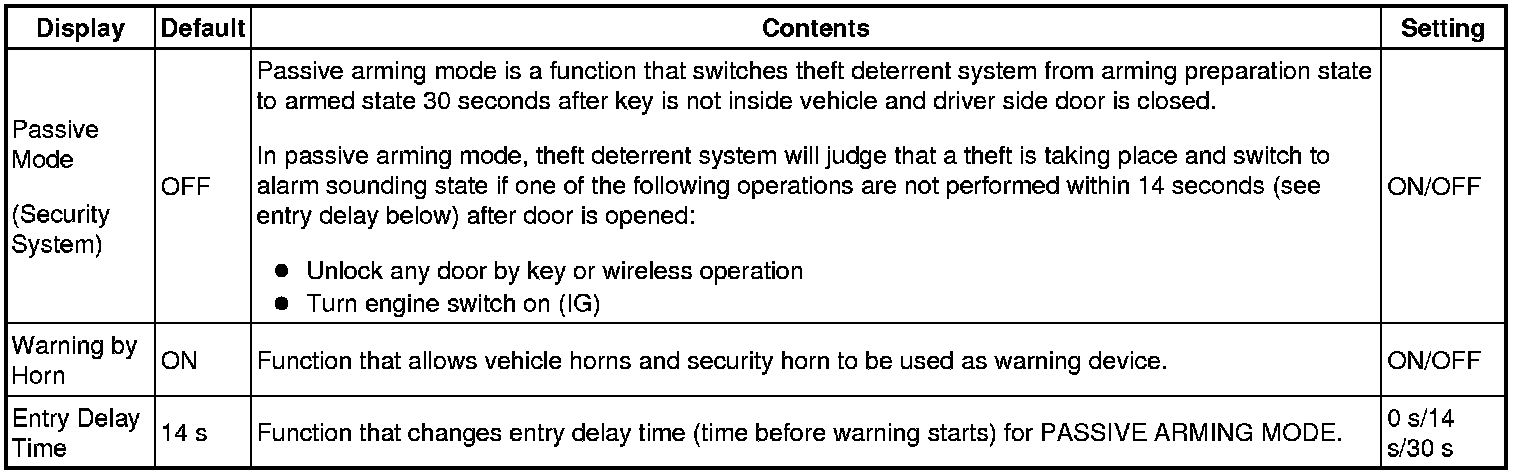

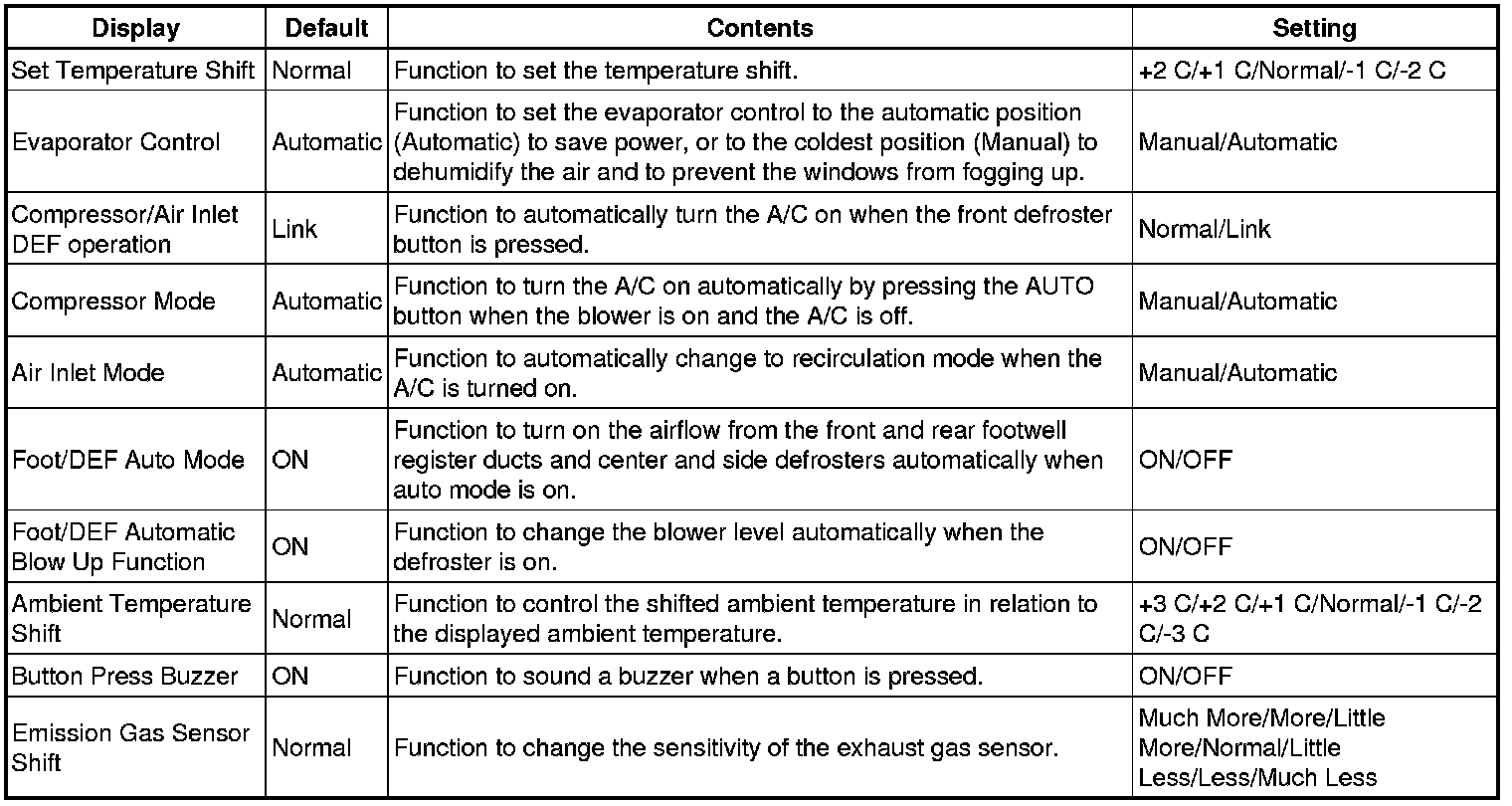

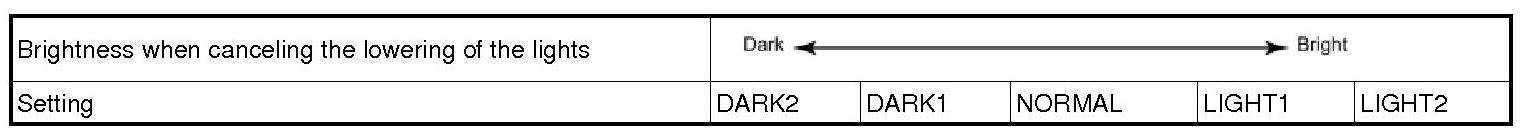

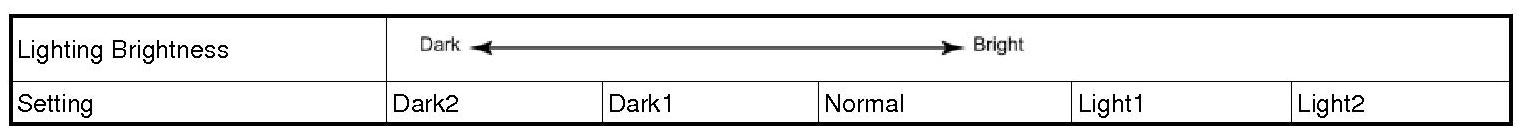

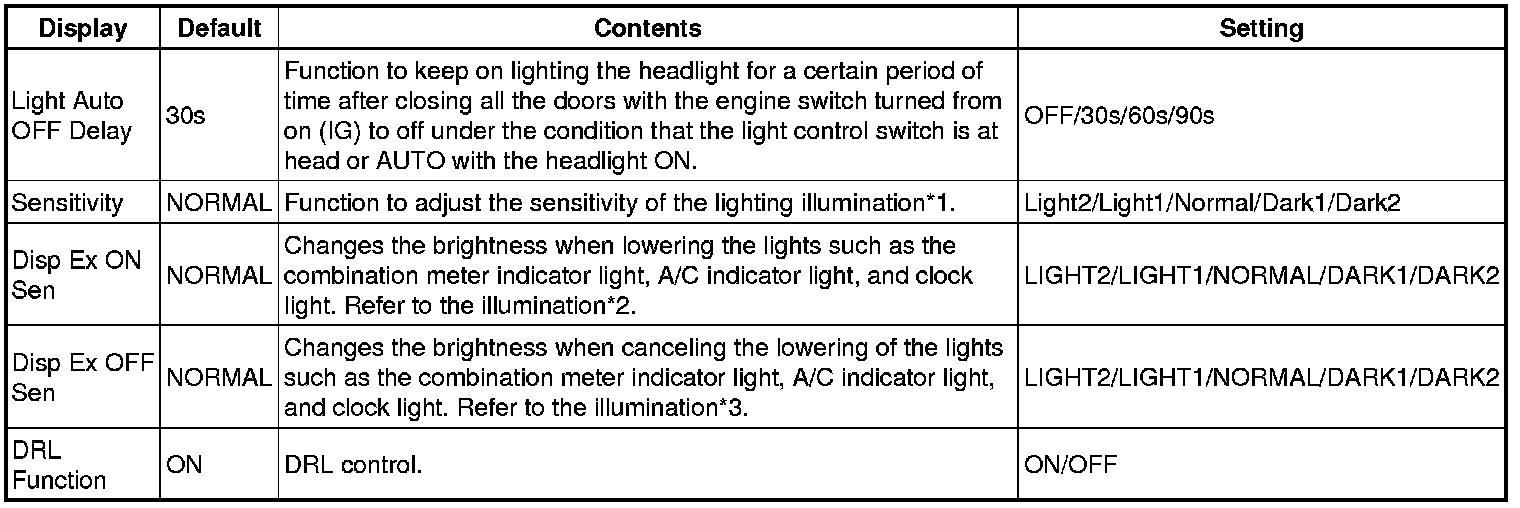

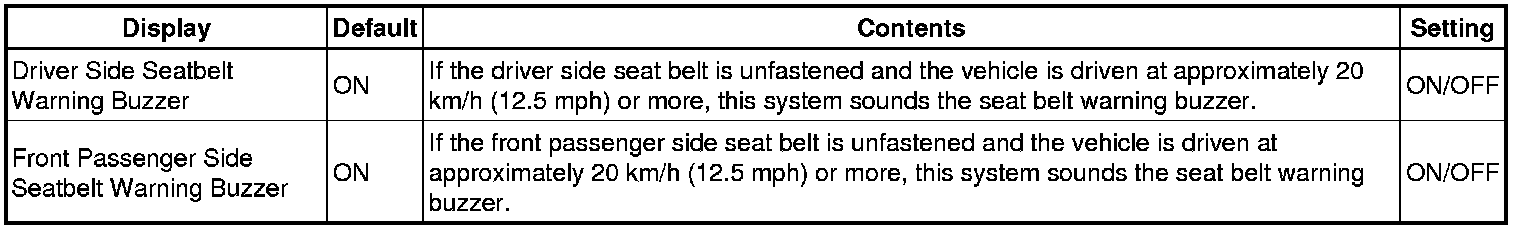

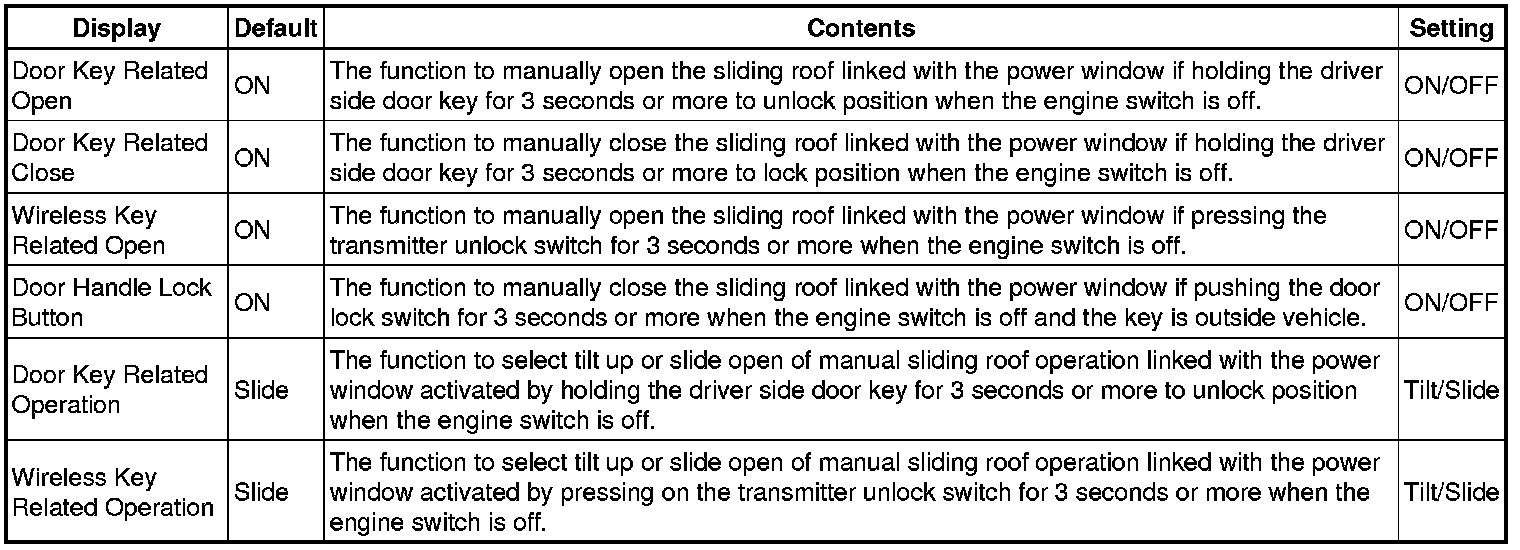

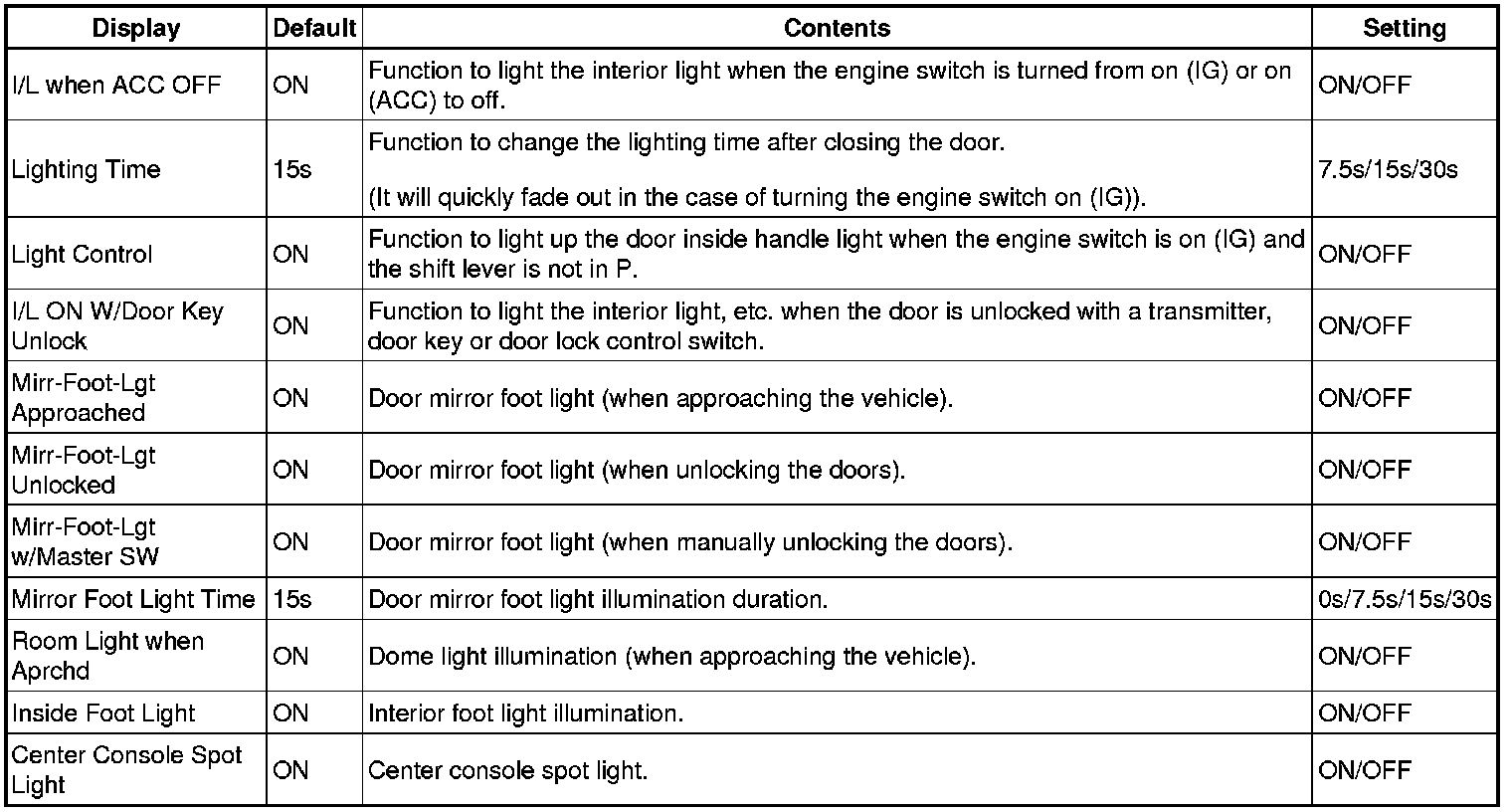

HINT: The following items can be customized.
NOTICE:
- When the customer requests a change in a function, first make sure that the function can be customized.
- Be sure to make a note of the current settings before customizing.
- When troubleshooting a function, first make sure that the function is set to the default setting.

1. CUSTOMIZING FUNCTION WITH TECHSTREAM
(a) POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

Tilt & Telesco

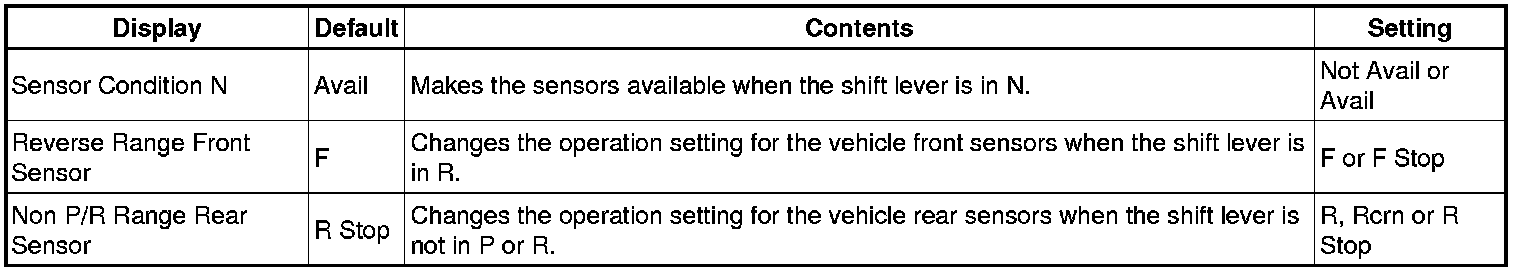

(b) INTUITIVE PARKING ASSIST SYSTEM

Warning

Sensor

Display

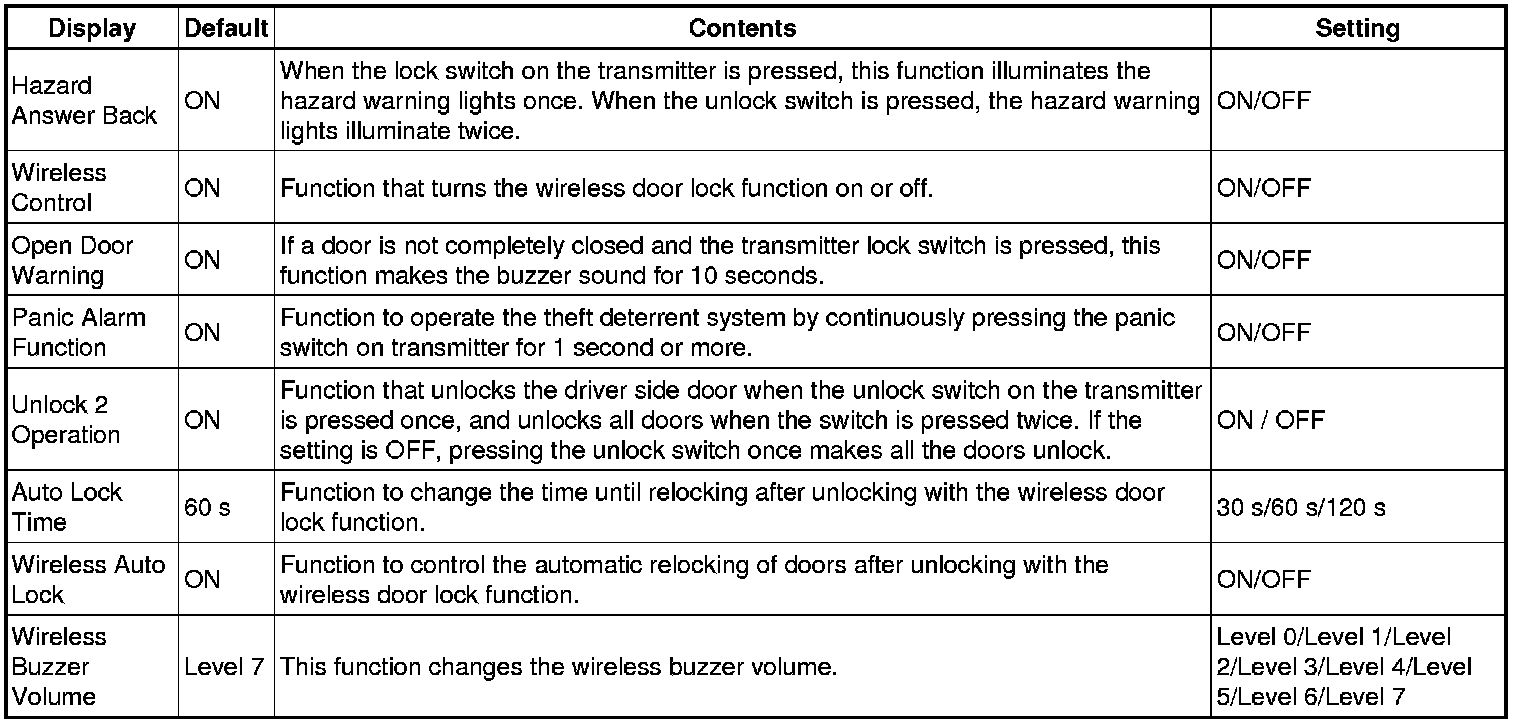

(d) WIRELESS DOOR LOCK CONTROL SYSTEM

Wireless Door Lock

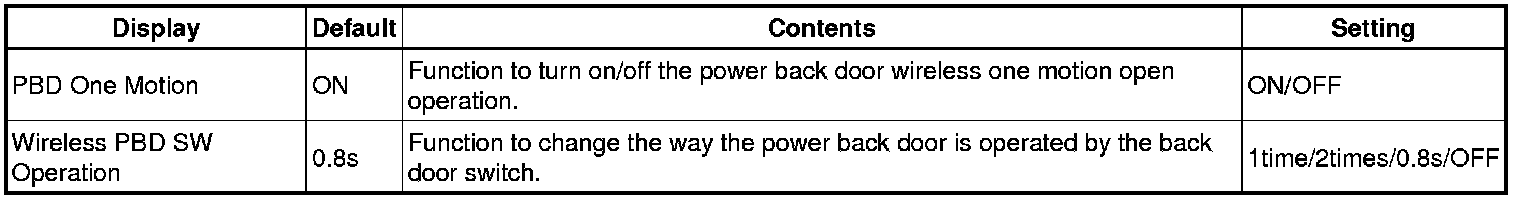

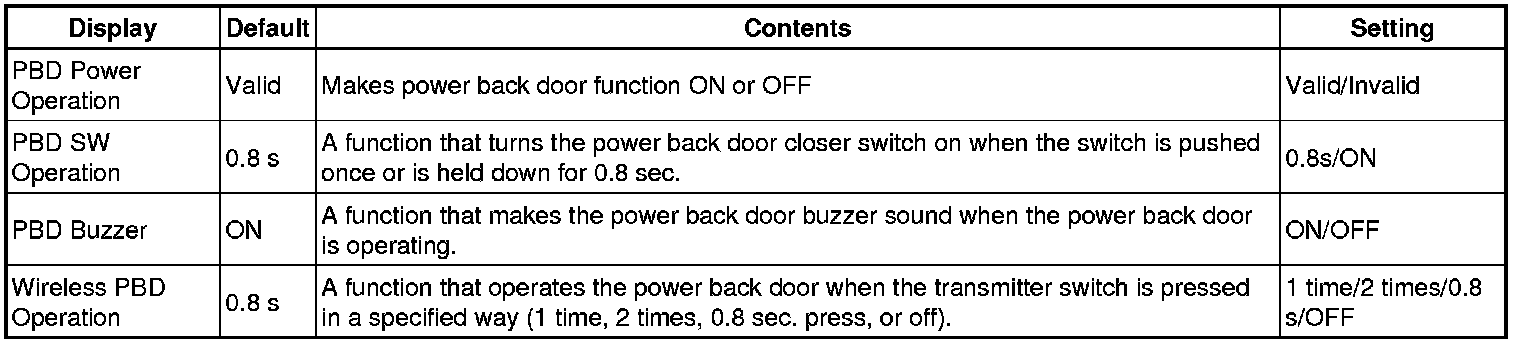

PSD&PBD Operation (W/ Power Back Door System)

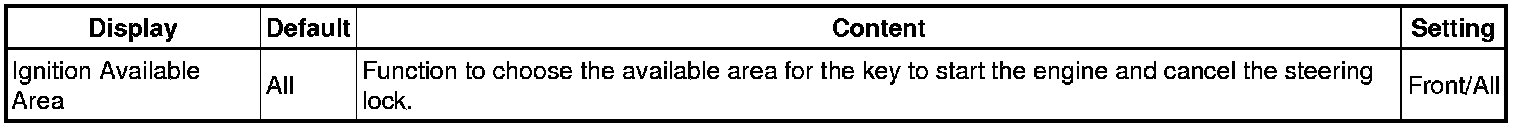

(e) SMART ACCESS WITH PUSH-BUTTON START (for Entry Function)

Smart Key / Access

Warning

HINT:
*1: Waiting time to permit unlocking door after locking.
*2: Entry ignition available area.
*3: "FRONT" means front, and "ALL" means front floor, rear floor and luggage compartment.
*4: Back door open mode when vehicle is locked.
*5: Warn when key battery becomes weak.

(f) ENTRY UNLOCK MODE SWITCHING FUNCTION
(1) To use the entry unlock mode switching function, make sure the engine switch is off and simultaneously press and hold the lock switch on the key and another key switch for 5 seconds.
- When the switches are pressed and held for 5 seconds, the entry door unlock mode changes in the following order: driver door unlock mode, all door unlock mode.
NOTE:
After pressing and holding the switches for 5 seconds, wait 5 seconds before performing the same procedure again.

- Driver door unlock mode (default):
When the driver door touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.
- All door unlock mode:
When a touch sensor is touched, all doors unlock.
(2) The certification ECU (smart key ECU assembly) receives this signal from the door control receiver and changes the smart access system with push-button start to the entry unlock mode.

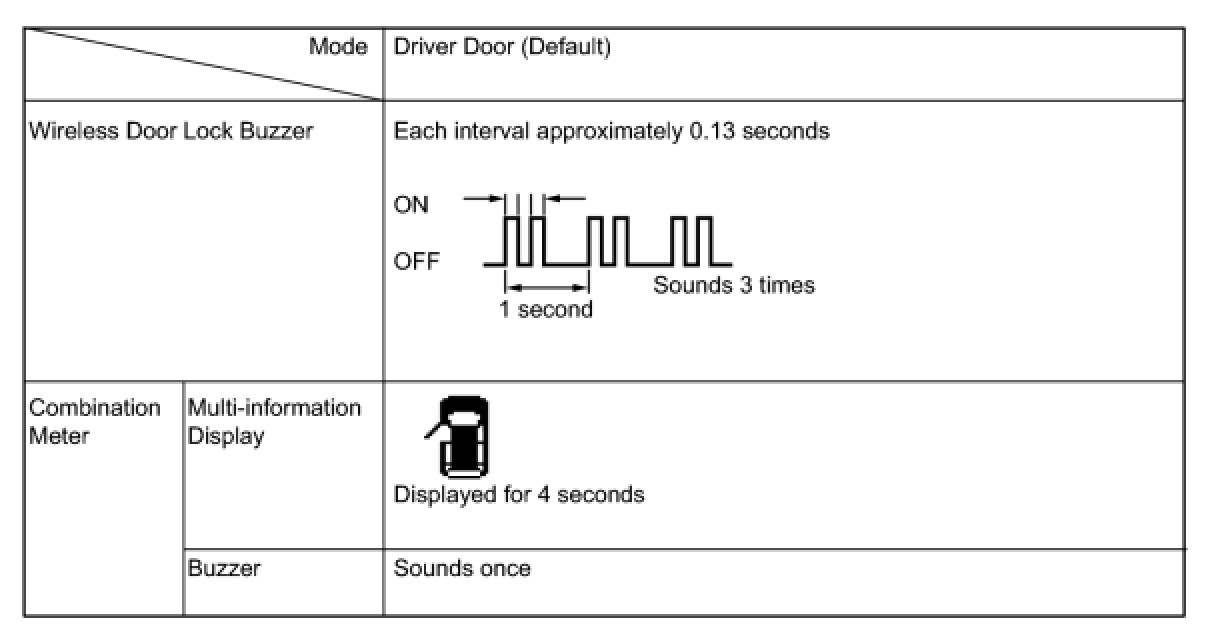

(3) The certification ECU (smart key ECU assembly) sounds the wireless door lock buzzer and combination meter buzzer to inform the user that the mode has been switched.

HINT: The function only changes the entry unlock mode of the smart access system with push-button start. It does not switch the unlocking of the wireless door lock control.

- Driver door unlock mode:

- All door unlock mode:

(g) SMART ACCESS WITH PUSH-BUTTON START (for Start Function)

Smart Key / Access
