Automatic Transmission/Transaxle: Locations

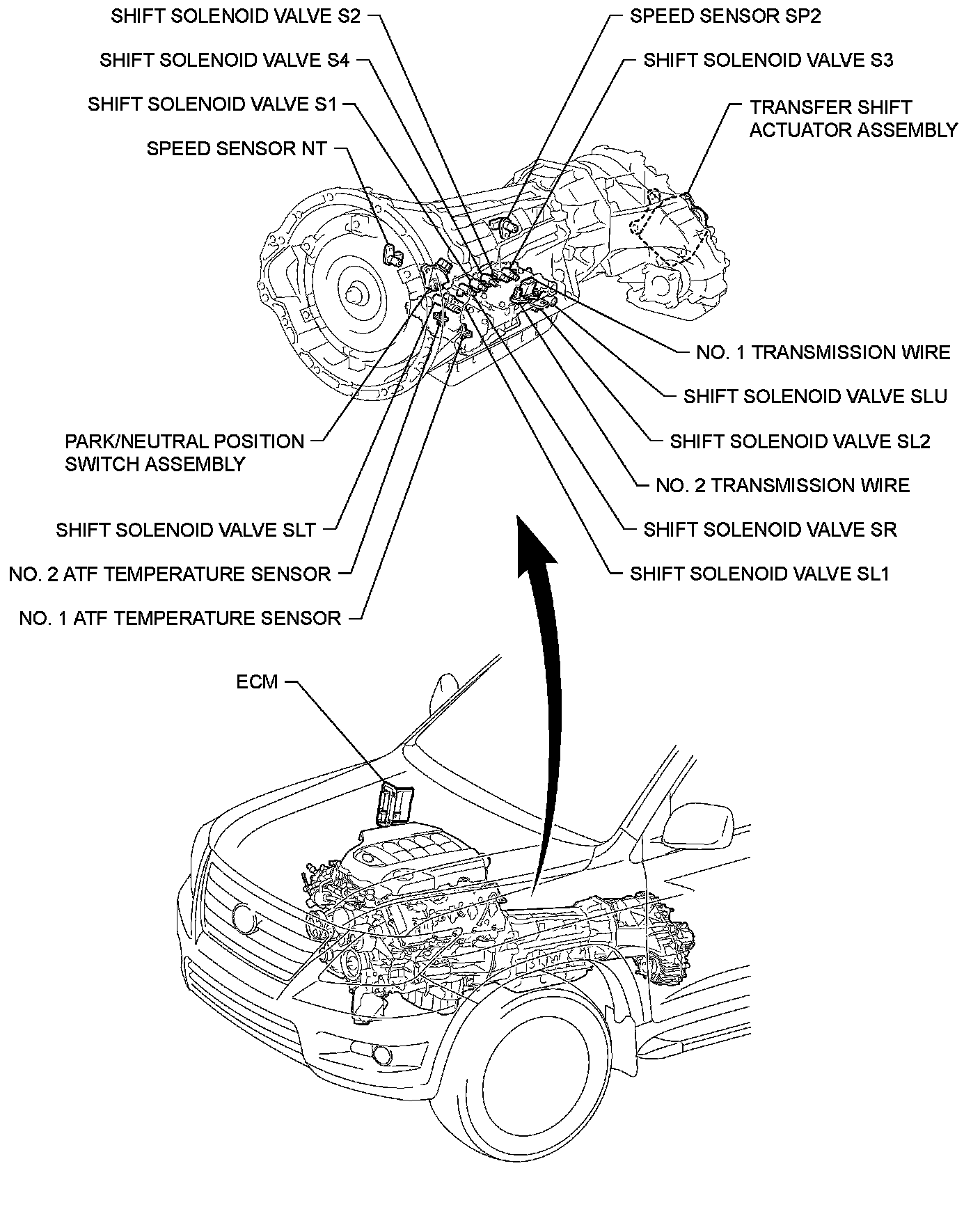

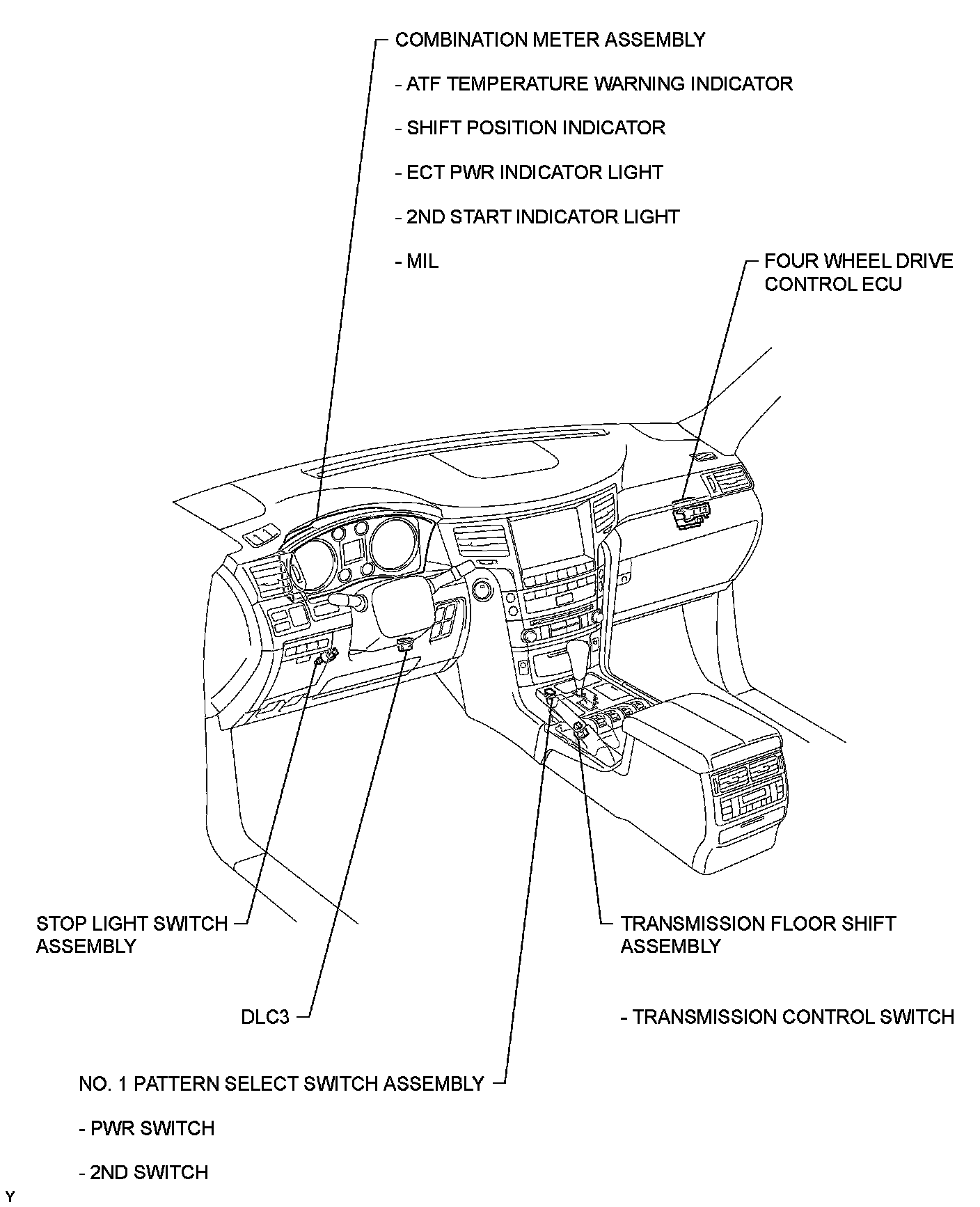

AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
