Home >> Lexus Truck >> 2009 >> LX 570 V8-5.7L (3UR-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Description and Operation

Transfer Case: Description and Operation








JF2A TRANSFER / 4WD / AWD: TRANSFER SYSTEM: SYSTEM DIAGRAM

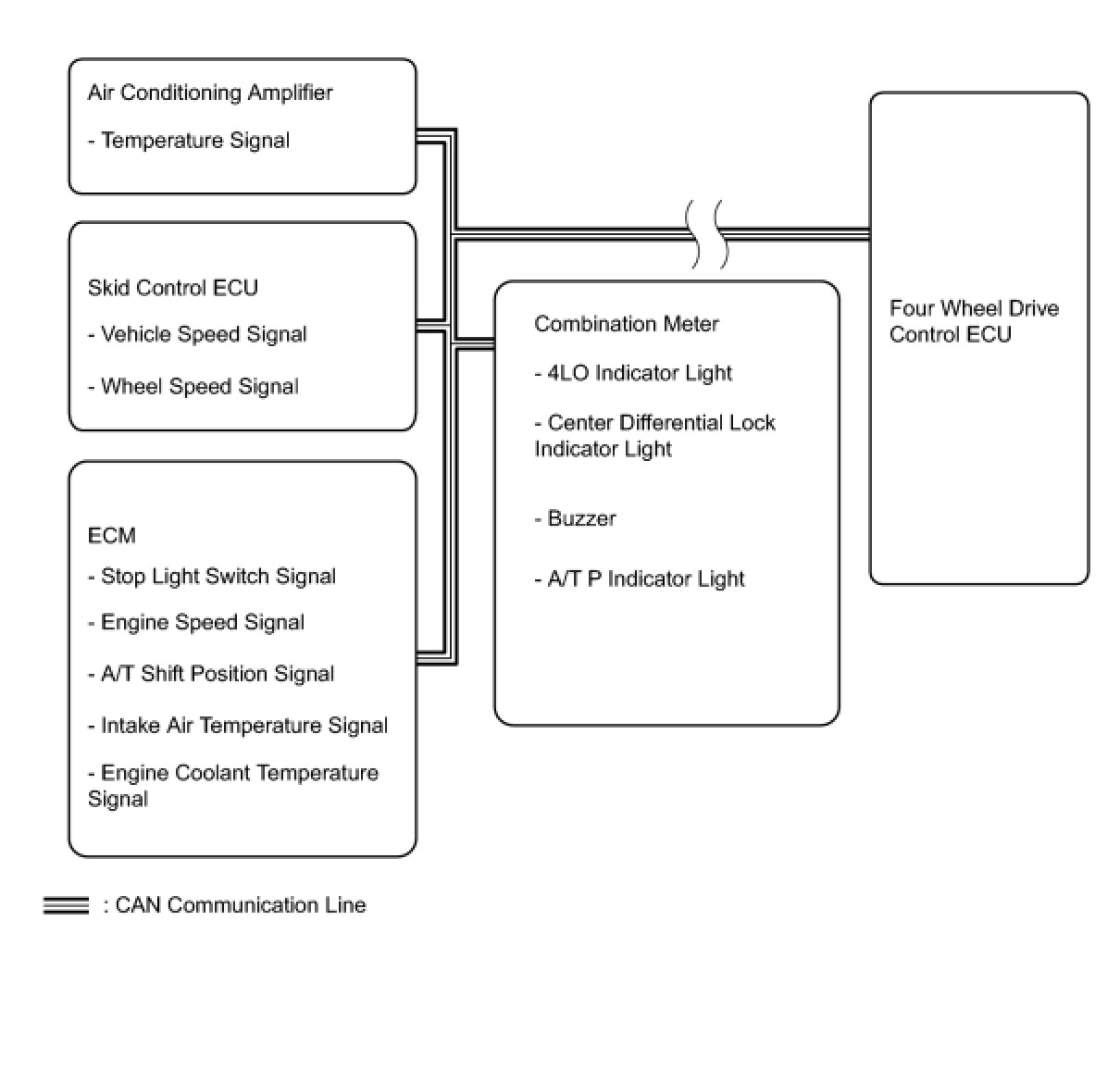

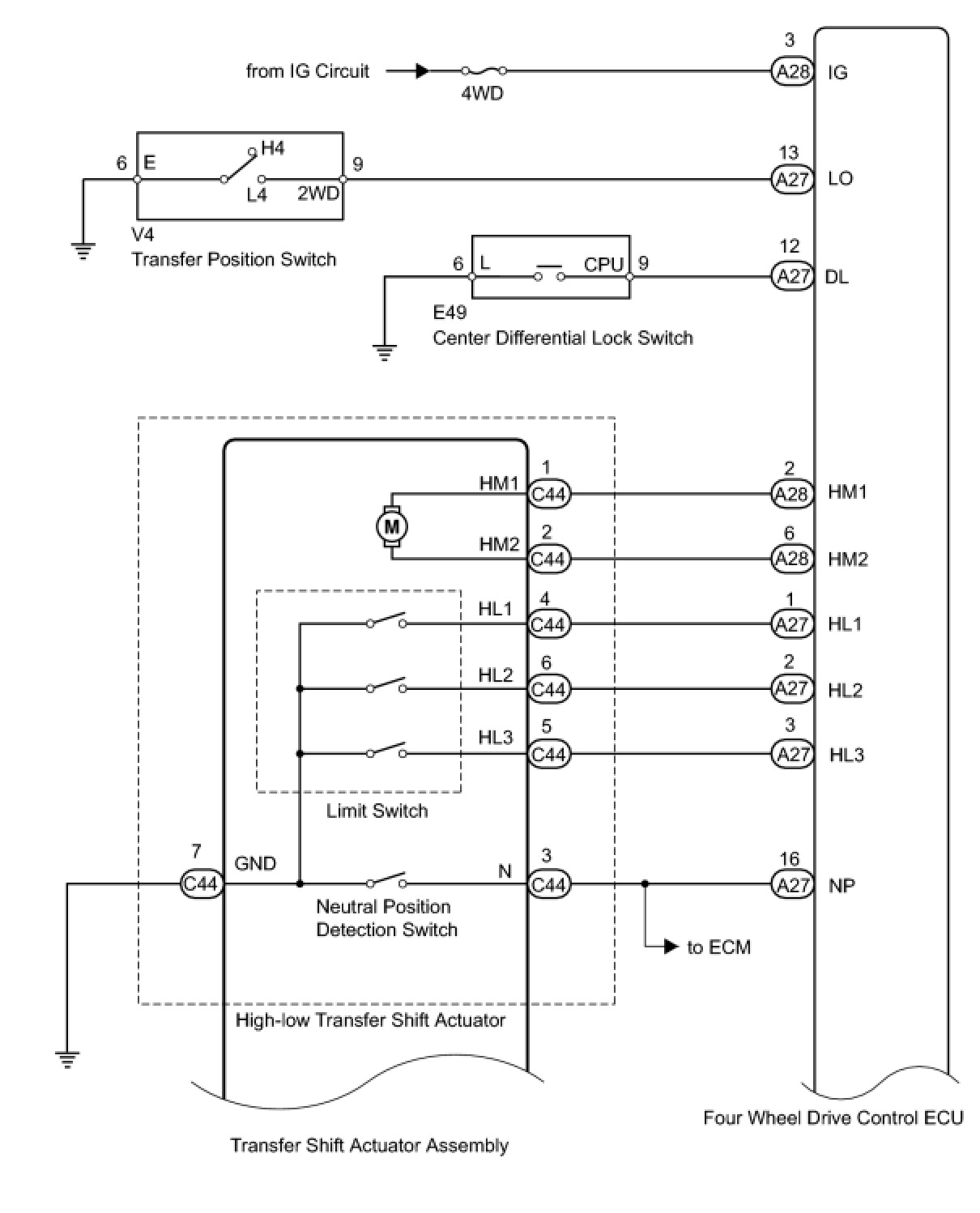

SYSTEM DIAGRAM
