Headlamp Wiper Switch: Testing and Inspection

WIPER / WASHER: HEADLIGHT CLEANER SWITCH: INSPECTION

INSPECTION

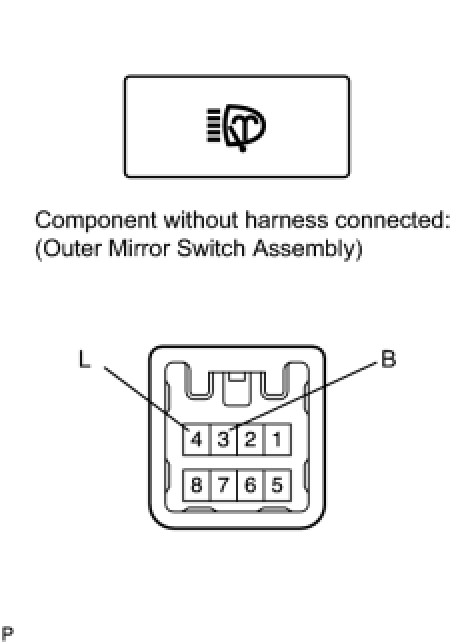

1. INSPECT OUTER MIRROR SWITCH ASSEMBLY





(a) Remove the outer mirror switch assembly.

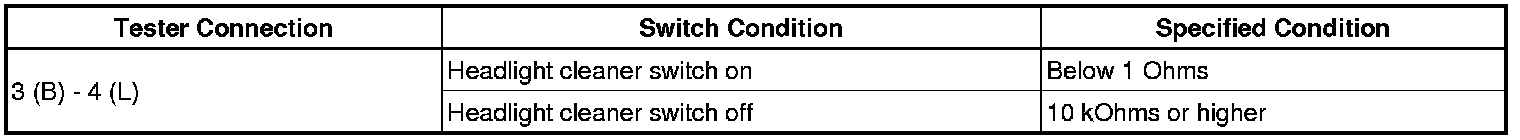

(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the outer mirror switch assembly.
