Console: Testing and Inspection

INTERIOR PANELS / TRIM: FRONT CONSOLE BOX (w/ Cool Box): INSPECTION

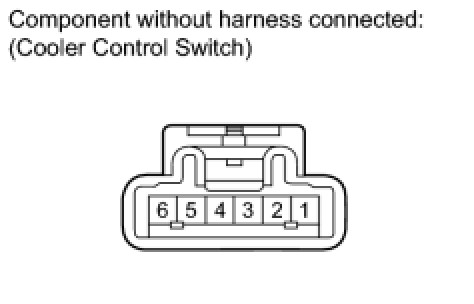

1. INSPECT COOLER CONTROL SWITCH SUB-ASSEMBLY

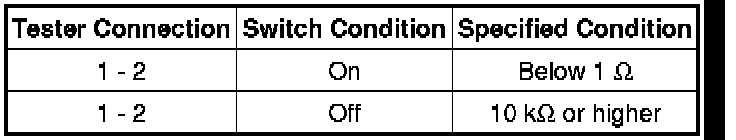

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





(b) Apply battery voltage to the cooler control switch connector and check that the indicator illuminates.

OK:





(b) If the result is not as specified, replace the cooler control switch sub-assembly.

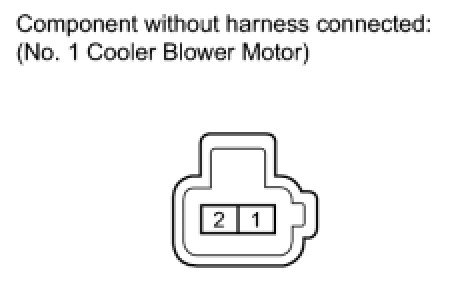

2. INSPECT NO. 1 COOLER BLOWER MOTOR SUB-ASSEMBLY

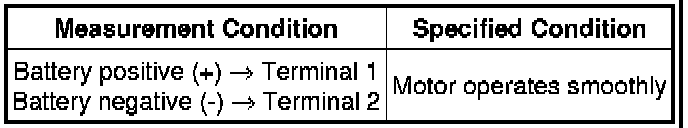

(a) Apply battery voltage to the blower motor connector and check the operation of the blower motor.

OK:





(a) If the result is not as specified, replace the blower motor sub-assembly.

3. INSPECT NO. 3 COOLER THERMISTOR

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





(a) If the result is not as specified, replace the cooler thermistor.

NOTICE:
* Even slightly touching the sensor may change the resistance value. Be sure to hold the connector of the sensor.
* When measuring, the sensor temperature must be the same as the ambient temperature.
HINT
As the temperature increases, the resistance decreases (See the graph).
