Power Locks: Description and Operation

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: SYSTEM DESCRIPTION

1. FUNCTION OF MAIN COMPONENT





*1: w/o Power Back Door

*2: w/ Power Back Door

2. SYSTEM DESCRIPTION

(a) The power door lock system locks/unlocks all doors.

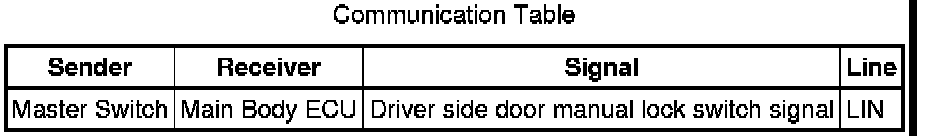

* The door control switch of the master switch uses the LIN line to send lock/unlock request signals to the main body ECU.

* The driver door key cylinder lock/unlock request signals are sent to the main body ECU from the front door lock LH.

* The passenger door control switch lock/unlock request signals are sent to the main body ECU from the front door lock RH.

* The main body ECU receives the request signals and locks/unlocks each door.

(a) The door control system has the following functions:





(a) *: This function is set through the customize function, as it is off by default.

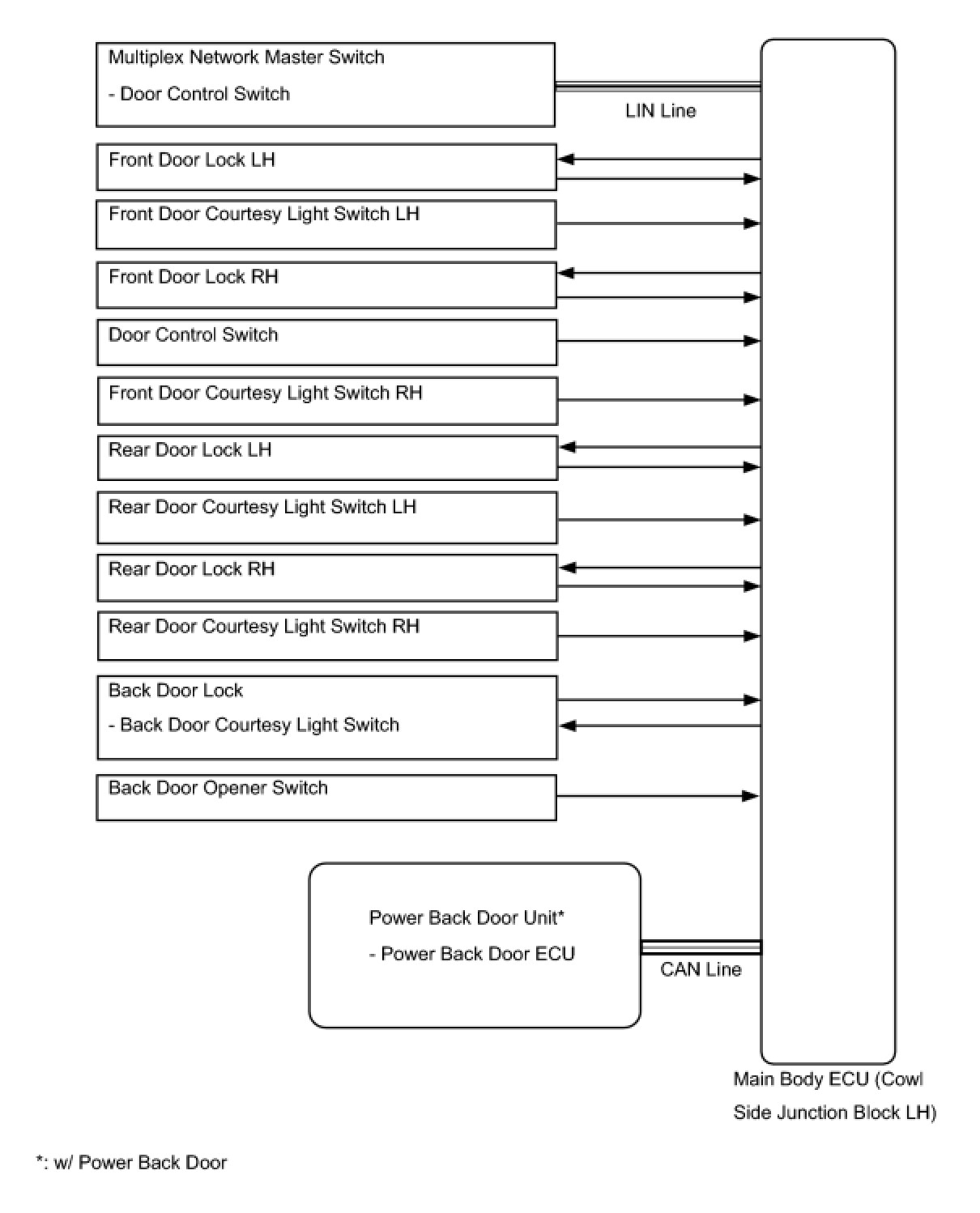

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: SYSTEM DIAGRAM
