Rear Power Seat Control System (for Rear No. 2 Seat With Manual Folding-Up Function)

SEAT: REAR POWER SEAT CONTROL SYSTEM (for Rear No. 2 Seat with Manual Folding-up Function): SYSTEM DESCRIPTION

1. FOLDING-UP SEAT DESCRIPTION

* The folding-up seat function electrically and mechanically stows and returns the rear No. 2 seat when the fold seat switch is operated.

* This system is used for both the left and right seats. Each system operates independently.

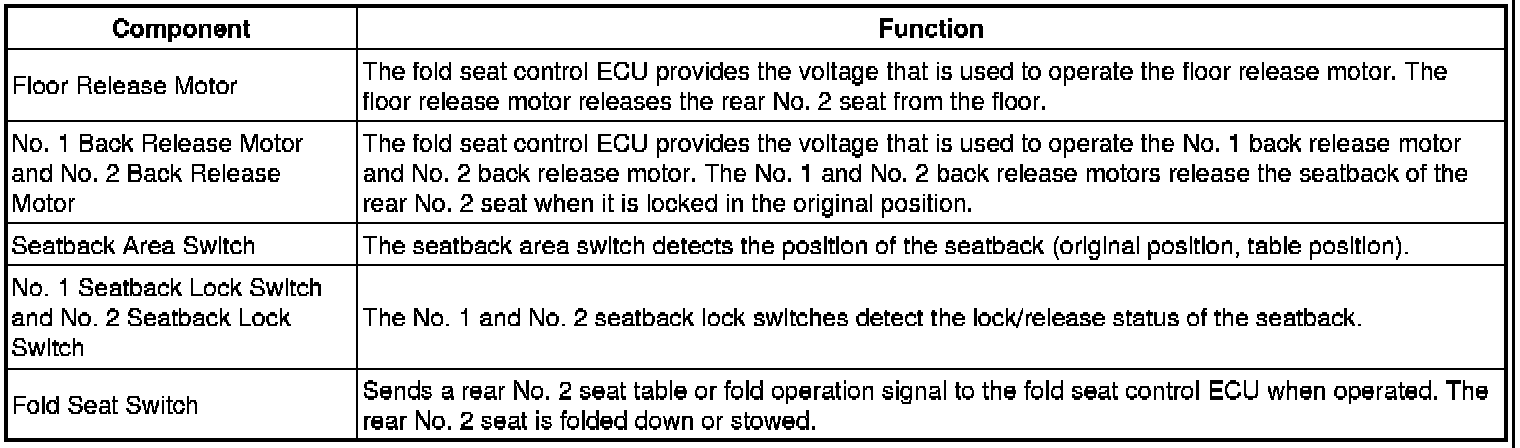

2. FUNCTIONS OF MAIN COMPONENT

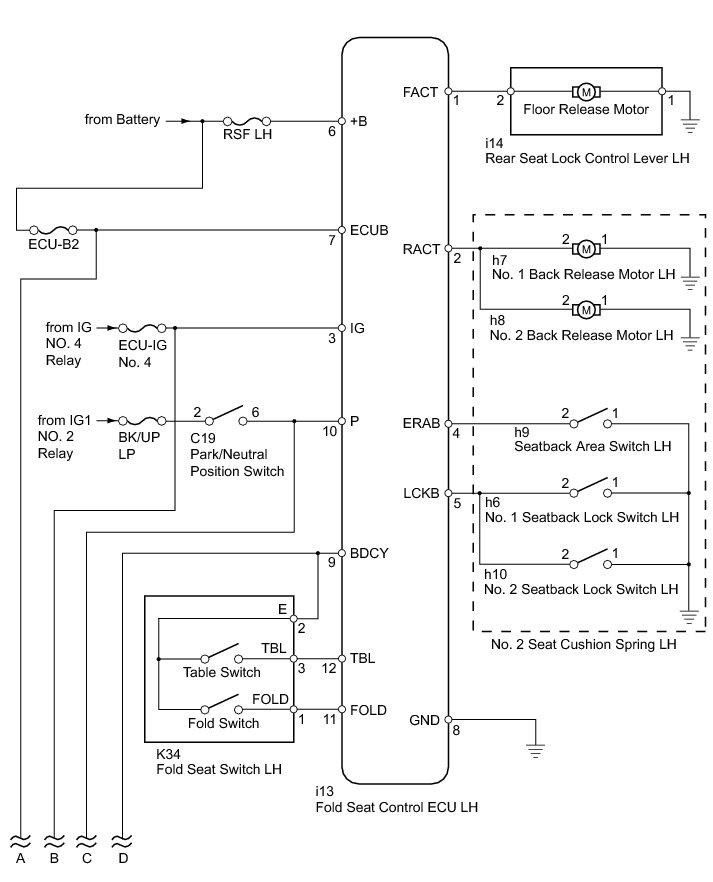

SEAT: REAR POWER SEAT CONTROL SYSTEM (for Rear No. 2 Seat with Manual Folding-up Function): SYSTEM DIAGRAM
