Position of Parts In Seat [Front Seat]
Position of Parts In Seat [Front Seat]
Position Of Parts in Seat [Front Seat]:

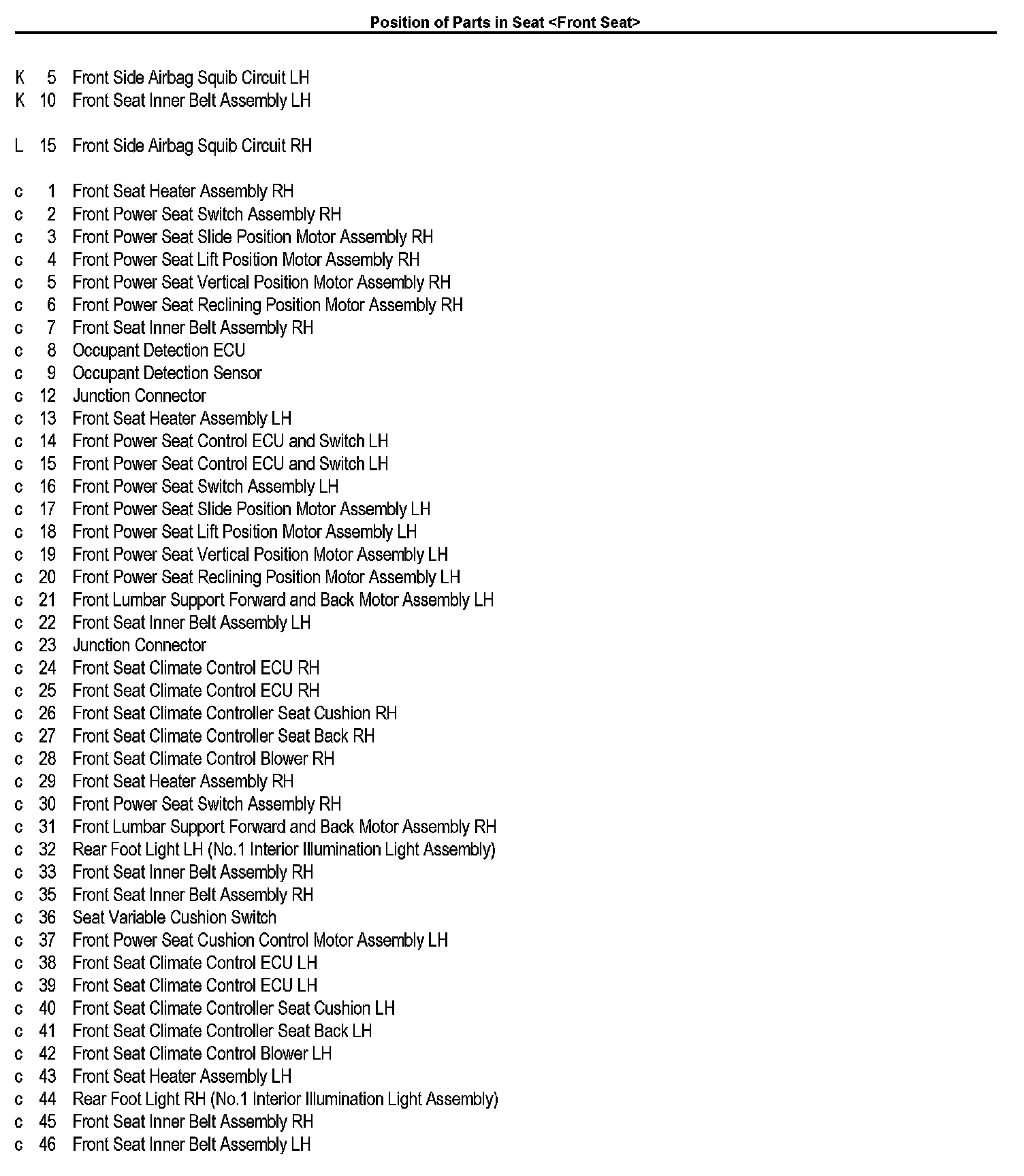

Legend:

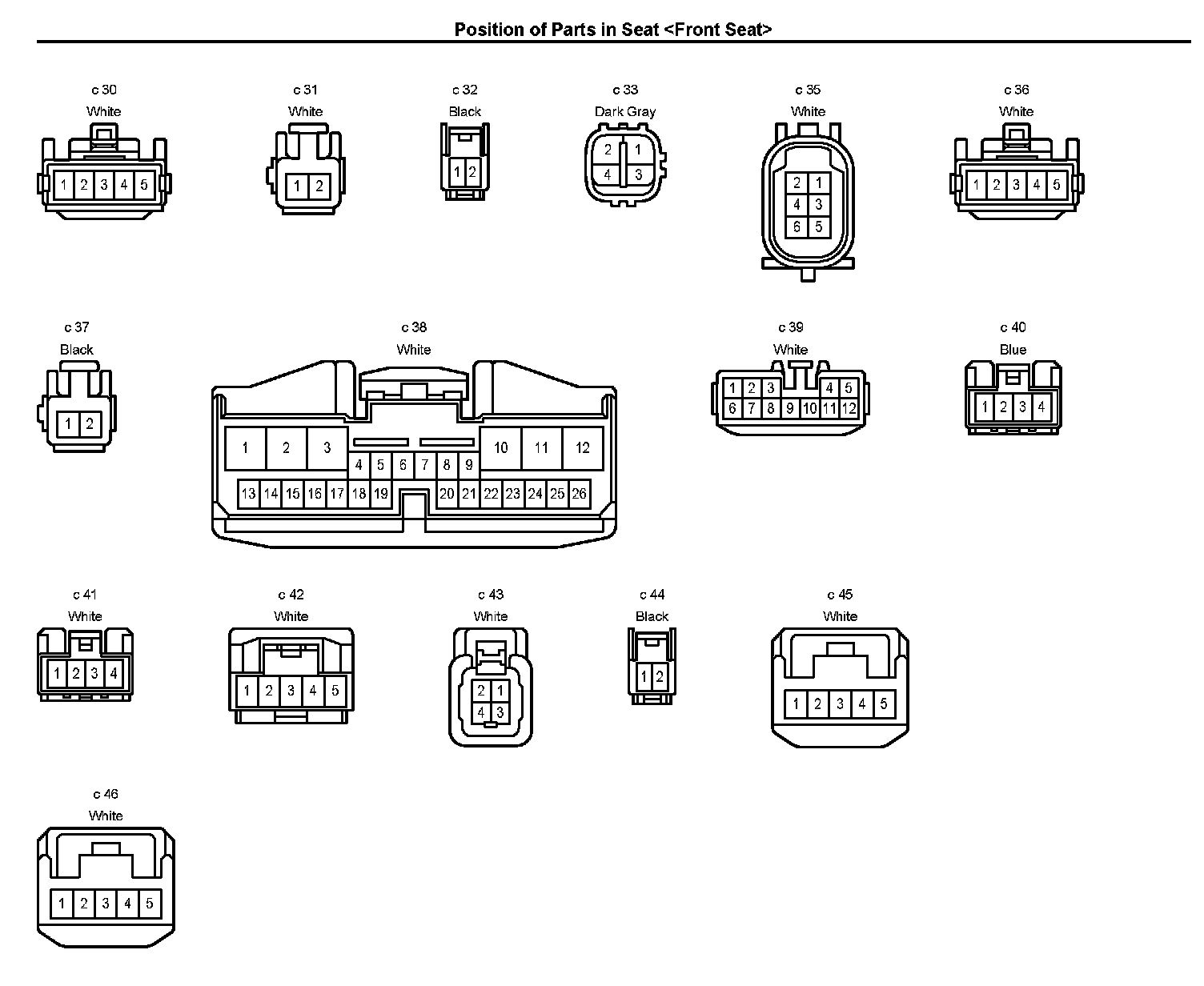

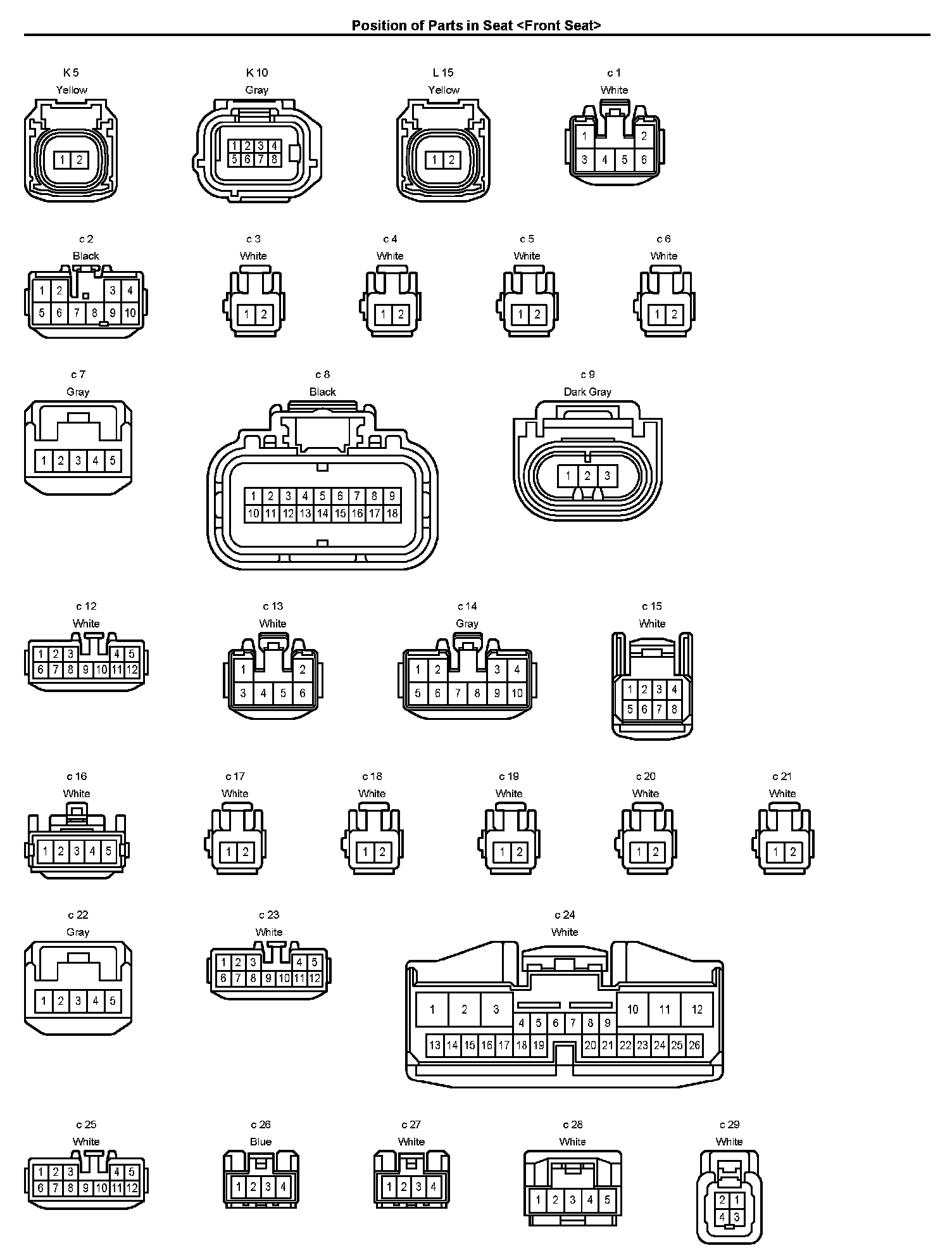

Connector Views:
Connector Views:
