Position of Parts In Seat [Rear No.1 Seat]
Position of Parts In Seat [Rear No.1 Seat]

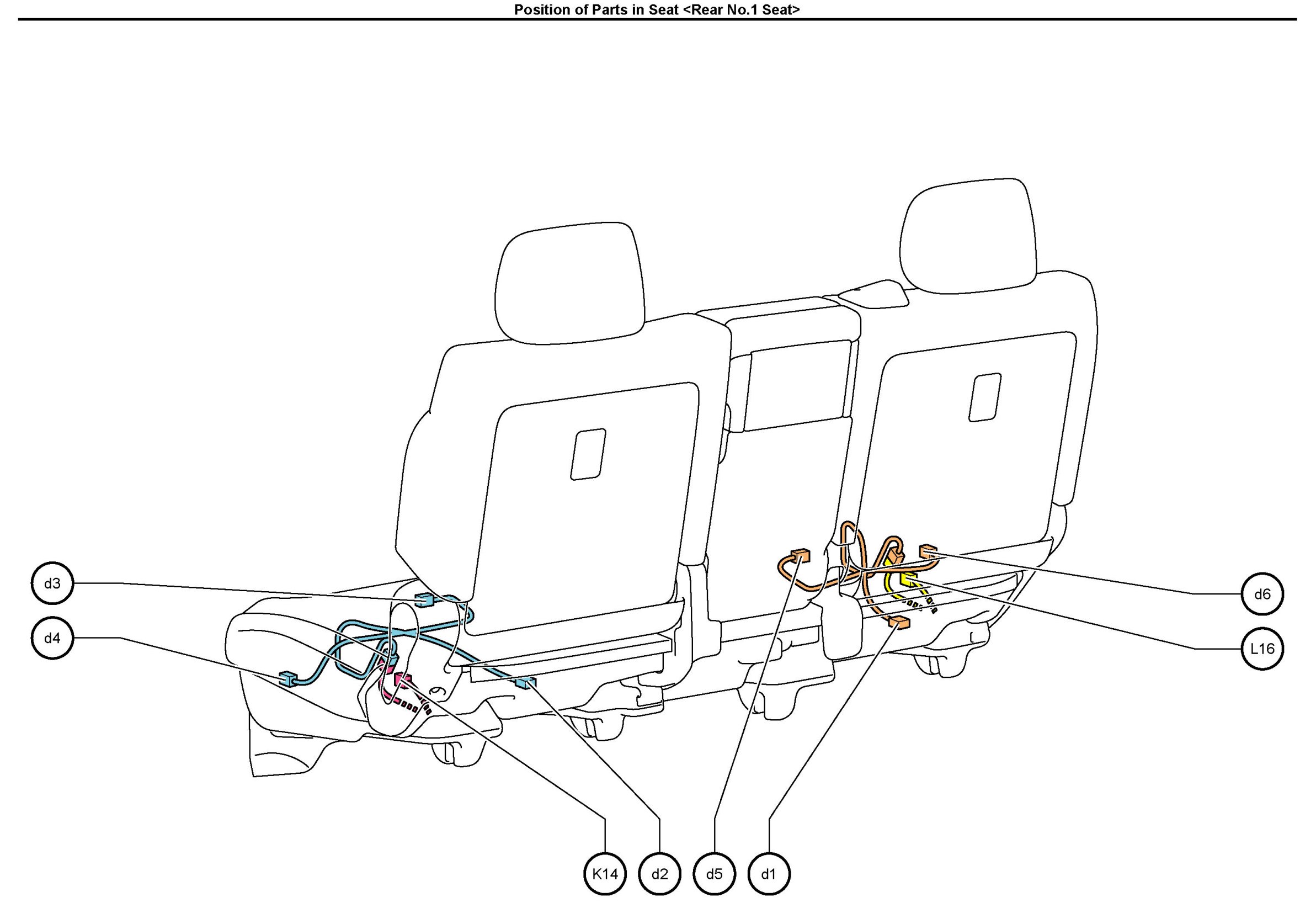

Position Of Parts in Seat [Rear No.1 Seat]:

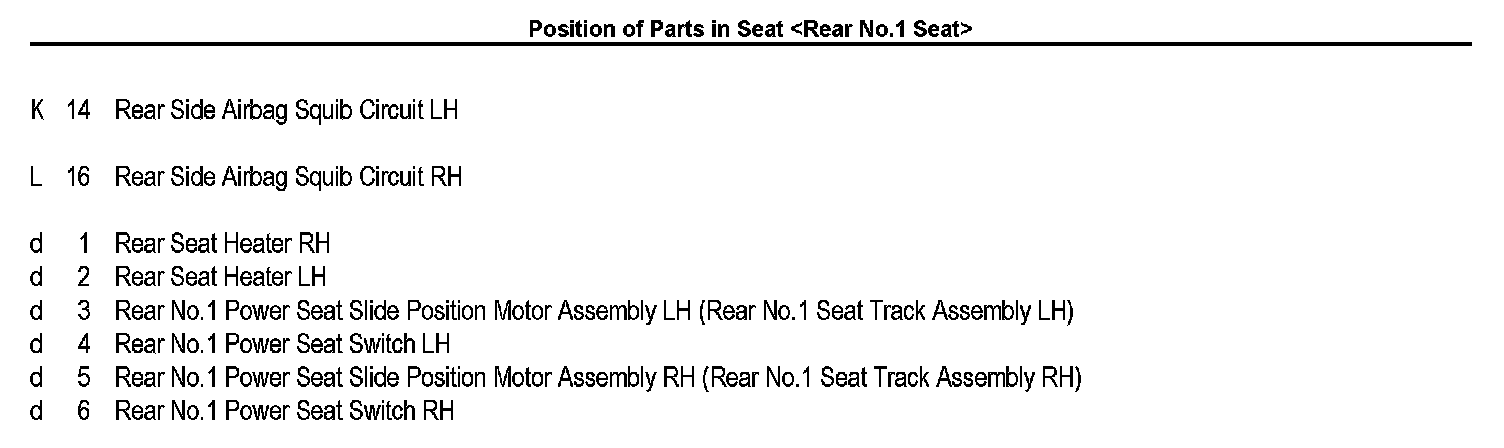

Legend:

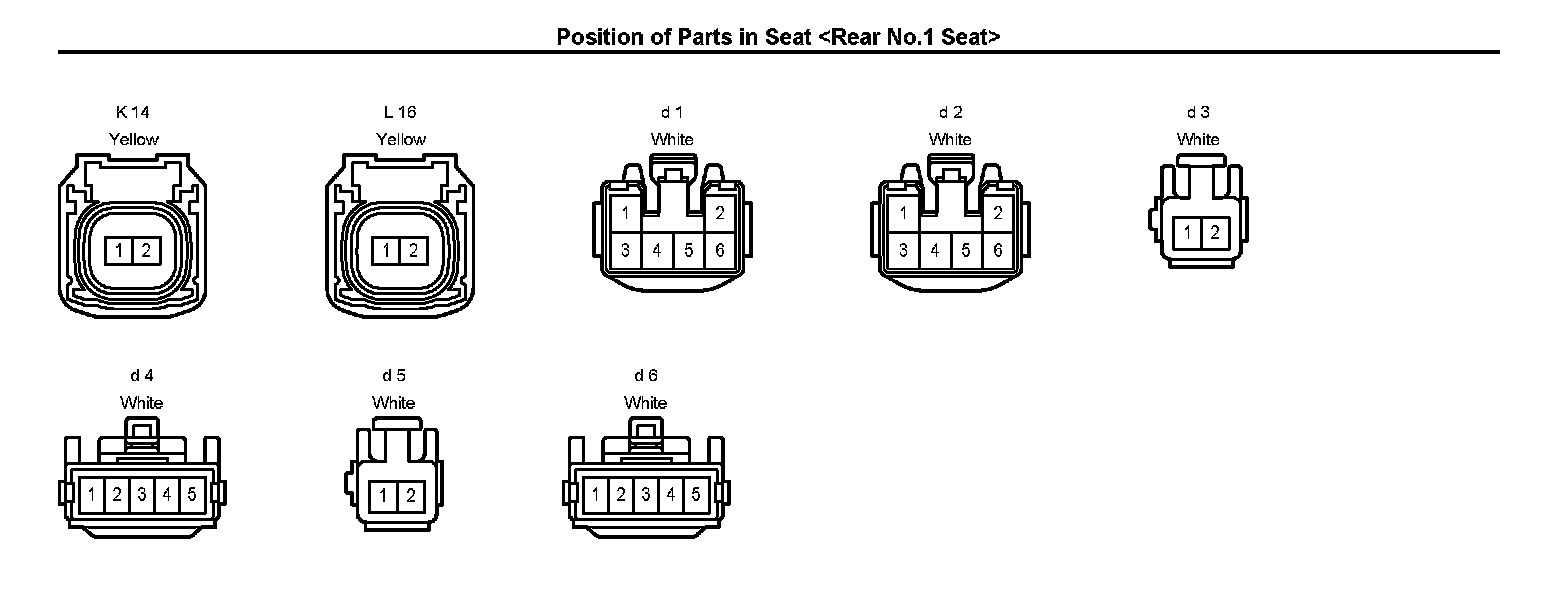

Connector Views:
