Wire and Wire In Body
Wire and Wire In Body

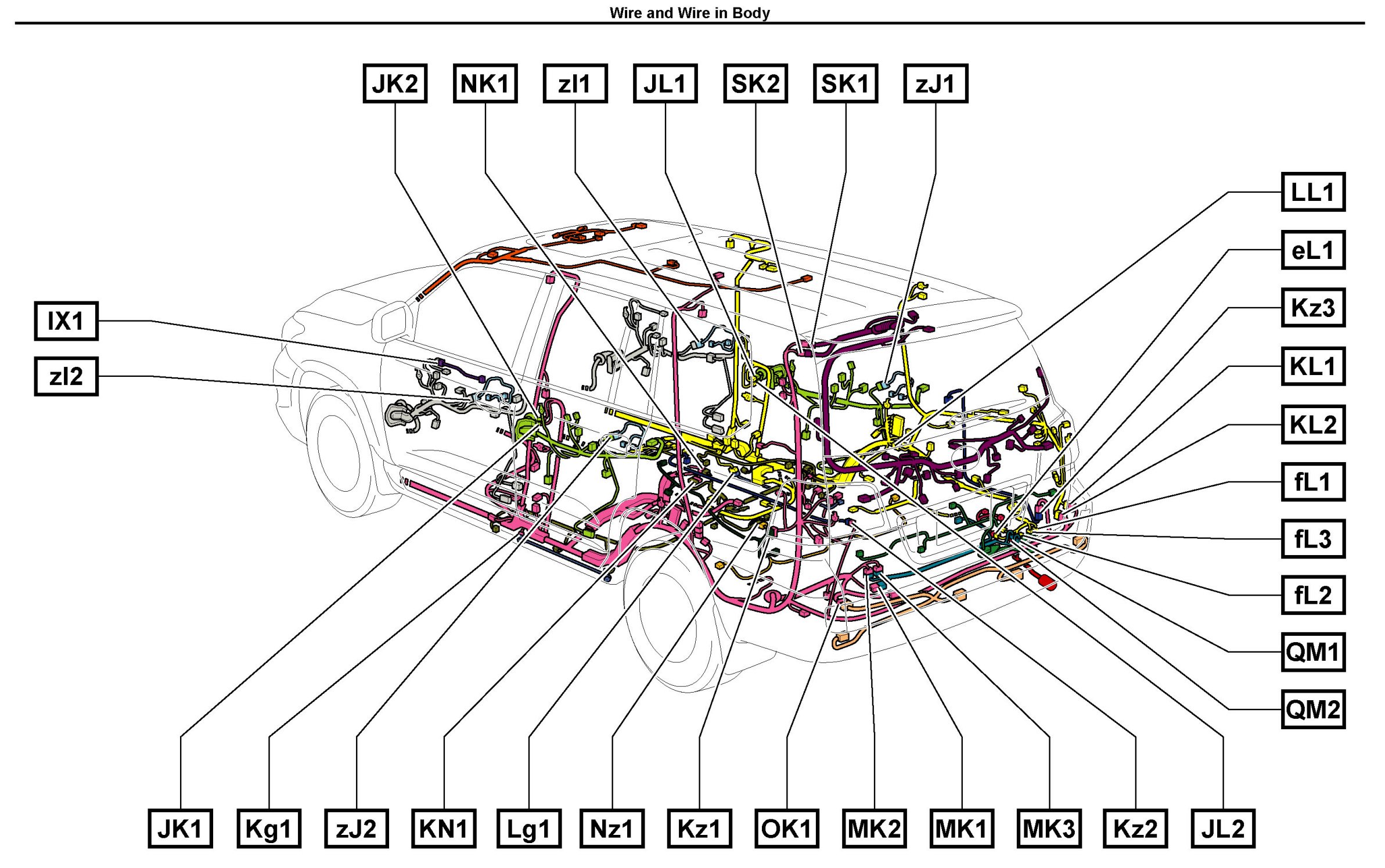

eL1-zJ2 Position:

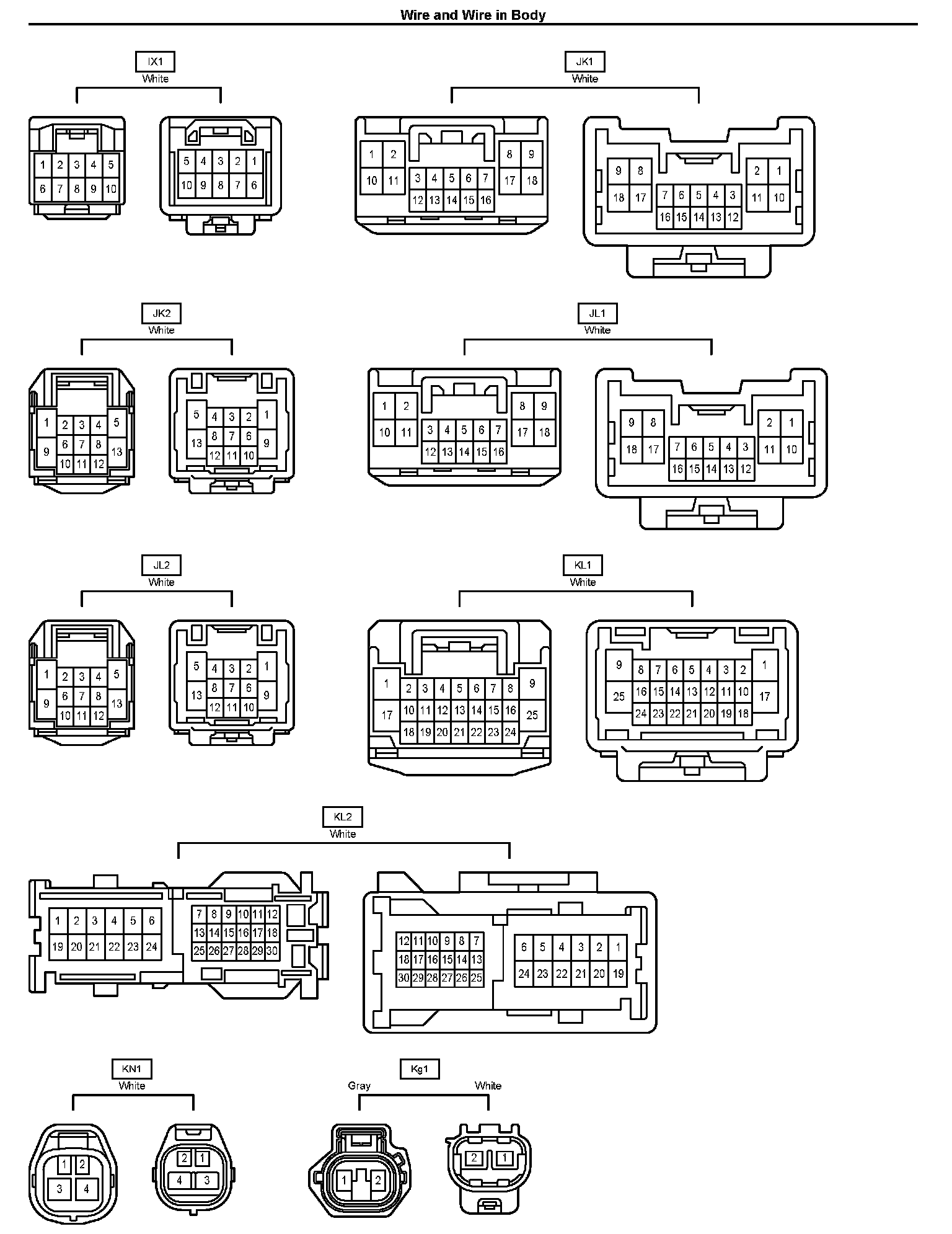

IX1-KN1 Connector Views:

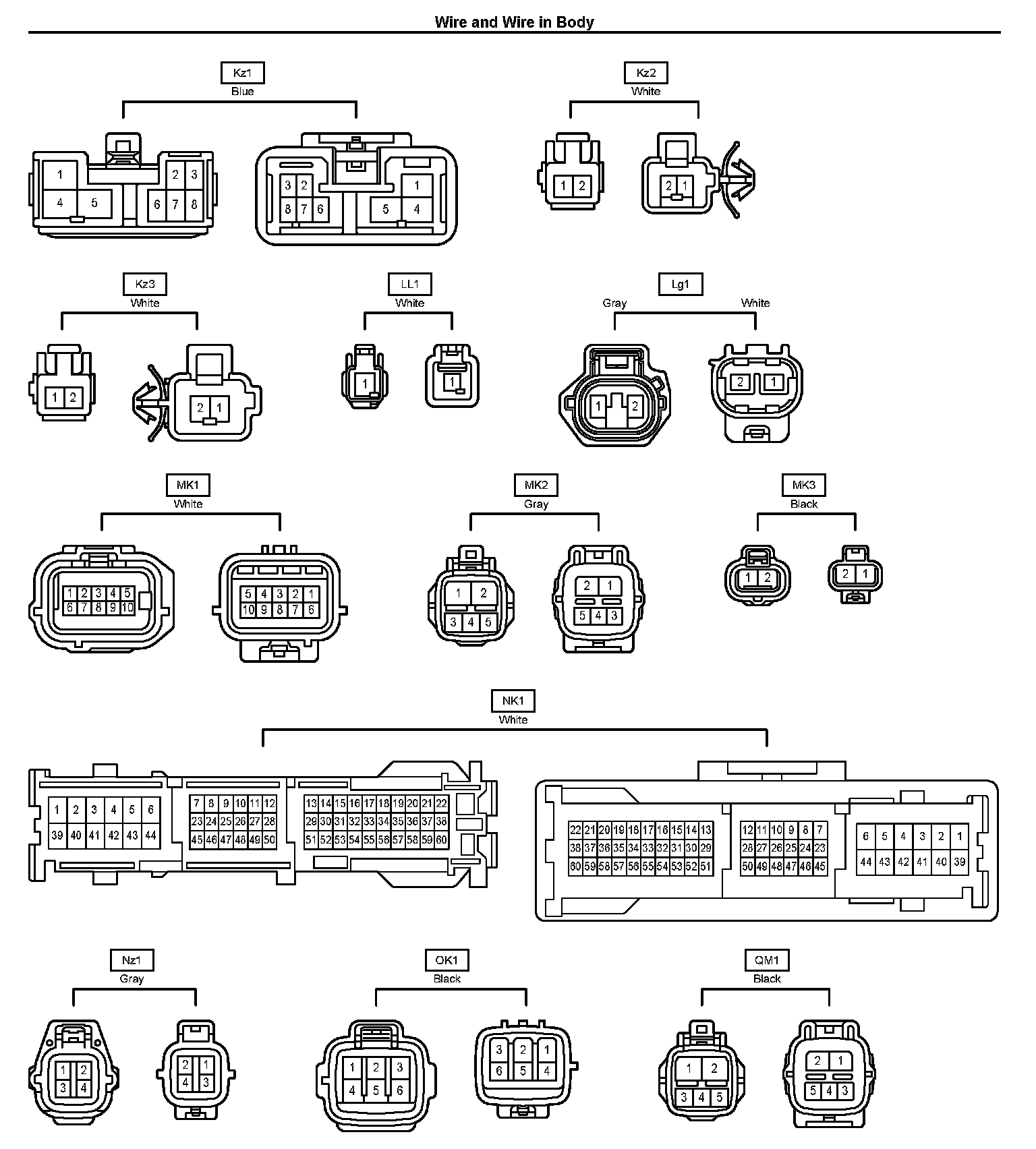

Kz1-QM1 Connector Views:
eL1-zJ1 Connector Views:

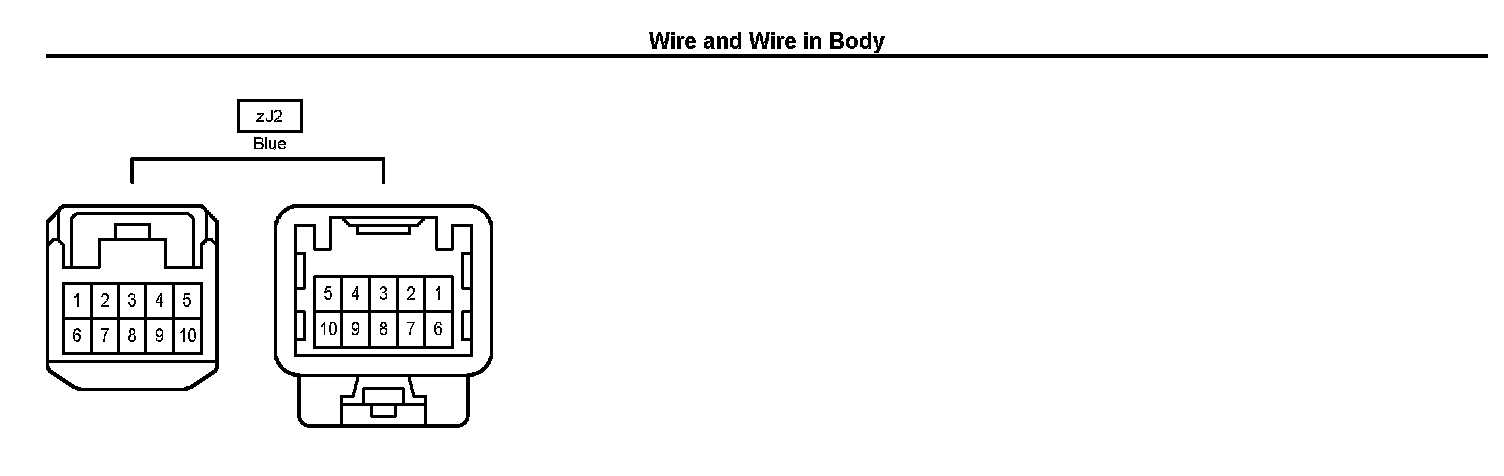

zJ2 Connector Views:
