Wire and Wire In Engine Compartment
Wire and Wire In Engine Compartment
AA2-CU1 Position:

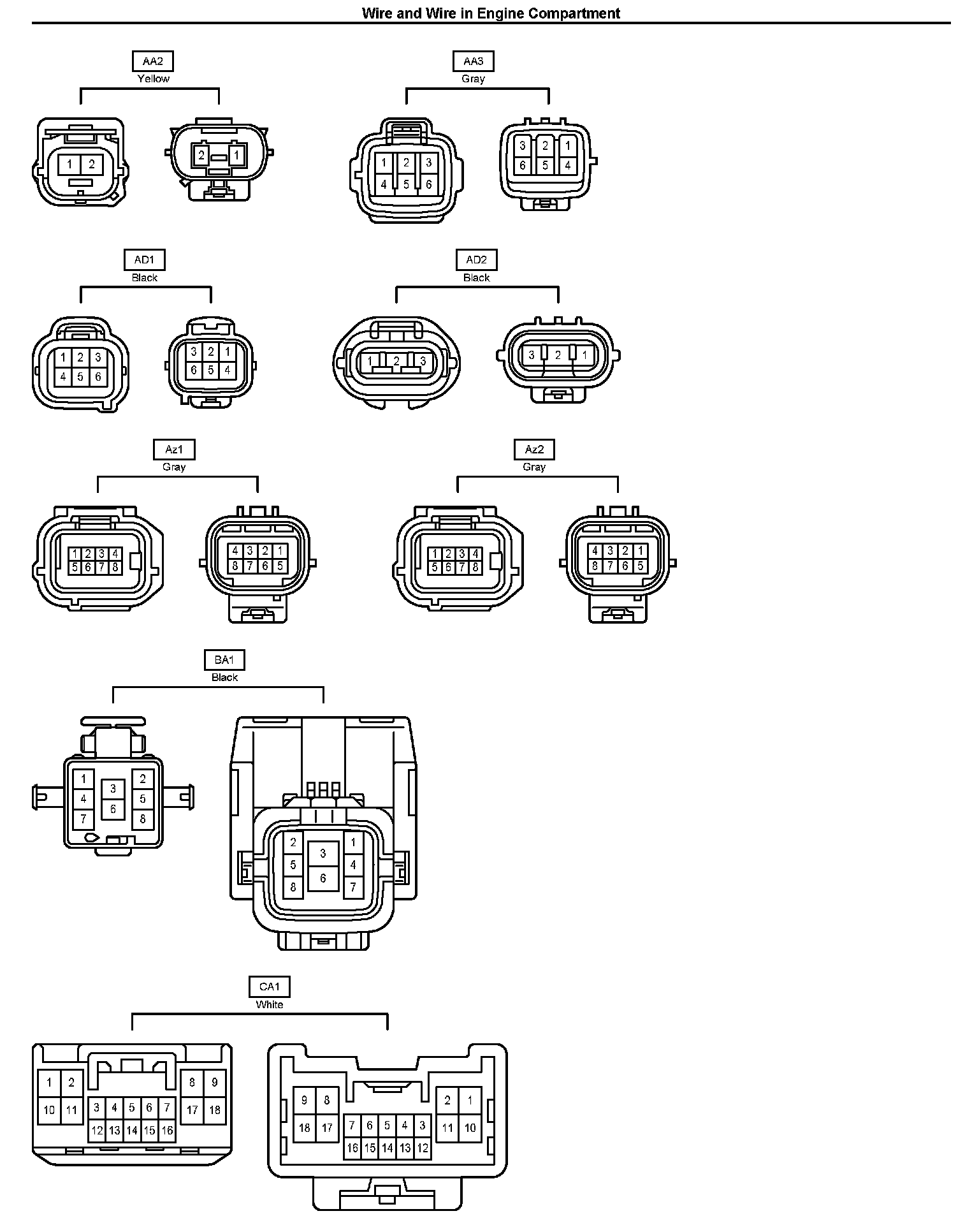

AA2-CA1 Connector Views:

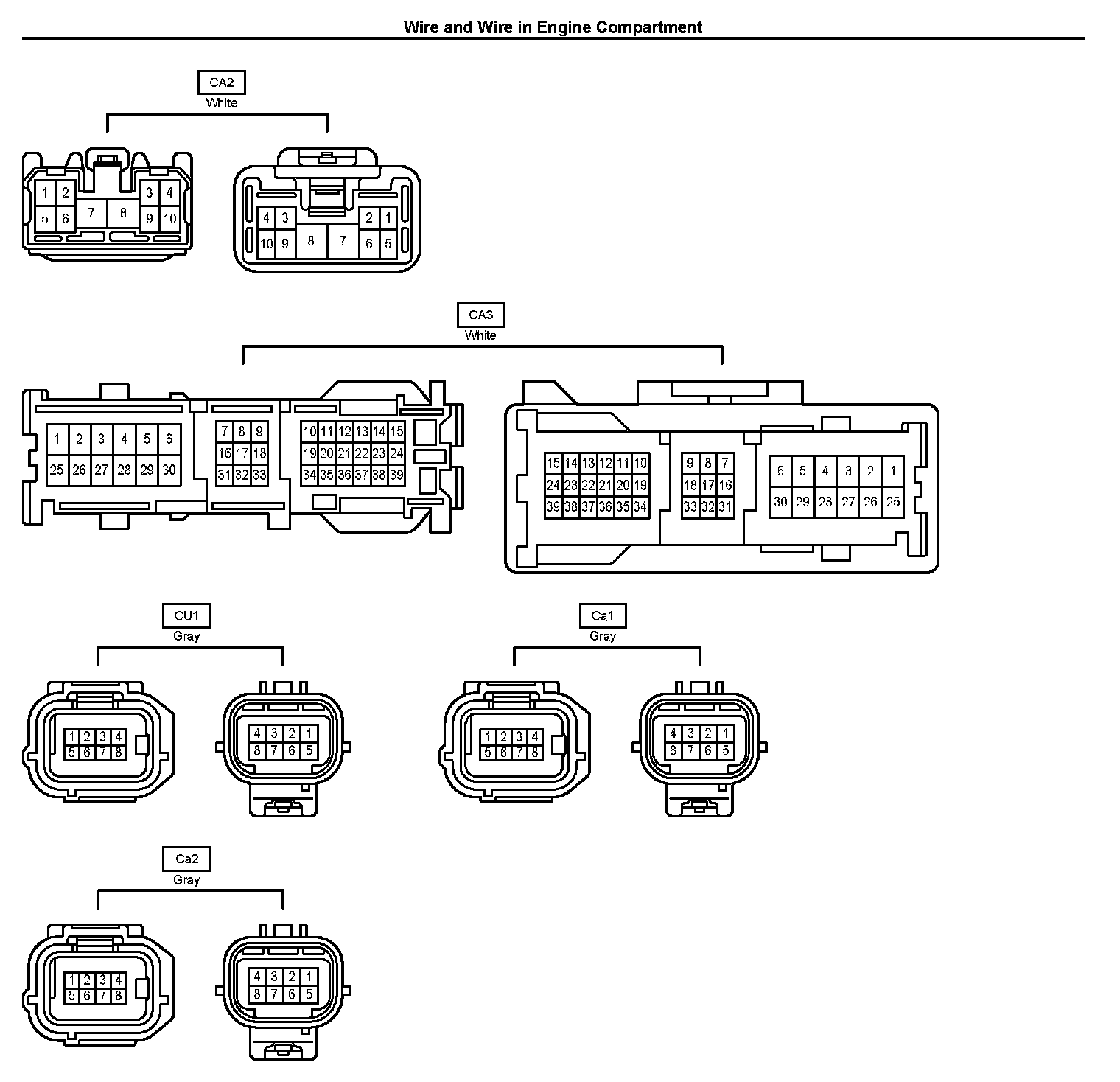

CA2-CU1 Connector Views:
