Wire and Wire In Instrument Panel

AE1-EK4 Position:

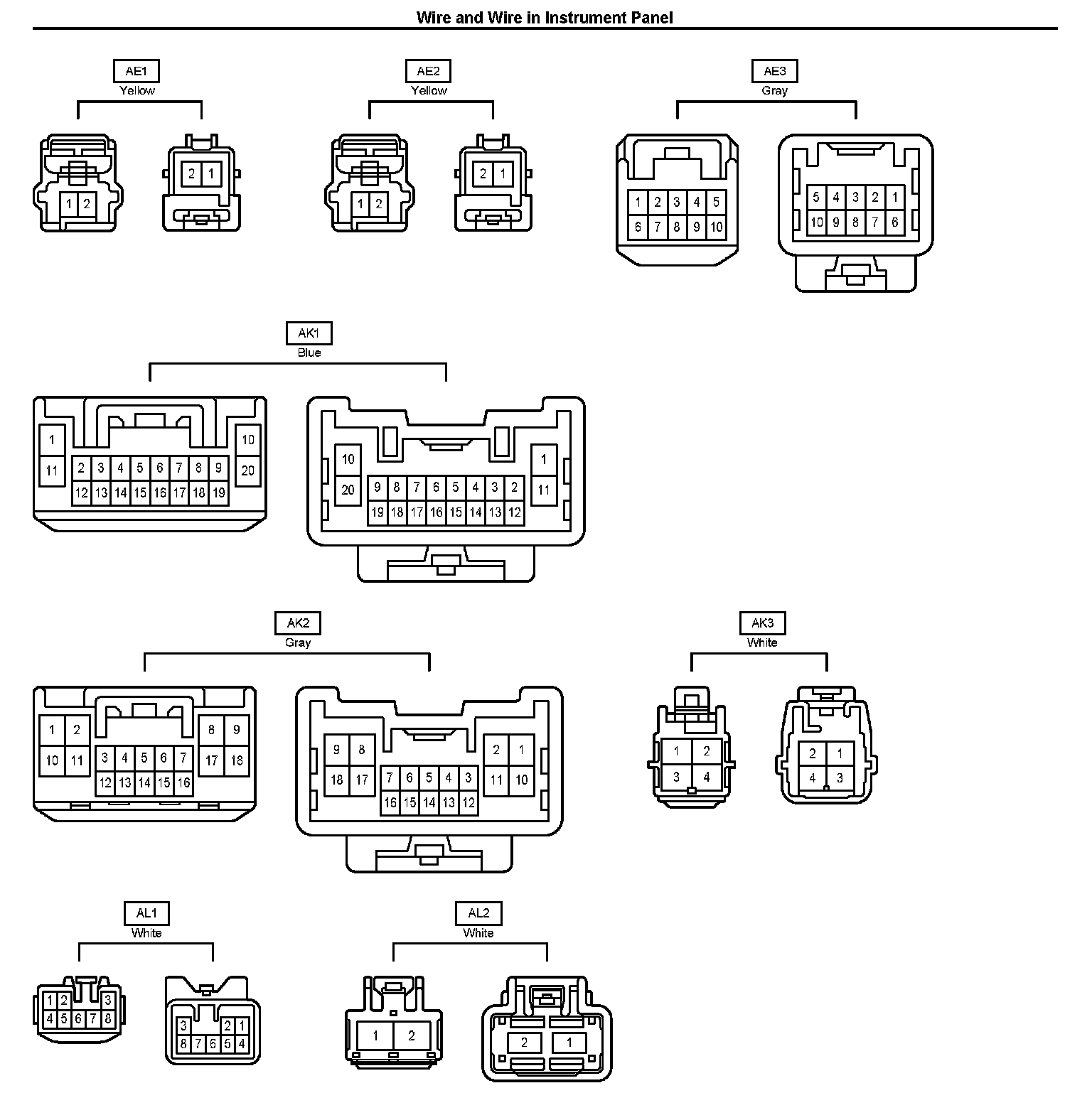

AE1-AL2 Connector Views:

EA1-EA2 Connector Views:

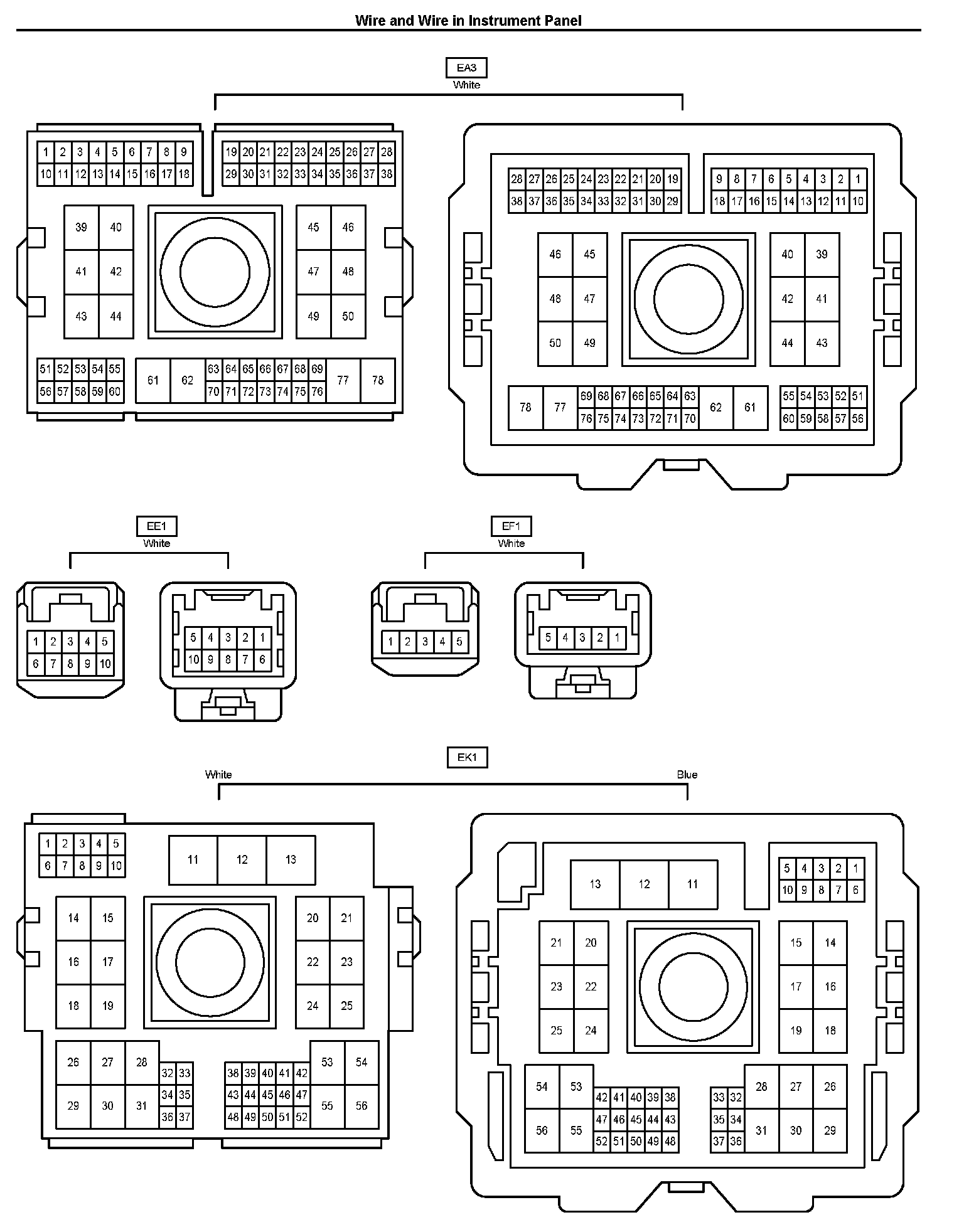

EA3-EK1 Connector Views:

Eb1-EK4 Connector Views:

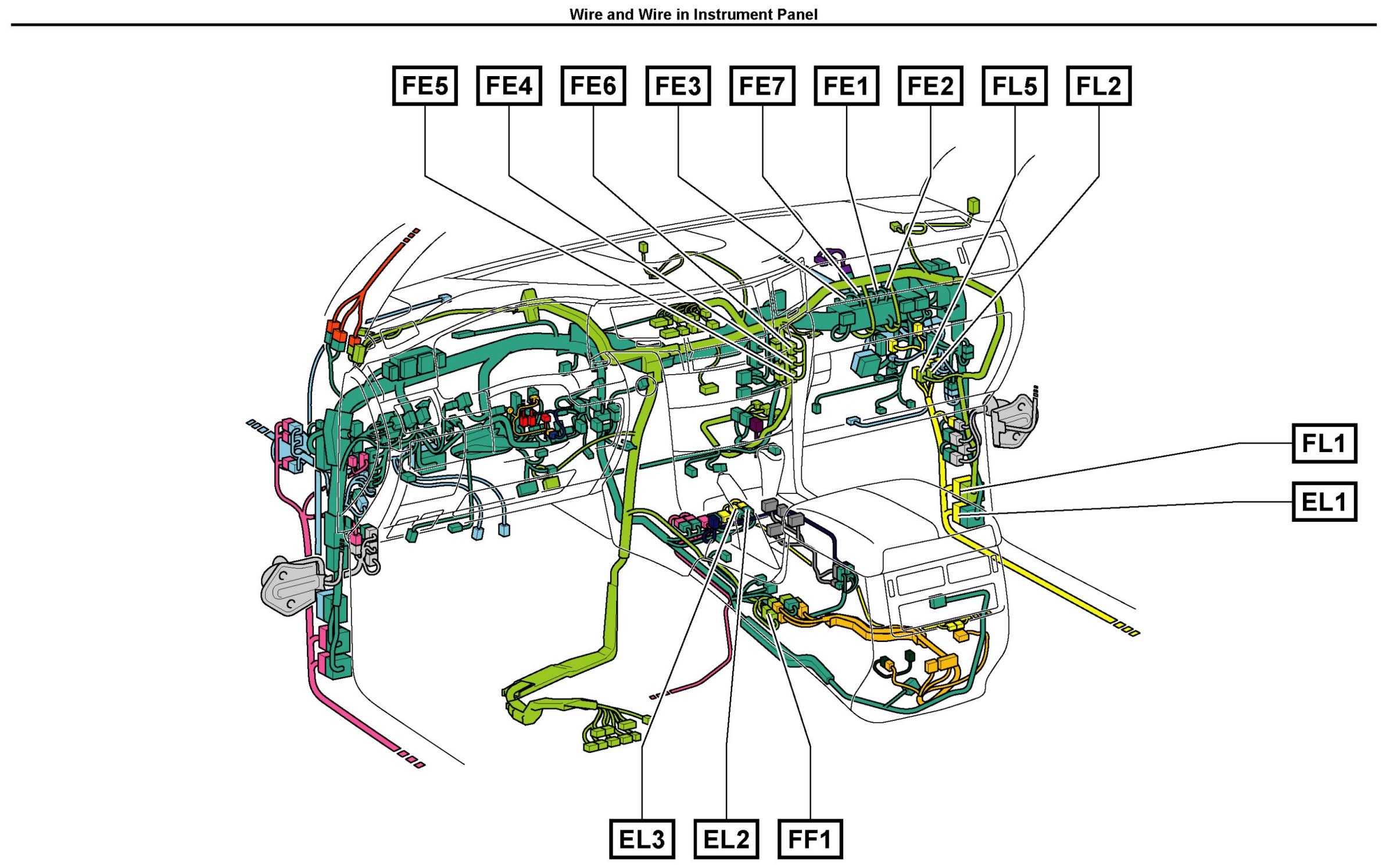

EL1-FL5 Position:

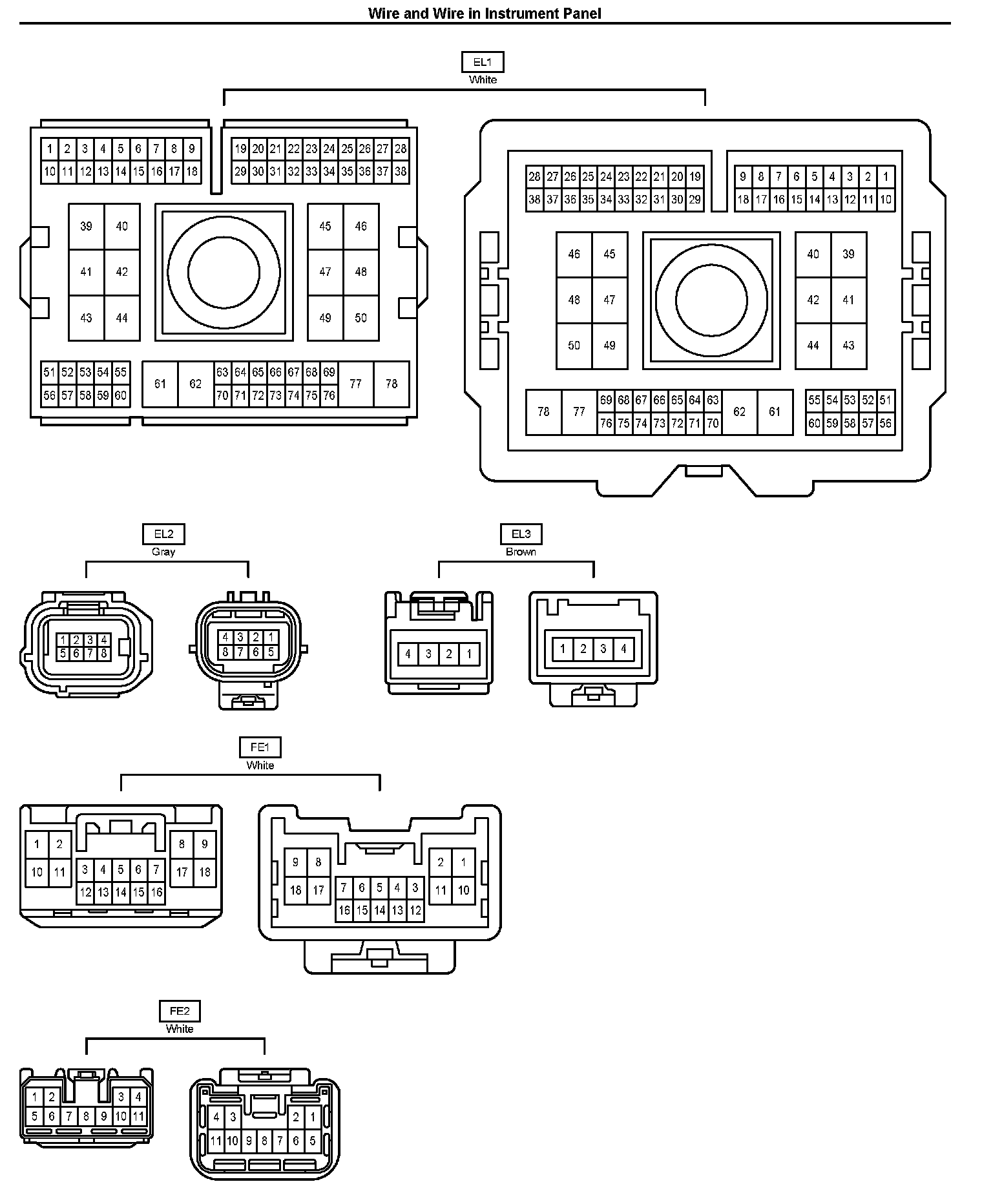

EL1-FE2 Connector Views:

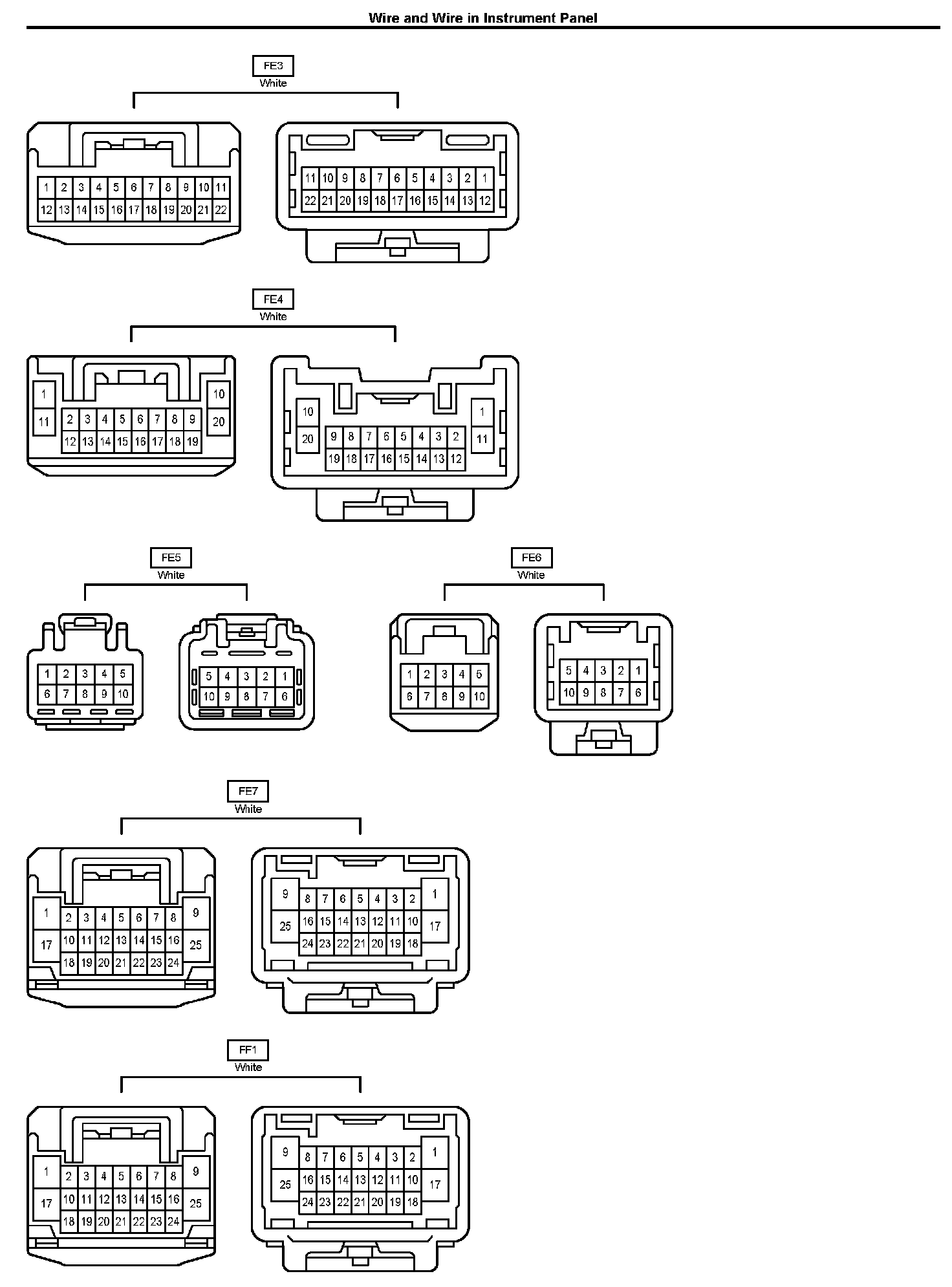

FE3-FF1 Connector Views:

FL1-FL5 Connector Views:

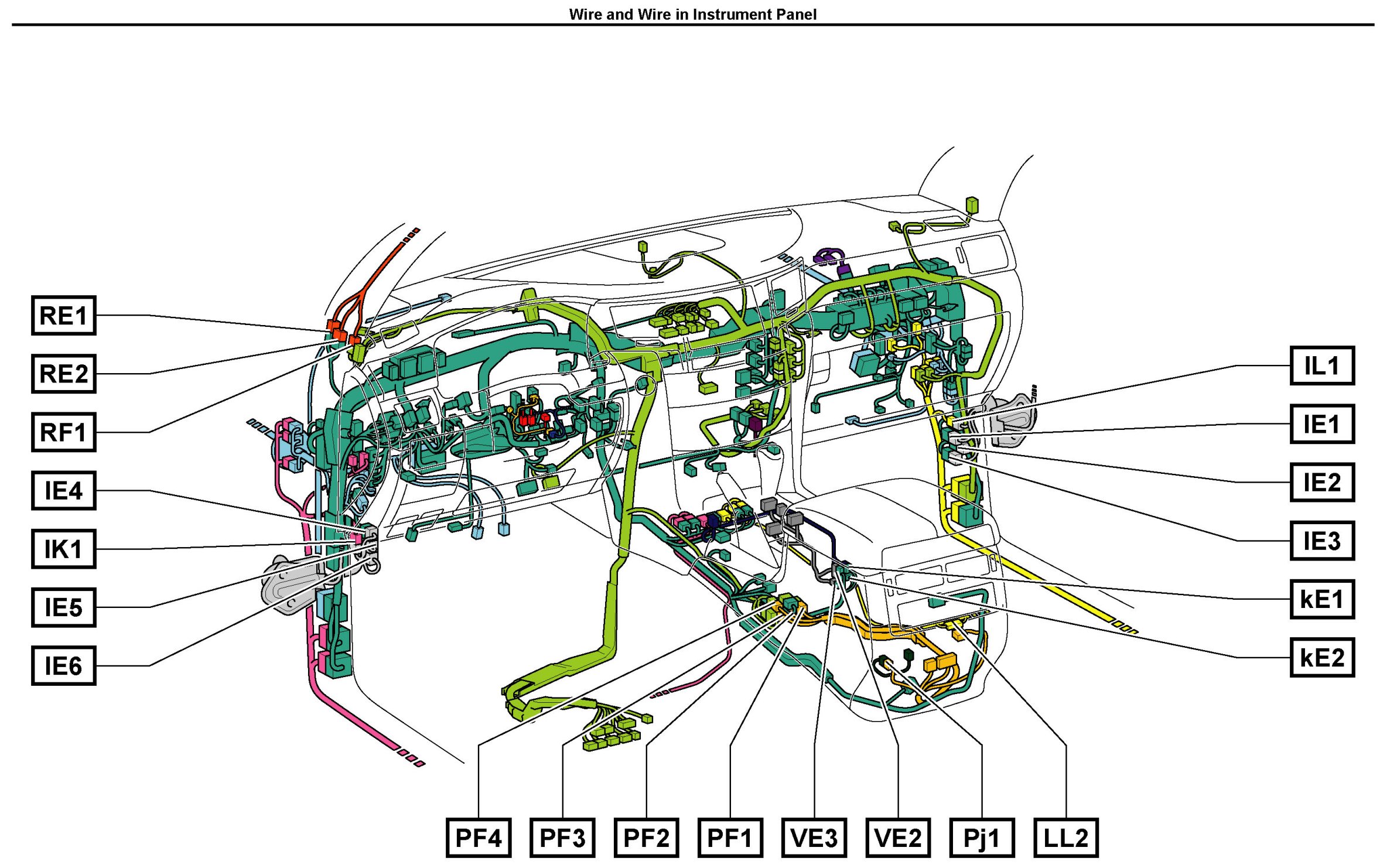

IE1-VE3 Position:

IE1-IE5 Connector Views:

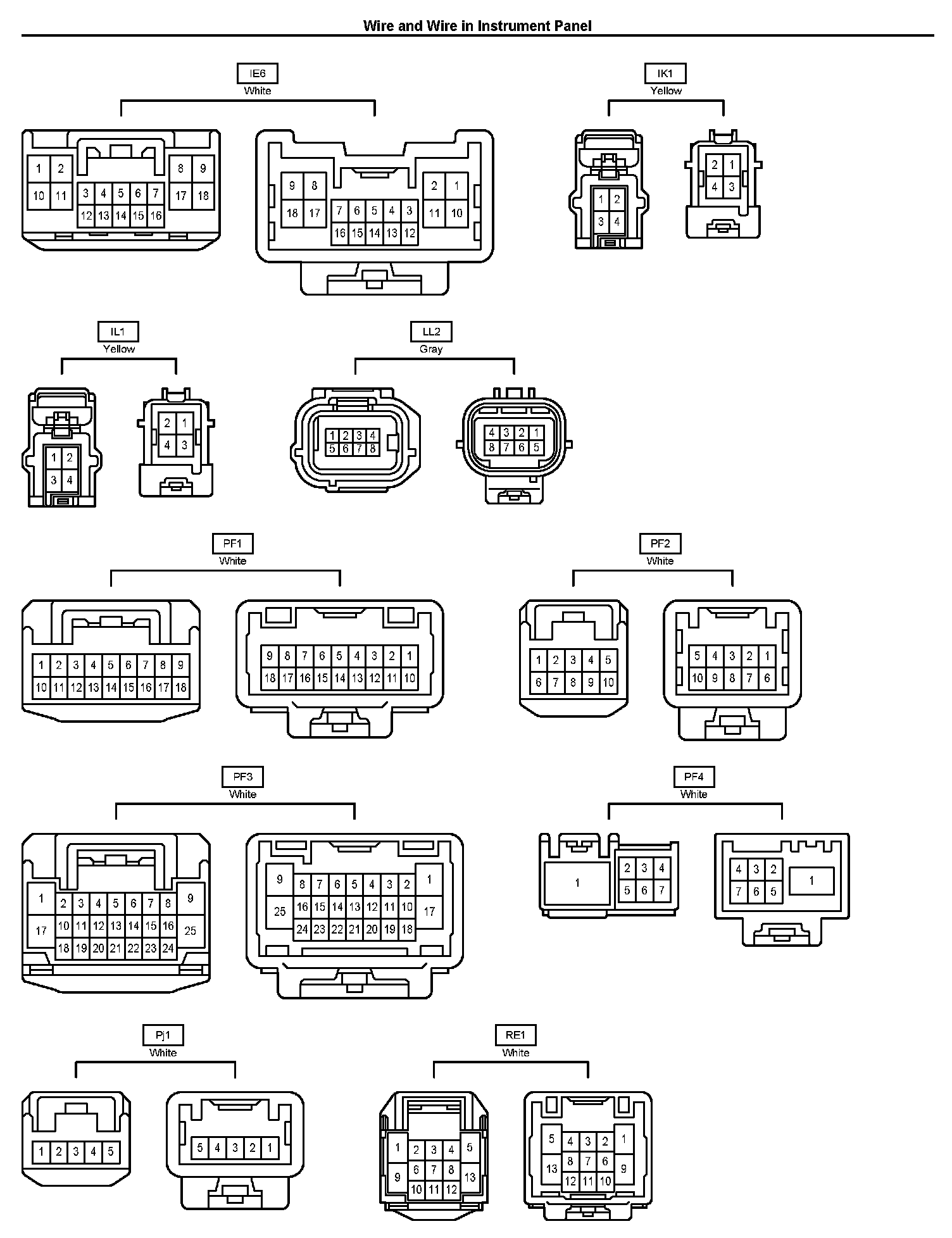

IE6-RE1 Connector Views:

RE2-VE3 Connector Views:
