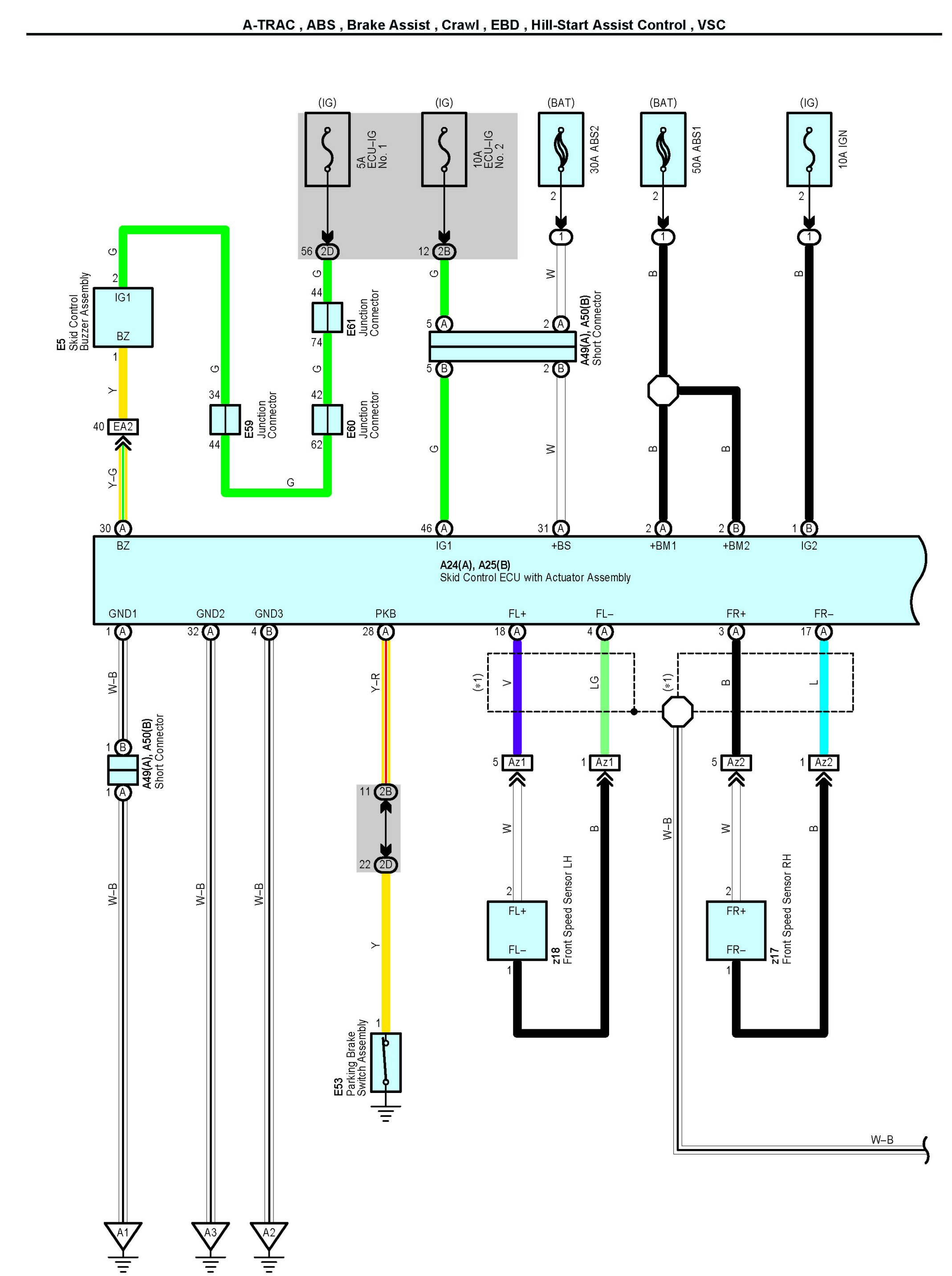

System Diagram

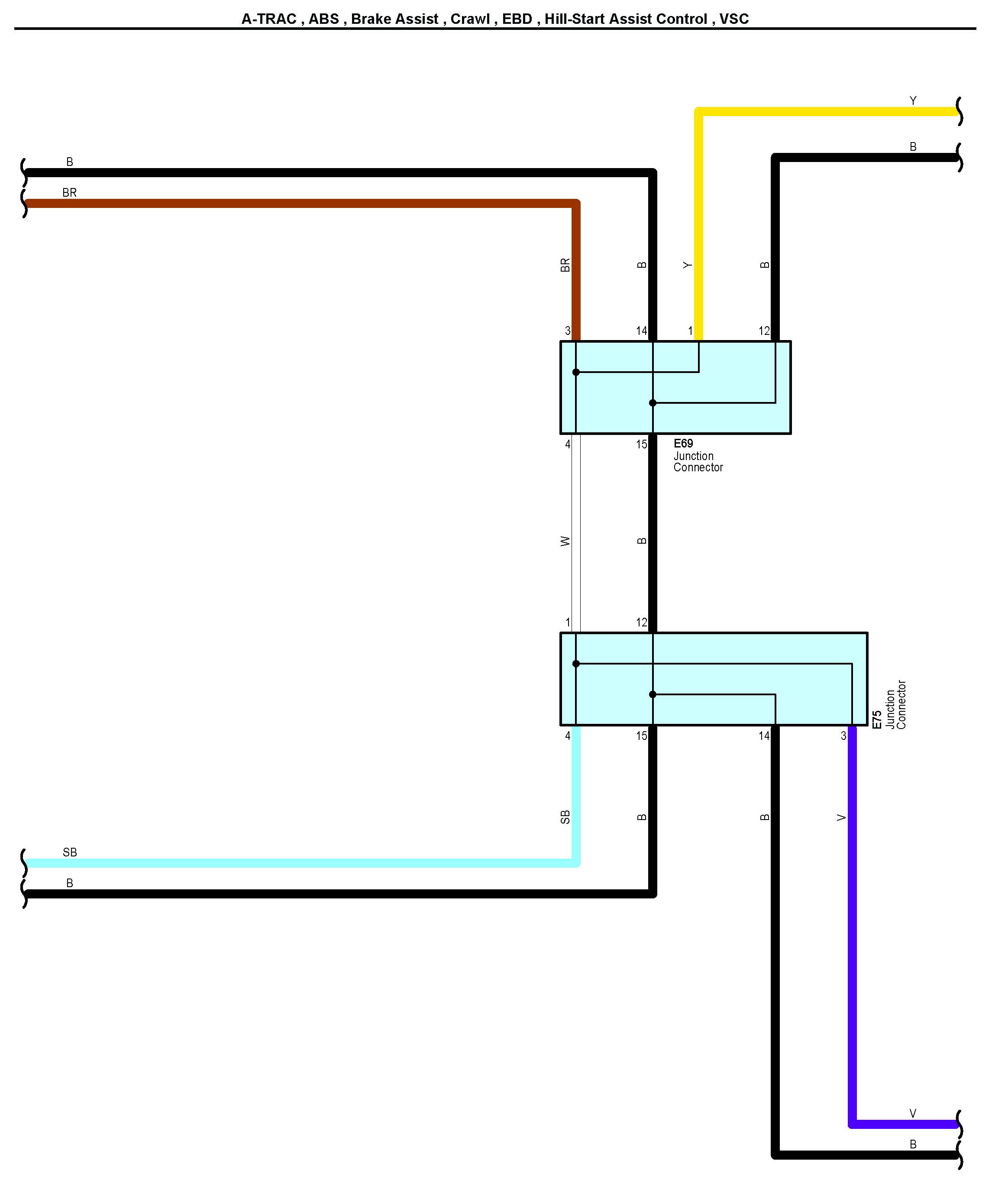

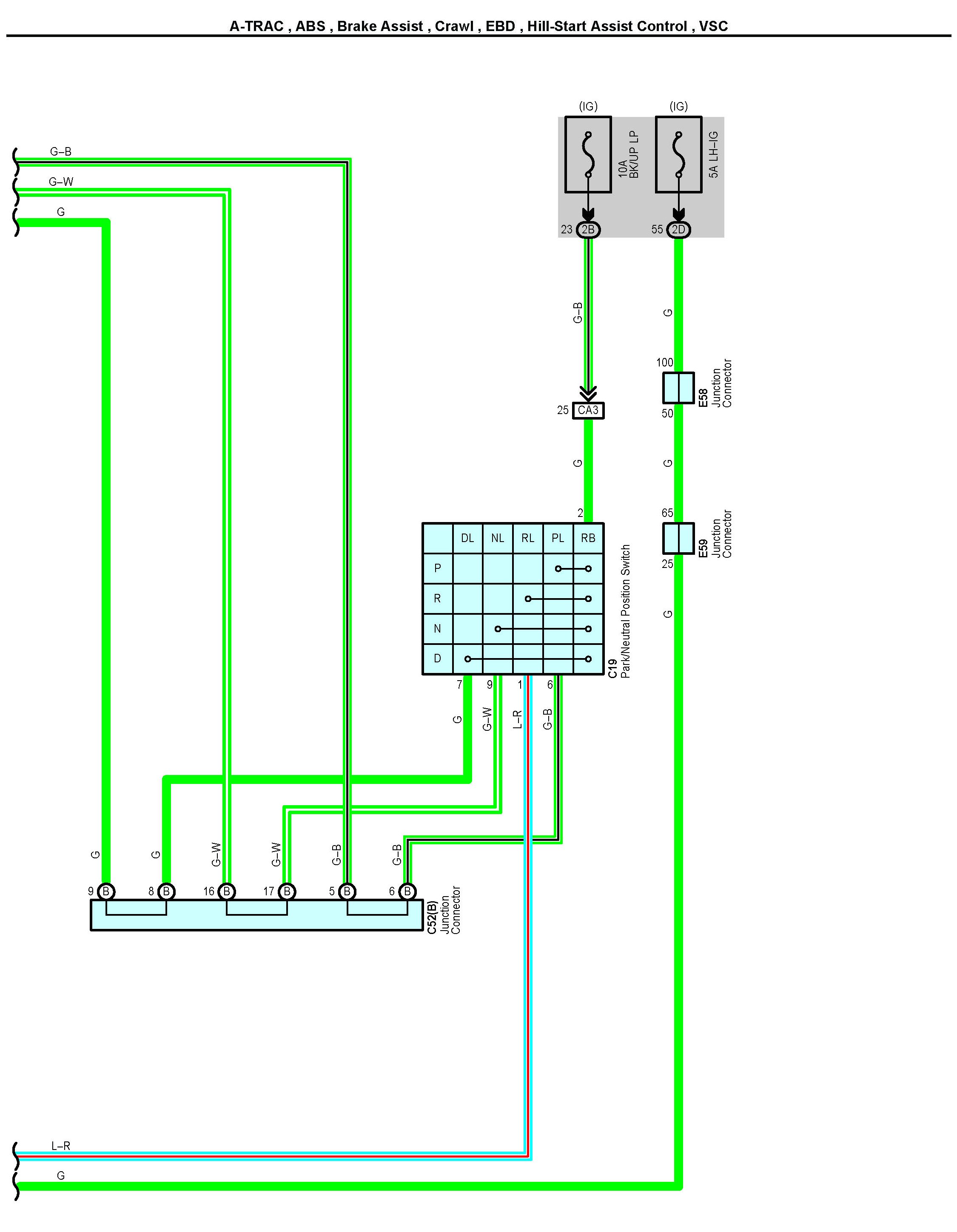

A-TRAC, ABS, Brake Assist, Crawl, EBD, Hill-Start Assist Control, VSC Part 1:

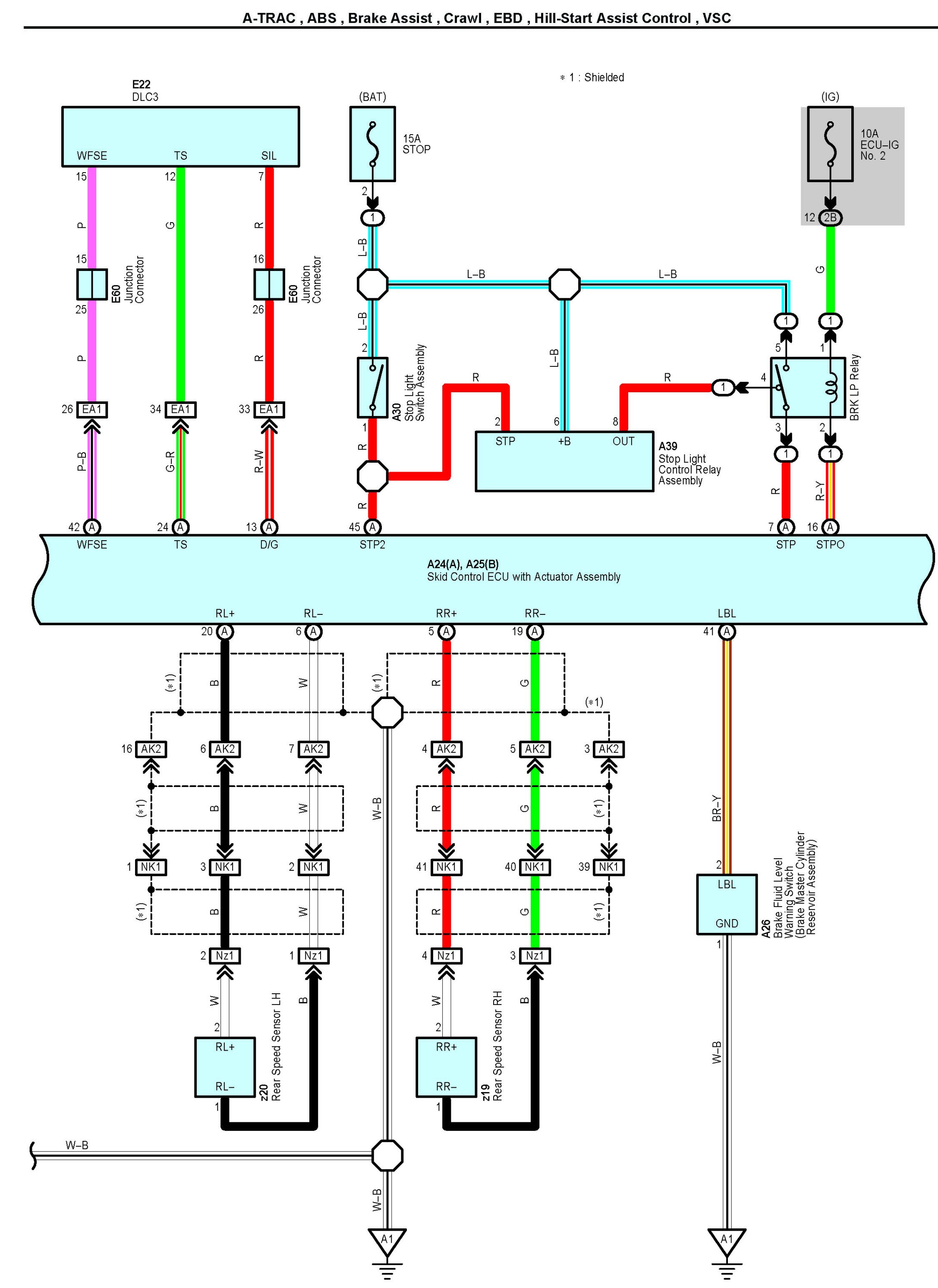

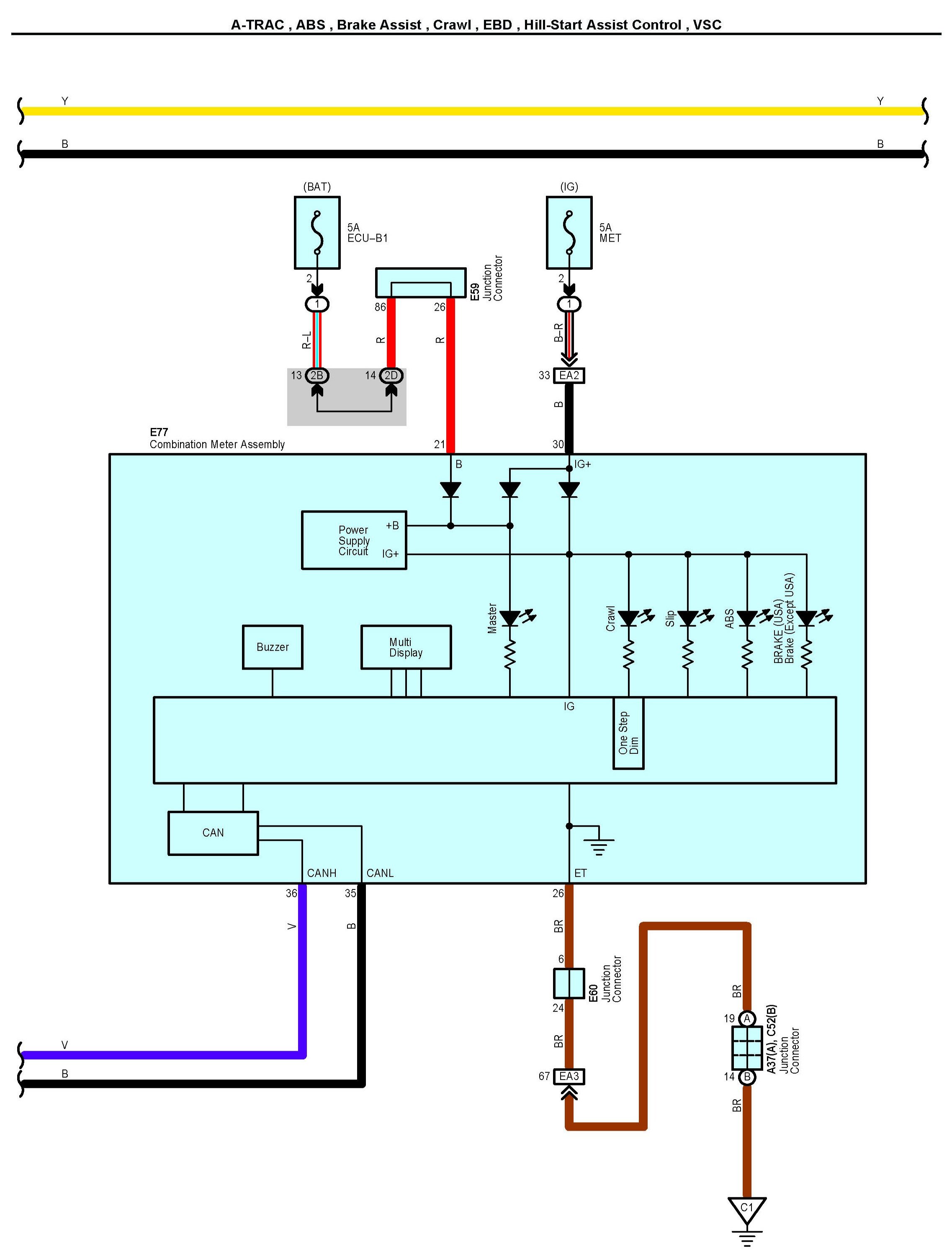

A-TRAC, ABS, Brake Assist, Crawl, EBD, Hill-Start Assist Control, VSC Part 2:

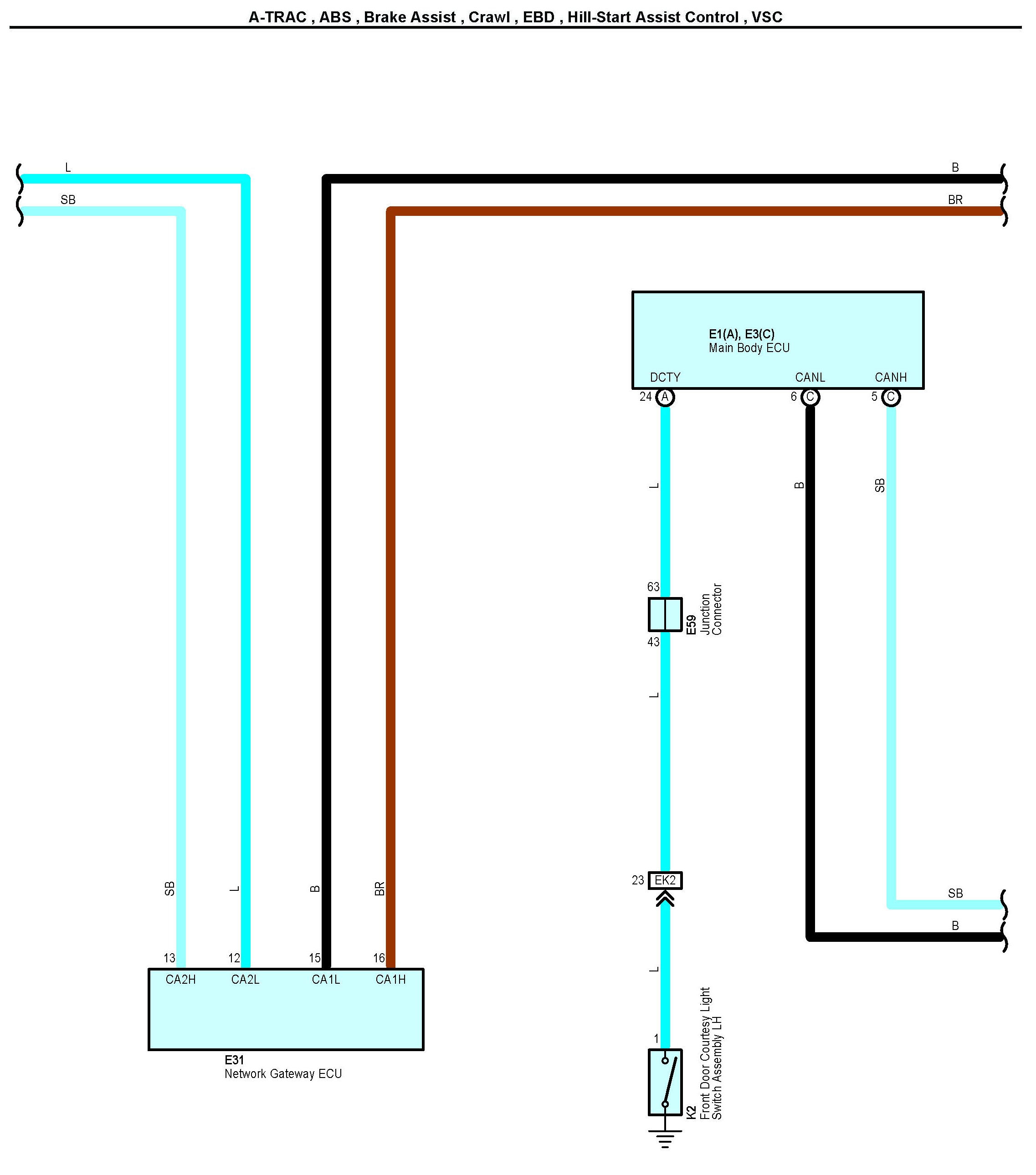

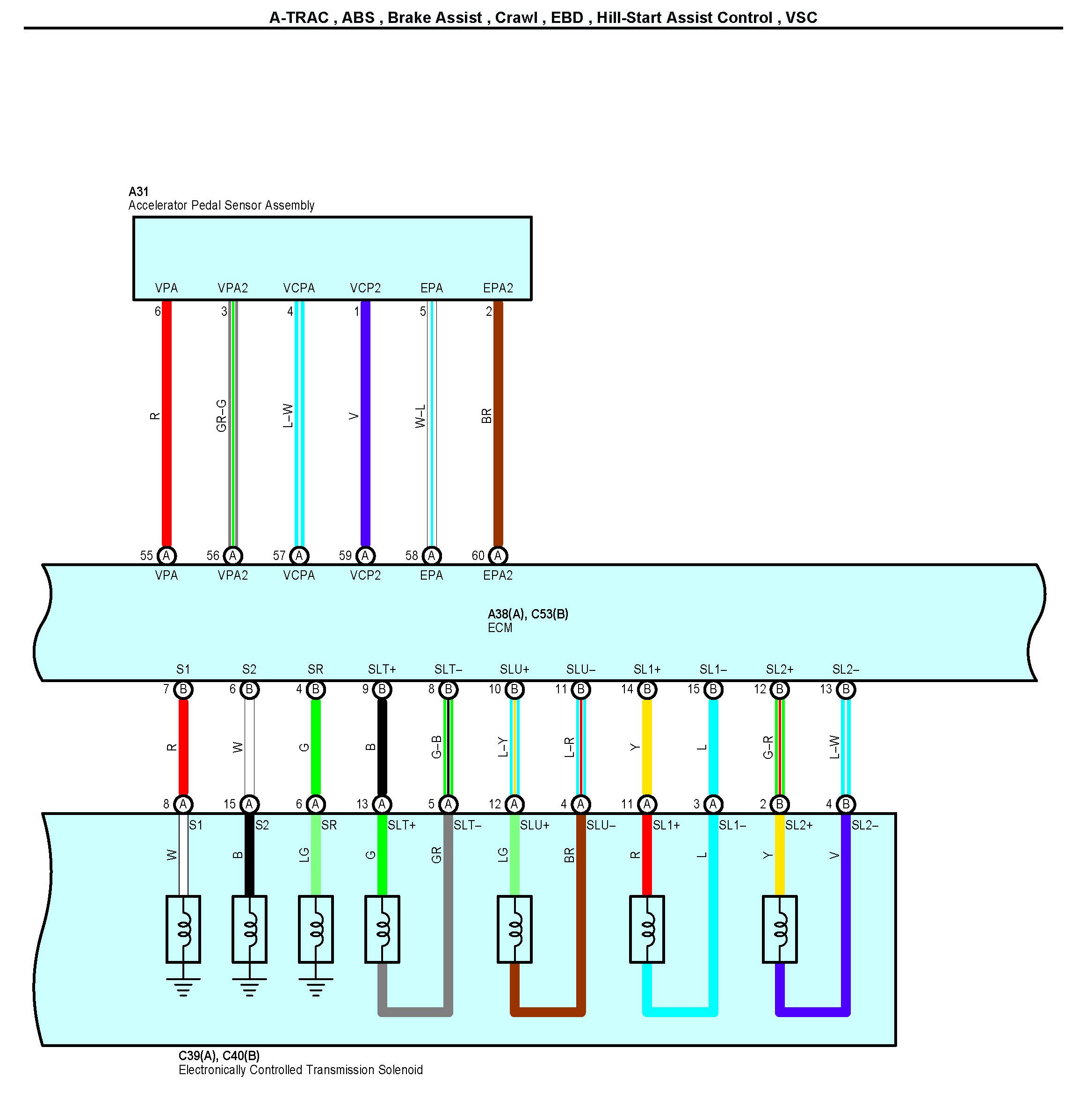

A-TRAC, ABS, Brake Assist, Crawl, EBD, Hill-Start Assist Control, VSC Part 3:

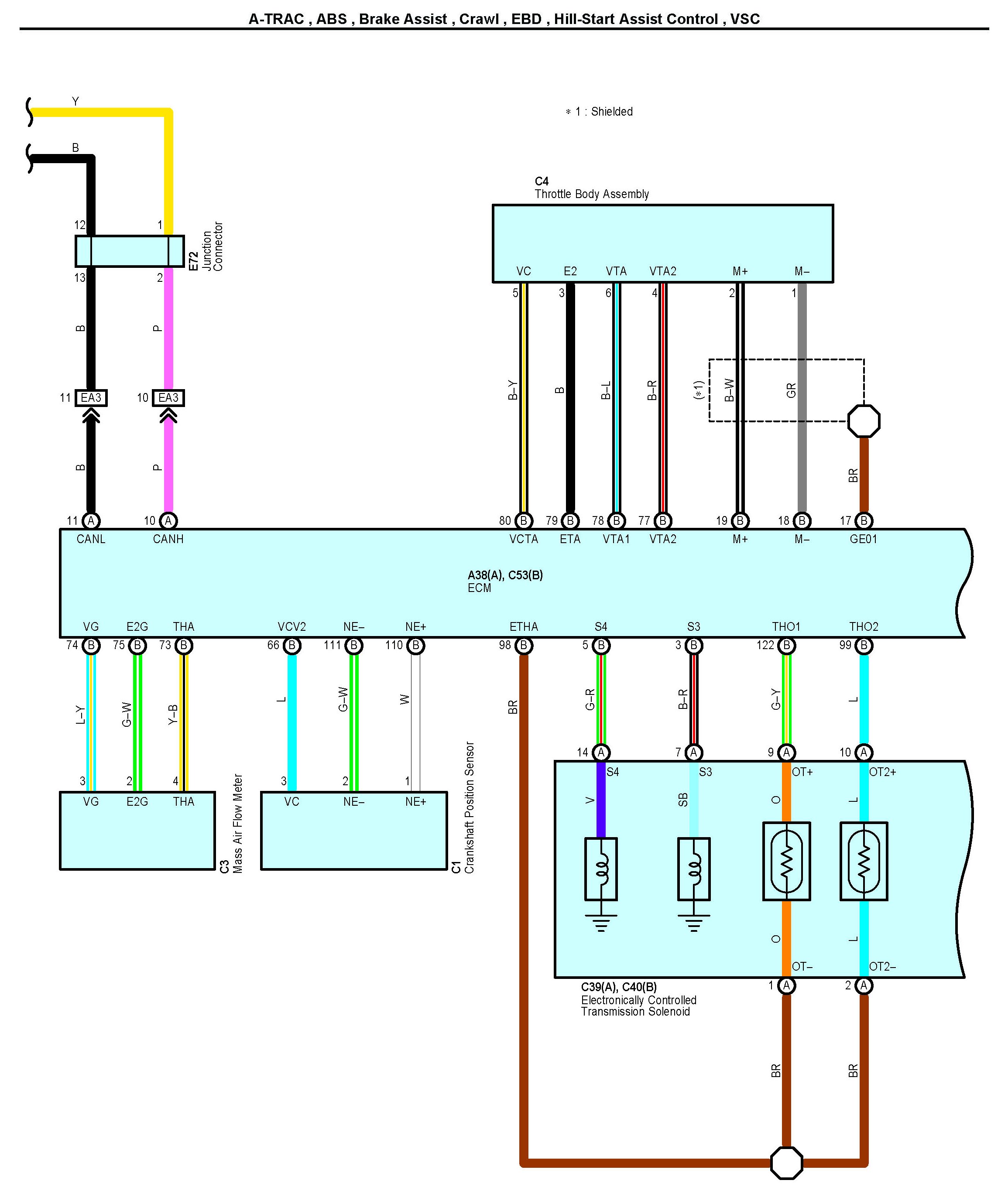

A-TRAC, ABS, Brake Assist, Crawl, EBD, Hill-Start Assist Control, VSC Part 4:

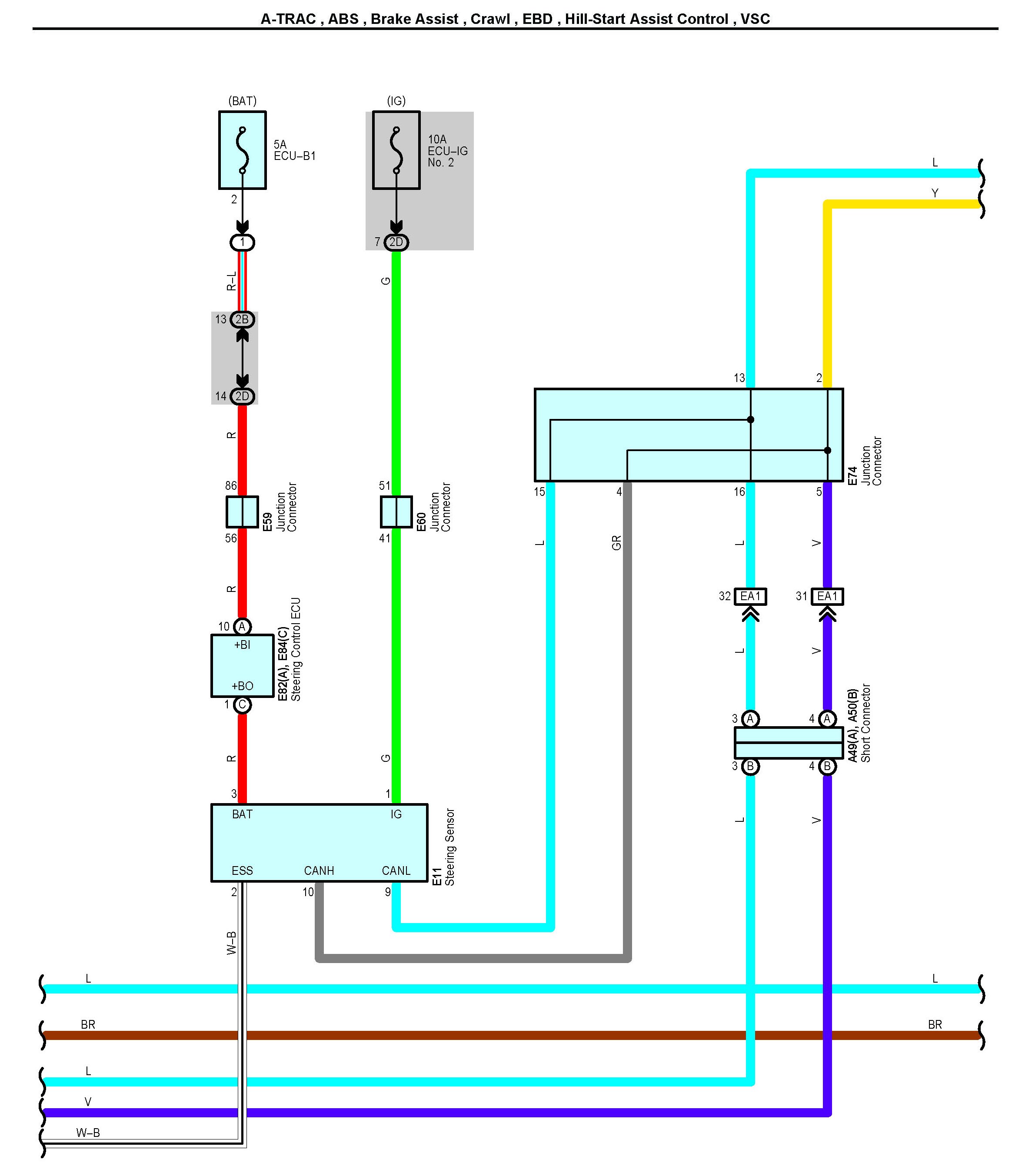

A-TRAC, ABS, Brake Assist, Crawl, EBD, Hill-Start Assist Control, VSC Part 5:

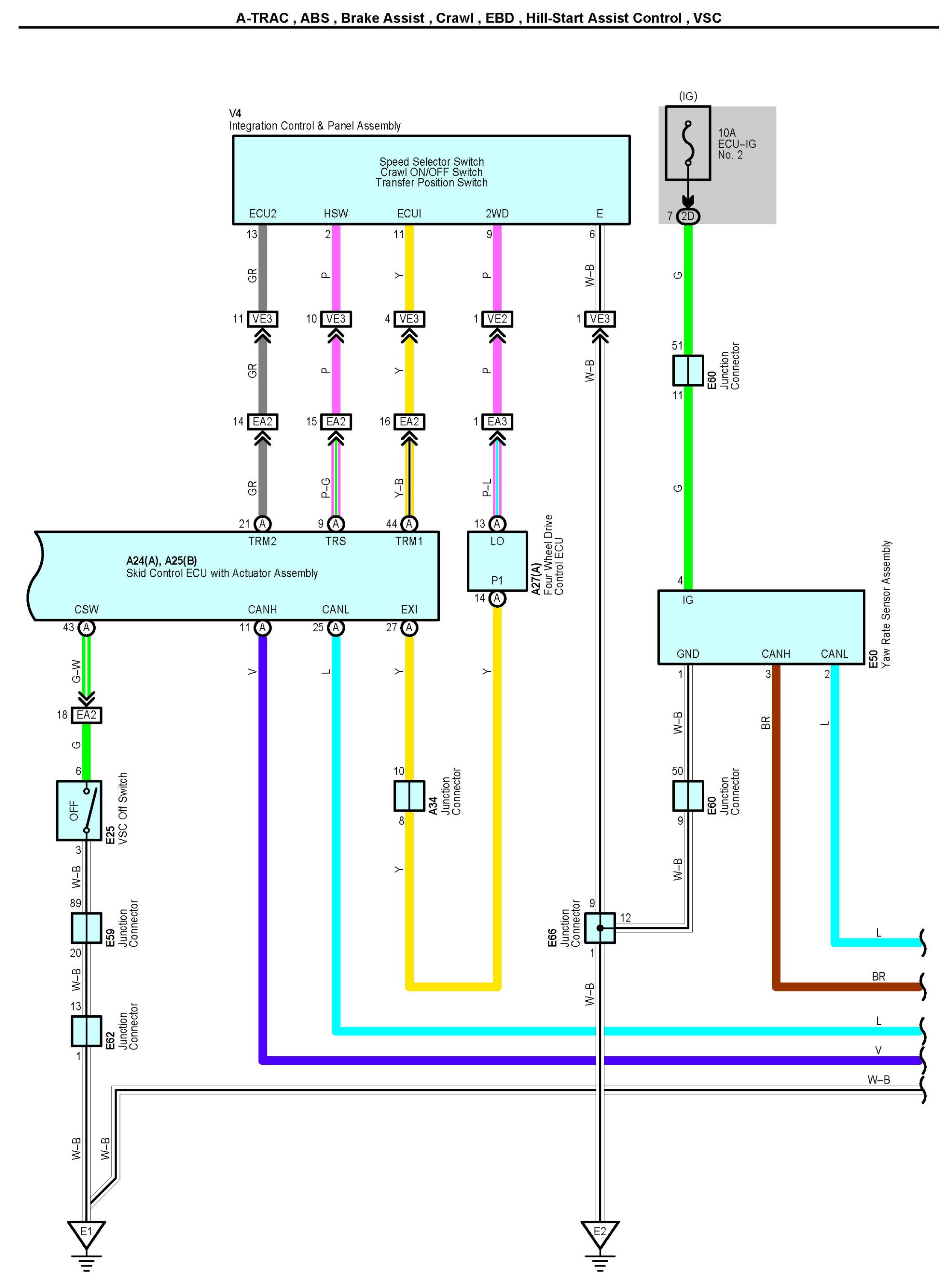

A-TRAC, ABS, Brake Assist, Crawl, EBD, Hill-Start Assist Control, VSC Part 6:

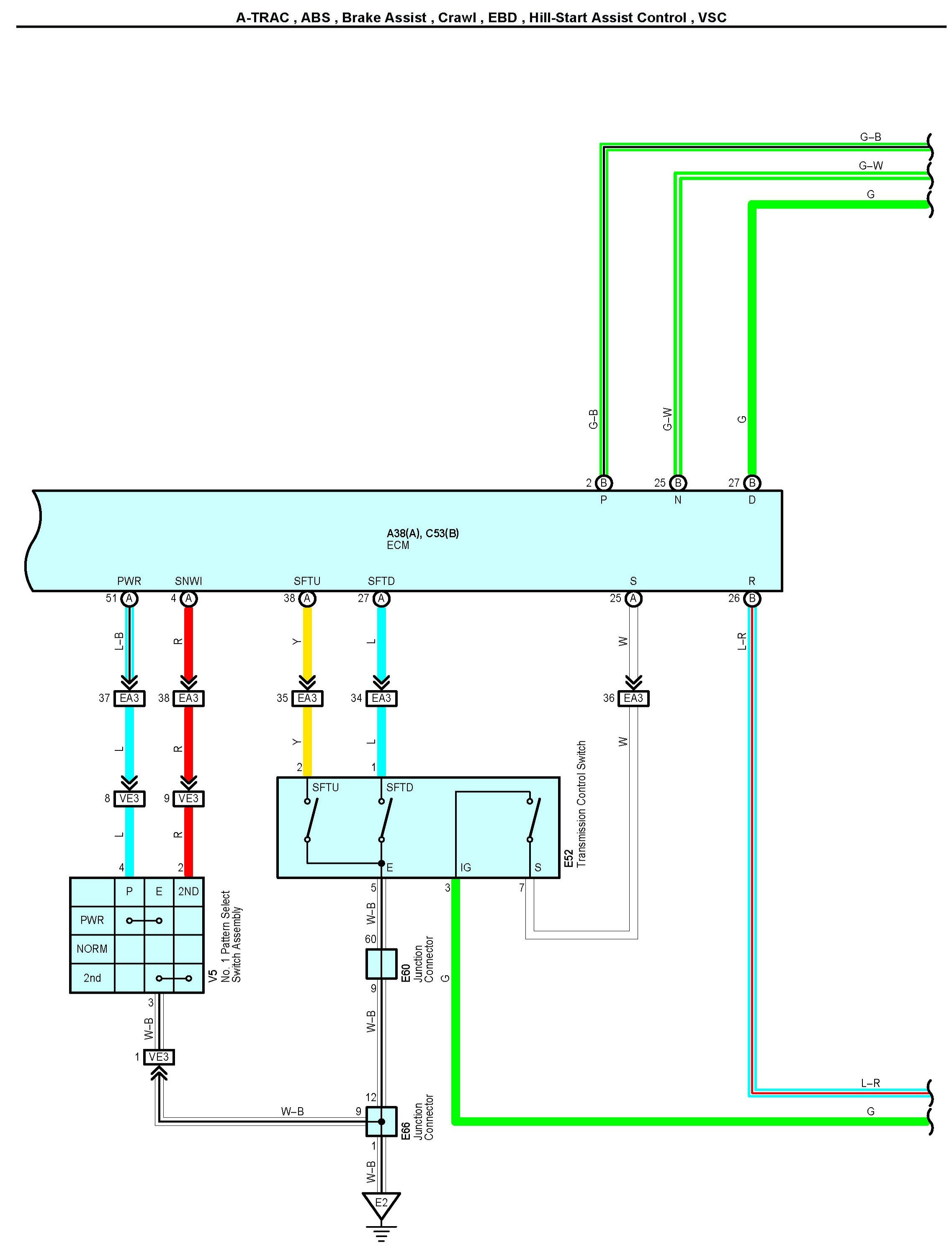

A-TRAC, ABS, Brake Assist, Crawl, EBD, Hill-Start Assist Control, VSC Part 7:

A-TRAC, ABS, Brake Assist, Crawl, EBD, Hill-Start Assist Control, VSC Part 8:

A-TRAC, ABS, Brake Assist, Crawl, EBD, Hill-Start Assist Control, VSC Part 9:

A-TRAC, ABS, Brake Assist, Crawl, EBD, Hill-Start Assist Control, VSC Part 10:

A-TRAC, ABS, Brake Assist, Crawl, EBD, Hill-Start Assist Control, VSC Part 11:

A-TRAC, ABS, Brake Assist, Crawl, EBD, Hill-Start Assist Control, VSC Part 12:

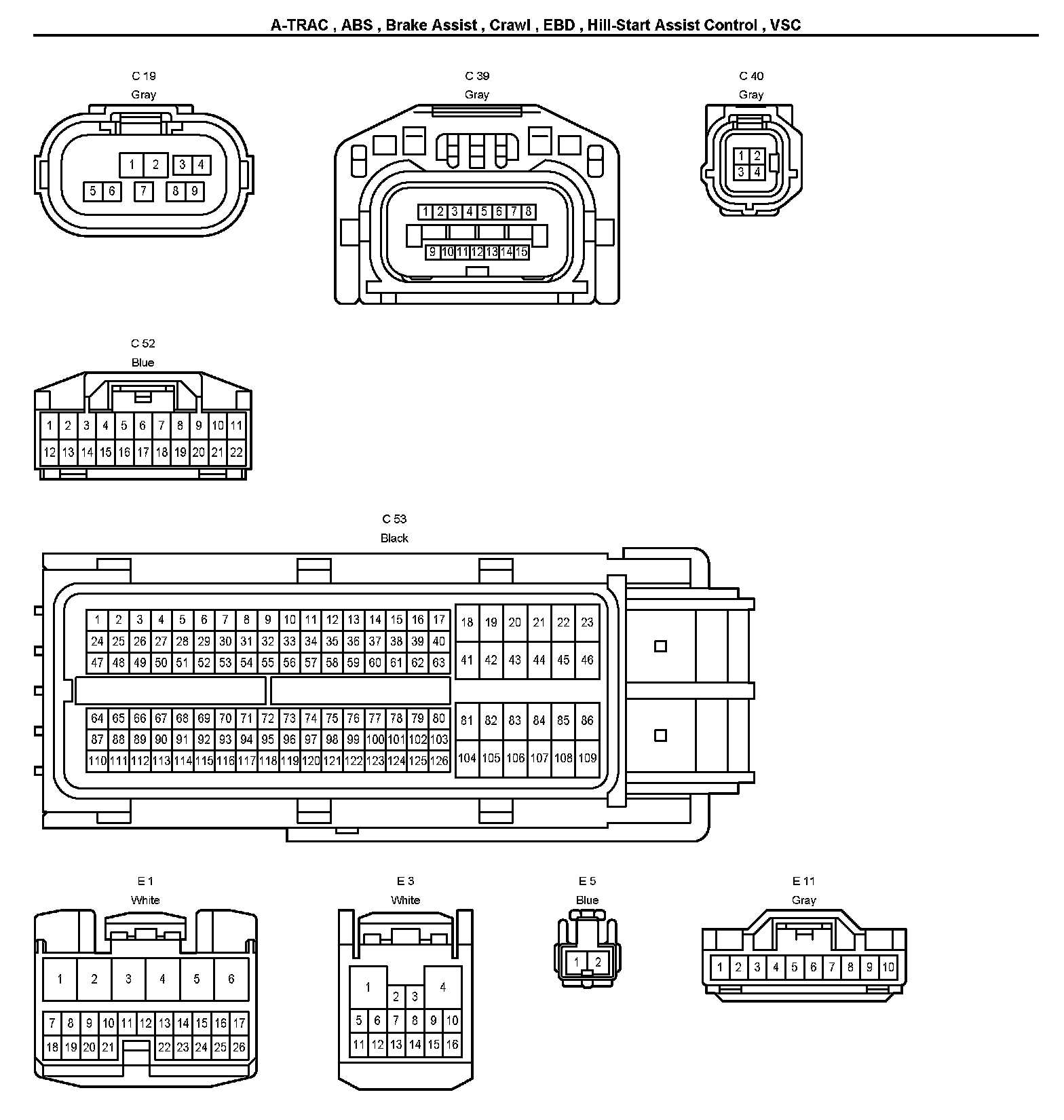

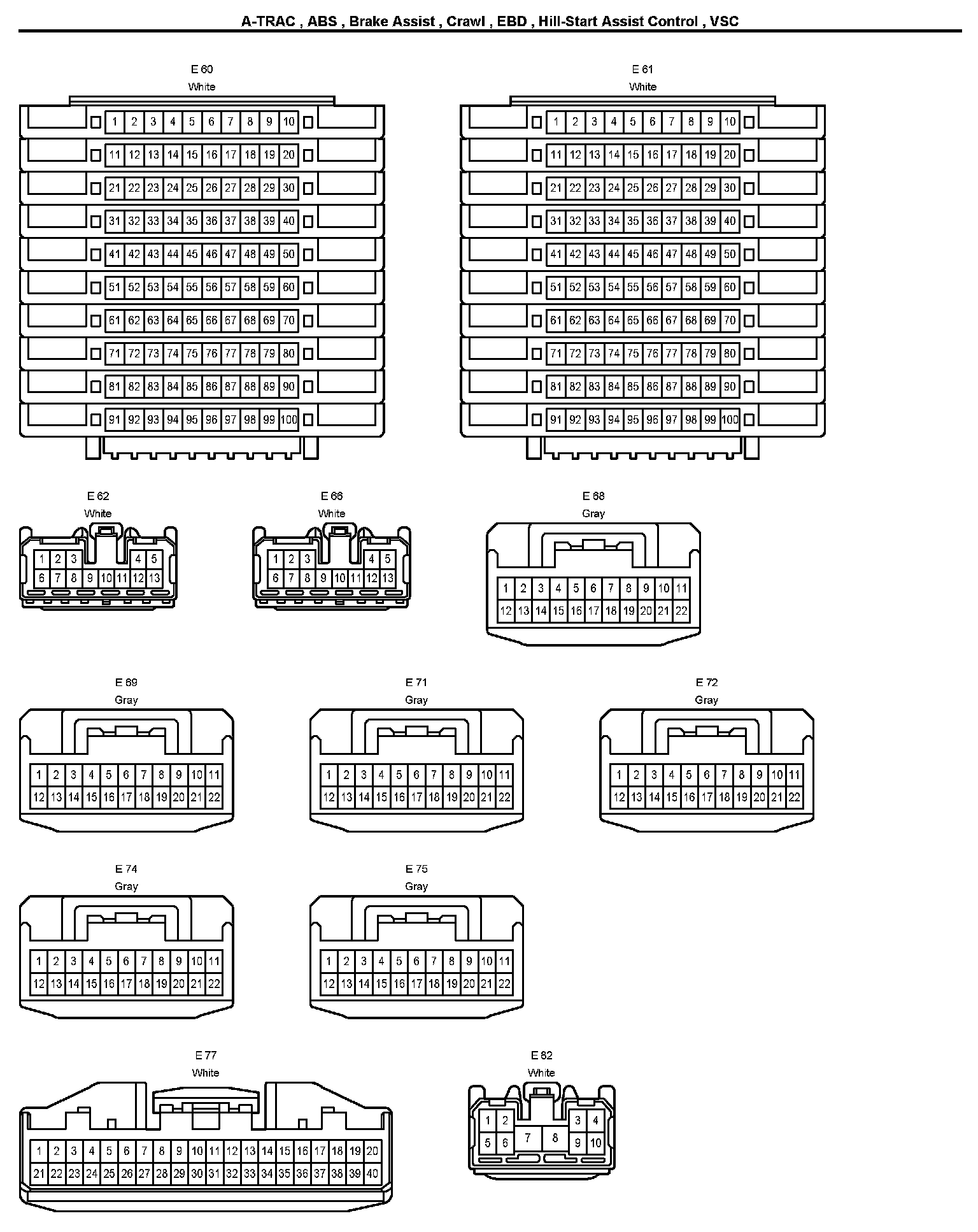

Connectors Part 1:

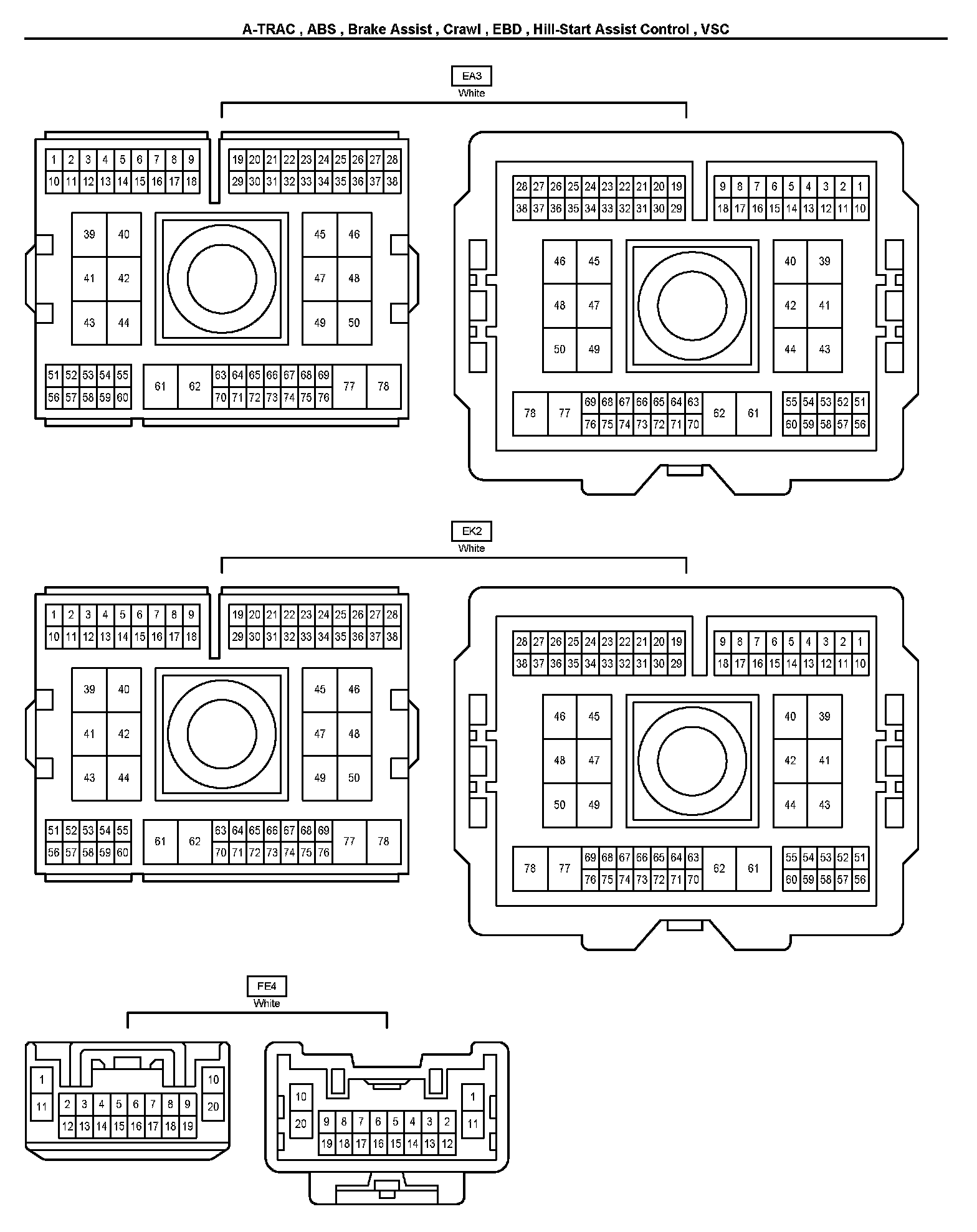

Connectors Part 2:

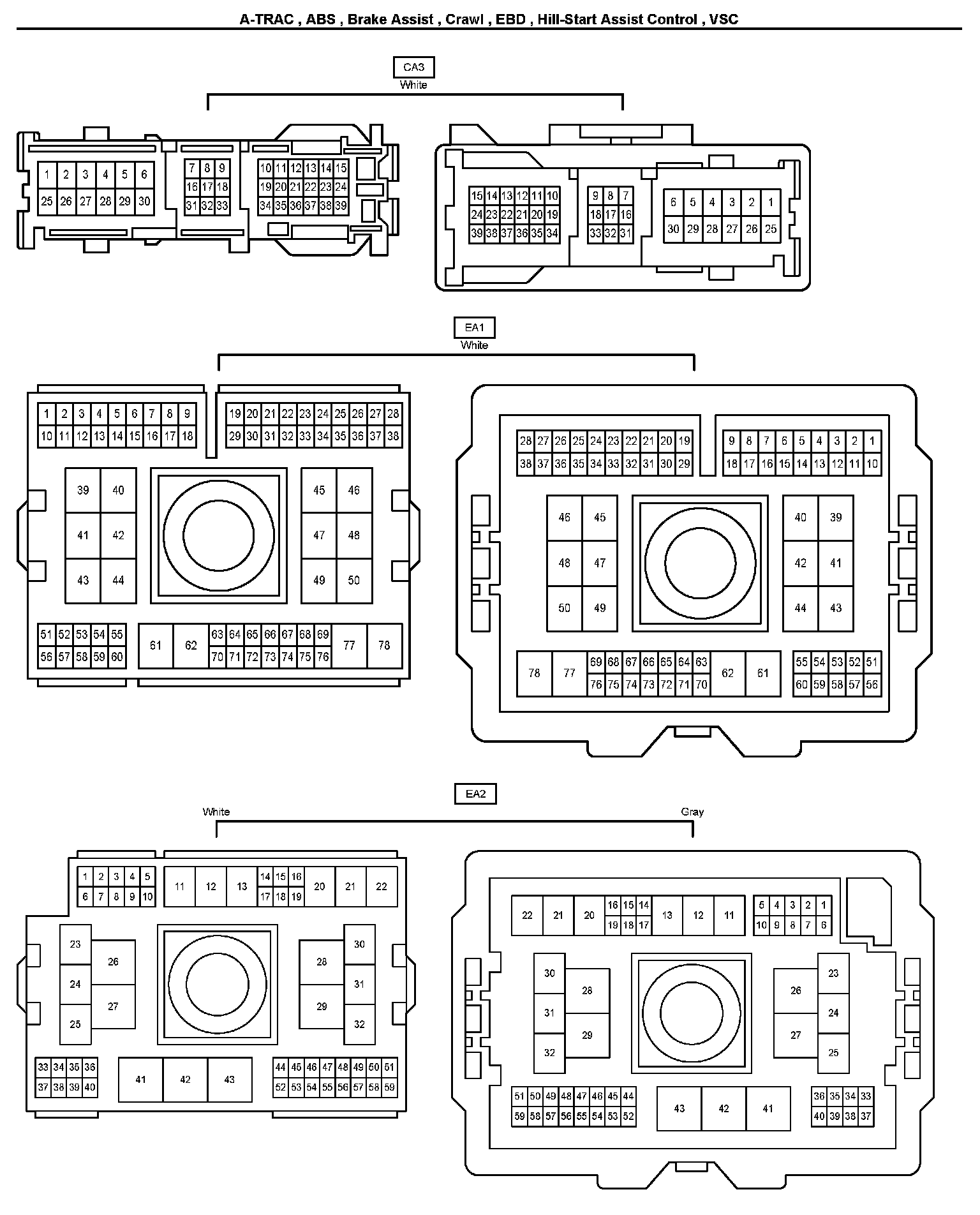

Connectors Part 3:

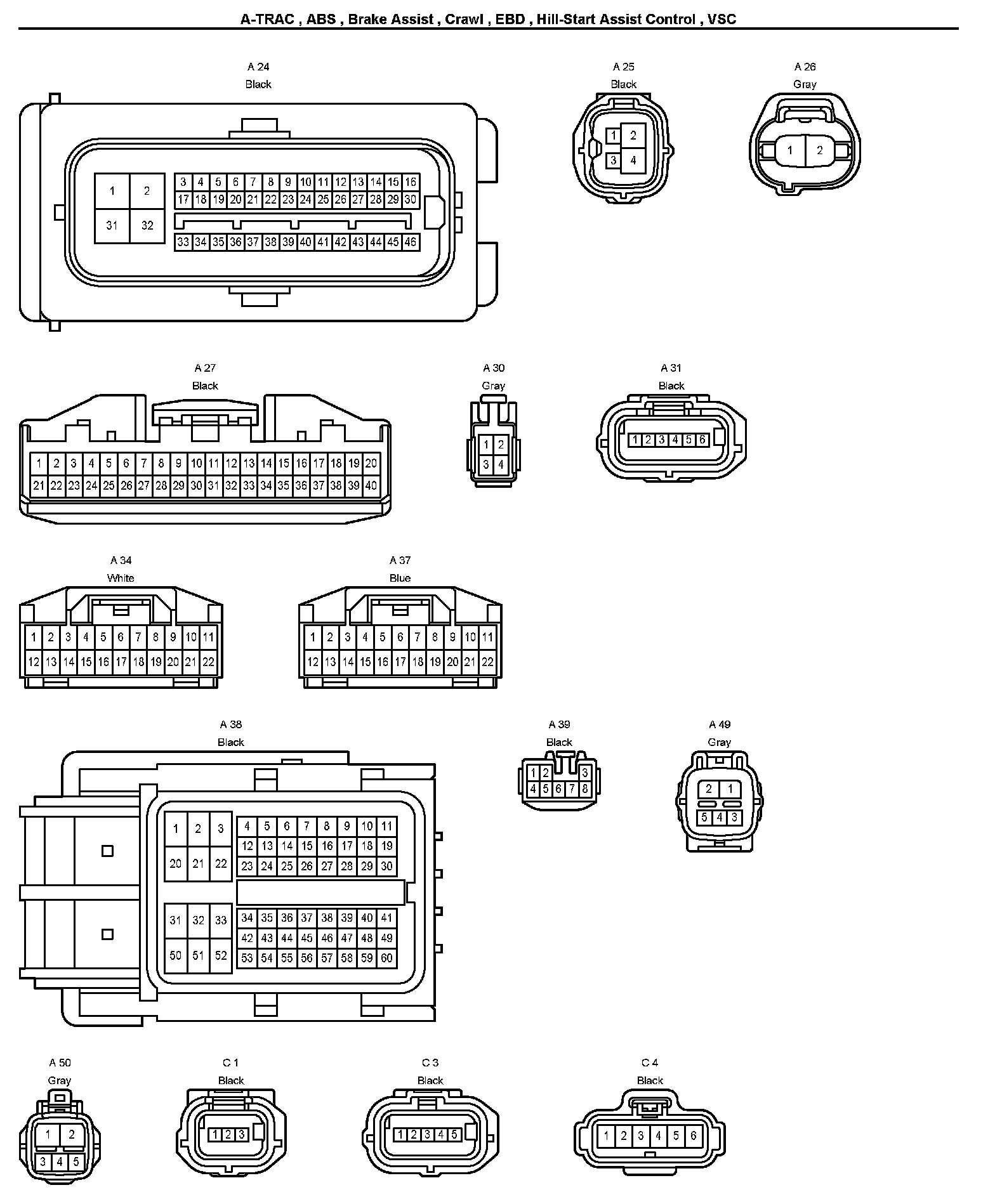

Connectors Part 4:

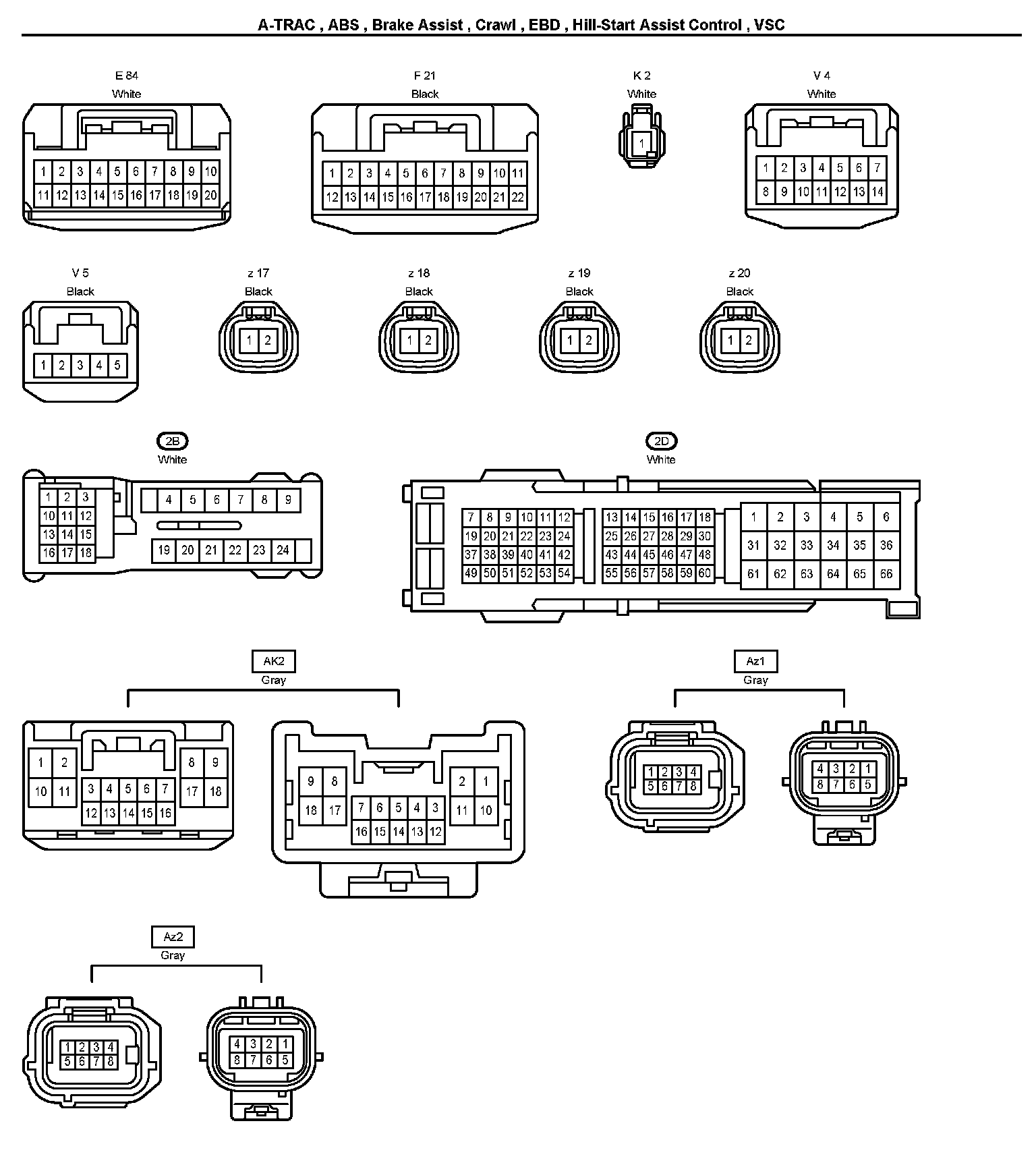

Connectors Part 5:

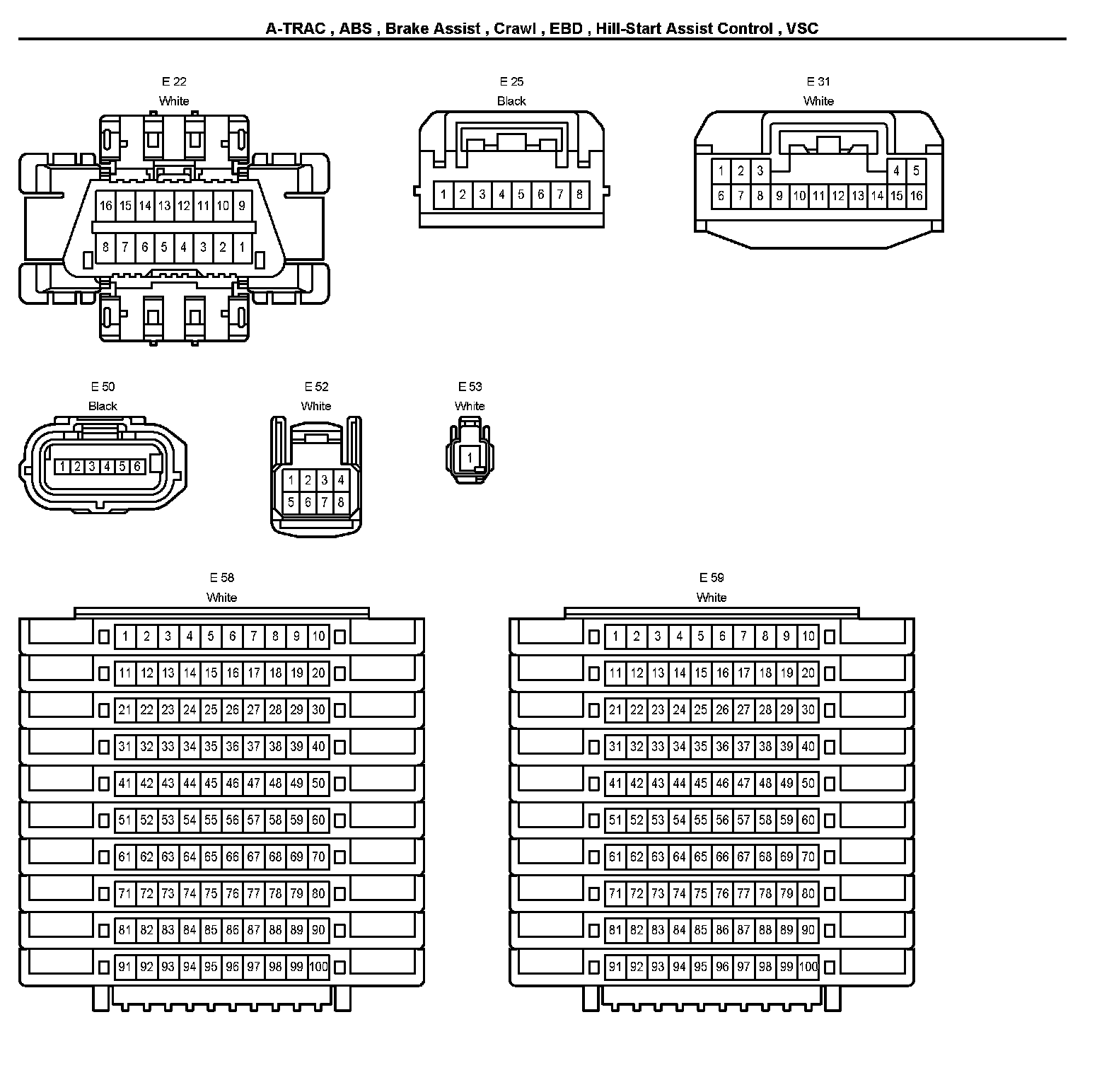

Connectors Part 6:

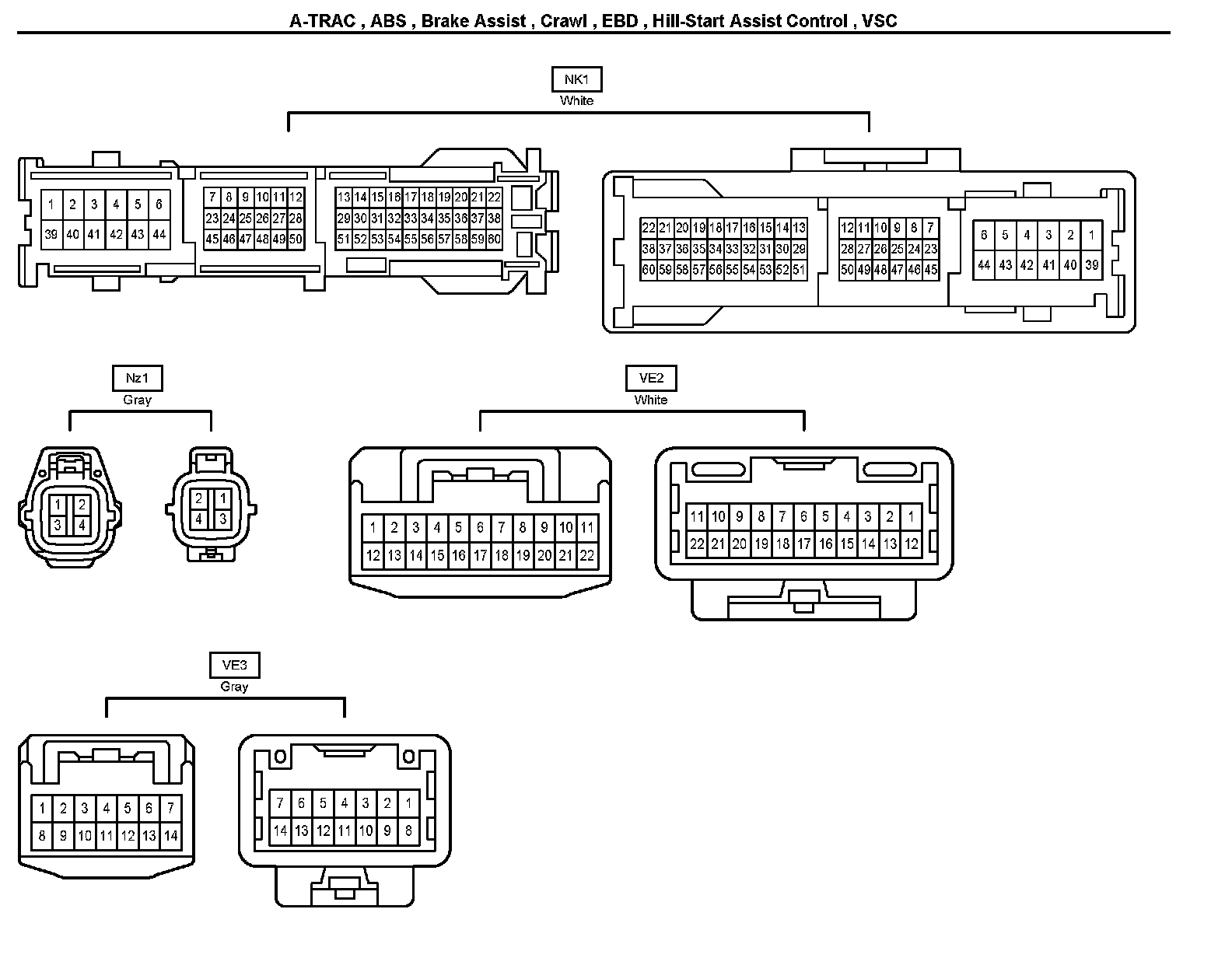

Connectors Part 7:

Connectors Part 8:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
