Suspension Control ( Automatic - Electronic )

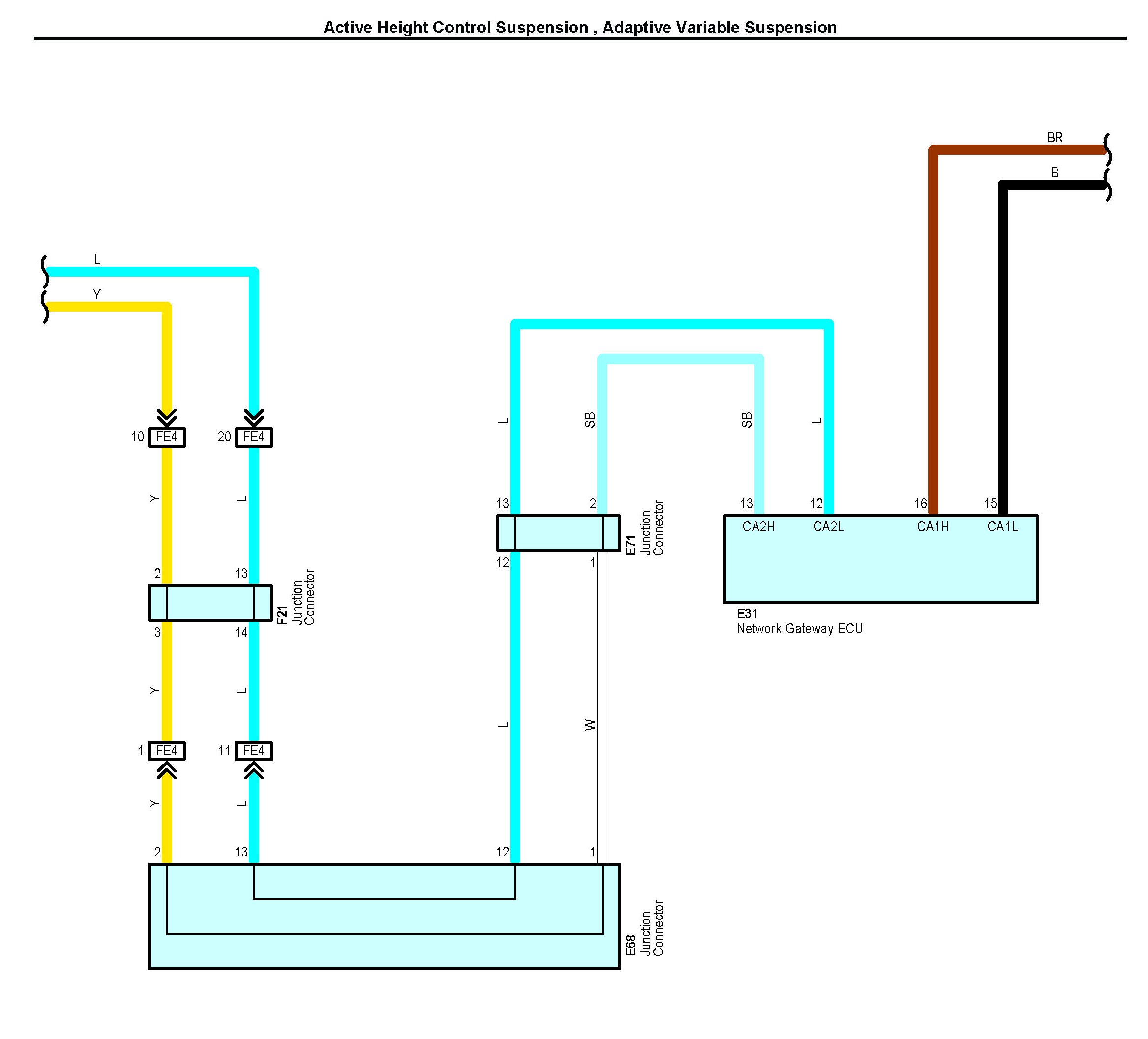

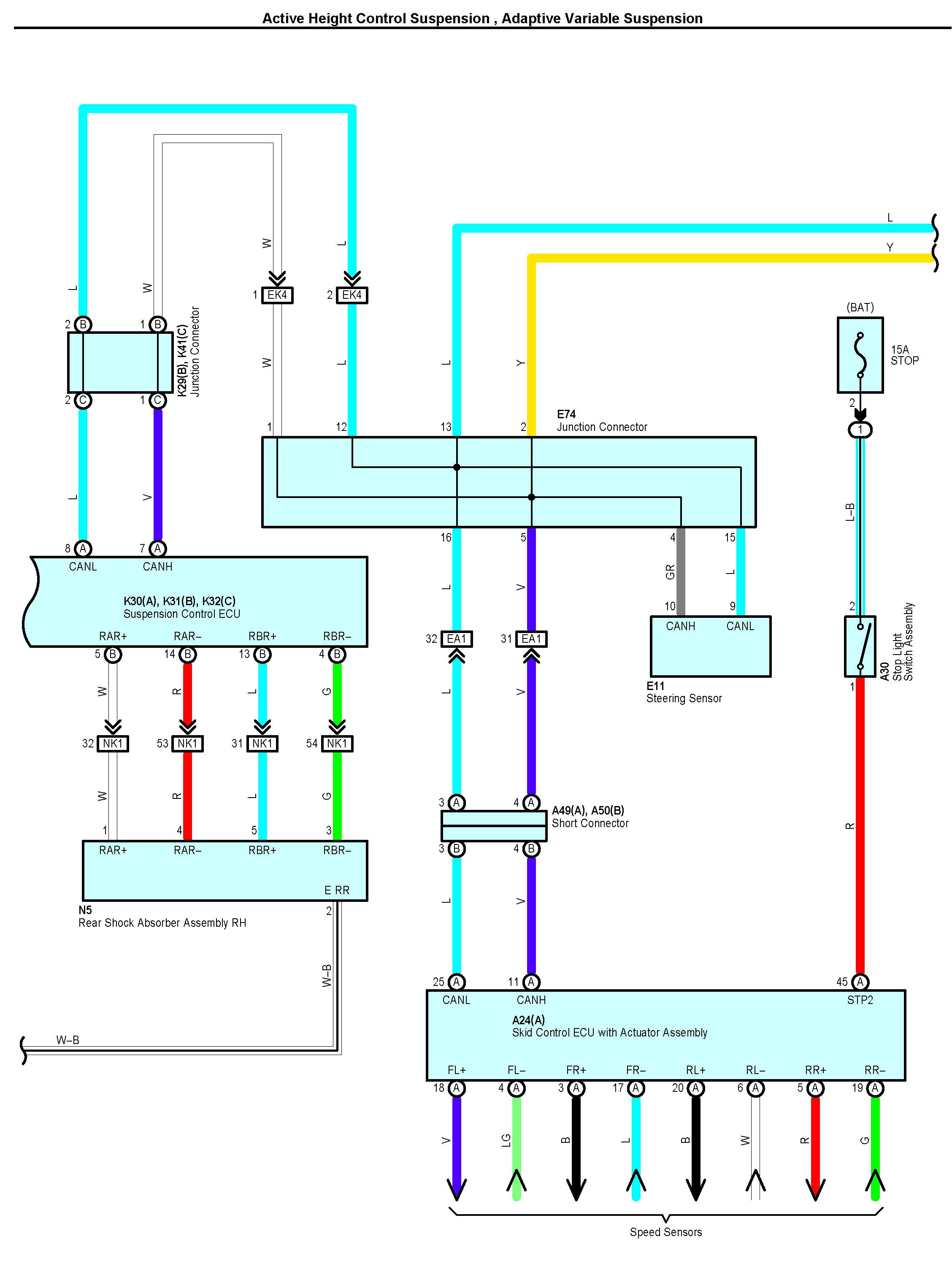

Active Height Control Suspension, Adaptive Variable Suspension Part 1:

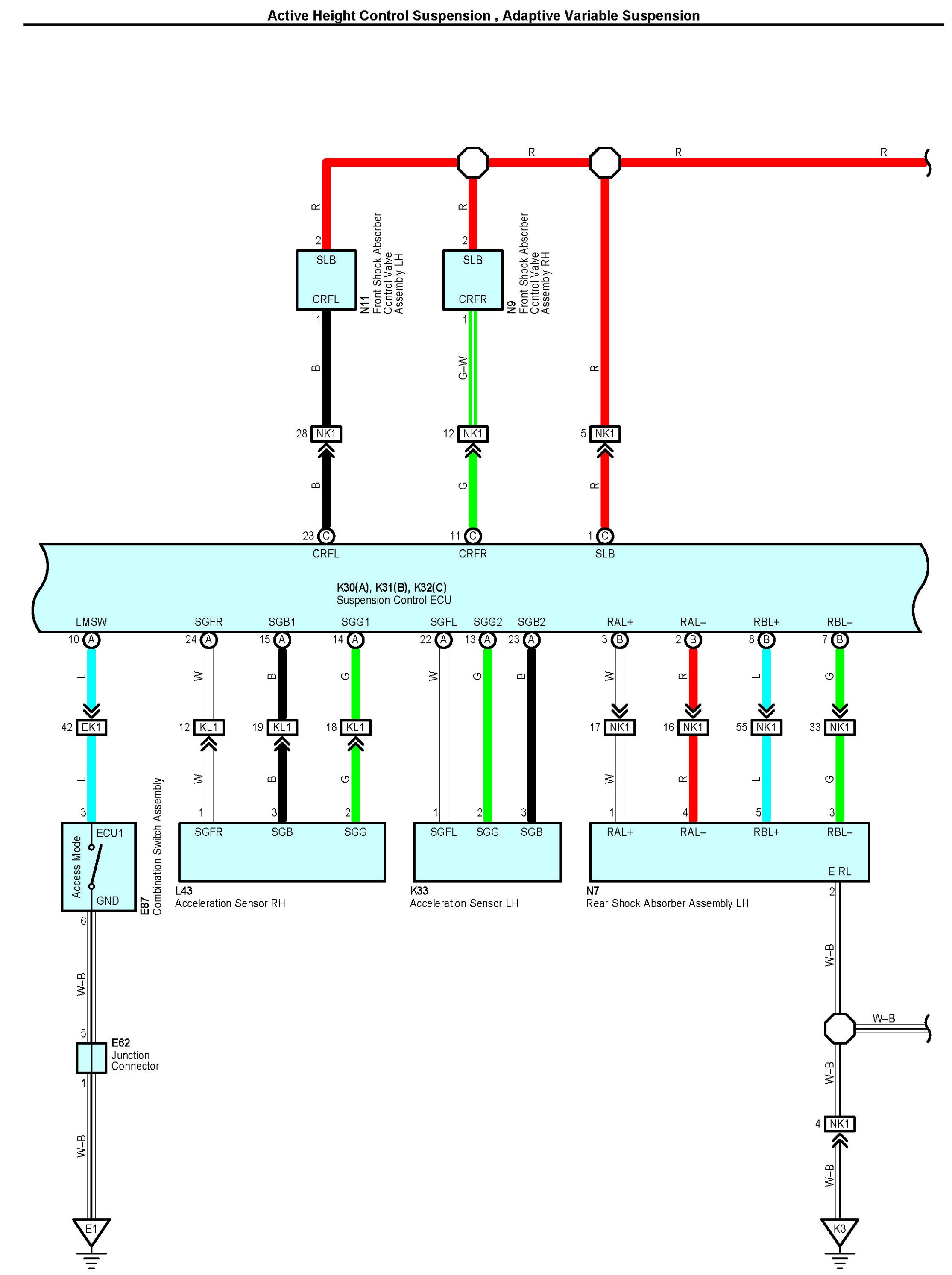

Active Height Control Suspension, Adaptive Variable Suspension Part 2:

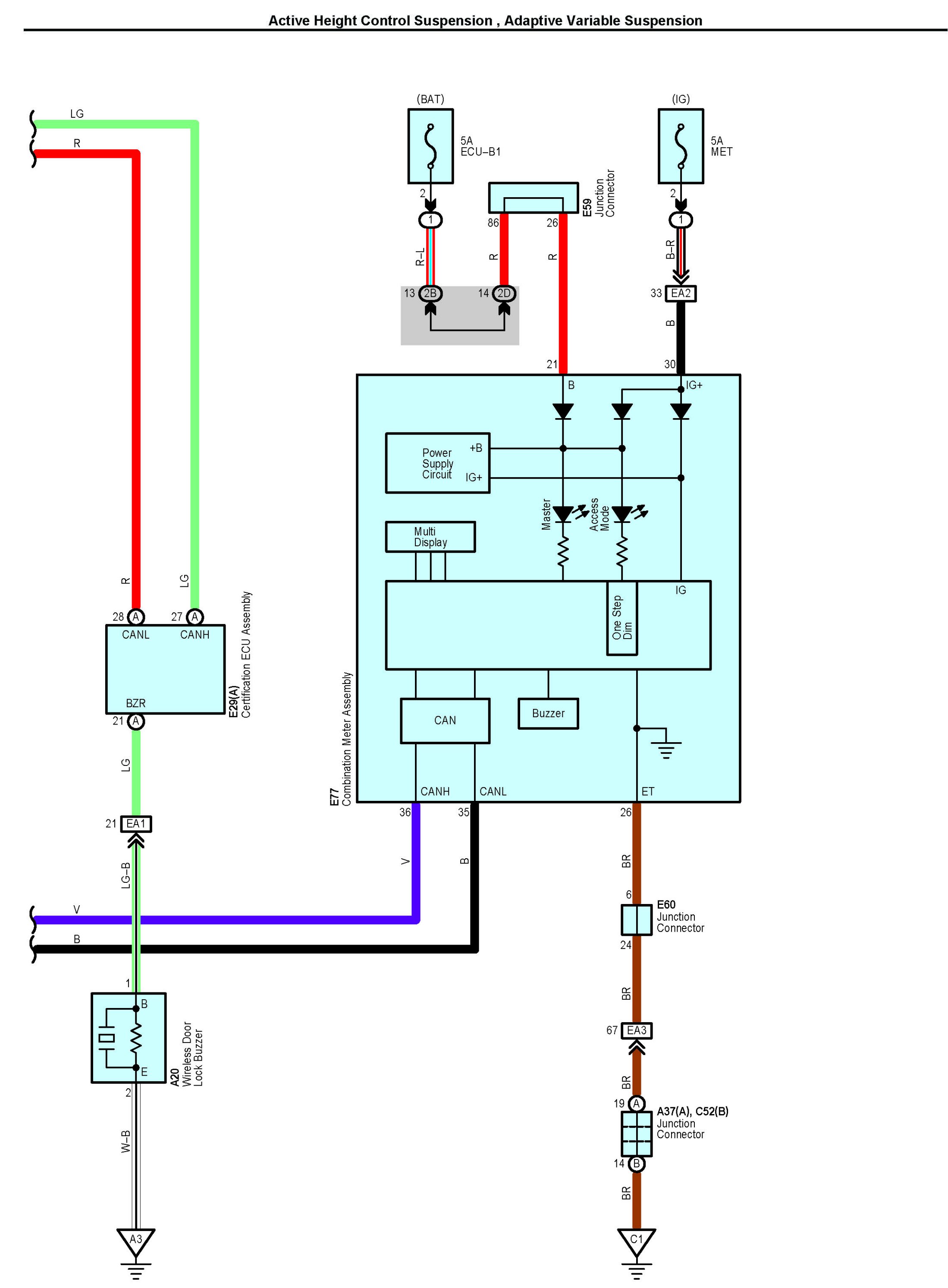

Active Height Control Suspension, Adaptive Variable Suspension Part 3:

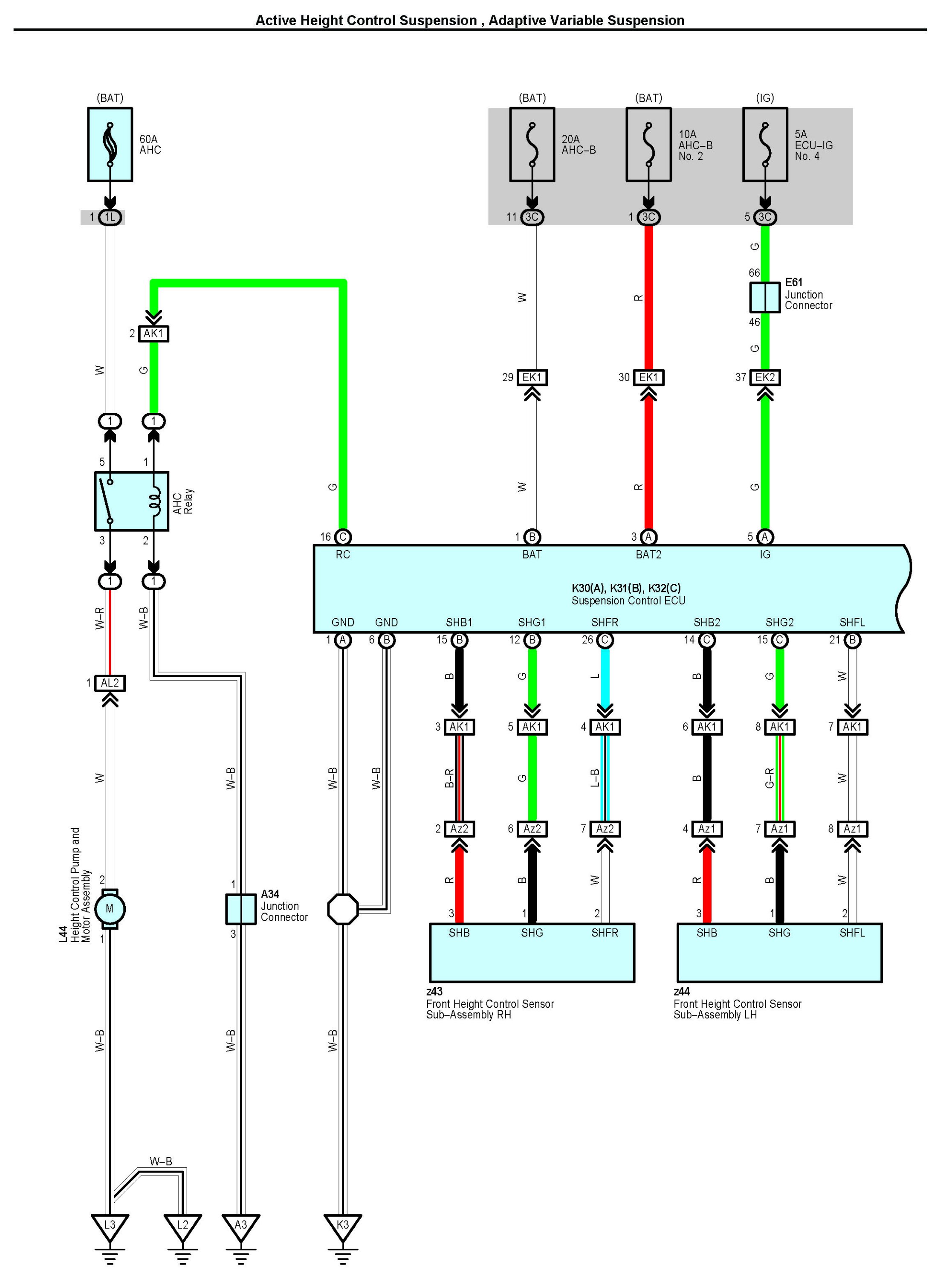

Active Height Control Suspension, Adaptive Variable Suspension Part 4:

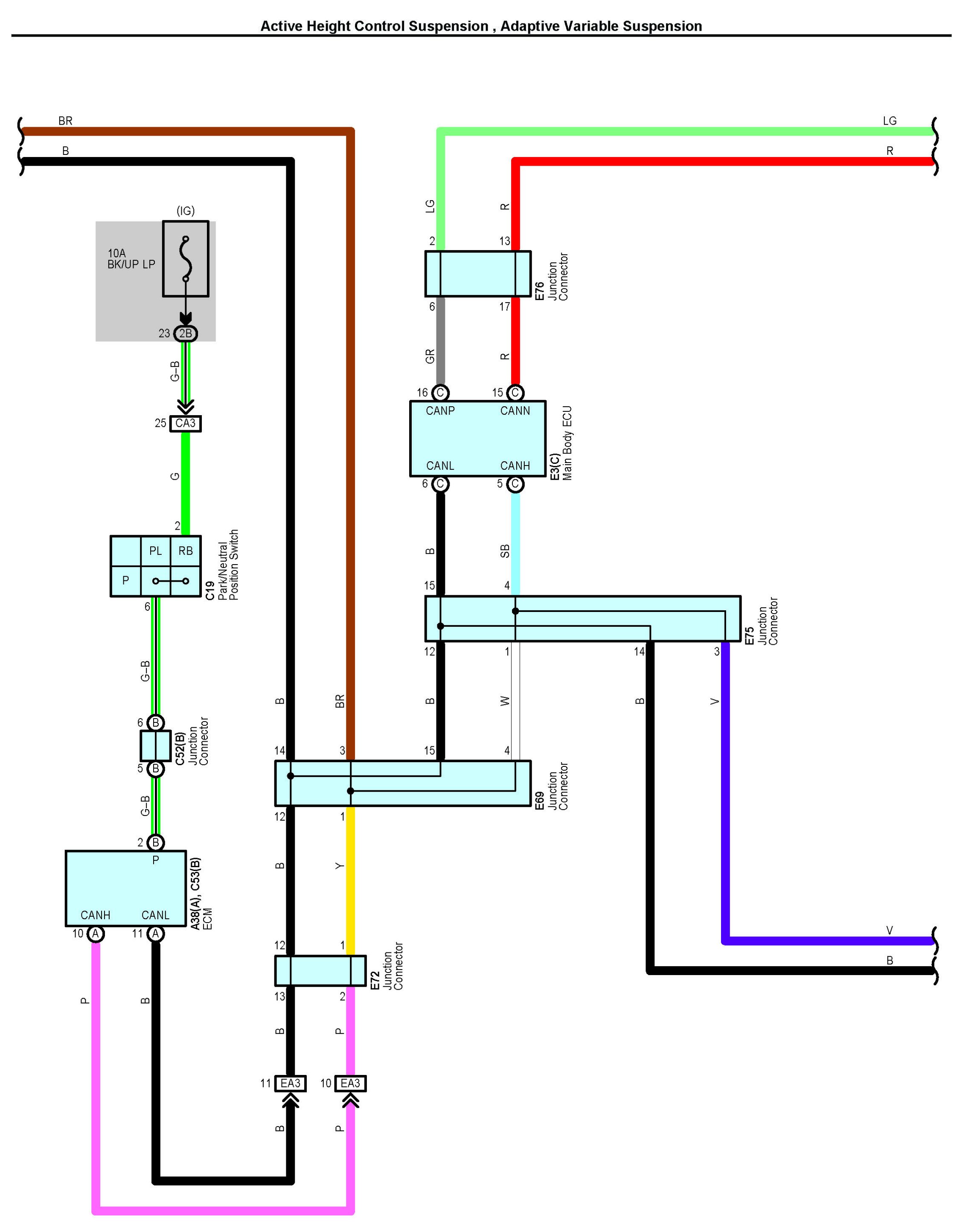

Active Height Control Suspension, Adaptive Variable Suspension Part 5:

Active Height Control Suspension, Adaptive Variable Suspension Part 6:

Active Height Control Suspension, Adaptive Variable Suspension Part 7:

Active Height Control Suspension, Adaptive Variable Suspension Part 8:

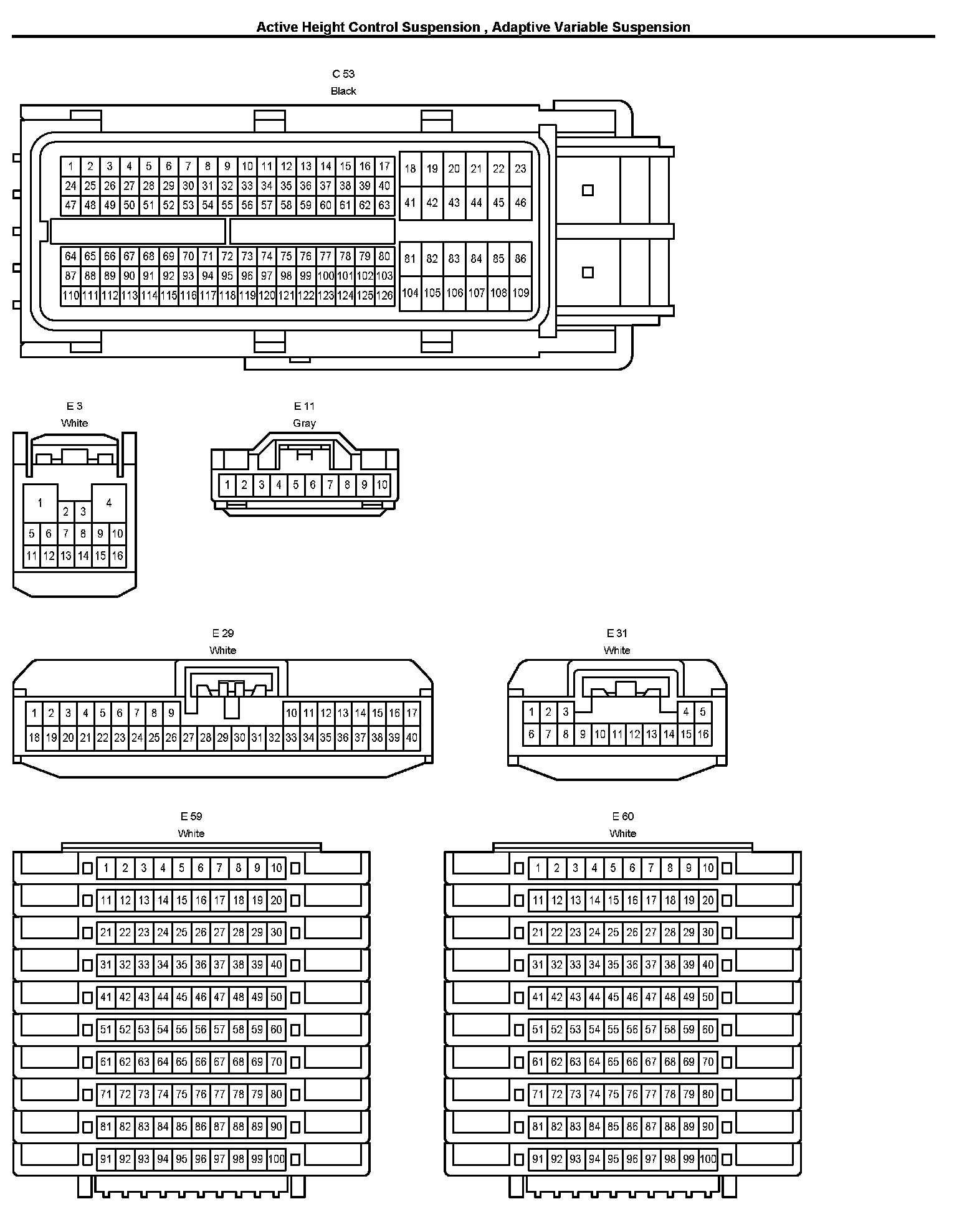

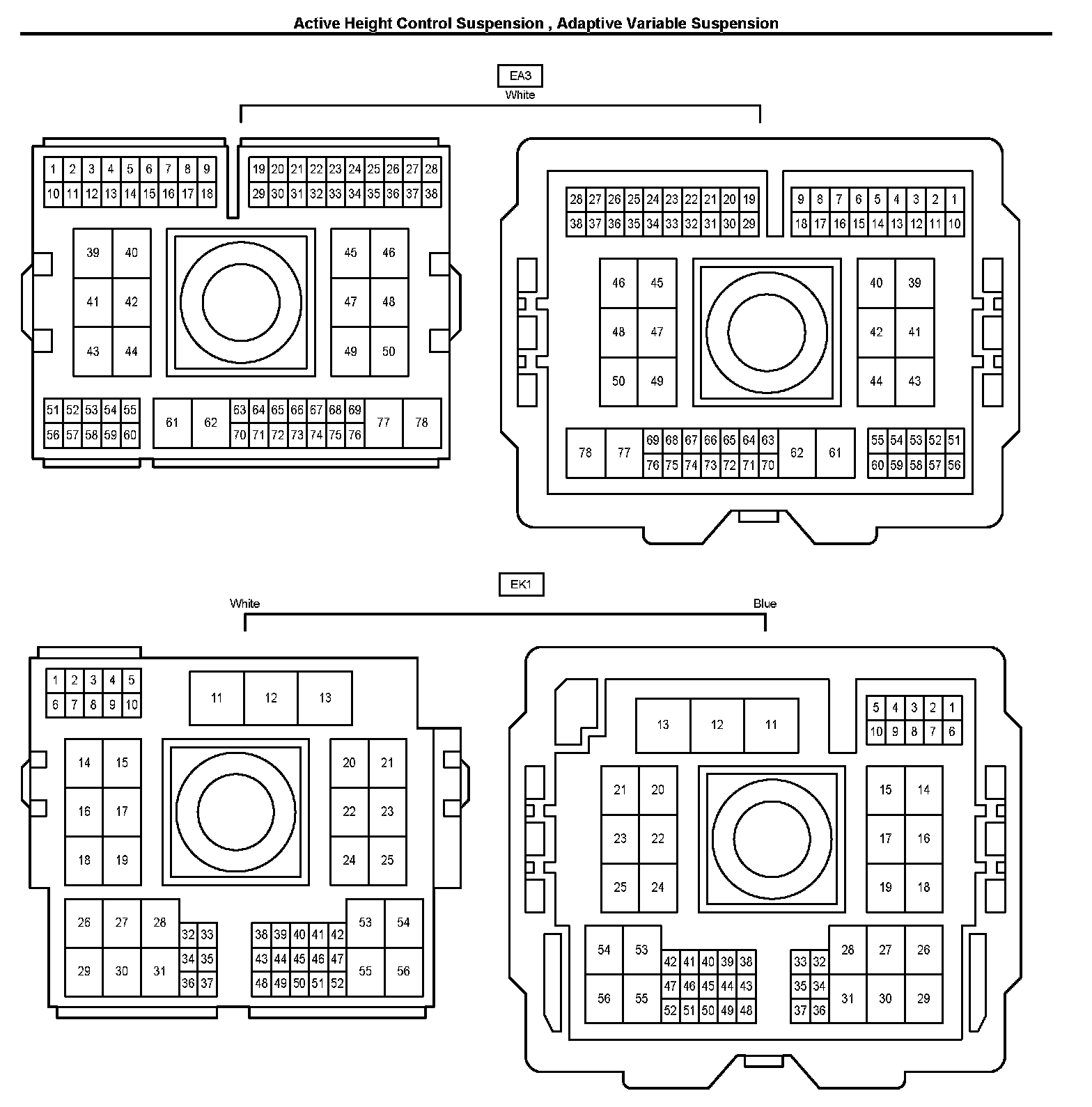

Connectors Part 1:

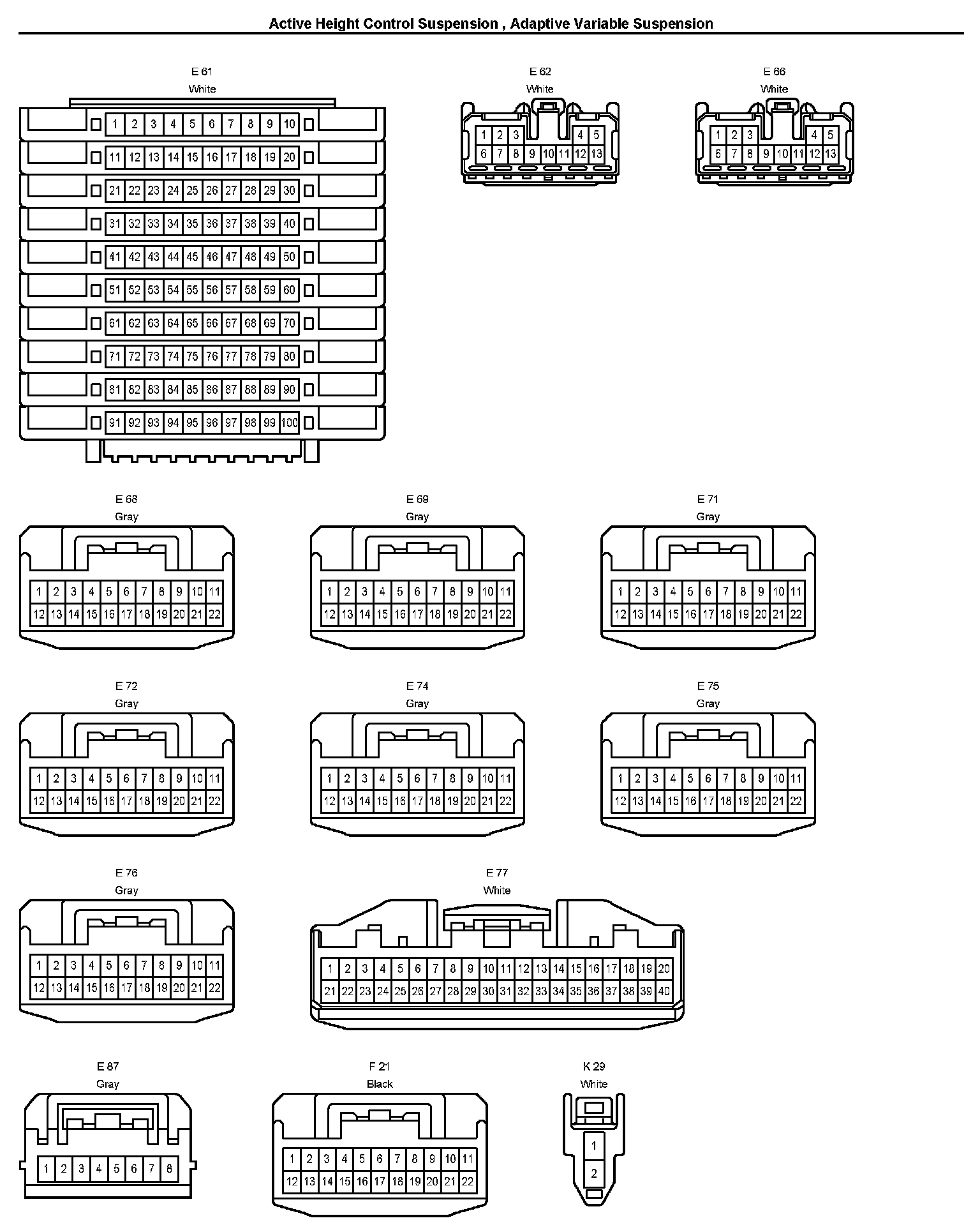

Connectors Part 2:

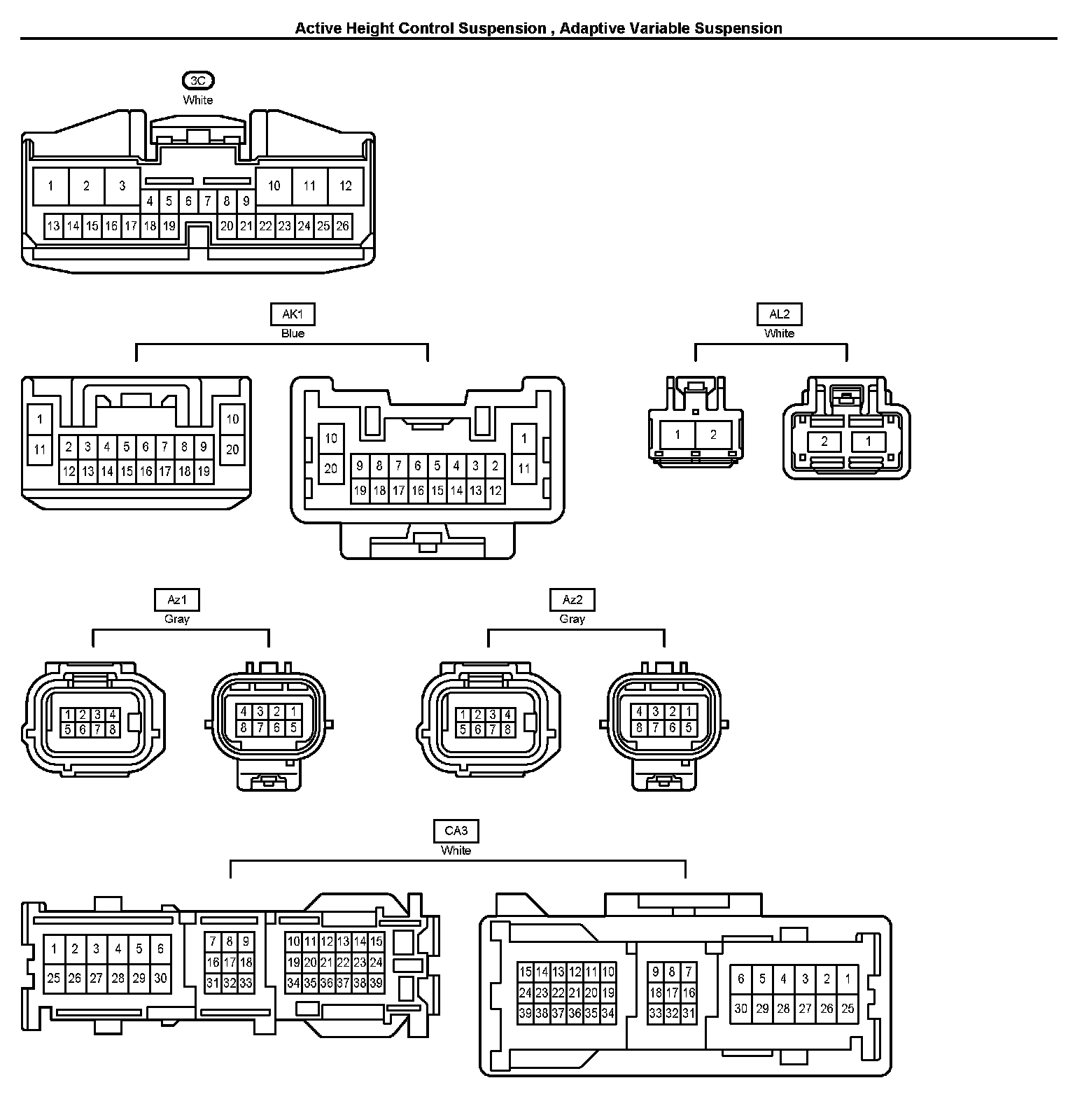

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Connectors Part 6:

Connectors Part 7:

Connectors Part 8:

Connectors Part 9:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
