Cylinder Head Assembly: Specifications

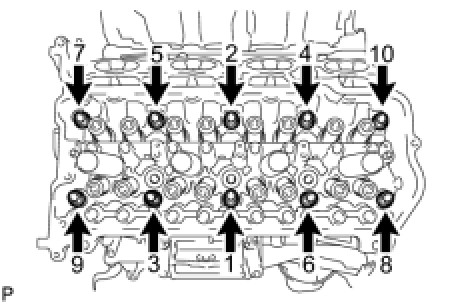

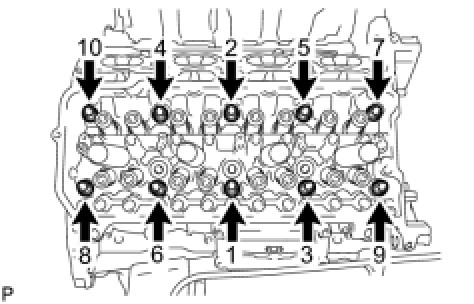

Cylinder head bolts





Measuring point

Intake side bolt 94 mm (3.70 in.)
Exhaust side bolt 89 mm (3.50 in.)

Standard diameter 10.85 to 11.00 mm (0.427 to 0.433 in.)
Minimum diameter 10.6 mm (0.417 in.)

If the diameter is less than the minimum, replace the cylinder head bolt

Tightening








Step 1 36 Nm (367 kgf-cm, 27 ft-lbf)
Step 2 90°
Step 3 another 90°








Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

Standard Warpage:





Maximum warpage 0.10 mm (0.00394 in.)

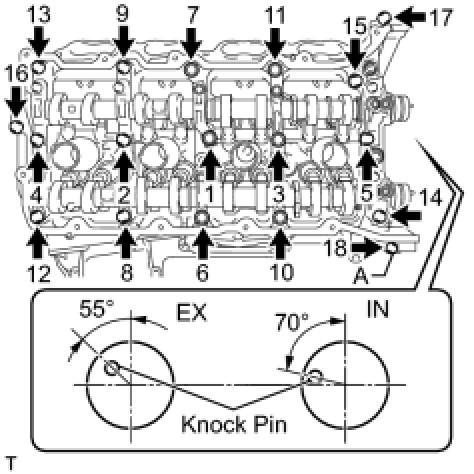

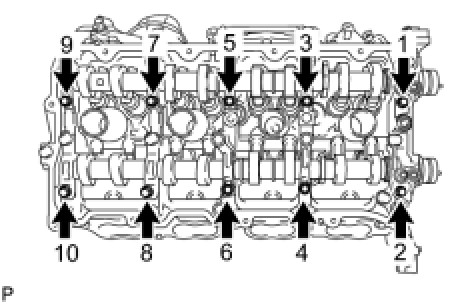

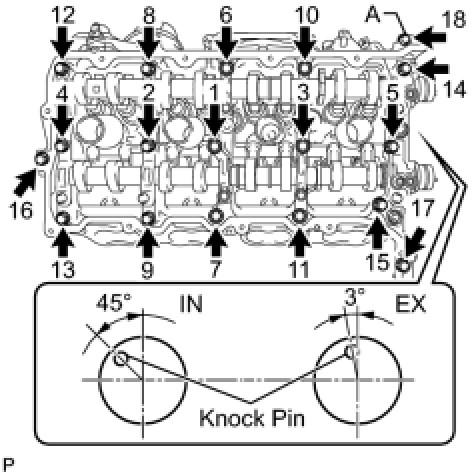

Camshaft bearing cap








Bolt A - Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
Except bolt A 30 Nm (306 kgf-cm, 22 ft-lbf)








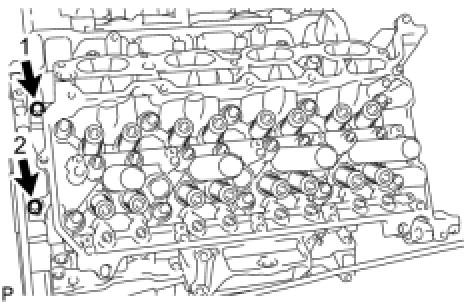

Torque 16 Nm (163 kgf-cm, 12 ft-lbf)

Intake manifold Specifications

Exhaust manifold Specifications

Camshaft gears Specifications
