Blower Motor: Testing and Inspection





HEATING / AIR CONDITIONING: REAR BLOWER MOTOR: INSPECTION

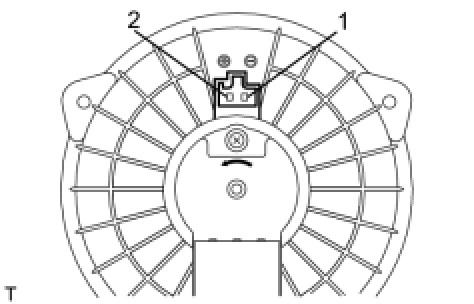

1. INSPECT BLOWER WITH FAN (REAR) MOTOR SUB-ASSEMBLY

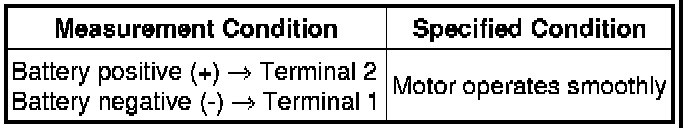

(a) Apply battery voltage and check operation of the motor, as shown in the table.

OK:





(a) If the result is not as specified, replace the blower with fan (rear) motor sub-assembly.
