Instrument Panel, Gauges and Warning Indicators: Description and Operation

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: SYSTEM DESCRIPTION

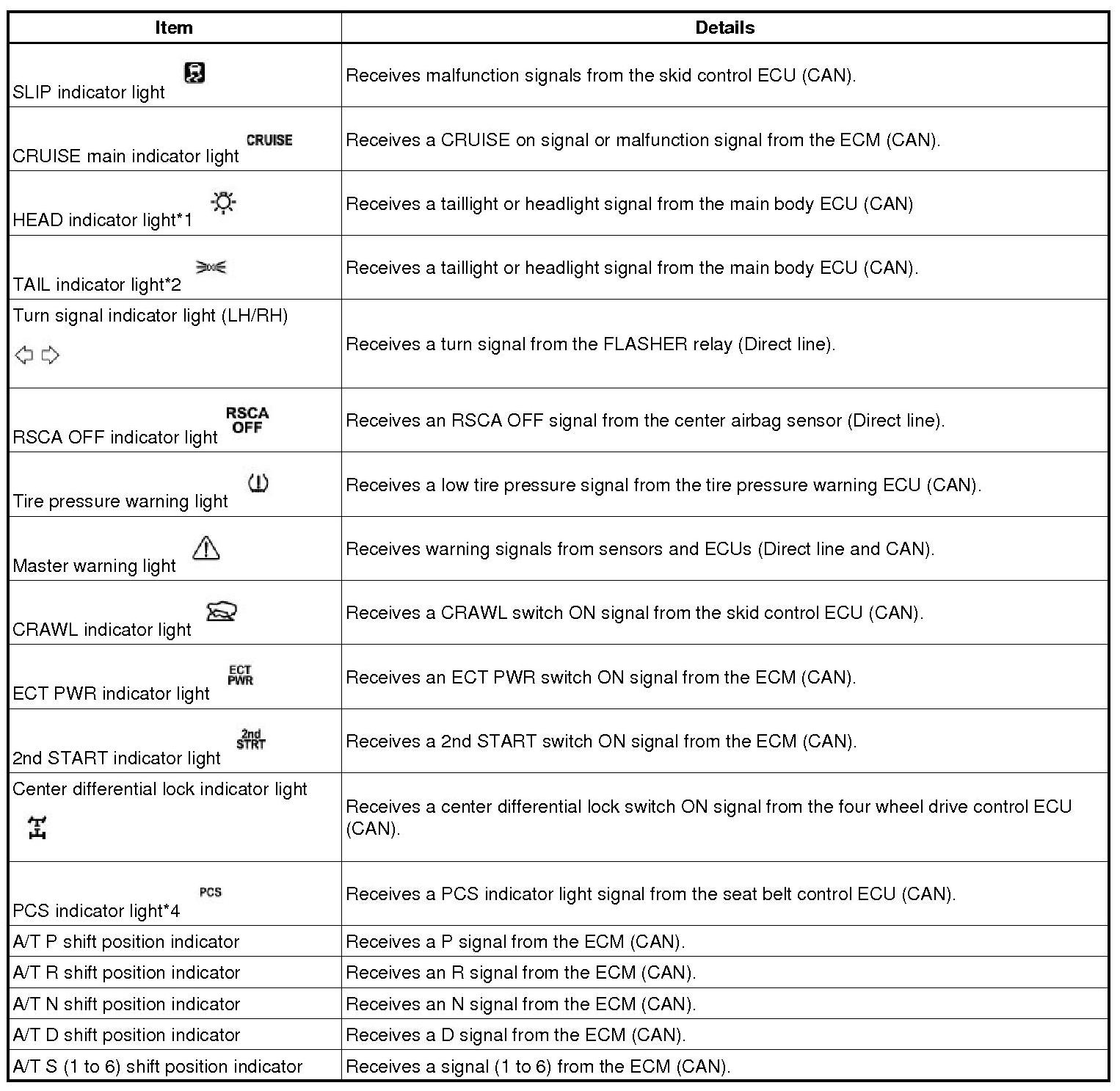

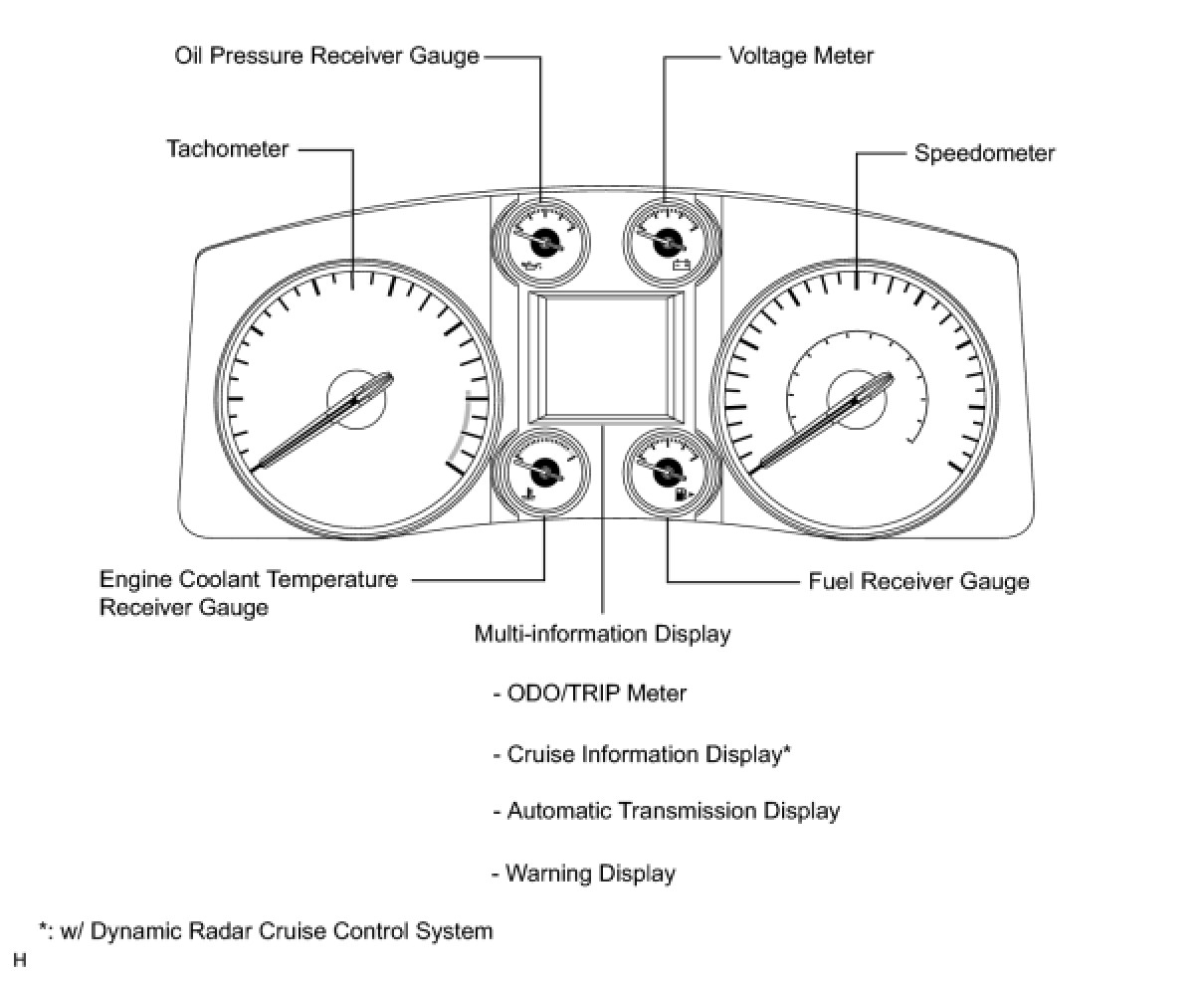

1. METER GAUGE AND WARNING/INDICATOR

















*1: for U.S.A.

*2: except U.S.A.

*3: w/ Intuitive Parking Assist System

*4: w/ Pre-Collision System

2. MULTI-INFORMATION DISPLAY

(a) Cruise information display:

The cruise information is displayed in the following order each time the DISP switch is pressed.









(b) Basic Flowchart.

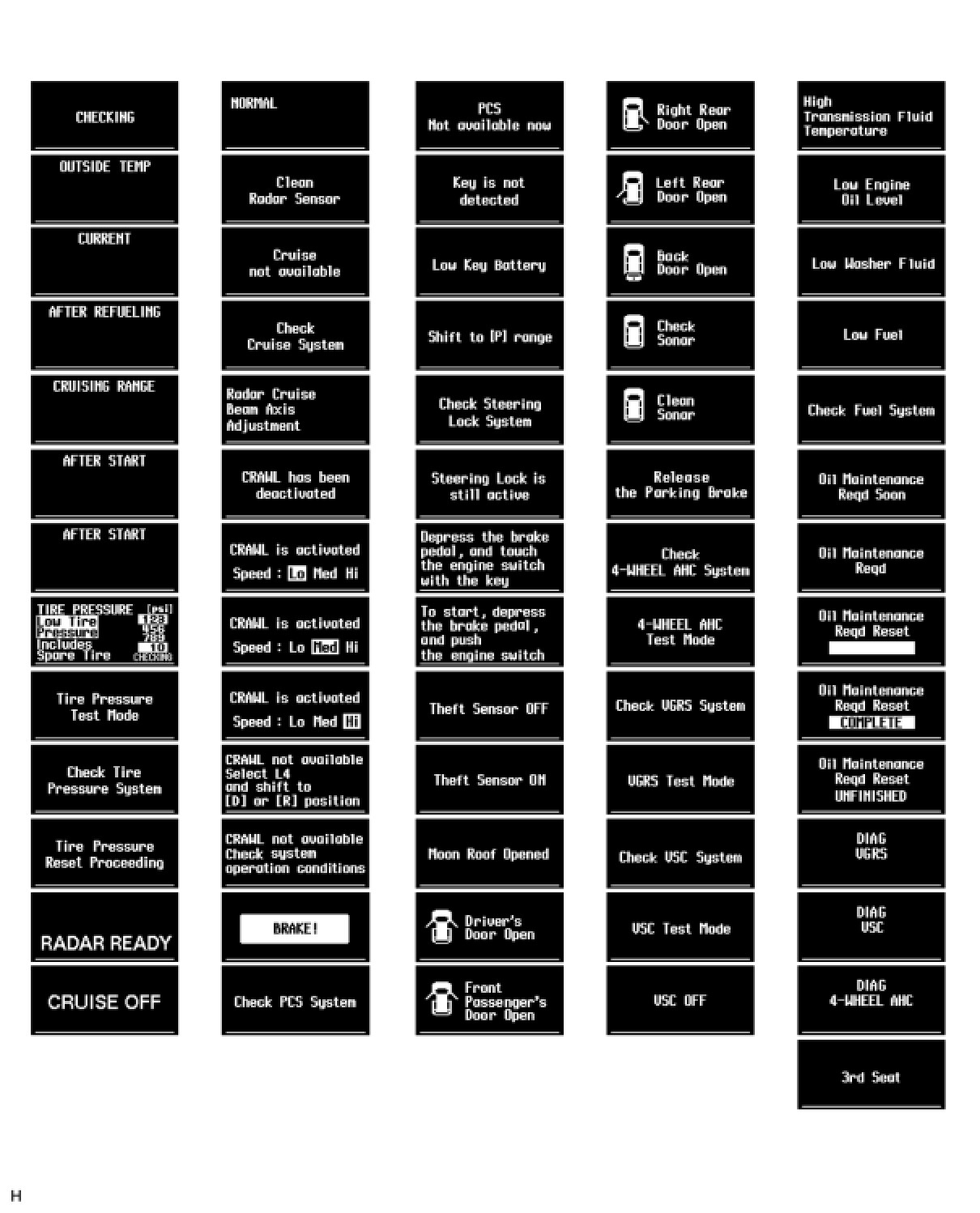

(c) Multi-information display:

When a warning is necessary, the warning display interrupts the multi-information display.

The master warning light may illuminate or blink and a buzzer may sound depending on the item in the multi-information display.

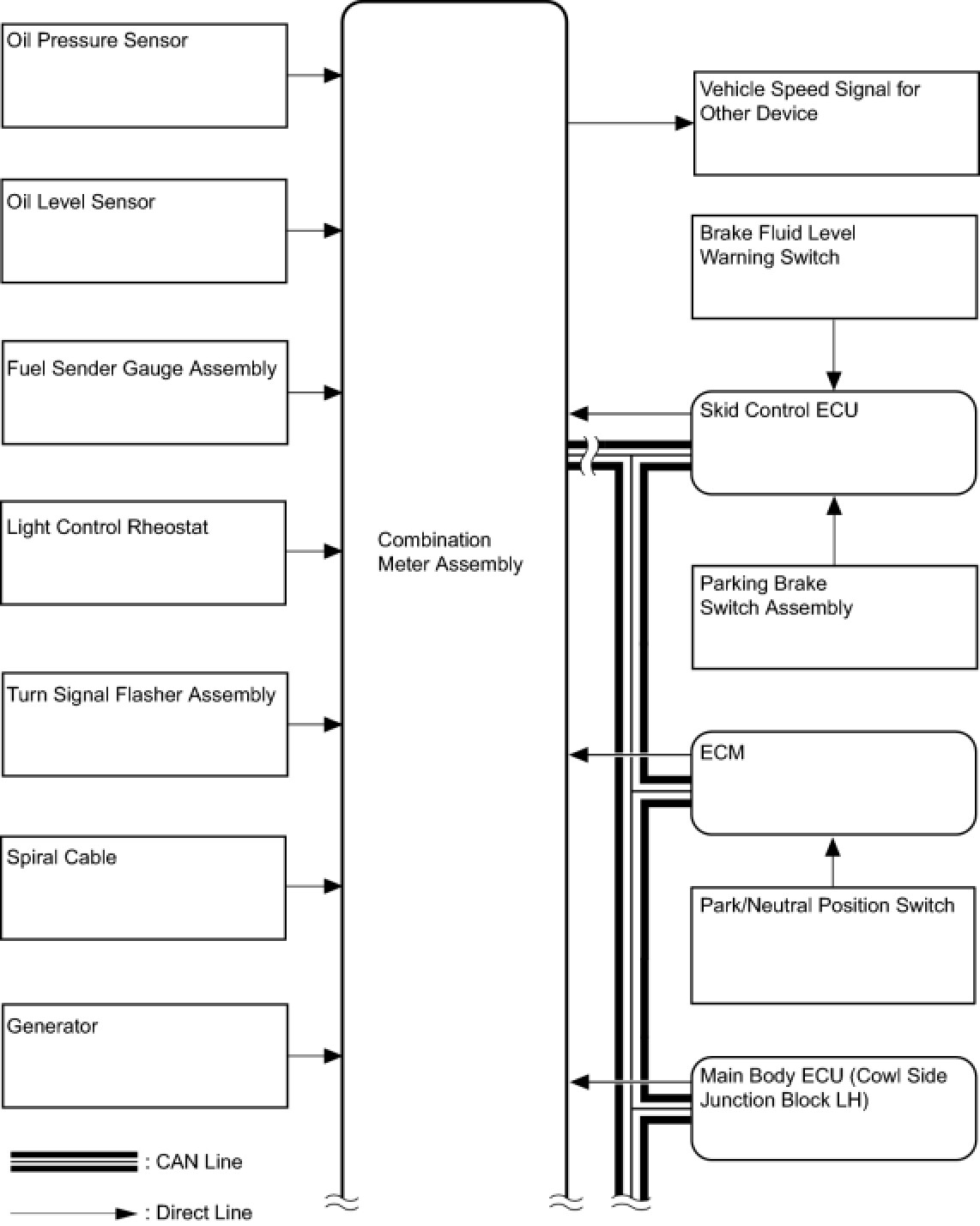

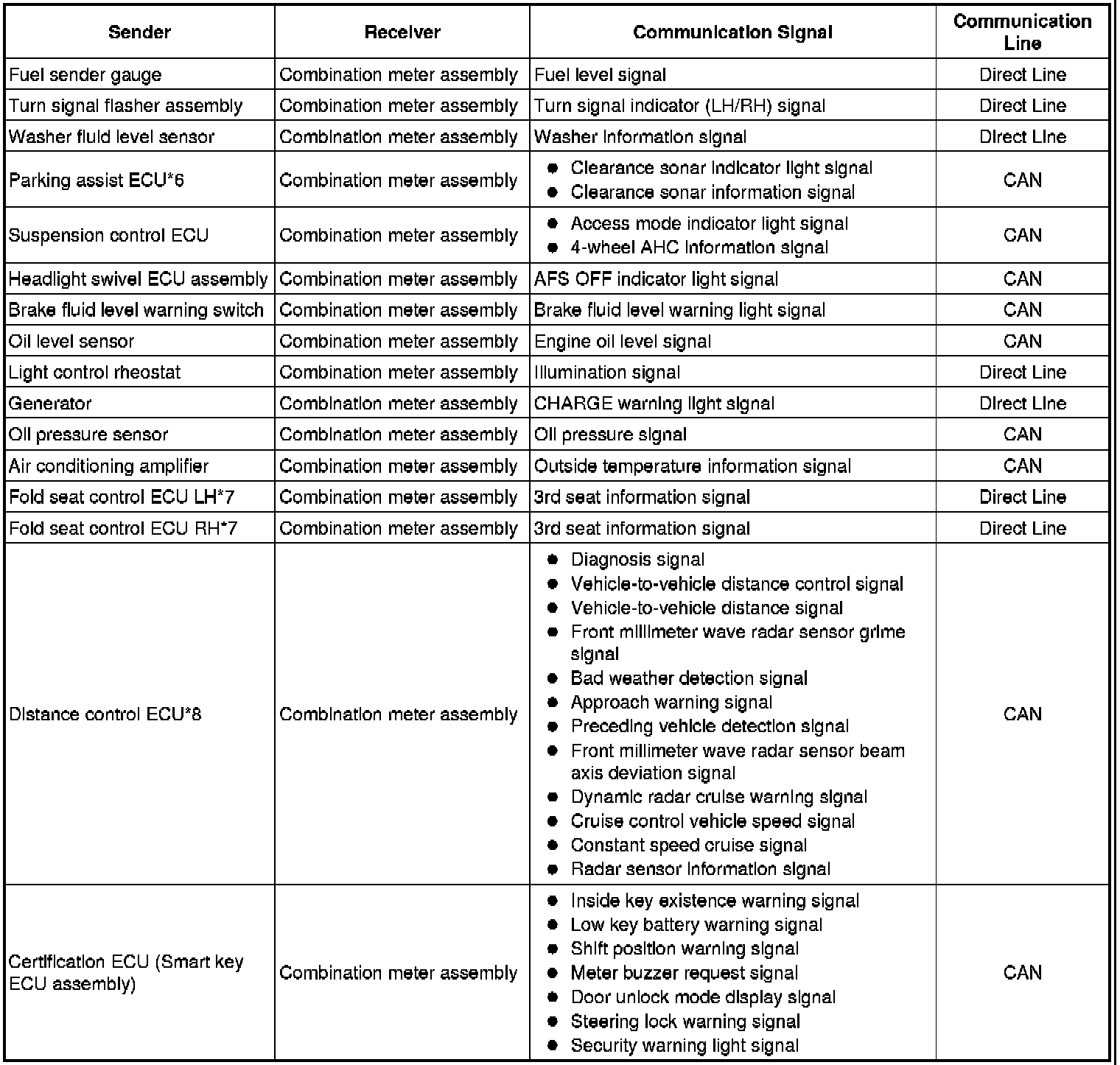

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: SYSTEM DIAGRAM

















*1: w/ Navigation System

*2: w/o Navigation System

*3: for U.S.A.

*4: except U.S.A.

*5: w/ Pre-Collision System

*6: w/ Intuitive Parking Assist System

*7: w/ Rear Power Seat Control System

*8: w/ Dynamic Radar Cruise Control System
