Operation CHARM: Car repair manuals for everyone.
Home >> Lexus Truck >> 2010 >> LX 570 V8-5.7L (3UR-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Specifications >> Mechanical Specifications

Mechanical Specifications

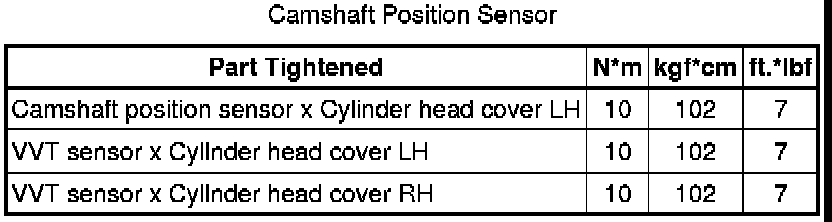

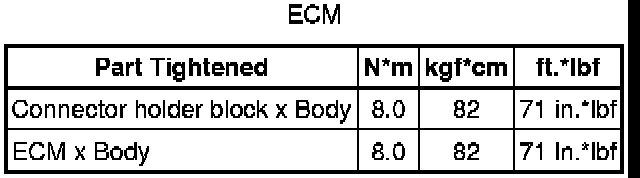

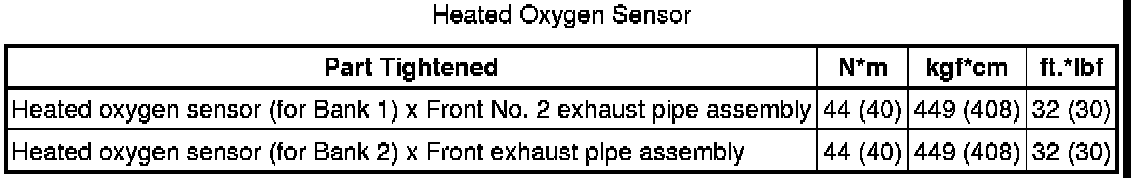

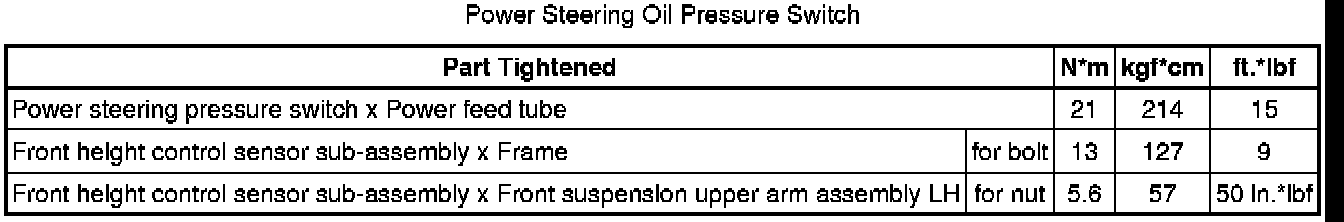

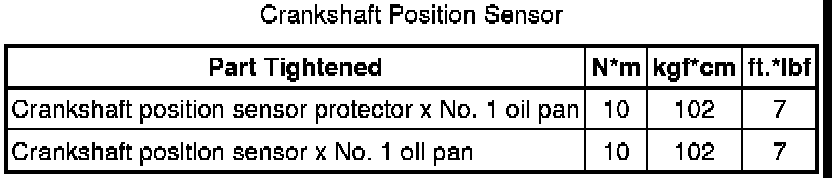

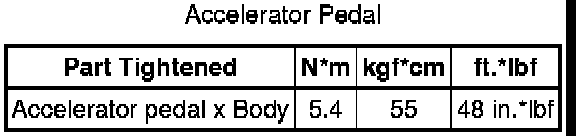

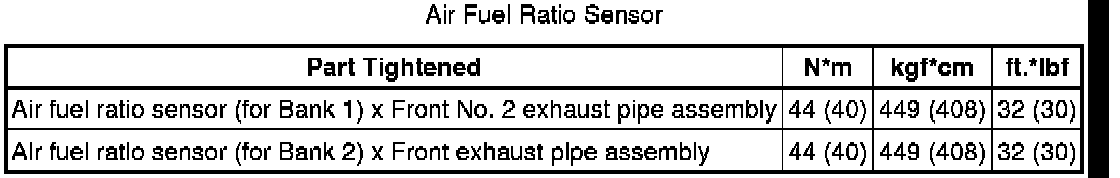

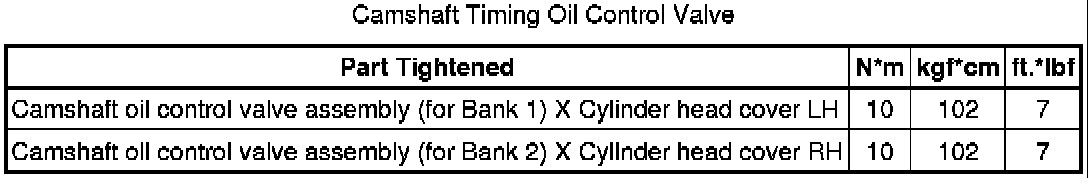

SPECIFICATIONS: 3UR-FE ENGINE CONTROL: TORQUE SPECIFICATIONS





















































( ): For use with SST
