How To Proceed With Troubleshooting

SUPPLEMENTAL RESTRAINT SYSTEMS: OCCUPANT CLASSIFICATION SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use these procedures to troubleshoot the occupant classification system.
* *: Use the Techstream.
1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE

Standard voltage:

11 to 14 V

If the voltage is below 11 V, recharge or replace the battery before proceeding.

NEXT -- Continue to next step.

3. CUSTOMER PROBLEM ANALYSIS

(a) Confirm customer problem symptoms How To Proceed With Troubleshooting.

NEXT -- Continue to next step.

4. CHECK FOR DTC*

(a) Check for DTC's and note any codes that are output Reading and Clearing Diagnostic Trouble Codes.

(b) Clear the DTC's Reading and Clearing Diagnostic Trouble Codes.

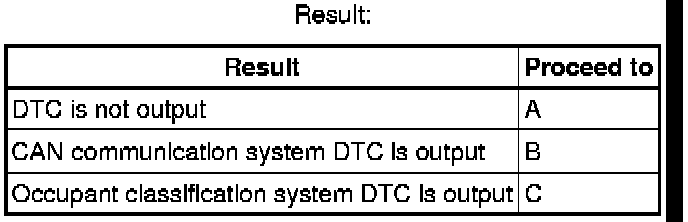

(c) Recheck for DTC's Reading and Clearing Diagnostic Trouble Codes. Based on the DTC's output above, try to force output of the same CAN communication system DTC or occupant classification system DTC by simulating the symptoms indicated by the DTC.





B -- Go to DIAGNOSTIC TROUBLE CODE CHART Service Precautions

C -- Go to DIAGNOSTIC TROUBLE CODE CHART Occupant Classification System
A -- Continue to next step.

5. PROBLEM SYMPTOMS TABLE

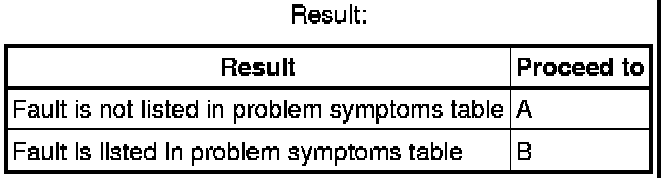

(a) Refer to the Problem Symptoms Table Problem Symptoms Table.





B -- Go to step 6
A -- Continue to next step.

6. OVERALL ANALYSIS AND TROUBLESHOOTING*

(a) Terminals of ECU Pinout Values and Diagnostic Parameters

(b) Data List / Active Test Scan Tool Testing and Procedures

NEXT -- Continue to next step.

7. ADJUST, REPAIR OR REPLACE

NEXT -- Continue to next step.

8. CONFIRMATION TEST

NEXT -- END
