Torque Specifications

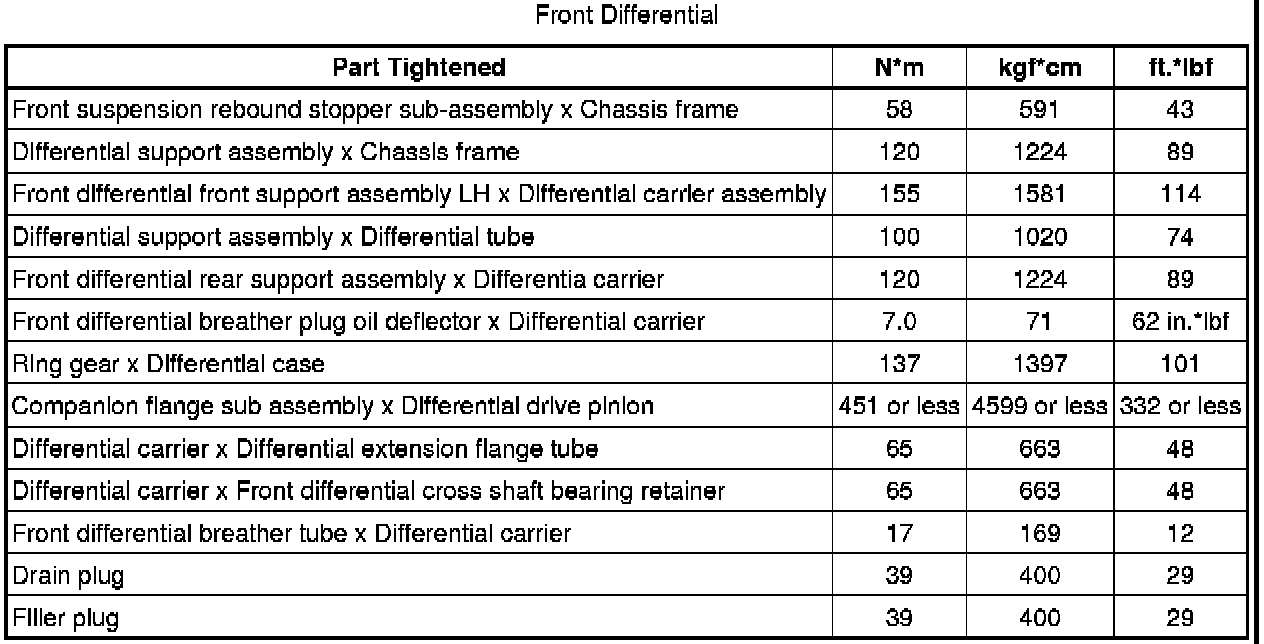

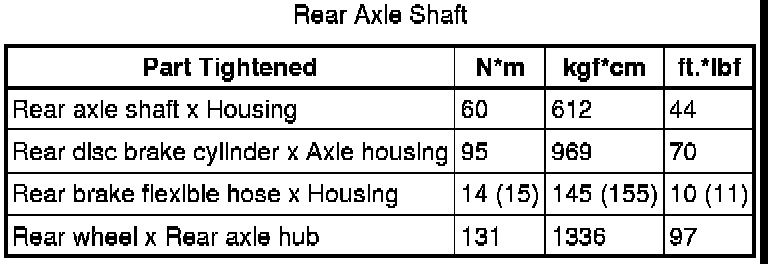

SPECIFICATIONS: AXLE AND DIFFERENTIAL: TORQUE SPECIFICATIONS













( ): For use without union nut wrench.
