Home >> Lexus Truck >> 2010 >> LX 570 V8-5.7L (3UR-FE) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Description and Operation

Starting System: Description and Operation

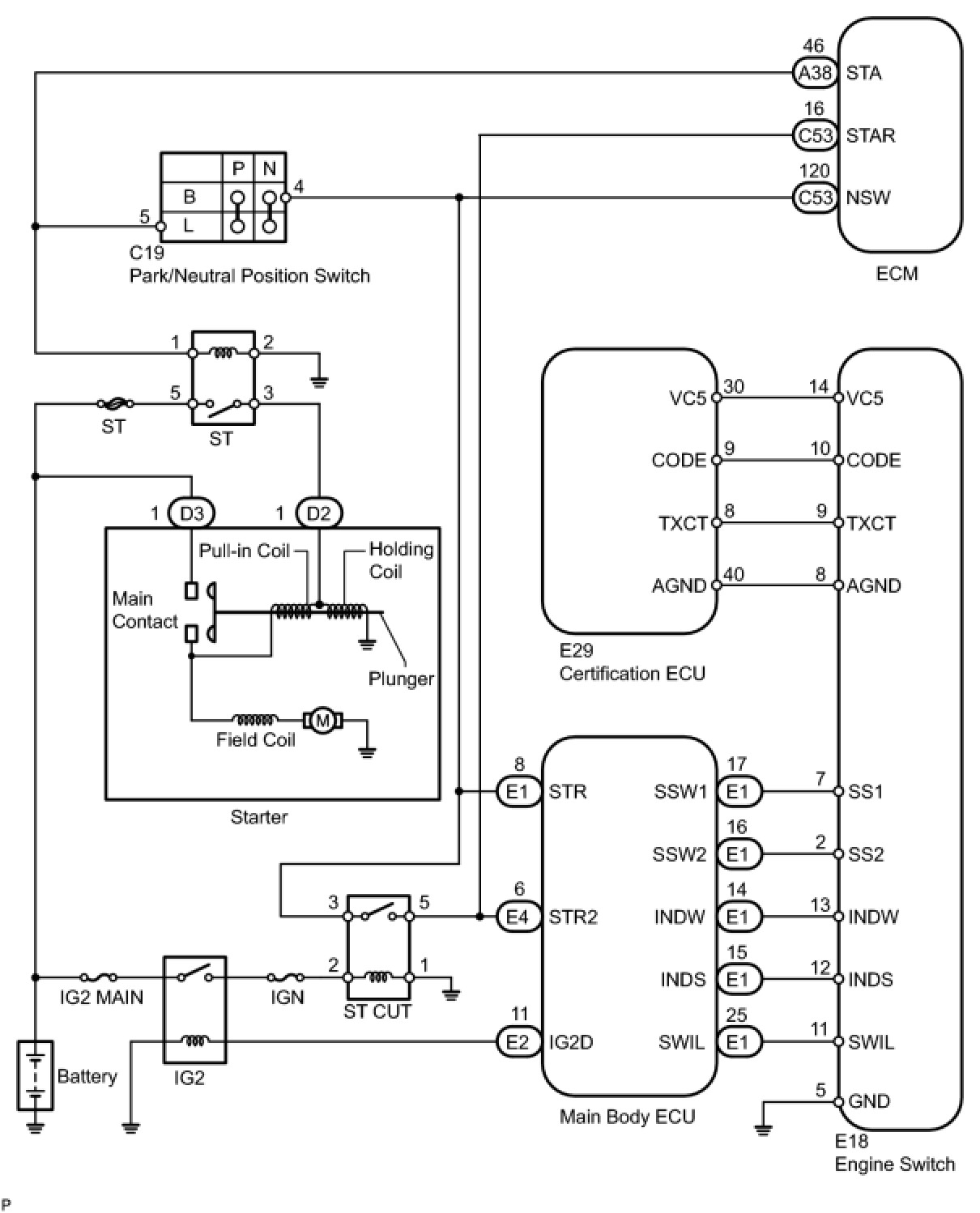

3UR-FE STARTING: STARTING SYSTEM: SYSTEM DIAGRAM
