Headlamp Wiper Switch: Testing and Inspection

WIPER / WASHER: HEADLIGHT CLEANER SWITCH: INSPECTION

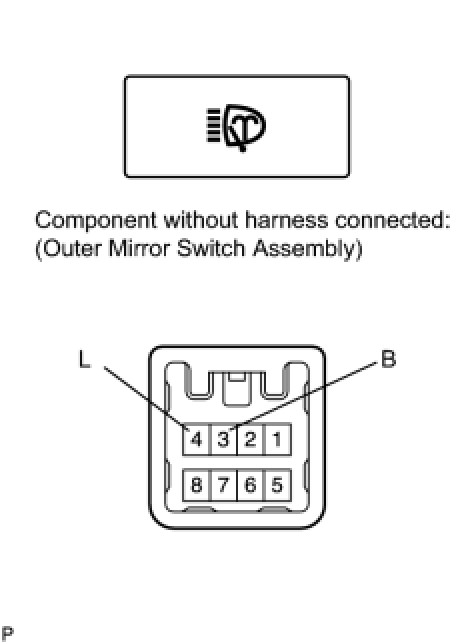

1. INSPECT OUTER MIRROR SWITCH ASSEMBLY

(a) Remove the outer mirror switch assembly.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(b) If the result is not as specified, replace the outer mirror switch assembly.
