ECU Power Source Circuit

WIPER / WASHER: WIPER AND WASHER SYSTEM: ECU Power Source Circuit
- ECU Power Source Circuit

DESCRIPTION

This circuit provides power to the windshield wiper ECU and operates the front wiper motor.

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (ECU-IG No. 1)

(a) Remove the ECU-IG No. 1 fuse from the cowl side junction block LH.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG -- REPLACE FUSE
OK -- Continue to next step.

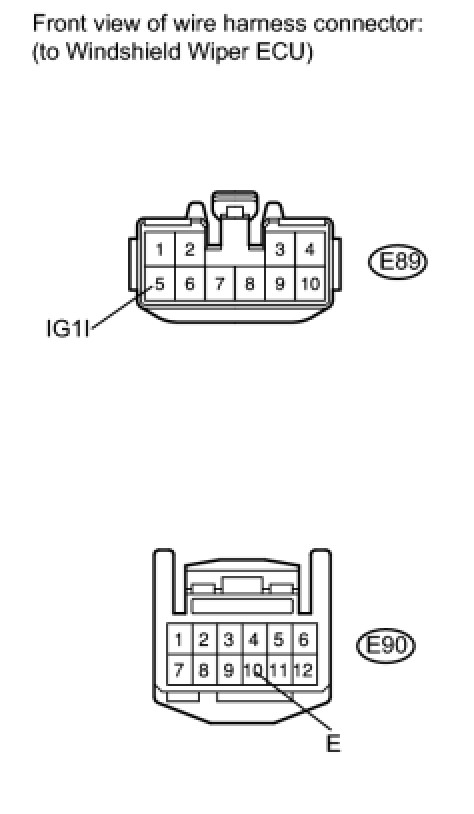

2. CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER ECU - BATTERY AND BODY GROUND)

(a) Disconnect the E89 and E90 windshield wiper ECU connectors.

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE WINDSHIELD WIPER ECU Removal
