P0A31

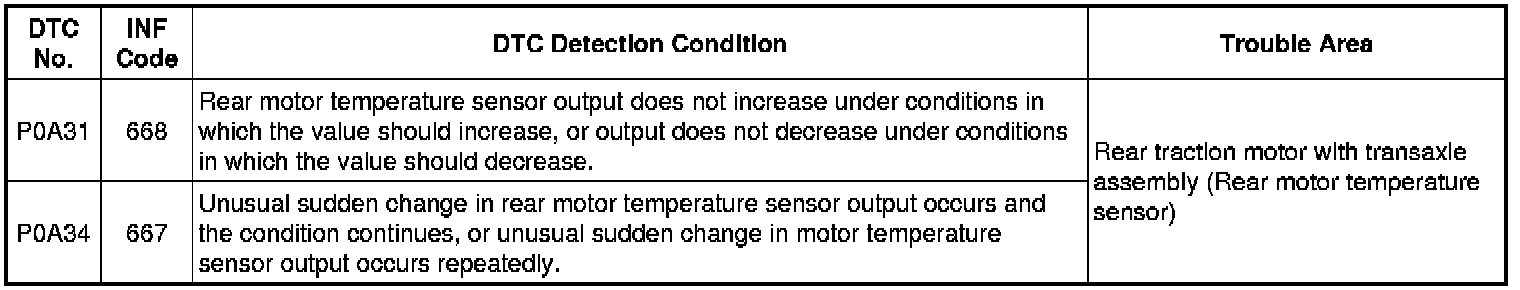

HYBRID / BATTERY CONTROL: HYBRID CONTROL SYSTEM: P0A31-668,P0A34-667: Drive Motor "B" Temperature Sensor Circuit Range / Performance
P0A34-667 - Drive Motor "B" Temperature Sensor Circuit Intermittent

DESCRIPTION

The resistance of the thermistor built into the rear motor temperature sensor changes in accordance with changes in MGR temperature. The lower the MGR temperature, the higher the thermistor resistance. Conversely, the higher the temperature, the lower the resistance.

HINT
The term "drive motor B" indicates MGR.









INSPECTION PROCEDURE

PROCEDURE

1. REPLACE REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY

(a) Replace the rear traction motor with transaxle assembly Components.

HINT
The rear motor temperature sensor is not available separately. If it requires replacement, replace the rear traction motor with transaxle assembly.

NEXT -- COMPLETED
