P2532





HYBRID / BATTERY CONTROL: HYBRID CONTROL SYSTEM: P2532-772: Ignition Switch Run Position Circuit High
P2532-772 - Ignition Switch Run Position Circuit High

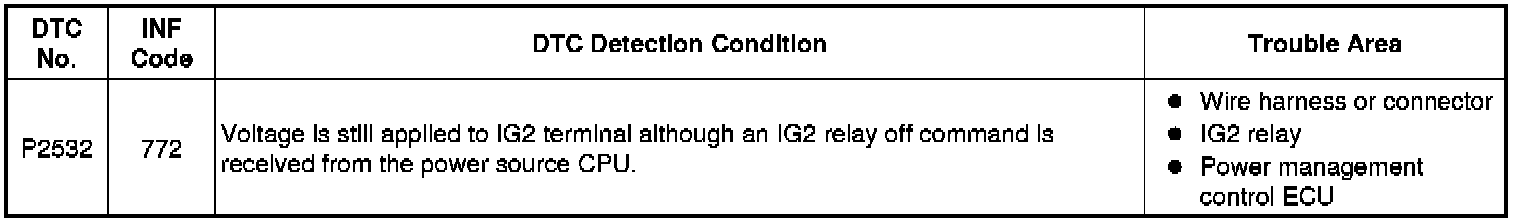

DESCRIPTION

The power source and HV CPU processors and their functions are integrated into the power management control ECU (HV CPU). The power source CPU and HV CPU use CAN communication to communicate with each other inside the power management control ECU. The power source CPU controls the opening and closing of the IG2 relay. The HV CPU detects that the IG2 relay is stuck ON (closed) based on relay operation information received from the power source CPU via CAN communication.





HINT
If DTC P2532-772 is stored, the vehicle will turn off.

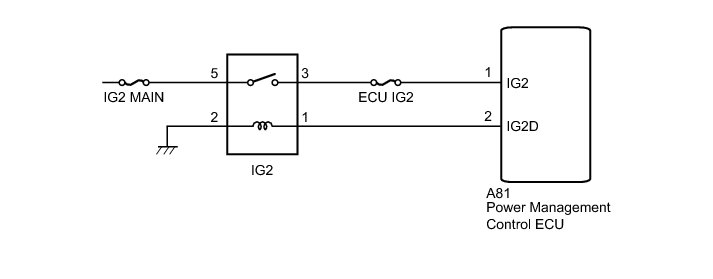

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - IG2 RELAY)

(a) Disconnect connector A81 from the power management control ECU.

(b) Remove the IG2 relay from the engine room relay block.





Text in Illustration

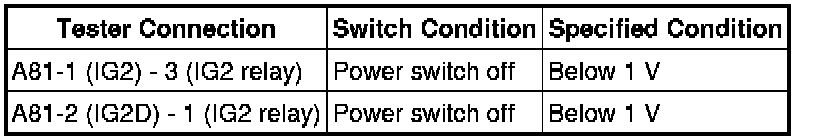

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





(d) Install the IG2 relay.

(e) Connect the power management control ECU connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. CHECK RELAY (IG2)

(a) Remove the IG2 relay from the engine room relay block.

(b) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





(c) Install the IG2 relay.

NG -- REPLACE RELAY (IG2)

OK -- REPLACE POWER MANAGEMENT CONTROL ECU Components
