Up to 08/2009

HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM: TERMINALS OF ECU

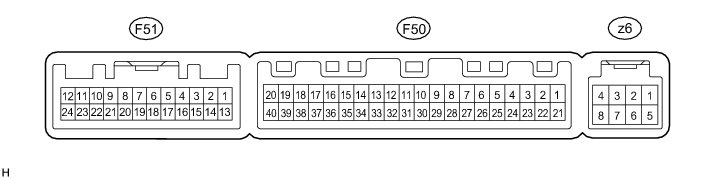

1. A/C AMPLIFIER





HINT
Check from the rear of the connector while it is connected to the A/C amplifier.









* *1: w/ Navigation System

* *2: w/o Navigation System

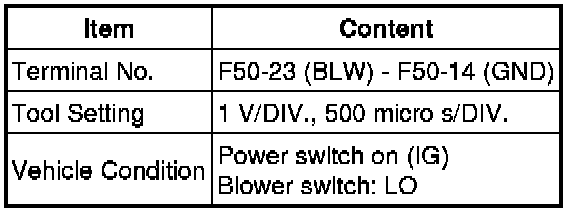

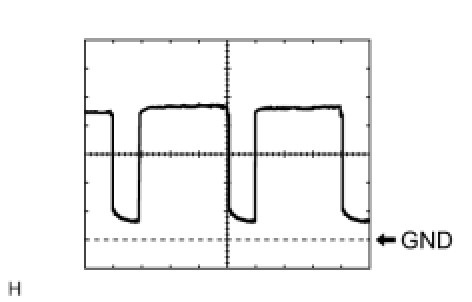

(a) Waveform 1:

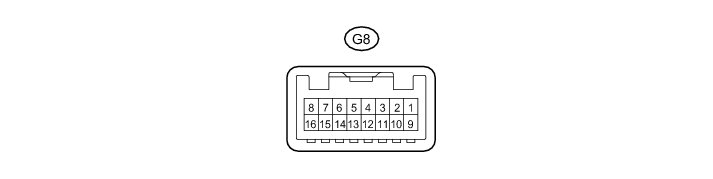

2. RADIO RECEIVER ASSEMBLY (A/C CONTROL PANEL)





HINT
Check from the rear of the connector while it is connected to the radio receiver assembly (A/C control panel).

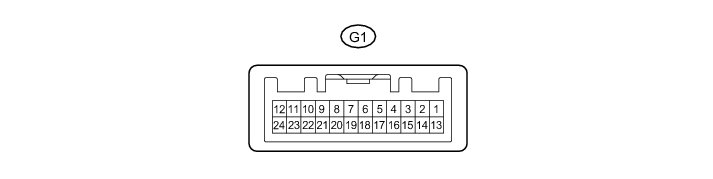

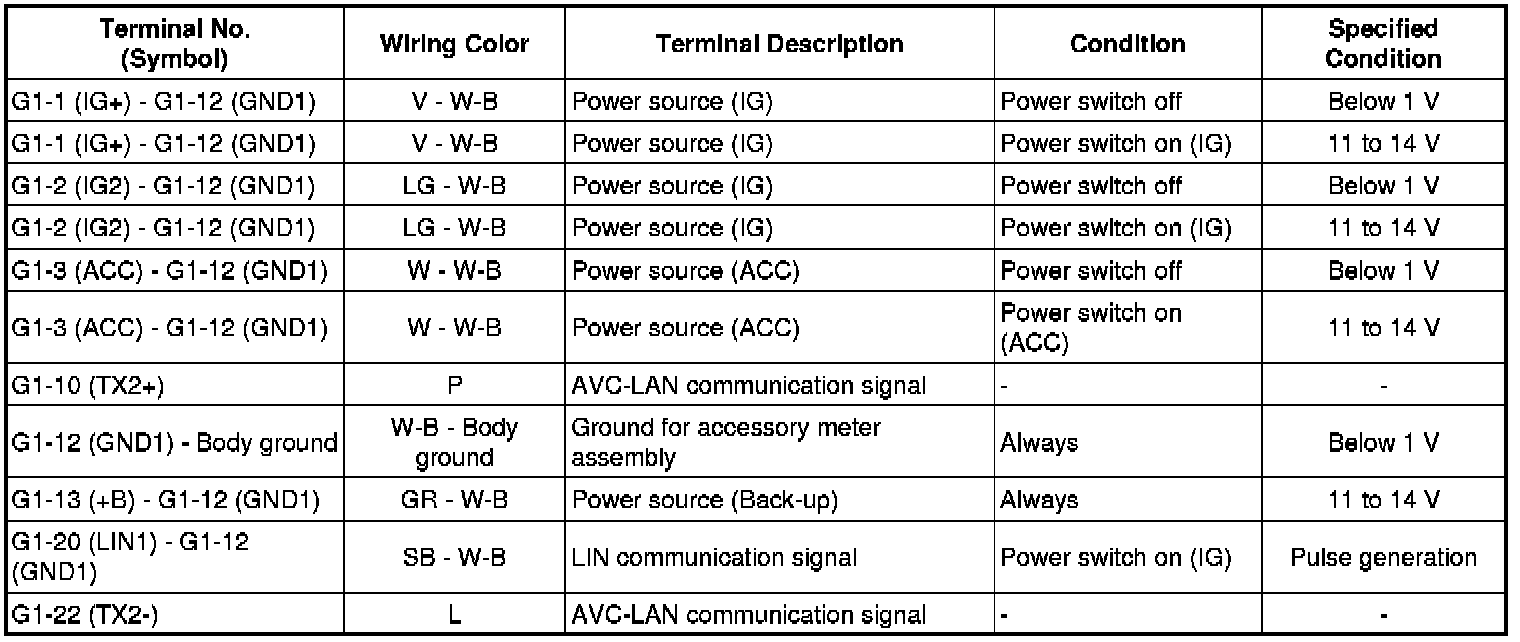

3. ACCESSORY METER ASSEMBLY (w/o Navigation System)





HINT
Check from the rear of the connector while it is connected to the accessory meter assembly.





4. POWER MANAGEMENT CONTROL ECU Hybrid Control System

5. MULTI-DISPLAY ASSEMBLY (w/ Navigation System (for DVD)) Navigation System (for DVD)

6. MULTI-DISPLAY ASSEMBLY (w/ Navigation System (for HDD)) Navigation System (for HDD)
