NETWORKING: LIN COMMUNICATION SYSTEM: B1273: Sliding Roof ECU Communication Stop
B1273 - Sliding Roof ECU Communication Stop

DESCRIPTION

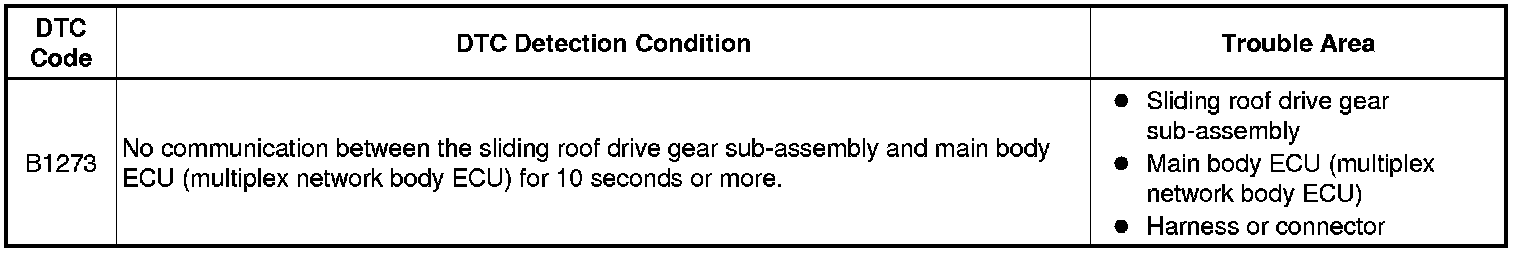

This DTC is stored when LIN communication between the sliding roof drive gear sub-assembly and main body ECU (multiplex network body ECU) stops for 10 seconds or more.

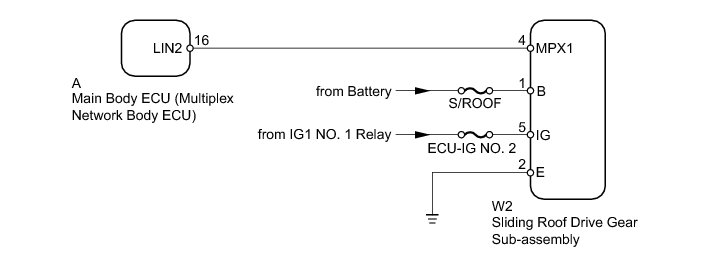

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTICE:
* When using the Techstream with the engine switch off to troubleshoot:
Connect the Techstream to the vehicle and turn a courtesy light switch on and off at 1.5 second intervals until communication between the Techstream and vehicle begins.
* Inspect the fuses for circuits related to this system before performing the following inspection procedure.
* When the sliding roof drive gear sub-assembly is removed and reinstalled or replaced, the sliding roof drive gear sub-assembly must be initialized Initialization.

HINT
When DTC B1273 and B2325 are output simultaneously, perform troubleshooting for DTC B2325 first B2325.

PROCEDURE

1. CLEAR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

NEXT -- Continue to next step.

2. CHECK FOR DTC

(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC B1273 is not output.

NG -- CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - SLIDING ROOF DRIVE GEAR)

OK -- USE SIMULATION METHOD TO CHECK Electronic Circuit Inspection Procedure

3. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - SLIDING ROOF DRIVE GEAR)

(a) Remove the main body ECU (multiplex network body ECU) from the driver side junction block assembly Removal.

(b) Disconnect the W2 sliding roof drive gear sub-assembly connector.

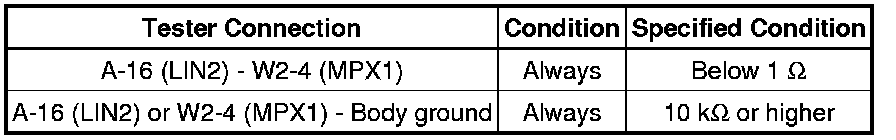

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (SLIDING ROOF DRIVE GEAR - BATTERY AND BODY GROUND)

(a) Disconnect the W2 sliding roof drive gear sub-assembly connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Text in Illustration

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

5. REPLACE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY

(a) Temporarily replace the sliding roof drive gear sub-assembly with a new or normally functioning one Disassembly.

NEXT -- Continue to next step.

6. CLEAR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

NEXT -- Continue to next step.

7. CHECK FOR DTC

(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC B1273 is not output.

NG -- REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) Removal

OK -- END (SLIDING ROOF DRIVE GEAR IS DEFECTIVE)
