B2322

NETWORKING: LIN COMMUNICATION SYSTEM: B2322: Front Passenger Side Door ECU Communication Stop
B2322 - Front Passenger Side Door ECU Communication Stop

DESCRIPTION

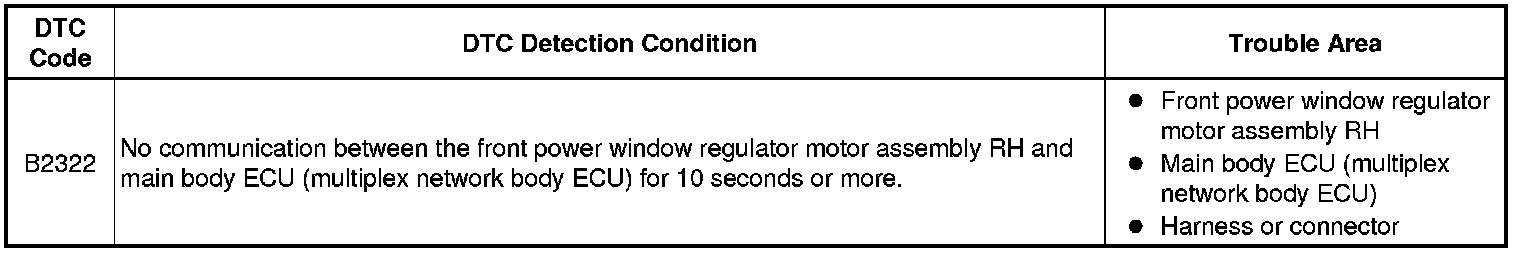

This DTC is stored when LIN communication between the front power window regulator motor assembly RH and main body ECU (multiplex network body ECU) stops for 10 seconds or more.

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTICE:
* When using the Techstream with the engine switch off to troubleshoot:
Connect the Techstream to the vehicle and turn a courtesy light switch on and off at 1.5 second intervals until communication between the Techstream and vehicle begins.
* Inspect the fuses for circuits related to this system before performing the following inspection procedure.
* When the front power window regulator motor assembly RH is removed and reinstalled or replaced, the front power window regulator motor assembly RH must be initialized Initialization.

HINT
When DTC B2322 and B2325 are output simultaneously, perform troubleshooting for DTC B2325 first B2325.

PROCEDURE

1. CLEAR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

NEXT -- Continue to next step.

2. CHECK FOR DTC

(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC B2322 is not output.

NG -- CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - FRONT POWER WINDOW REGULATOR MOTOR RH)

OK -- USE SIMULATION METHOD TO CHECK Electronic Circuit Inspection Procedure

3. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - FRONT POWER WINDOW REGULATOR MOTOR RH)

(a) Remove the main body ECU (multiplex network body ECU) from the driver side junction block assembly Removal.

(b) Disconnect the J6 front power window regulator motor assembly RH connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (FRONT POWER WINDOW REGULATOR MOTOR RH - BATTERY AND BODY GROUND)

(a) Disconnect the J6 front power window regulator motor assembly RH connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Text in Illustration

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

5. REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

(a) Temporarily replace the front power window regulator motor assembly RH with a new or normally functioning one Removal.

NEXT -- Continue to next step.

6. CLEAR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

NEXT -- Continue to next step.

7. CHECK FOR DTC

(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC B2322 is not output.

NG -- REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) Removal

OK -- END (FRONT POWER WINDOW REGULATOR MOTOR RH IS DEFECTIVE)
