B2450





LIGHTING (EXT): LIGHTING SYSTEM: B2450: Initialization has not been Performed
B2450 - Initialization has not been Performed

DESCRIPTION

Initialization of the headlight swivel ECU has not been performed.





INSPECTION PROCEDURE

PROCEDURE

1. PERFORM INITIALIZATION

(a) Perform initialization of the headlight swivel ECU Initialization.

NEXT -- Continue to next step.

2. CHECK FOR DTC

(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

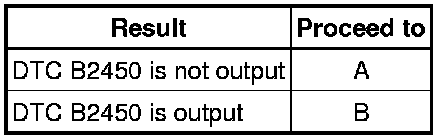

Result





HINT
If the headlight swivel ECU stores DTC B2450 even though the ECU has been initialized, there may be a malfunction in the headlight swivel ECU.

B -- REPLACE HEADLIGHT SWIVEL ECU ASSEMBLY Removal

A -- END
