B2610

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: B2610: Tilt Position Sensor or Tilt Motor Circuit Malfunction
B2610 - Tilt Position Sensor or Tilt Motor Circuit Malfunction

DESCRIPTION

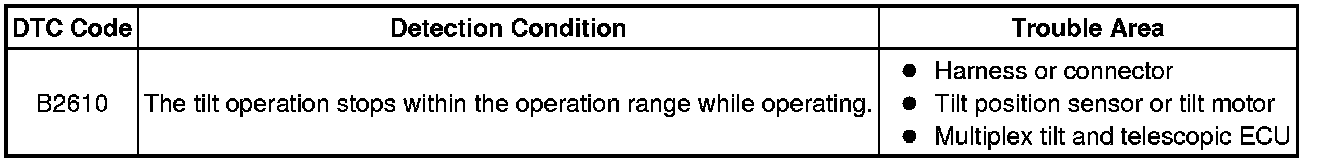

The tilt motor is operated by the power source voltage supplied from the multiplex tilt and telescopic ECU and tilts the steering column up and down. The tilt position sensor (Hall IC) in the tilt motor detects the tilt angle of the steering column and outputs a signal to the multiplex tilt and telescopic ECU based on that angle.

HINT
The limit positions can be confirmed on the Data List screen of the Techstream.





WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. PERFORM ACTIVE TEST USING TECHSTREAM (TILT OPERATION)

(a) Select the Active Test, use the Techstream to generate a control command, and then check that the steering wheel tilts up and down.

Tilt & Telescopic





Result





B -- CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - TILT POSITION SENSOR)
A -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BATTERY)

(a) Disconnect the G33 multiplex tilt and telescopic ECU connector.





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BODY GROUND)

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - TILT MOTOR)

(a) Disconnect the G55 tilt motor connector.

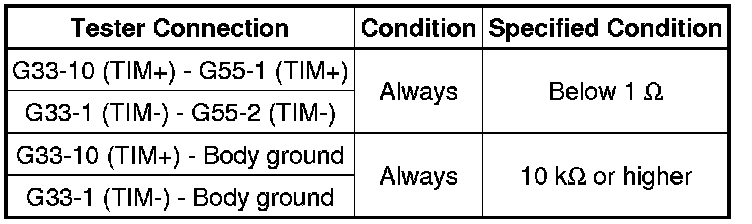

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

5. CHECK TILT MOTOR

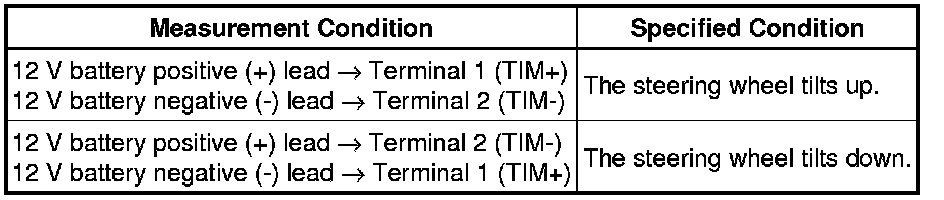

(a) Apply 12 V battery voltage to the tilt motor connector. Then check the steering wheel tilt operation.

OK:





Text in Illustration





NG -- REPLACE STEERING COLUMN ASSEMBLY Removal

OK -- REPLACE MULTIPLEX TILT AND TELESCOPIC ECU Removal

6. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - TILT POSITION SENSOR)

(a) Disconnect the G33 multiplex tilt and telescopic ECU connector.

(b) Disconnect the G55 tilt motor connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

7. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BODY GROUND)

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

8. CHECK MULTIPLEX TILT AND TELESCOPIC ECU (VCI TERMINAL VOLTAGE)

(a) Reconnect the G33 multiplex tilt and telescopic ECU connector.





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





NG -- REPLACE MULTIPLEX TILT AND TELESCOPIC ECU Removal
OK -- Continue to next step.

9. CHECK TILT POSITION SENSOR

(a) Reconnect the G55 tilt motor connector.





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





NG -- REPLACE STEERING COLUMN ASSEMBLY Removal

OK -- REPLACE MULTIPLEX TILT AND TELESCOPIC ECU Removal
