B2611
STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: B2611: Telescopic Position Sensor or Telescopic Motor Circuit Malfunction
B2611 - Telescopic Position Sensor or Telescopic Motor Circuit Malfunction
DESCRIPTION
The telescopic motor is operated by the power source voltage supplied from the multiplex tilt and telescopic ECU and slides the steering column forward and backward. The telescopic position sensor (Hall IC) in the telescopic motor detects the amount that the steering column slides forward or backward and outputs a signal to the multiplex tilt and telescopic ECU based on that sliding amount.
HINT
The limit positions can be confirmed on the Data List screen of the Techstream.

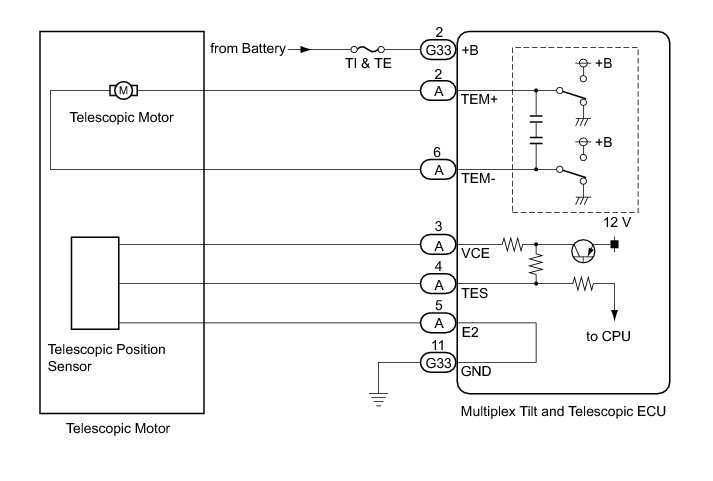

WIRING DIAGRAM
INSPECTION PROCEDURE
NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.
PROCEDURE
1. PERFORM ACTIVE TEST USING TECHSTREAM (TELESCO OPERATION)
(a) Select the Active Test, use the Techstream to generate a control command, and then check that the steering column contracts and extends.
Tilt & Telescopic
Result
B -- CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BODY GROUND)
A -- Continue to next step.
2. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BATTERY) B2610
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
3. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BODY GROUND) B2610
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
4. CHECK TELESCOPIC MOTOR
(a) Reconnect the G33 multiplex tilt and telescopic ECU connector.
(b) Disconnect the A telescopic motor connector.

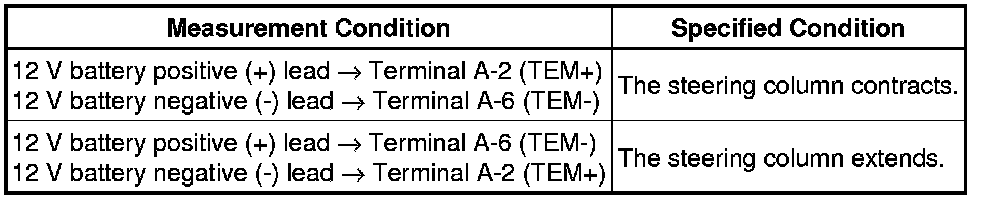

(c) Apply 12 V battery voltage to the telescopic motor connector. Then check the steering column telescopic operation.
OK:
Text in Illustration
NG -- REPLACE STEERING COLUMN ASSEMBLY Removal
OK -- REPLACE MULTIPLEX TILT AND TELESCOPIC ECU Removal
5. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BODY GROUND)
(a) Disconnect the G33 multiplex tilt and telescopic ECU connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Text in Illustration
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
6. CHECK MULTIPLEX TILT AND TELESCOPIC ECU (VCE TERMINAL VOLTAGE)
(a) Reconnect the G33 multiplex tilt and telescopic ECU connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
Text in Illustration
NG -- CHECK STEERING COLUMN ASSEMBLY
OK -- Continue to next step.
7. CHECK TELESCOPIC POSITION SENSOR
(a) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
Text in Illustration
NG -- REPLACE STEERING COLUMN ASSEMBLY Removal
OK -- REPLACE MULTIPLEX TILT AND TELESCOPIC ECU Removal
8. CHECK STEERING COLUMN ASSEMBLY
(a) Disconnect the A multiplex tilt and telescopic ECU connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Text in Illustration
NG -- REPLACE STEERING COLUMN ASSEMBLY Removal
OK -- REPLACE MULTIPLEX TILT AND TELESCOPIC ECU Removal
