B2786

NETWORKING: LIN COMMUNICATION SYSTEM: B2786: No Response from Steering Lock ECU
B2786 - No Response from Steering Lock ECU

DESCRIPTION

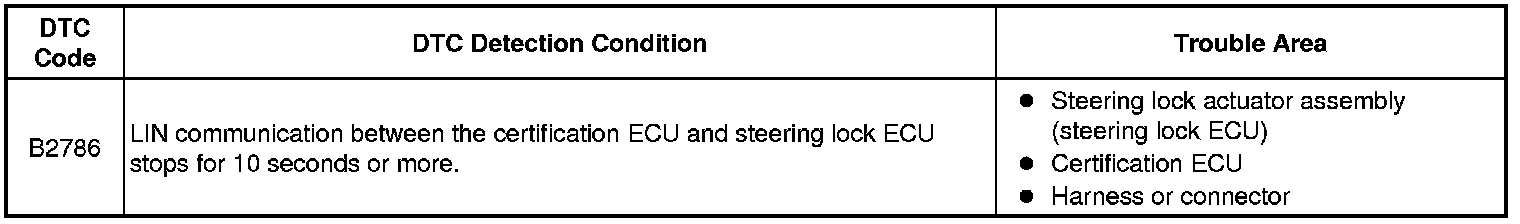

This DTC is stored when LIN communication between the certification ECU and steering lock actuator assembly (steering lock ECU) stops for 10 seconds or more.

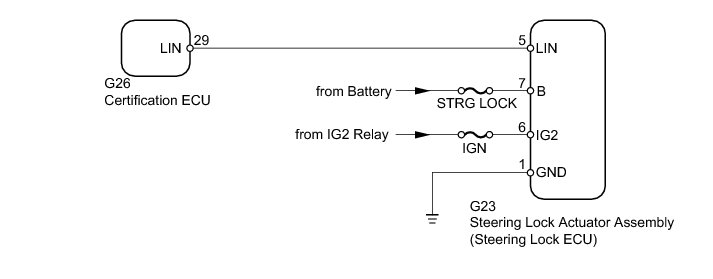

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTICE:
* When using the Techstream with the engine switch off to troubleshoot:
Connect the Techstream to the vehicle and turn a courtesy light switch on and off at 1.5 second intervals until communication between the Techstream and vehicle begins.
* Inspect the fuses for circuits related to this system before performing the following inspection procedure.
* Before replacing the certification ECU or steering lock ECU, refer to the engine immobilizer system Engine Immobilizer System.

HINT
When DTC B2786 and B2785 are output simultaneously, perform troubleshooting for DTC B2785 first B2785.

PROCEDURE

1. CLEAR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

NEXT -- Continue to next step.

2. CHECK FOR DTC

(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC B2786 is not output.

NG -- CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - STEERING LOCK ECU)

OK -- USE SIMULATION METHOD TO CHECK Electronic Circuit Inspection Procedure

3. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - STEERING LOCK ECU)

(a) Disconnect the G26 certification ECU connector.

(b) Disconnect the G23 steering lock actuator assembly (steering lock ECU) connector.

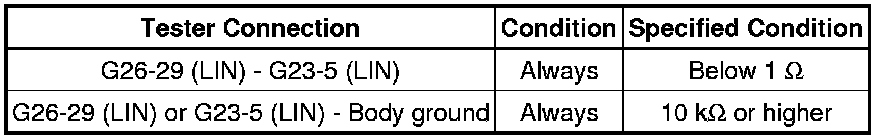

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (STEERING LOCK ECU - BATTERY AND BODY GROUND)

(a) Disconnect the G23 steering lock actuator assembly (steering lock ECU) connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Text in Illustration

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

5. REPLACE STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU)

(a) Temporarily replace the steering lock actuator assembly (steering lock ECU) with a new one Disassembly.

NEXT -- Continue to next step.

6. CLEAR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

NEXT -- Continue to next step.

7. CHECK FOR DTC

(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC B2786 is not output.

NG -- REPLACE CERTIFICATION ECU Removal

OK -- END (STEERING LOCK ECU IS DEFECTIVE)
