C1241

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: C1241: Low Power Supply Voltage Malfunction
C1241 - Low Power Supply Voltage Malfunction

DESCRIPTION

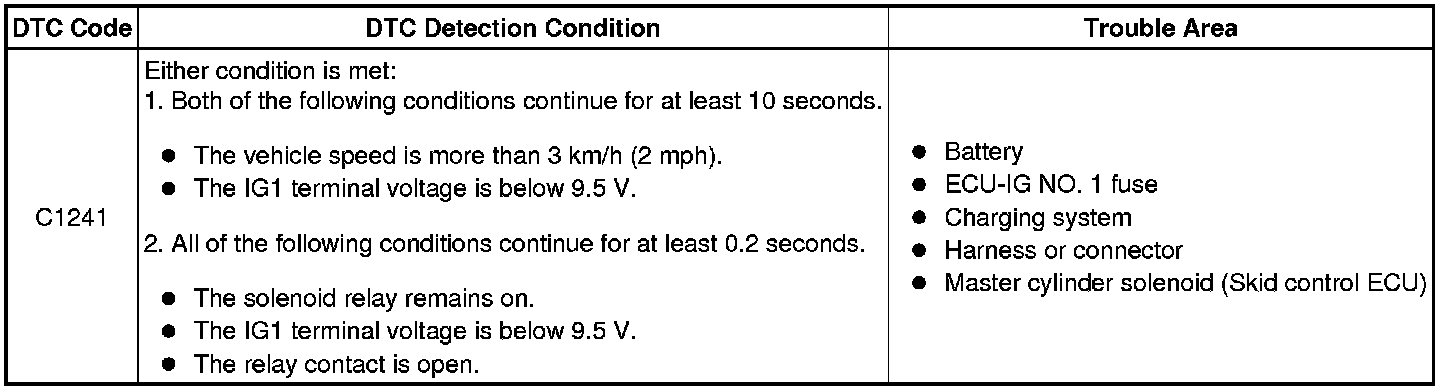

If the voltage supplied to the IG1 terminal is within the DTC detection range due to malfunctions in components such as the battery and generator circuit, this DTC is stored.

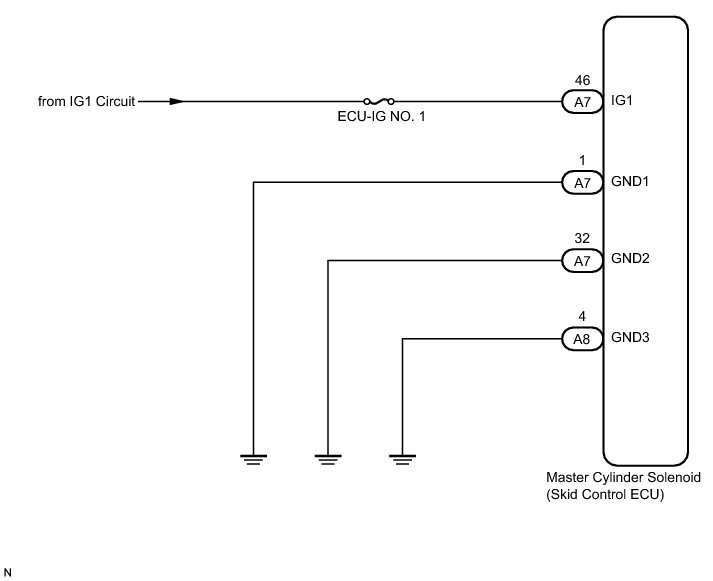

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
- When replacing the master cylinder solenoid, perform calibration Programming and Relearning.
- Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. READ VALUE USING TECHSTREAM (IG1 VOLTAGE VALUE)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Start the engine.

(e) Enter the following menus: Chassis / ABS/VSC/TRAC / Data List.

ABS/VSC/TRAC





(f) Check the voltage output from the skid control ECU displayed on the Techstream.

OK:

The output voltage displayed on the Techstream is within 11 to 14 V.

NG -- CHECK TERMINAL VOLTAGE (IG1)
OK -- Continue to next step.

2. RECONFIRM DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Check if the same DTCs are output Reading and Clearing Diagnostic Trouble Codes.

HINT
Reinstall the sensors, connectors, etc. and restore the previous vehicle conditions before rechecking for DTCs.

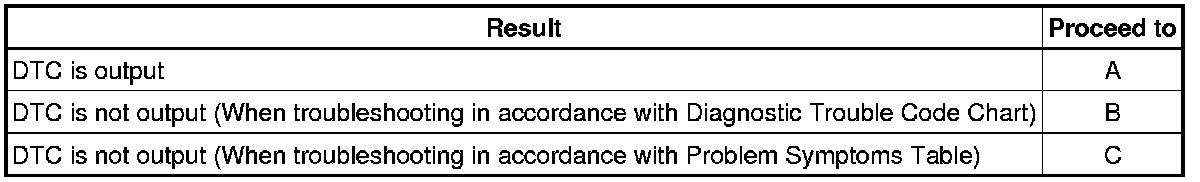

Result





C -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table

B -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting

A -- REPLACE MASTER CYLINDER SOLENOID Disassembly

3. CHECK TERMINAL VOLTAGE (IG1)

(a) Disconnect the A7 skid control ECU connector.

(b) Measure the voltage according to the value(s) in the table below.





Standard Voltage:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (GND1, GND2, AND GND3 TERMINAL) C0278

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

5. RECONFIRM DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Check if the same DTCs are output Reading and Clearing Diagnostic Trouble Codes.

HINT
Reinstall the sensors, connectors, etc. and restore the previous vehicle conditions before rechecking for DTCs.

Result





C -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table

B -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting

A -- REPLACE MASTER CYLINDER SOLENOID Disassembly
