BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: C1282: Center Differential Lock Position Switch
C1282 - Center Differential Lock Position Switch

DESCRIPTION

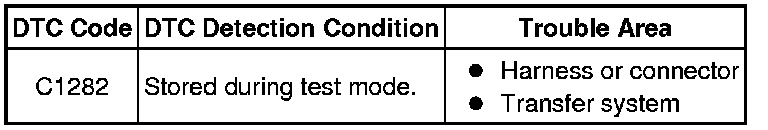

DTC C1282 is stored only in test mode.





WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC

(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

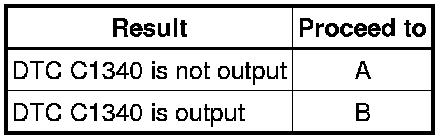

Result





B -- GO TO DTC C1340 C1340
A -- Continue to next step.

2. CHECK TEST MODE DTC

(a) Switch the vehicle to test mode, perform the center differential lock signal check, and then check that the Test Mode (Signal Check) DTC C1282 is cleared Test Mode Procedure.

Result





B -- CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - FOUR WHEEL DRIVE CONTROL ECU/TRANSFER SHIFT ACTUATOR)

A -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting

3. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - FOUR WHEEL DRIVE CONTROL ECU/TRANSFER SHIFT ACTUATOR)

(a) Disconnect the A7 skid control ECU connector.

(b) Disconnect the G41 four wheel drive control ECU connector.

(c) Disconnect the C34 transfer shift actuator connector.

(d) Measure the resistance according to the value(s) in the table below.

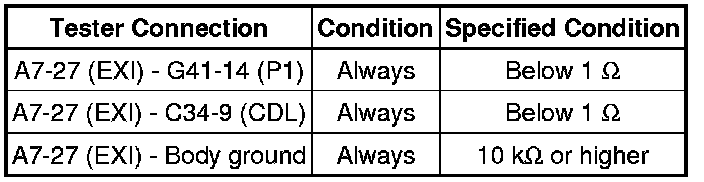

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- GO TO TRANSFER SYSTEM (PROBLEM SYMPTOMS TABLE) Symptom Related Diagnostic Procedures
