C1420

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: C1420: Acceleration Sensor Malfunction
C1420 - Acceleration Sensor Malfunction

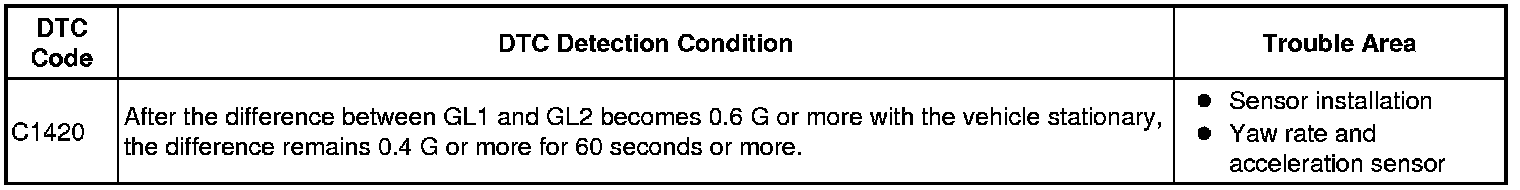

DESCRIPTION

Refer to DTCs C1419 and C1435 C1419.





WIRING DIAGRAM

Refer to DTCs C1232, C1243 and C1245 C1232.

INSPECTION PROCEDURE

NOTICE:
When replacing the yaw rate and acceleration sensor, perform calibration Programming and Relearning.

PROCEDURE

1. CHECK DTC (CAN COMMUNICATION SYSTEM)

(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

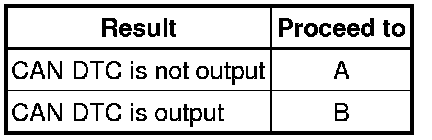

Result





B -- GO TO CAN COMMUNICATION SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING) How to Proceed With Troubleshooting
A -- Continue to next step.

2. CHECK YAW RATE AND ACCELERATION SENSOR INSTALLATION

(a) Check that the yaw rate and acceleration sensor is installed properly Installation.

OK:

The sensor is tightened to the specified torque.

The sensor is not installed at an angle.

NG -- INSTALL YAW RATE AND ACCELERATION SENSOR CORRECTLY Installation

OK -- REPLACE YAW RATE AND ACCELERATION SENSOR Removal
