Lane Departure Alert System

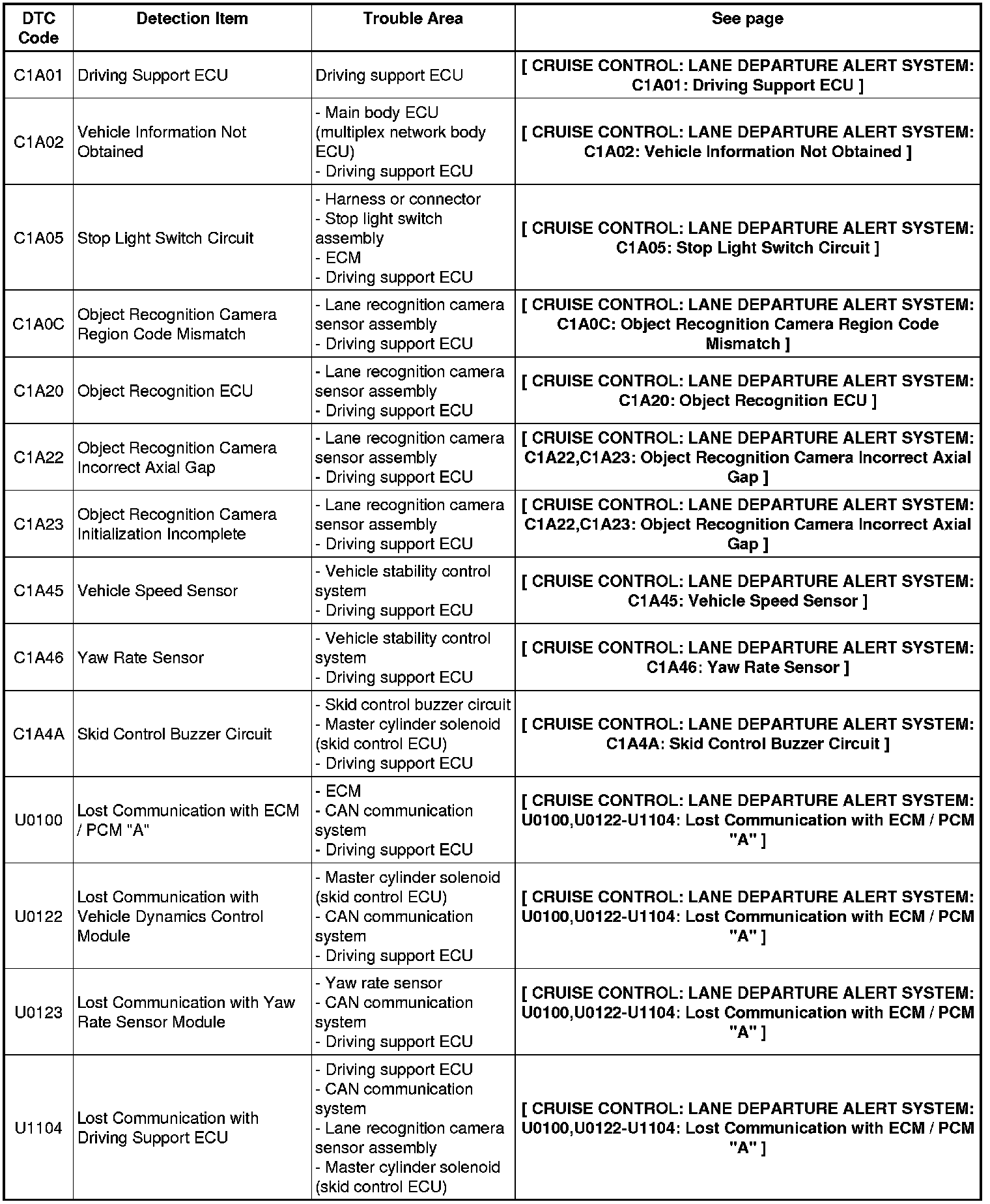

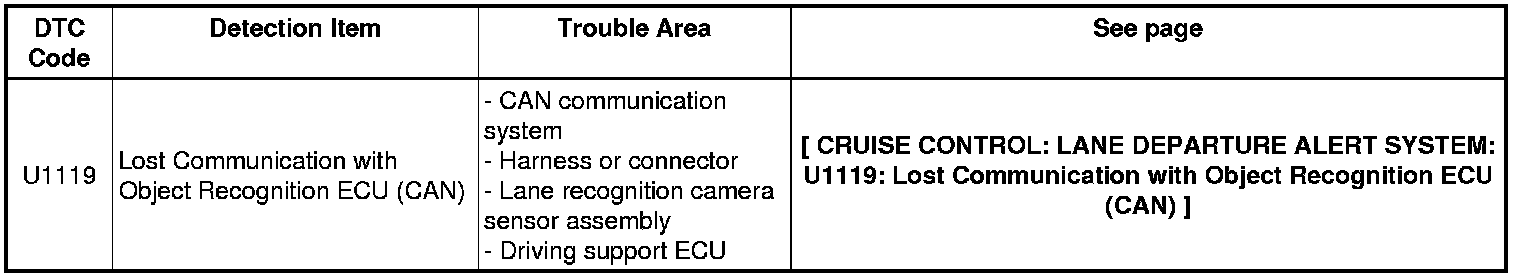

CRUISE CONTROL: LANE DEPARTURE ALERT SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
If a trouble code is output during the DTC check, inspect the trouble area listed for that code. For details of the code, refer to the "See page" below.

Lane Departure Alert System
