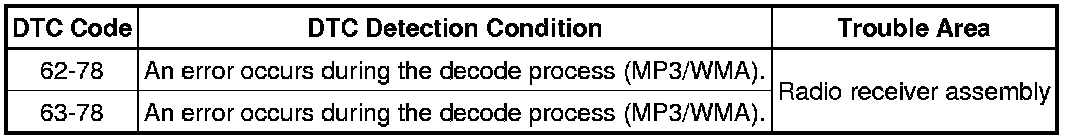

DTC 62-78

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (w/o Multi-display): 62-78,63-78: DSP Error
63-78 - DSP Error

DESCRIPTION





INSPECTION PROCEDURE

NOTICE:
* These codes may be output even if there is no malfunction.
* If these codes are output frequently, replace the radio receiver assembly Removal.

HINT
After the inspection is completed, clear the DTCs.

PROCEDURE

1. CHECK FOR DTC

(a) Clear the DTCs Audio and Visual System (w/o Multi-Display).

(b) Check for DTCs and check if the same trouble occurs again.

OK:

Malfunction disappears.

NG -- REPLACE RADIO RECEIVER ASSEMBLY Removal

OK -- END (THIS CODE MAY BE OUTPUT EVEN IF THERE IS NO MALFUNCTION)
