DTC 63-46

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (w/o Multi-display): 62-46,63-46: Scratched / Reversed Disc
63-46 - Scratched / Reversed Disc

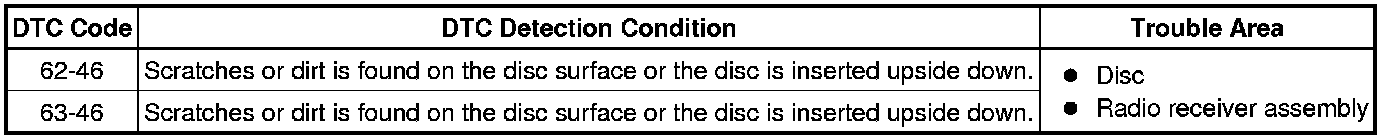

DESCRIPTION





INSPECTION PROCEDURE

HINT
After the inspection is completed, clear the DTCs.

PROCEDURE

1. CHECK THAT DISC IS INSERTED PROPERLY

(a) Check whether or not the disc is inserted upside down.

OK:

The disc is properly inserted.

NG -- INSPECT DISC PROPERLY
OK -- Continue to next step.

2. CHECK DISC

(a) Check that the disc is not deformed or cracked.





OK:

No deformation or cracks on the disc.

NG -- CHANGE DISC
OK -- Continue to next step.

3. DISC CLEANING

(a) If dirt is on the disc surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction.





NOTICE:
Do not use a conventional record cleaner or antistatic preservative.

NEXT -- Continue to next step.

4. CHECK FOR DTC

(a) Clear the DTCs Audio and Visual System (w/o Multi-Display).

(b) Check for DTCs and check if the same trouble occurs again.

OK:

Malfunction disappears.

NG -- REINSERT DISC PROPERLY

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting

5. REINSERT DISC PROPERLY

(a) Replace the disc with a normal one.

(b) Clear the DTCs Audio and Visual System (w/o Multi-Display).

(c) Check for DTCs and check if the same trouble occurs again.

OK:

Malfunction disappears.

NG -- REPLACE RADIO RECEIVER ASSEMBLY Removal

OK -- END
