A760F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: P2716: Pressure Control Solenoid "D" Electrical (Shift Solenoid Valve SLT)
P2716 - Pressure Control Solenoid "D" Electrical (Shift Solenoid Valve SLT)

DESCRIPTION

Refer to DTC P0894 P0894.





MONITOR DESCRIPTION

When an open or short in the shift solenoid valve SLT circuit is detected, the ECM interprets this as a fault. The ECM will turn on the MIL and store the DTC.

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

PROCEDURE

1. INSPECT TRANSMISSION WIRE (SHIFT SOLENOID VALVE SLT)

(a) Disconnect the C24 transmission wire connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- INSPECT SHIFT SOLENOID VALVE SLT
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM)

(a) Disconnect the C29 ECM connector.





(b) Measure the resistance according to the value(s) in the table below.

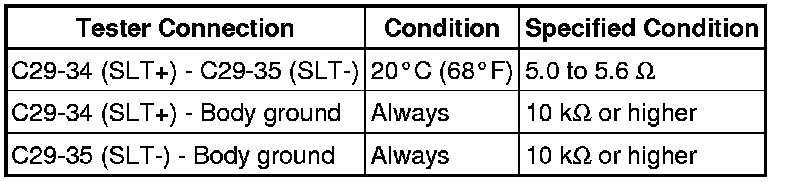

Standard Resistance:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE ECM Removal

3. INSPECT SHIFT SOLENOID VALVE SLT P0894

NG -- REPLACE SHIFT SOLENOID VALVE SLT Disassembly

OK -- REPAIR OR REPLACE TRANSMISSION WIRE Removal
