P2772

A760F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: P2772: Four Wheel Drive (4WD) Low Switch Circuit Range / Performance
P2772 - Four Wheel Drive (4WD) Low Switch Circuit Range / Performance

DESCRIPTION

The ECM detects the signal from the transfer L4 position switch.

This DTC indicates that the transfer L4 position switch remains on.





MONITOR DESCRIPTION

The ECM monitors the transfer-case L4 position switch to determine when the transfer-case L4 gears are engaged. If the L4 position switch indicates that the transfer-case L4 gears are engaged under the following conditions, the ECM will conclude that there is a malfunction of the L4 position switch, illuminate the MIL and store the DTC:

- The transfer-case shifter is in the "H4" position.

- The transfer-case output shaft speed is between 1000 and 3000 rpm.

- The specified time period has elapsed.

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS

All





ON Malfunction (A)





ON Malfunction (B)





TYPICAL MALFUNCTION THRESHOLDS

Both of the following conditions are met: ON malfunction (A) and (B)

ON Malfunction (A)





ON Malfunction (B)

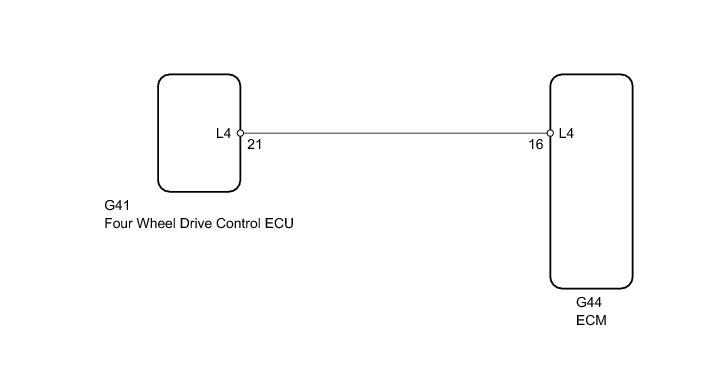

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (FOUR WHEEL DRIVE CONTROL ECU - BODY GROUND)

(a) Disconnect the G41 four wheel drive control ECU connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- CHECK HARNESS AND CONNECTOR (FOUR WHEEL DRIVE CONTROL ECU - ECM)

OK -- GO TO TRANSFER SYSTEM Pinout Values and Diagnostic Parameters

2. CHECK HARNESS AND CONNECTOR (FOUR WHEEL DRIVE CONTROL ECU - ECM)

(a) Disconnect the G44 ECM connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE ECM Removal
