Entertainment Systems: Description and Operation

AUDIO / VIDEO: REAR SEAT ENTERTAINMENT SYSTEM: SYSTEM DIAGRAM









SYSTEM DESCRIPTION

1. OUTLINE

As a unique feature of the Rear Seat Entertainment (RSE) system, the rear seat occupants can enjoy different audio-visual modes at the same time.

The rear seat occupants can control the audio-visual modes with the remote control, and listen to audio by using wired or wireless headphones.

The multi-display controller sub-assembly receives image and sound signals from the display and navigation module display and distributes the signals to each television display assembly.

A television display assembly is installed on the back of each front seat.

The rear seat occupants can enjoy watching video by connecting an external device.

MOST communication is used between the display and navigation module display and the multi-display controller sub-assembly. AVC-LAN communication is used between the multi-display controller sub-assembly and each television display assembly.

Occupants in the front seats, rear left seat and rear right seat can enjoy different content at the same time. However, this is possible for the rear left and rear right seats only when VIDEO is selected for either the left or right seat and another source is selected for the other seat.

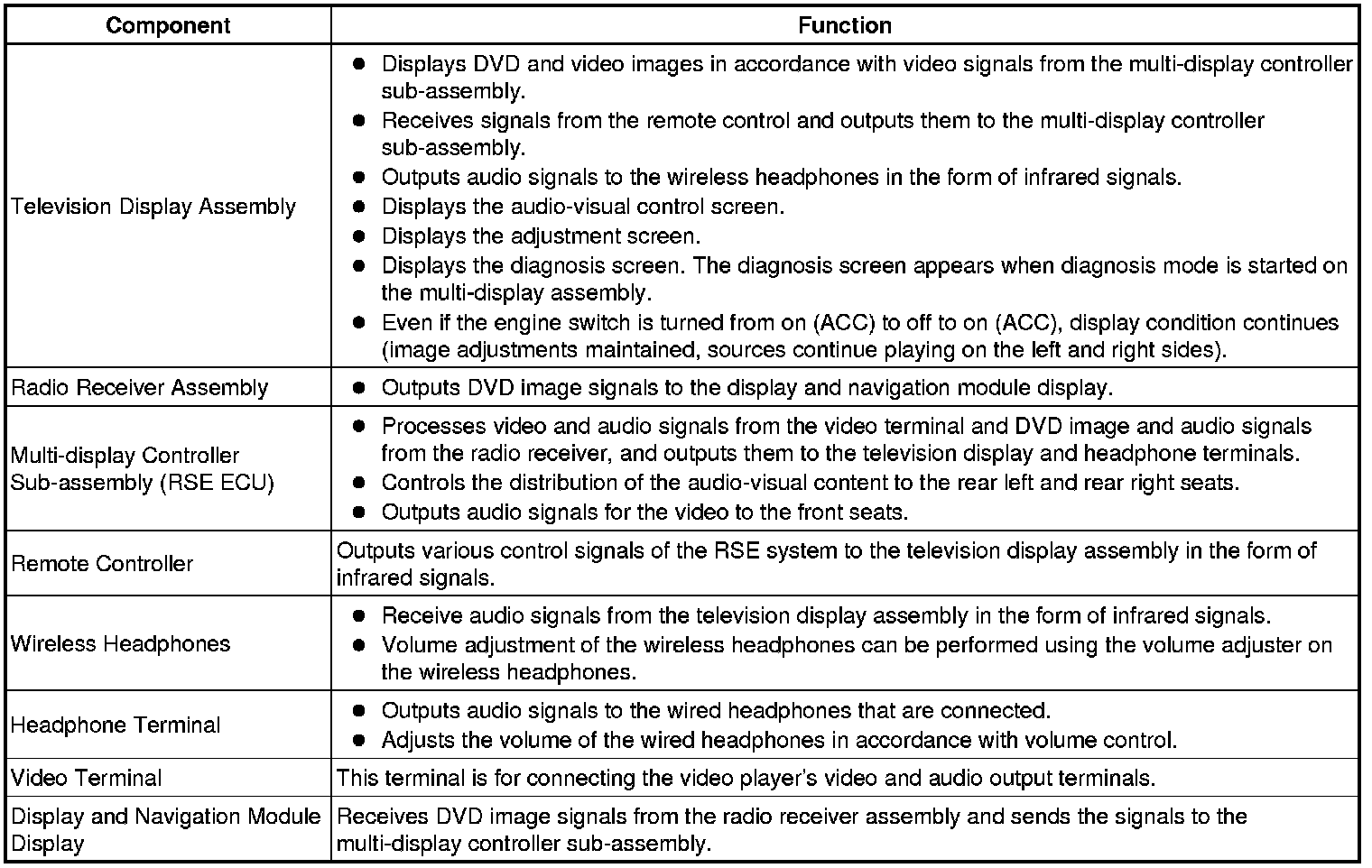

2. FUNCTION OF MAIN COMPONENT





3. COMMUNICATION SYSTEM

(a) MOST Network Outline Description and Operation

(b) AVC-LAN Outline Description and Operation

4. DIAGNOSIS FUNCTION

(a) When the navigation system changes to the diagnosis screen, the television display assembly shows the "RSE Check" screen.

5. DIGITAL VERSATILE DISC (DVD) PLAYER OUTLINE

(a) The DVD player can only play DVD videos that have one of the following marks:





(1) Precaution for use of discs

NOTICE:
* Keep the discs away from dirt. Be careful not to damage the discs or leave your fingerprints on them.
* Hold discs by the outer edge and center hole with the label side up.
* Leaving the disc exposed halfway out of the slot for a long time after pressing the disc eject button may cause deformation of the disc, making the disc unusable.
* Do not use uniquely-shaped CDs because these may cause player malfunctions.
* Do not use discs whose recording portion is transparent or translucent because they may not be able to be inserted, ejected or played normally.

(b) Check disc

(1) Check that the disc is not deformed or cracked.





(c) Disc cleaning

NOTICE:
Do not use a lens cleaner because it may cause a malfunction in the pickup portion of the player.

(1) If dirt is on the disc surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction.





NOTICE:
* Pressing on the disc by hand or rubbing the disc with a hard cloth may scratch the disc surface.
* Use of solvent such as a record spray, antistatic agent, alcohol, benzine, and thinner or a chemical cloth may cause damage to the disc, making the disc unusable.
