Operation CHARM: Car repair manuals for everyone.
Home >> Lexus Truck >> 2011 >> GX 460 V8-4.6L (1UR-FE) >> Repair and Diagnosis >> Body and Frame >> Frame >> Service and Repair

Frame: Service and Repair

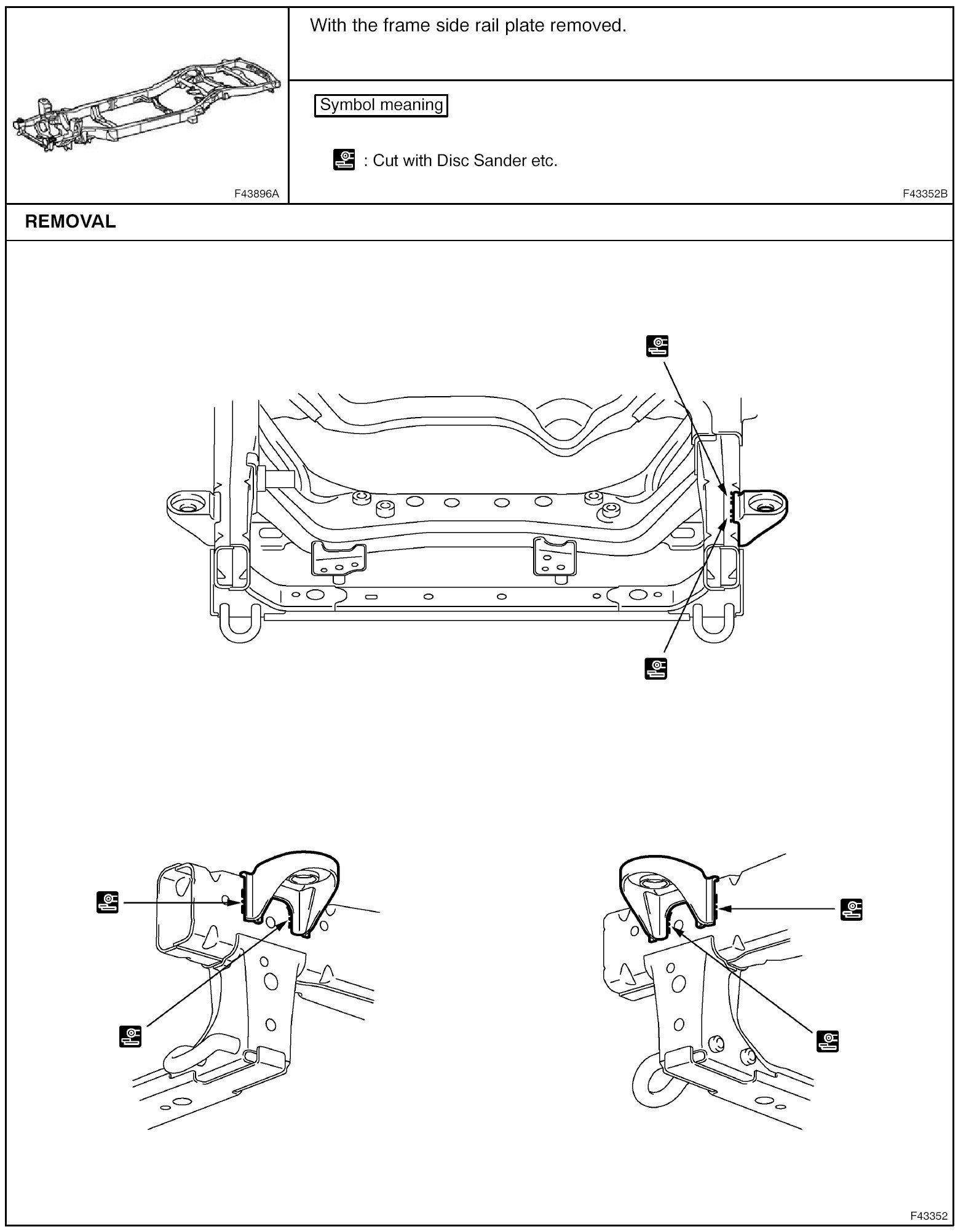

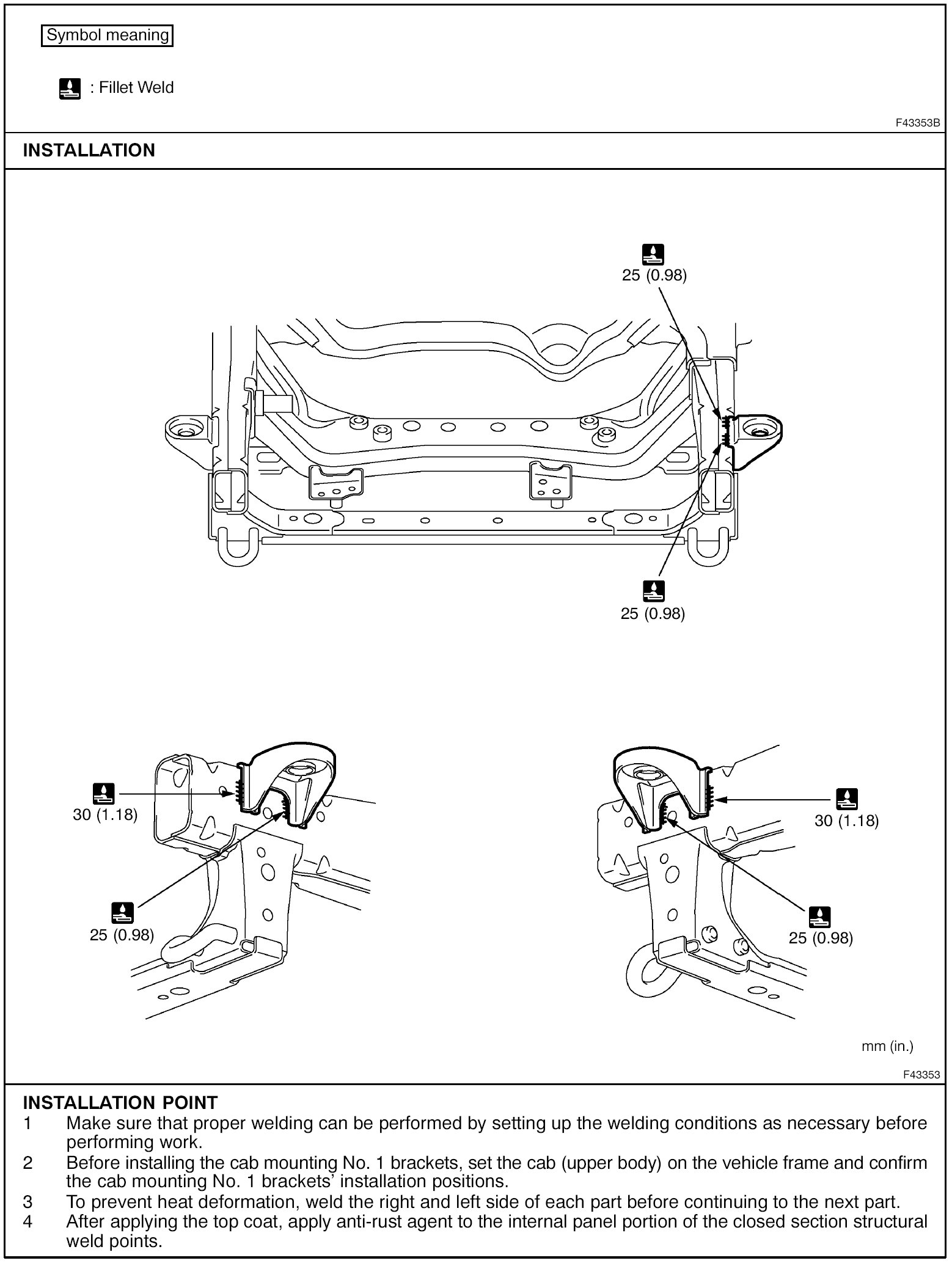

CAB MOUNTING NO. 1 BRACKET (ASSY)
