Power Mirror Control System

MIRROR (EXT): POWER MIRROR CONTROL SYSTEM: SYSTEM DIAGRAM

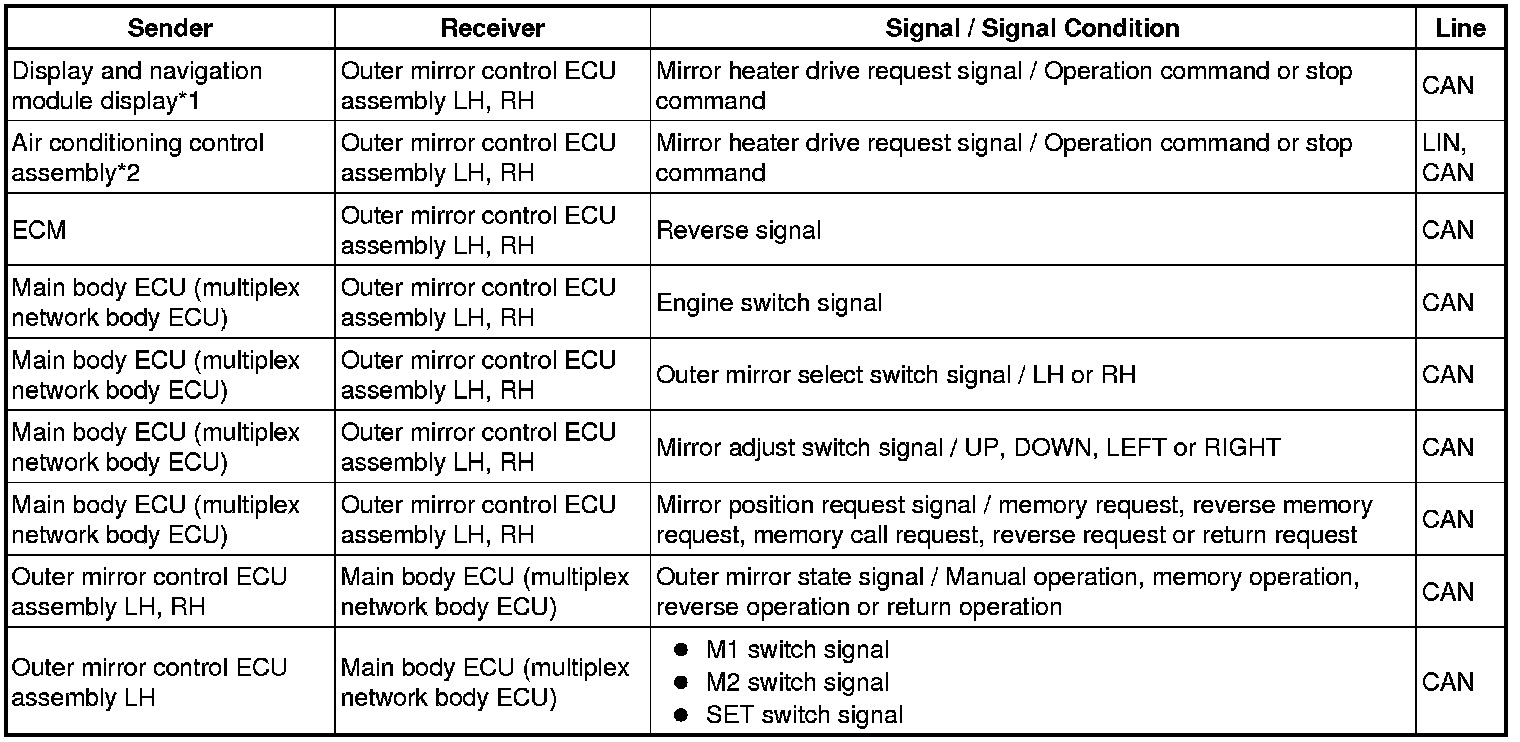

Communication Table





* *1: w/ Navigation System

* *2: w/o Navigation System





SYSTEM DESCRIPTION

1. POWER MIRROR CONTROL SYSTEM DESCRIPTION

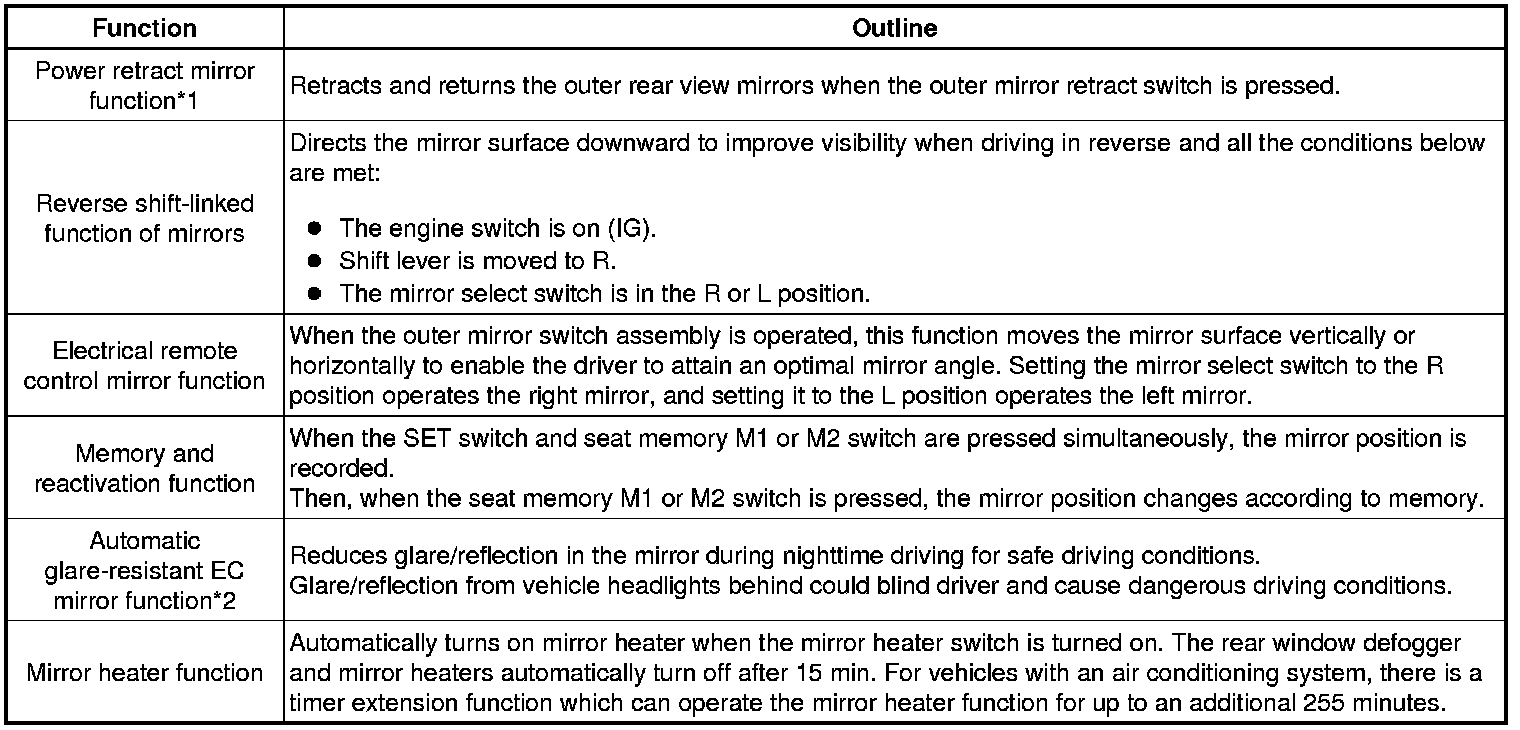

(a) This system has the following functions: electric retract function*1, automatic glare-resistant electrochromic (EC) mirror function*2, reverse shift-linked function, electrical remote control function, memory function and mirror heater function.

*1: w/ Retract Mirror

*2: w/ EC Mirror

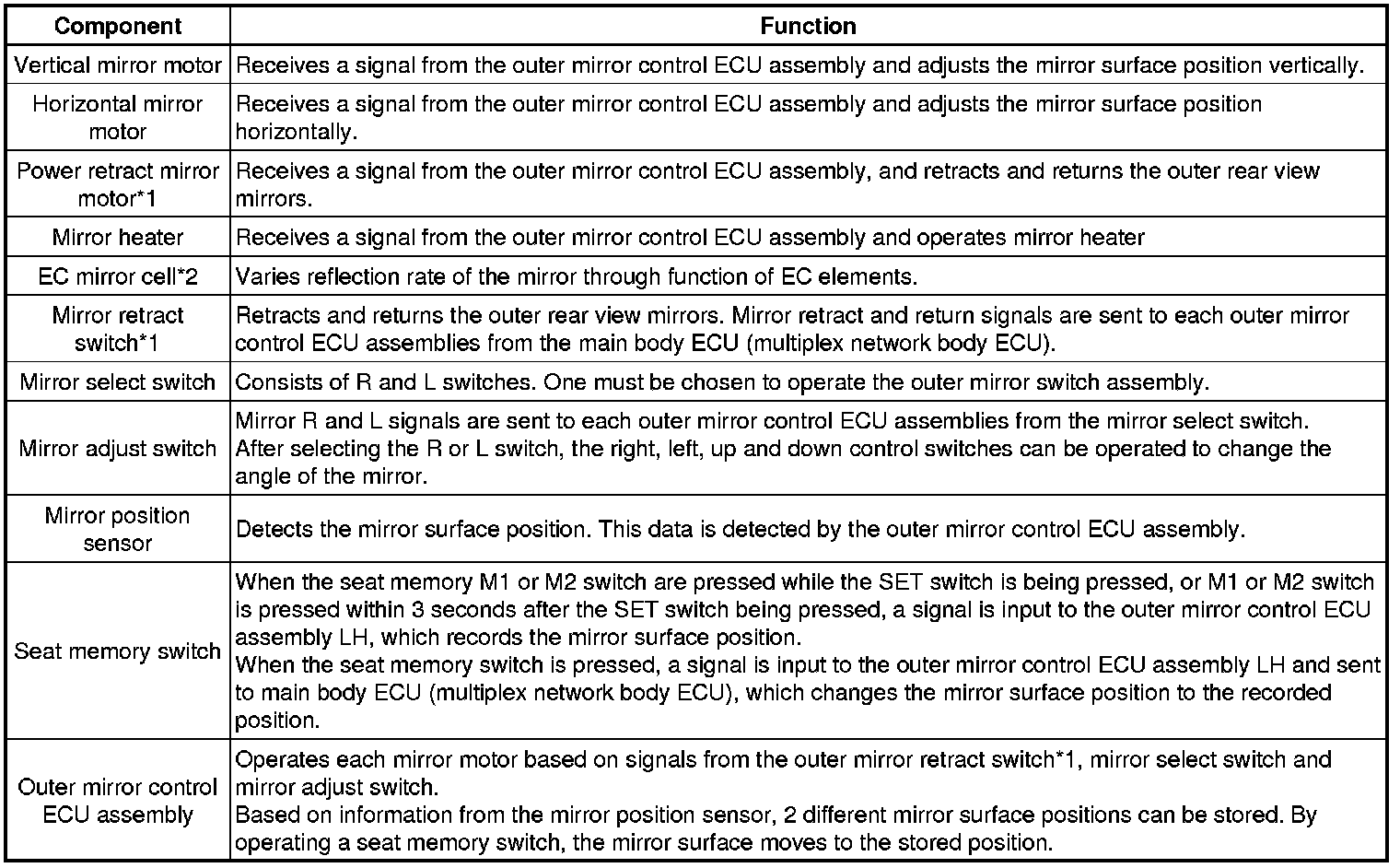

2. FUNCTION OF MAIN COMPONENT





*1: w/ Retract Mirror

*2: w/ EC Mirror

3. SYSTEM OPERATION

(a) The remote control mirror has the following features.





*1: w/ Retract Mirror

*2: w/ EC Mirror
