Service Data





SPECIFICATIONS: SEAT: SERVICE DATA

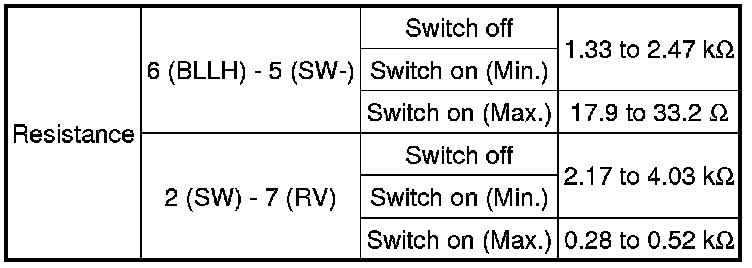

Seat Heater Switch LH (for Front Side)





Seat Heater Switch RH (for Front Side)





Front Seatback Heater





Rear Seatback Heater (for 60/40 Split Slide Walk-in Seat Type LH Side)





Rear Seatback Heater (for 60/40 Split Slide Walk-in Seat Type RH Side)

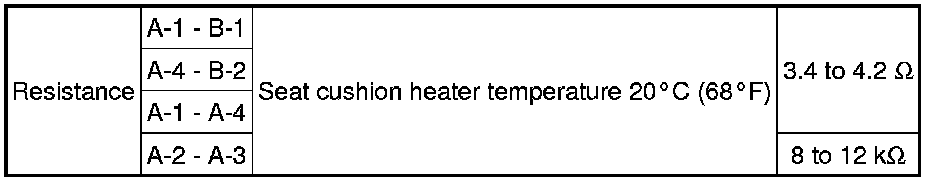

Front Seat Cushion Heater





Rear Seat Cushion Heater (for 60/40 Split Slide Walk-in Seat Type LH Side)





Rear Seat Cushion Heater (for 60/40 Split Slide Walk-in Seat Type RH Side)
