Torque Specifications
SPECIFICATIONS: SEAT: TORQUE SPECIFICATIONS

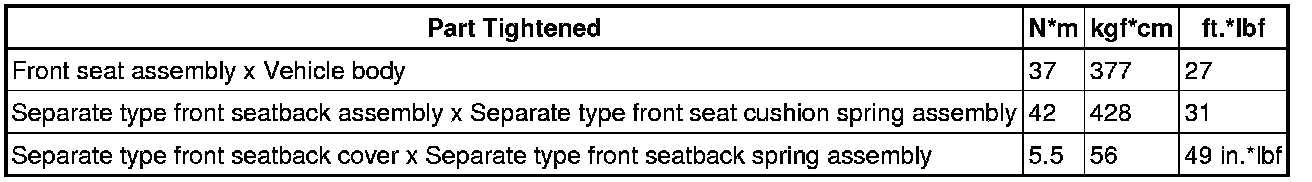

Front Seat Assembly

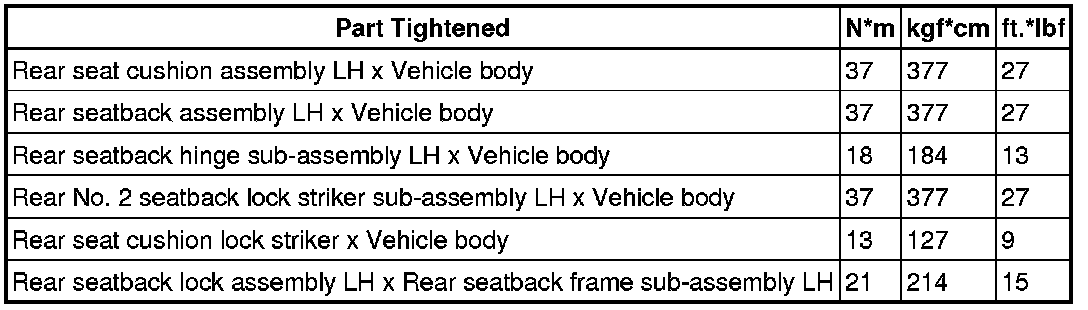

Rear No. 1 Seat Assembly (for 60/40 Split Double-folding Seat Type LH Side)

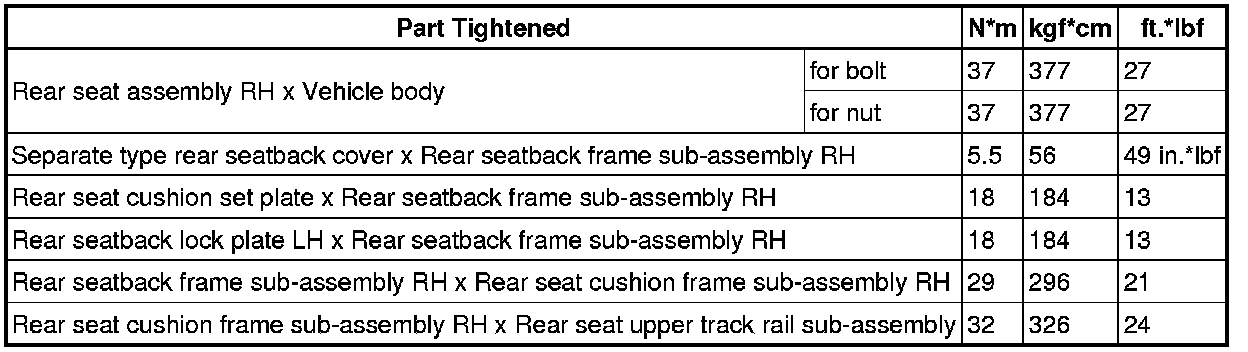

Rear No. 1 Seat Assembly (for 60/40 Split Double-folding Seat Type RH Side)
HINT
"TORX" is a registered trademark of Textron Inc.

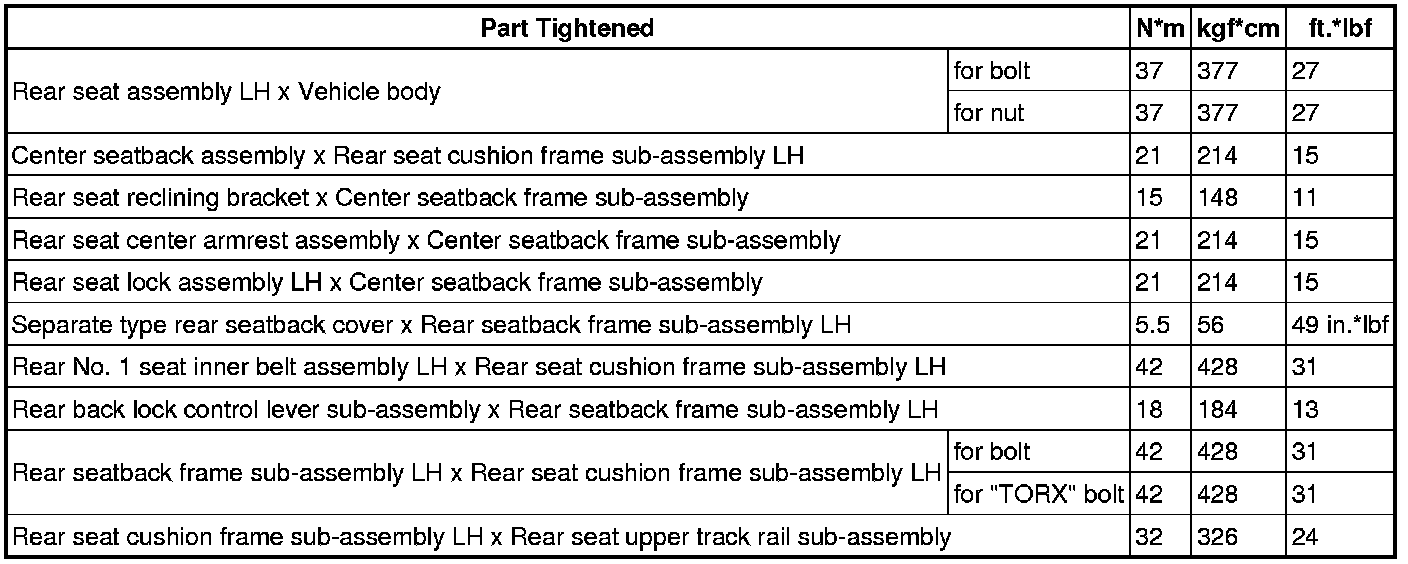

Rear No. 1 Seat Assembly (for 60/40 Split Slide Walk-in Seat Type LH Side)
HINT
"TORX" is a registered trademark of Textron Inc.
Rear No. 1 Seat Assembly (for 60/40 Split Slide Walk-in Seat Type RH Side)

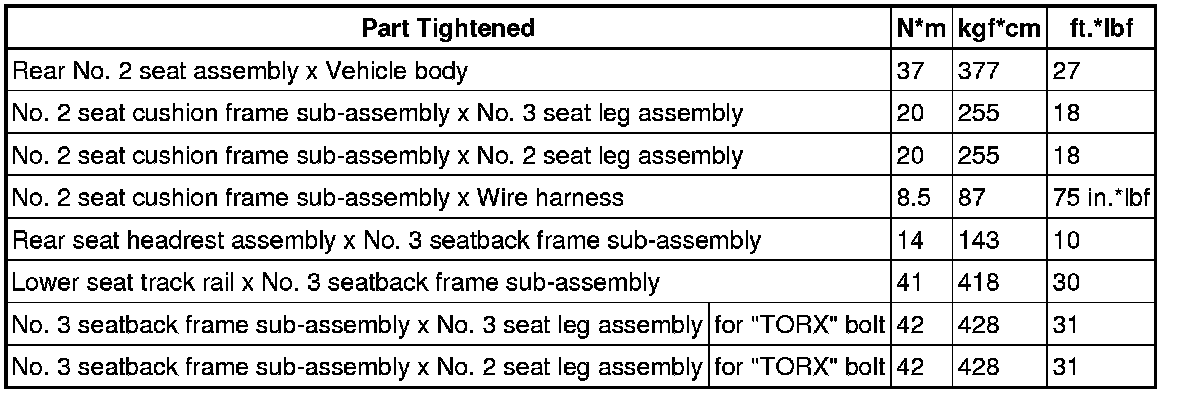

Rear No. 2 Seat Assembly
HINT
"TORX" is a registered trademark of Textron Inc.

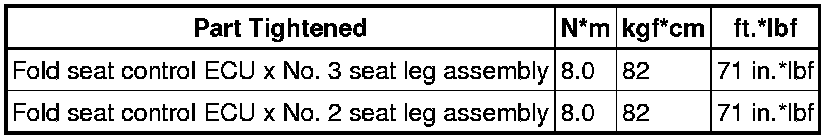

POWER SEAT CONTROL ECU (for Rear No. 2 Seat)
