Relay Box

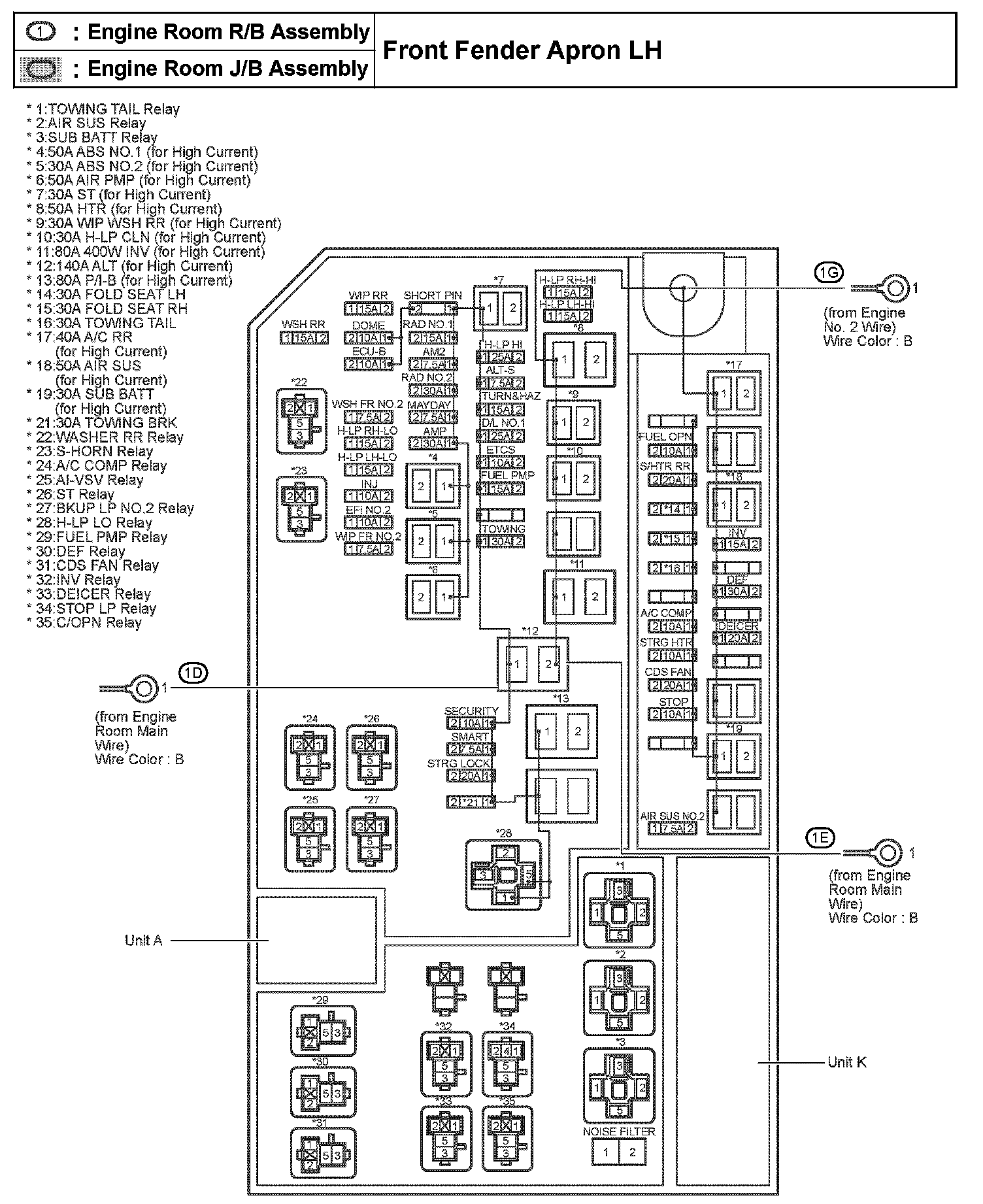

Engine Room R/B Assembly, Engine Room J/B Assembly - Front Fender Apron LH:

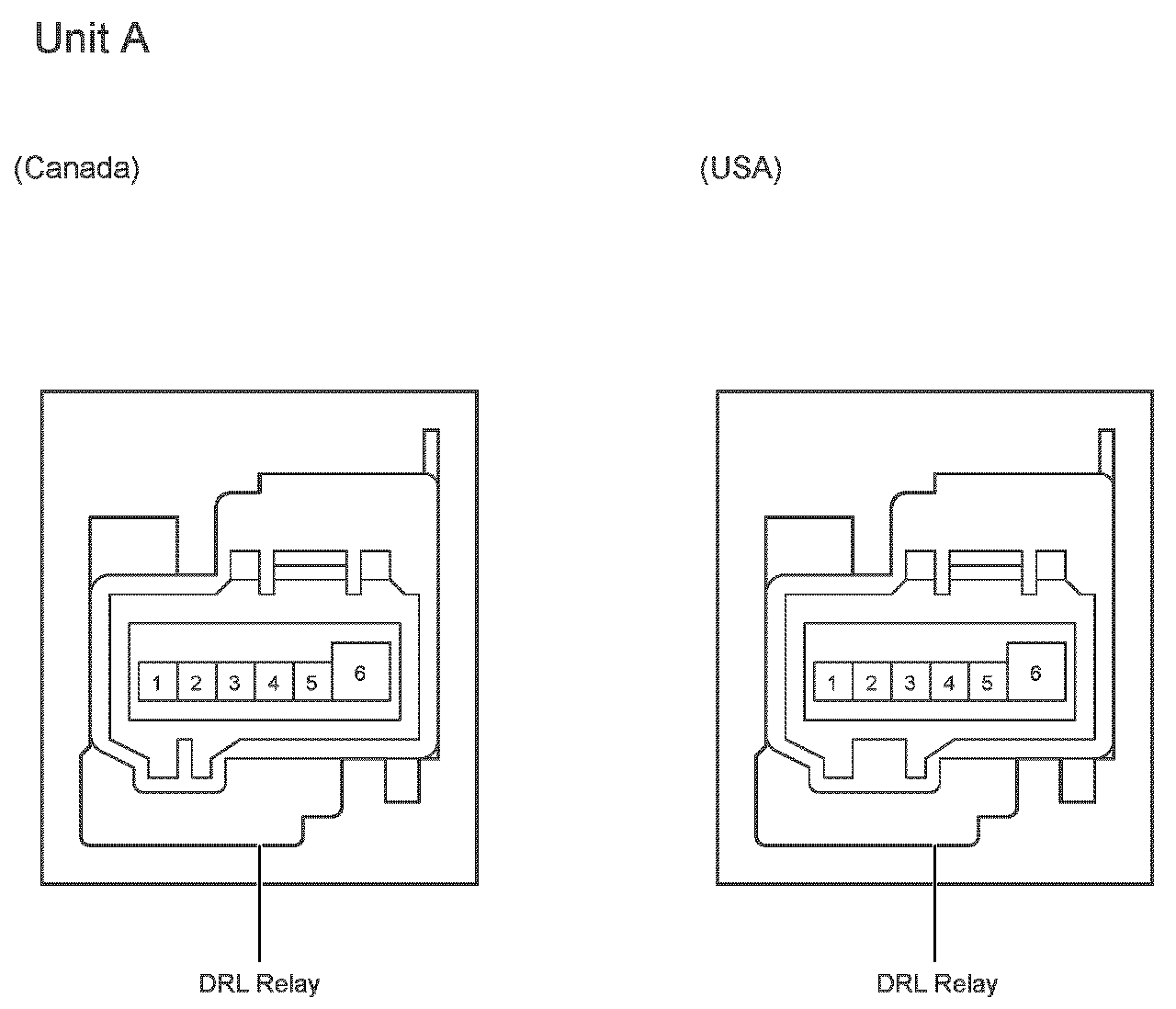

Engine Room R/B Assembly, Engine Room J/B Assembly - Front Fender Apron LH:





Engine Room R/B Assembly, Engine Room J/B Assembly - Front Fender Apron LH:
