Lexus Navigation System (17 Speaker)

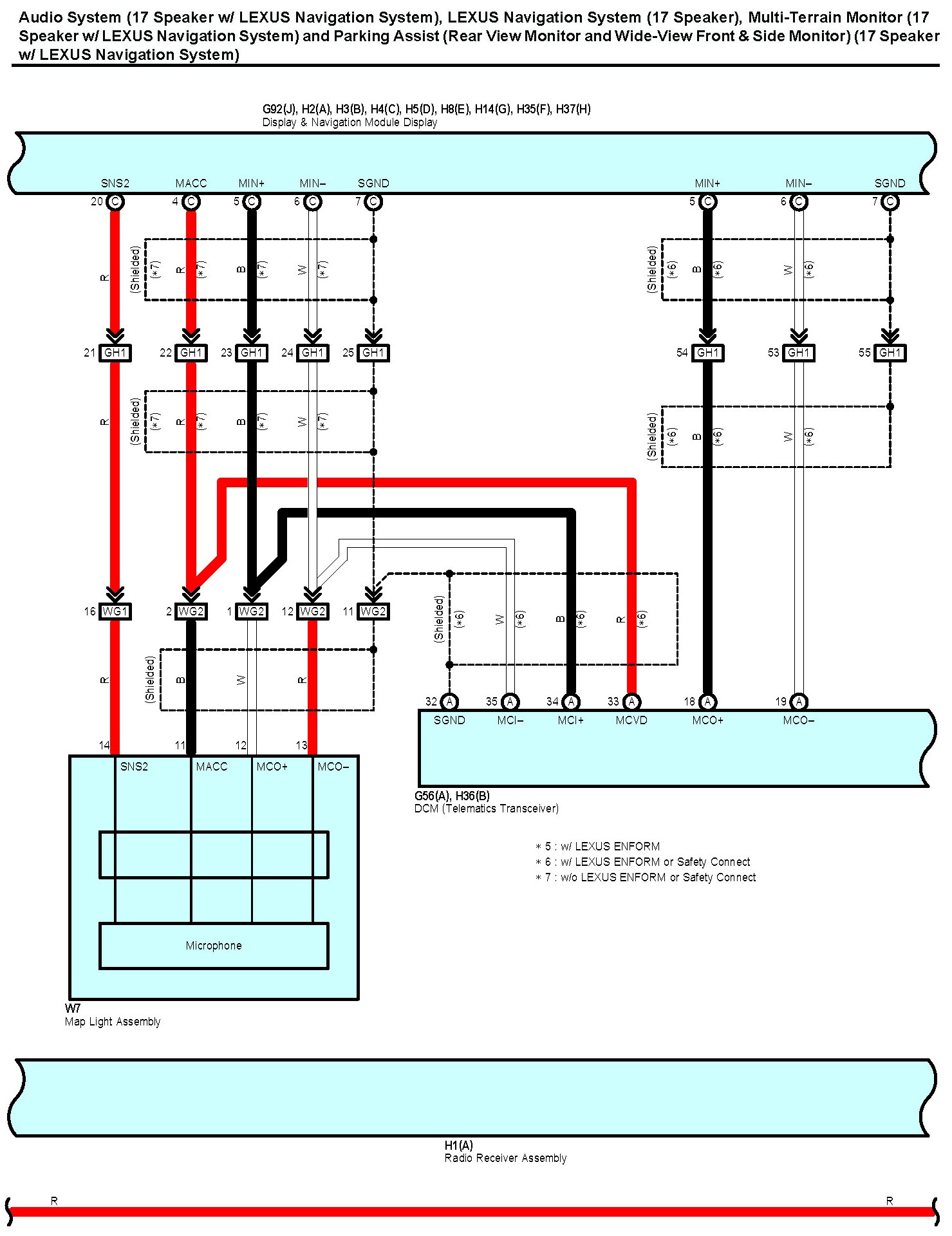

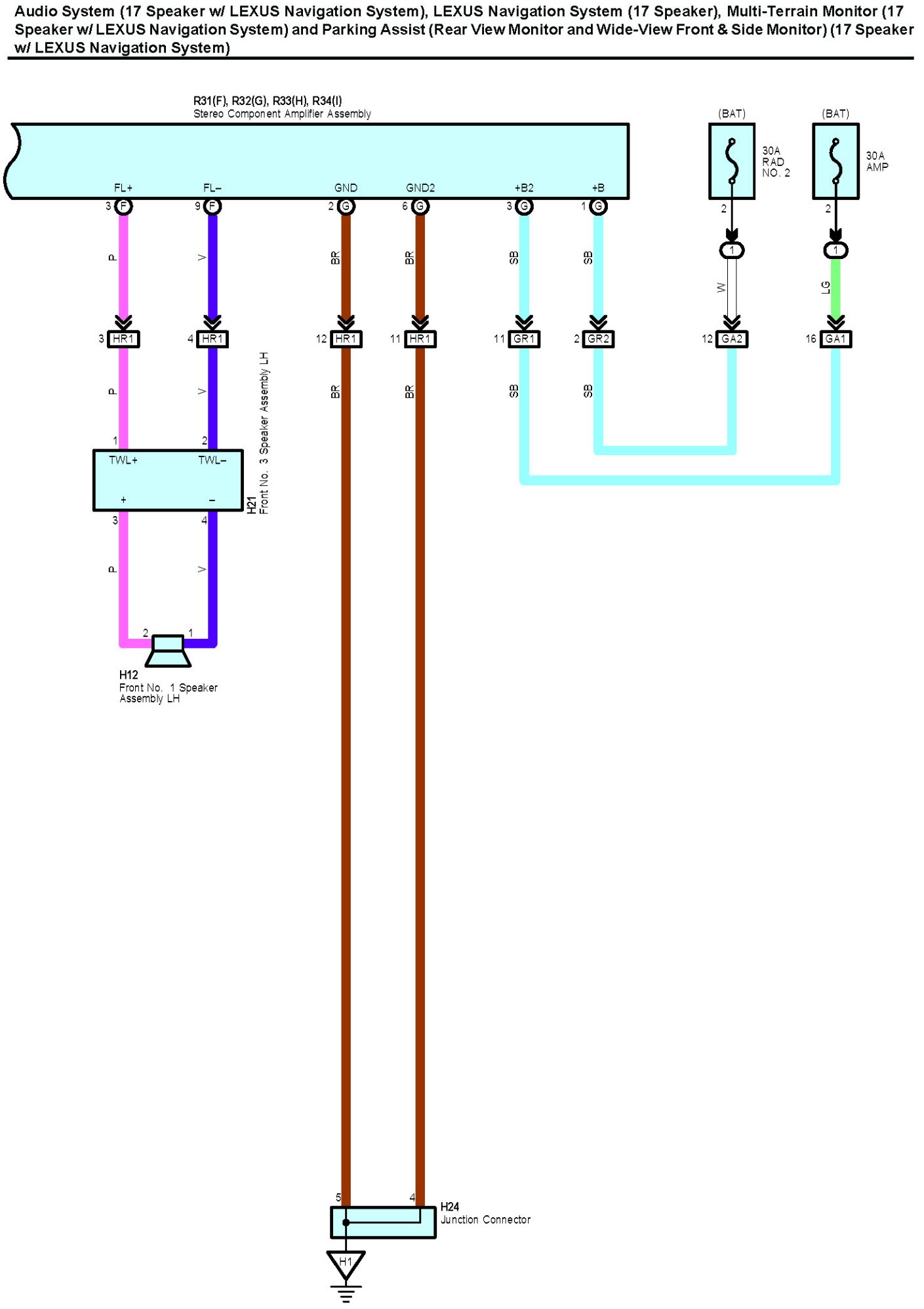

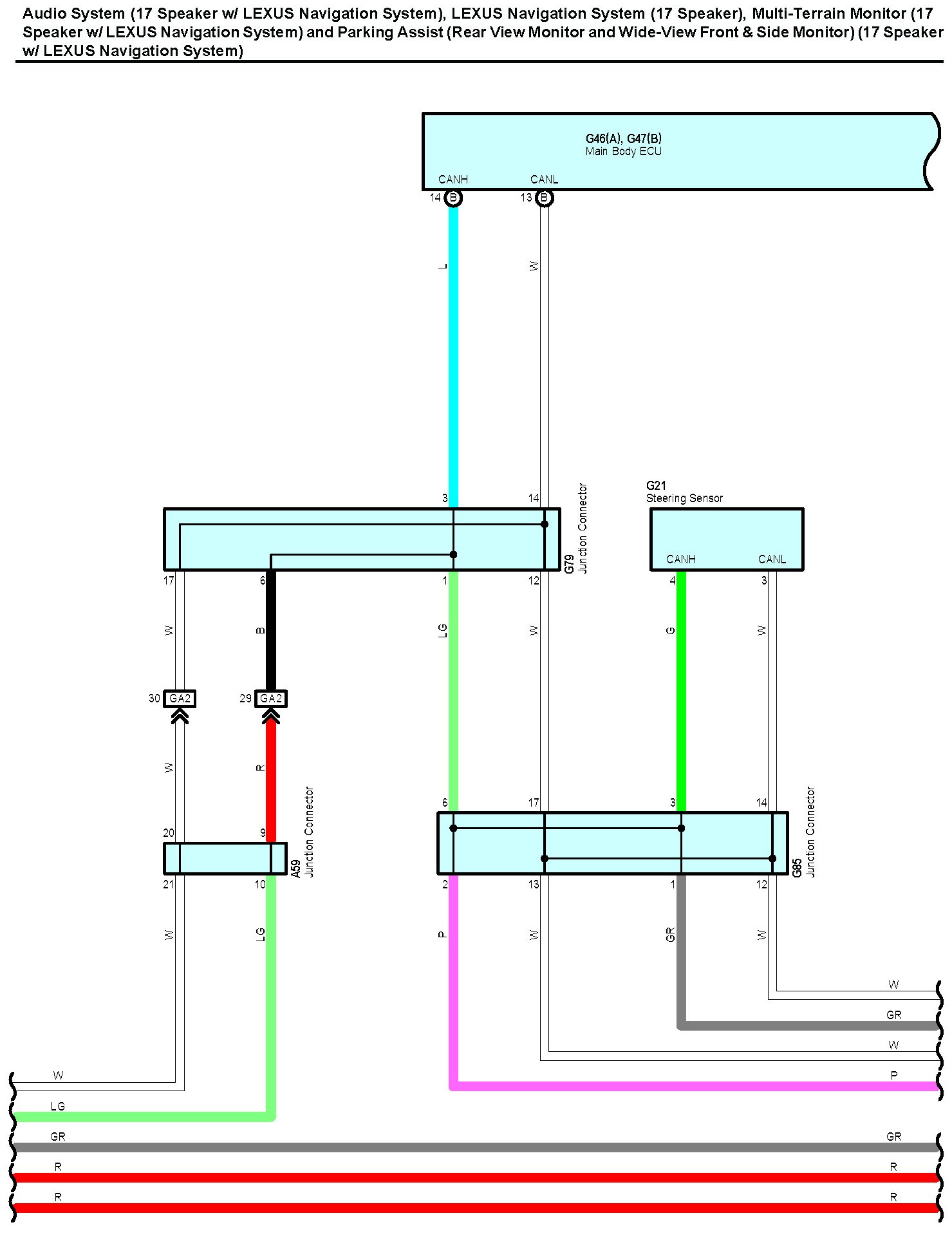

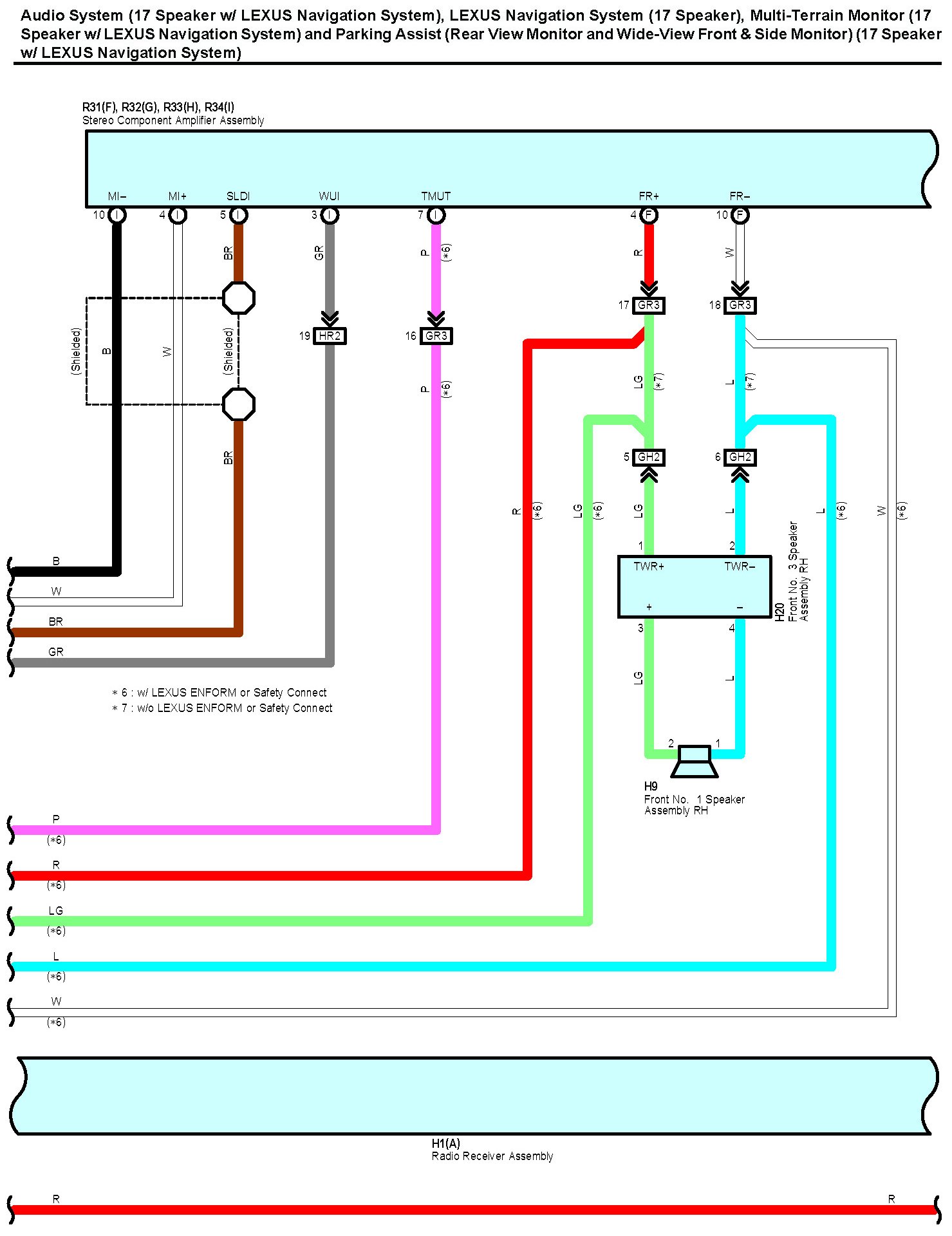

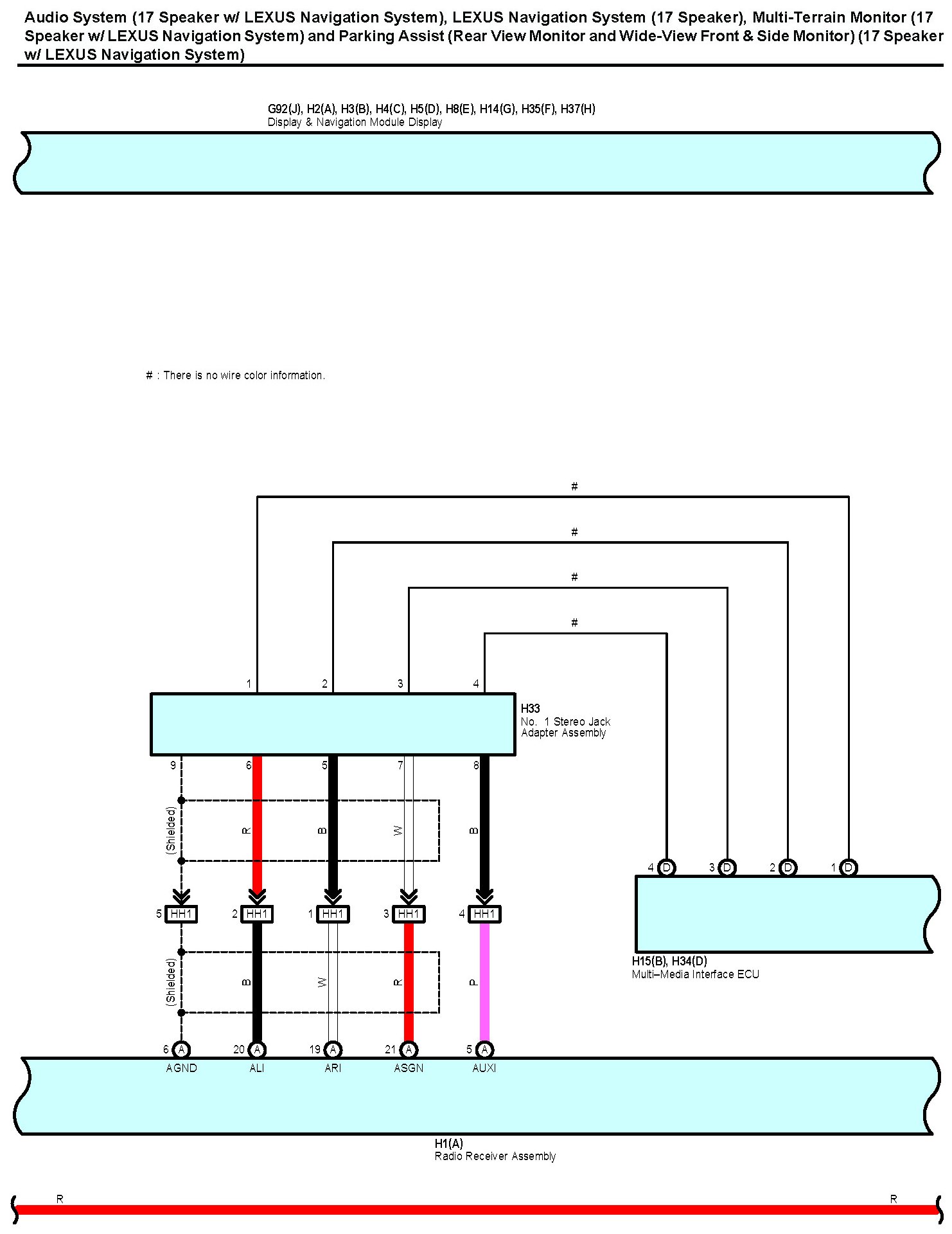

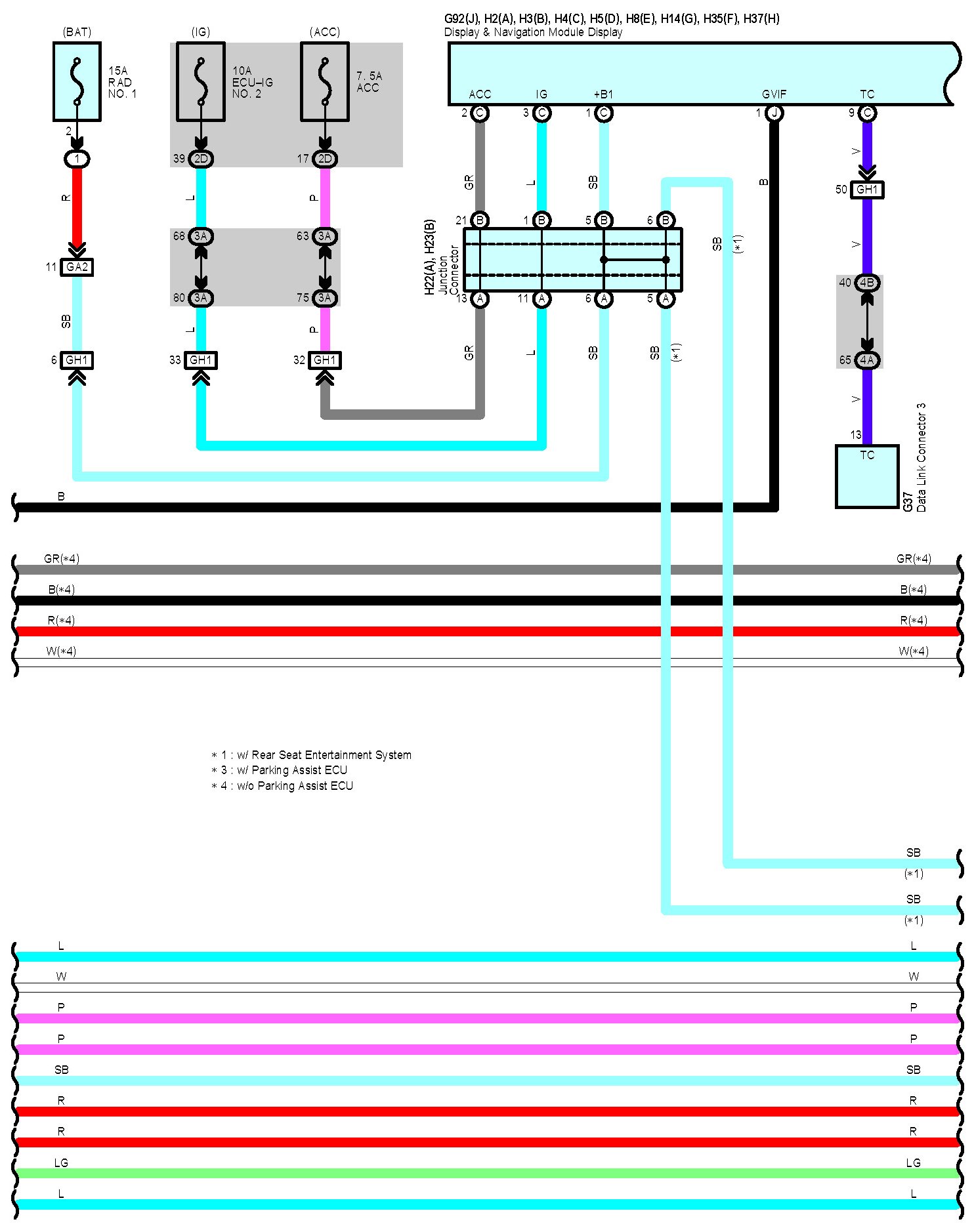

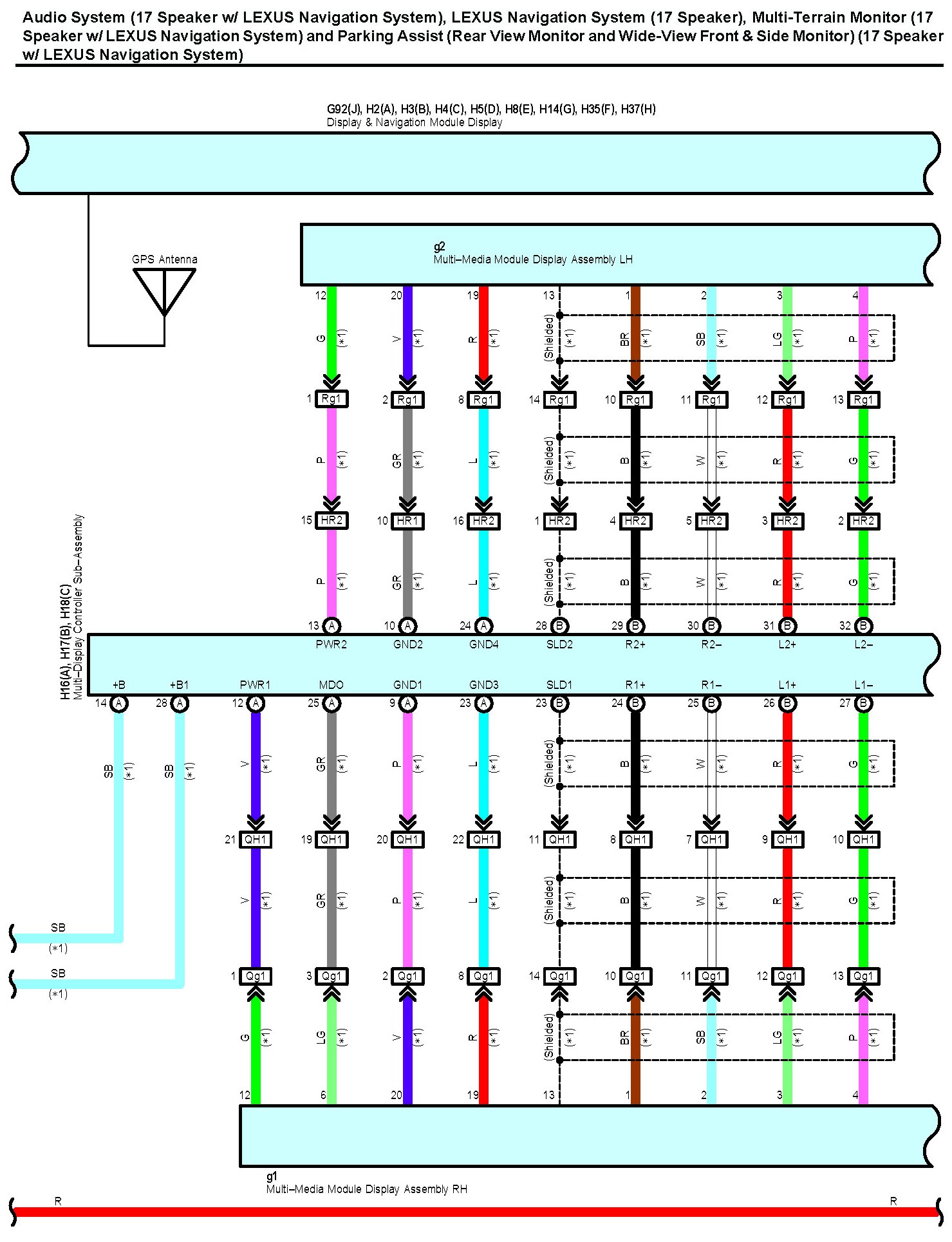

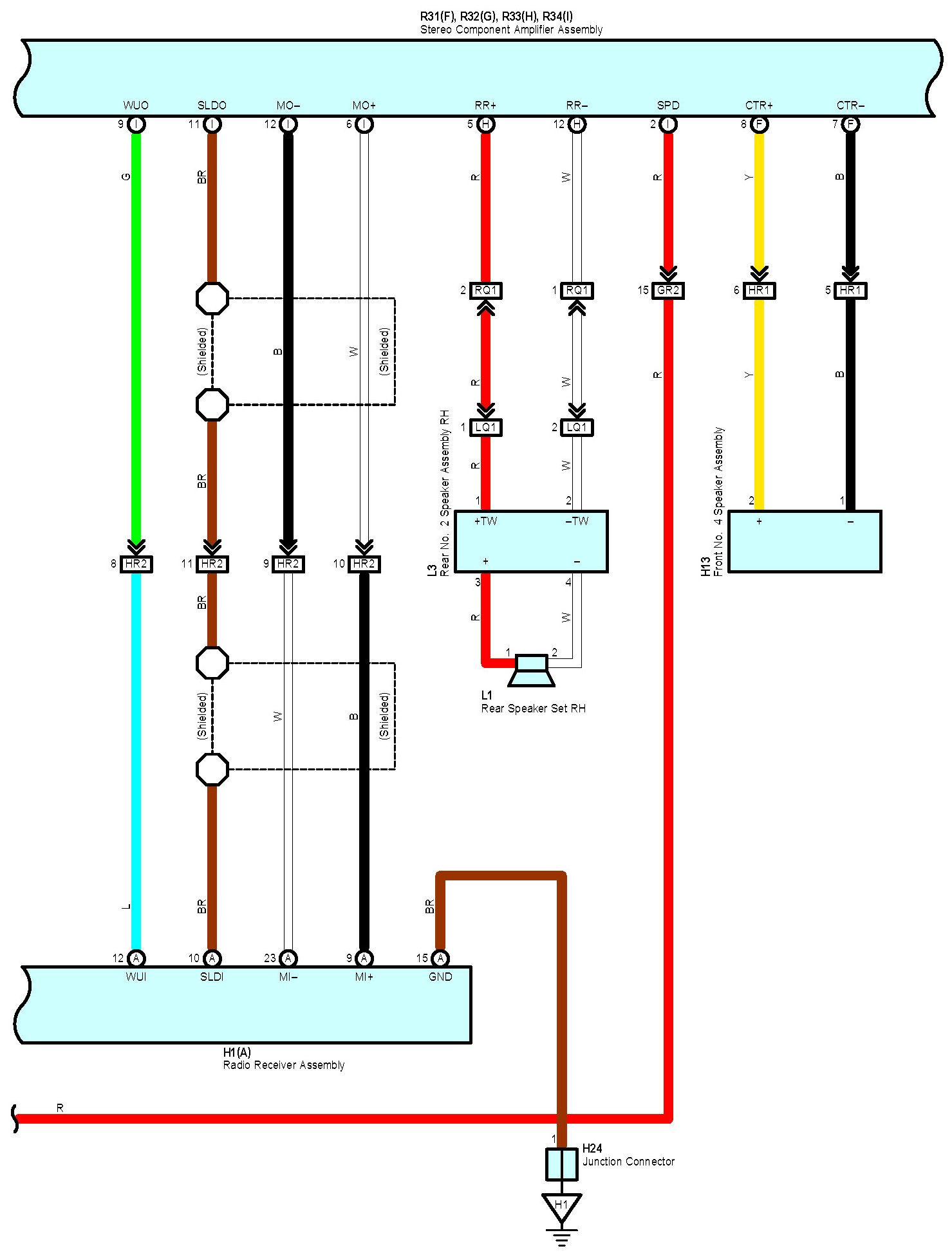

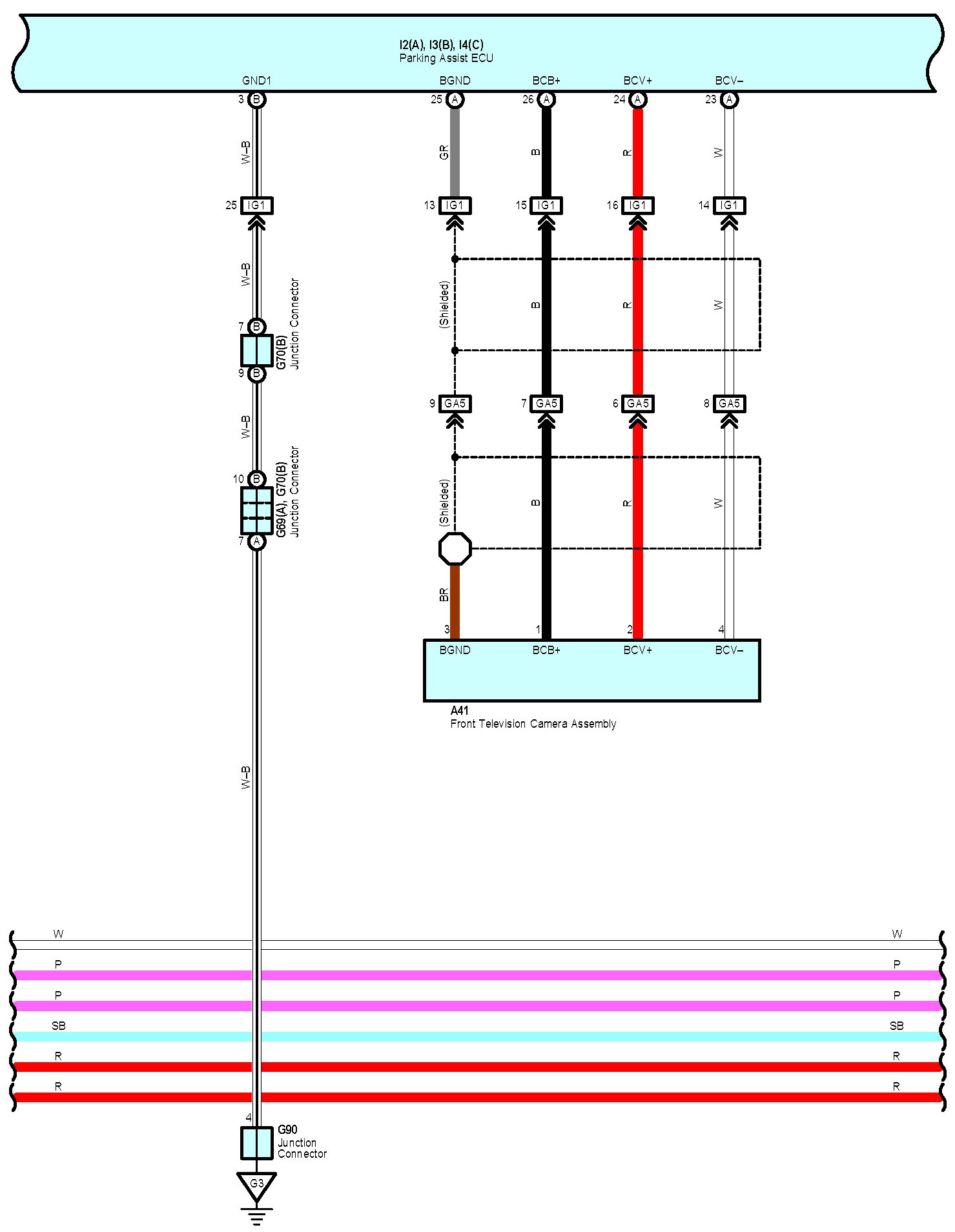

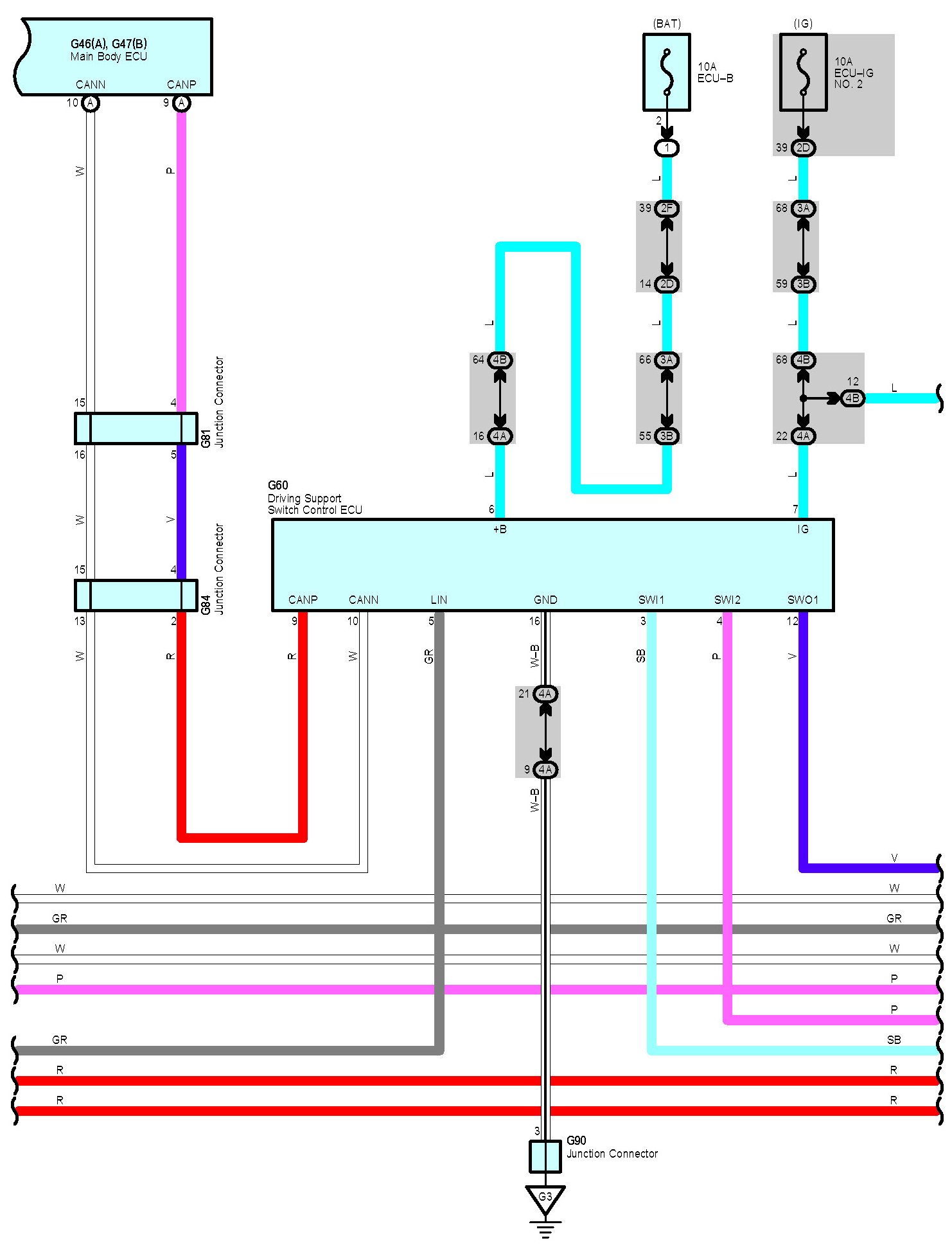

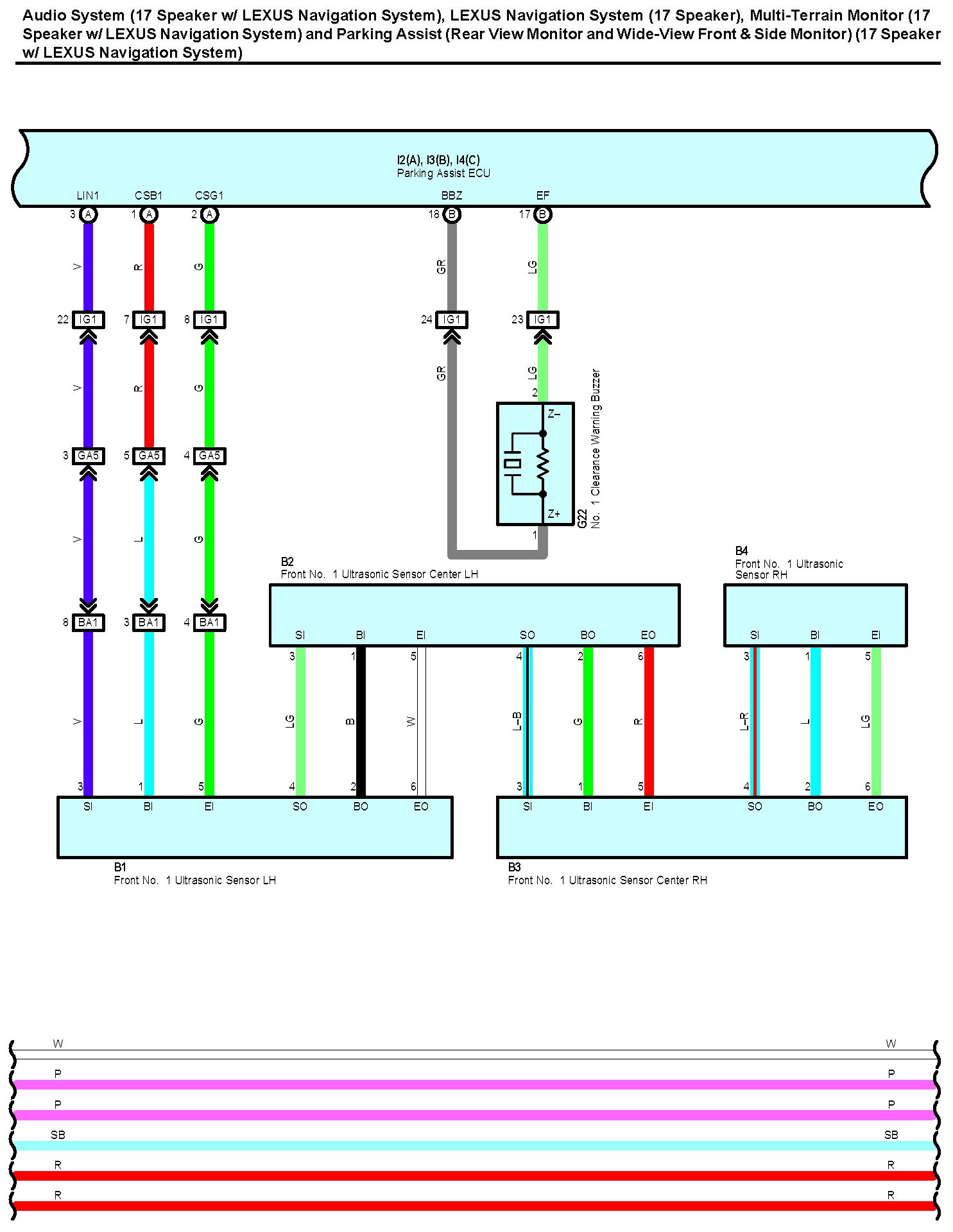

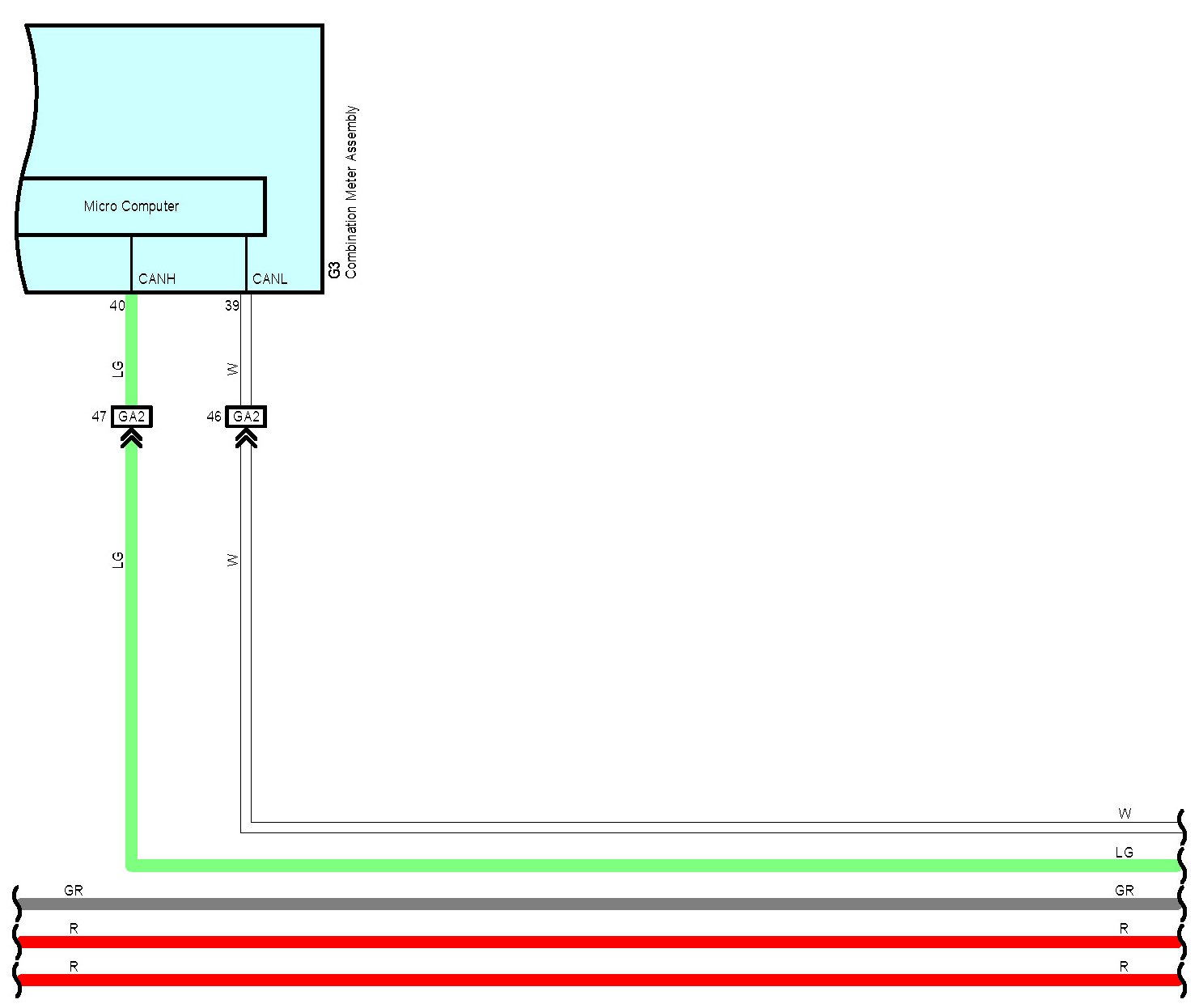

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) (17 Speaker w/ LEXUS Navig:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) (17 Speaker w/ LEXUS Navig:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor):

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 4:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 5:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 6:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 7:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 8:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 9:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 10:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 11:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 12:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 13:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 14:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 15:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 16:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 17:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 18:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 19:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 20:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 21:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 22:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 23:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 24:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 25:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 26:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 27:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 28:

Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) Part 29:

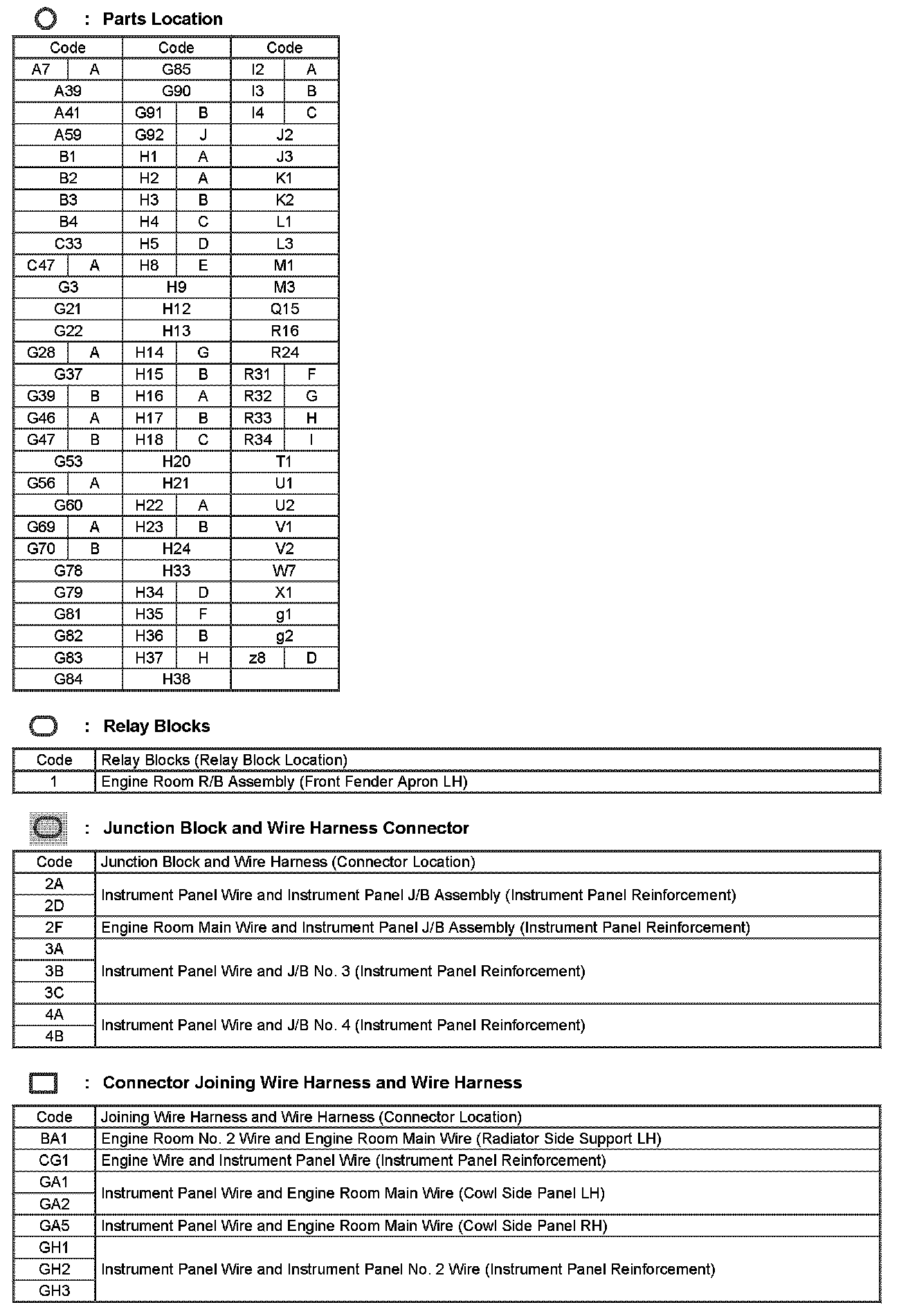

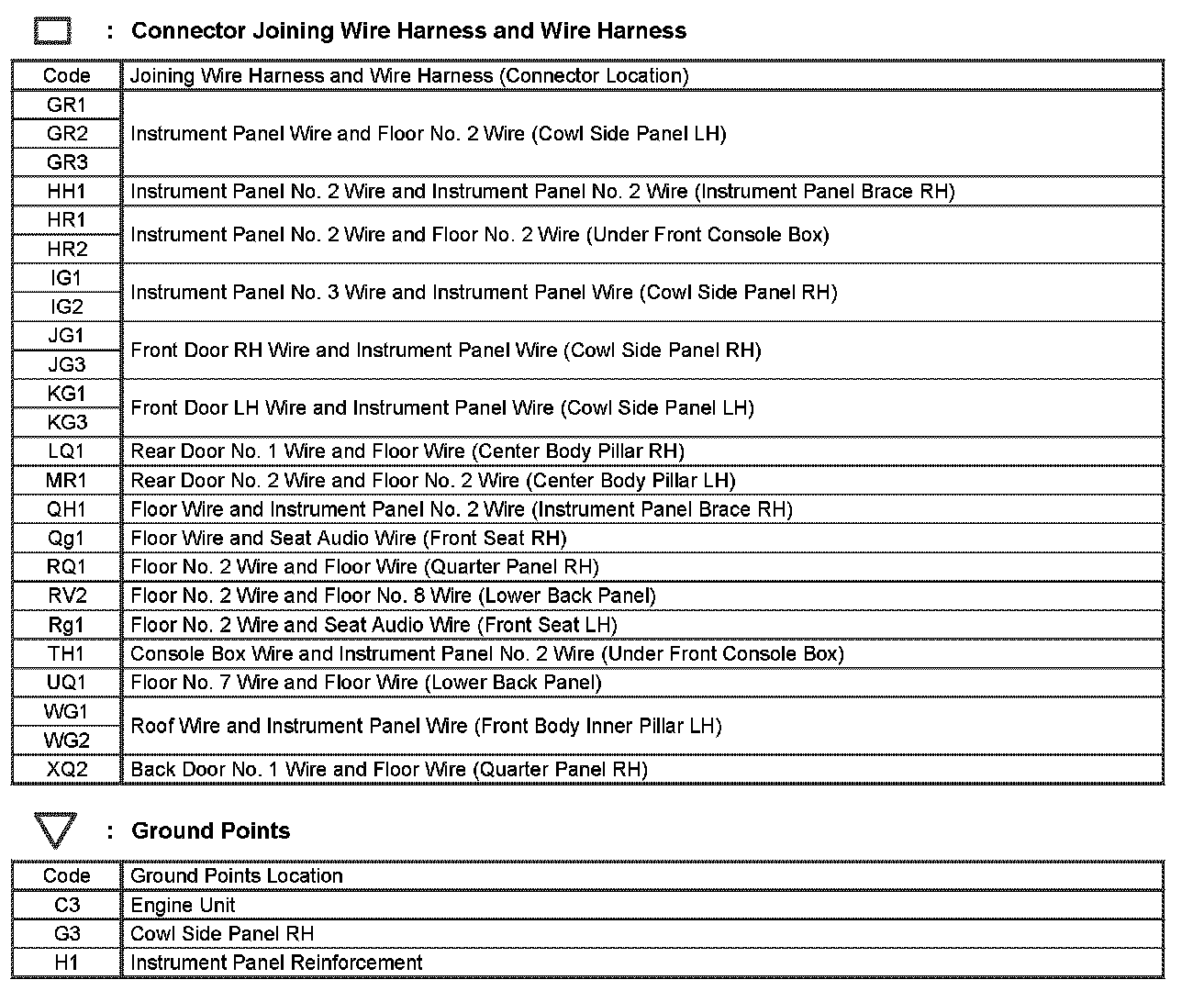

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
